ZSA44L-ANFXPW (2015)
Toyota Rav4

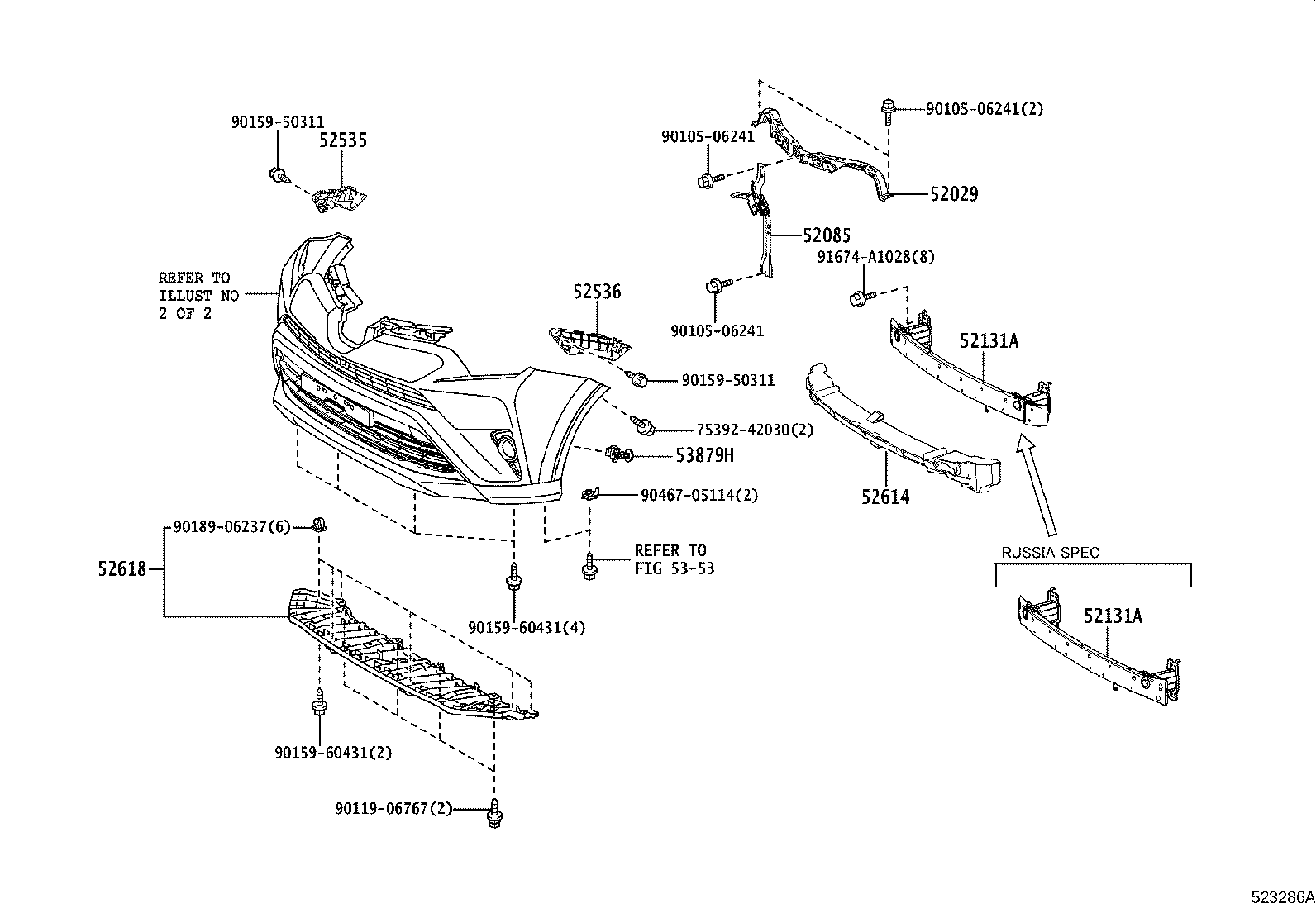

ILLUST NO. 1 OF 2(1510- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER | ||||
| 52029-42100 |
ALA4#,ZSA44 |
1 | ||
| 52029-42110 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 52085 - STAY SUB-ASSY, FRONT BUMPER, CENTER | ||||
| 52085-42050 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 52085-42040 |
ALA4#,ZSA44 |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52021-42110 |
ALA4#,ZSA44 |
1 | ||
| 52021-42110 |
ASA44,AVA4#,WWA42,ZSA44..EUR |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52021-42110 |
ALA4#,ZSA44 |
1 | ||
| 52021-42110 |
ASA44,AVA4#,WWA42,ZSA44..EUR |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-42070 |
ALA4#,ZSA44 |
1 | ||
| 52535-42080 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-42070 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 52536-42050 |
ALA4#,ZSA44 |
1 | ||
| 52614 - ABSORBER, FRONT BUMPER ENERGY, NO.2 | ||||
| 52614-42080 |
ALA4#,ZSA44 |
1 | ||
| 52614-42110 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-42070 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 52618-42050 |
ALA4#,ZSA44 |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-28010 |
ALA4#,ZSA44 |
2 | ||
| 53879-28010 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
2 | ||
| Common parts | ||||
| 75392-42030 | ||||
| 90105-06241 | ||||
| 90119-06767 | ||||
| 90159-50311 | ||||
| 90159-60431 | ||||
| 90189-06237 | ||||
| 90467-05114 | ||||
| 91674-A1028 | ||||
| Linked diagrams | ||||
| 5353 | ||||

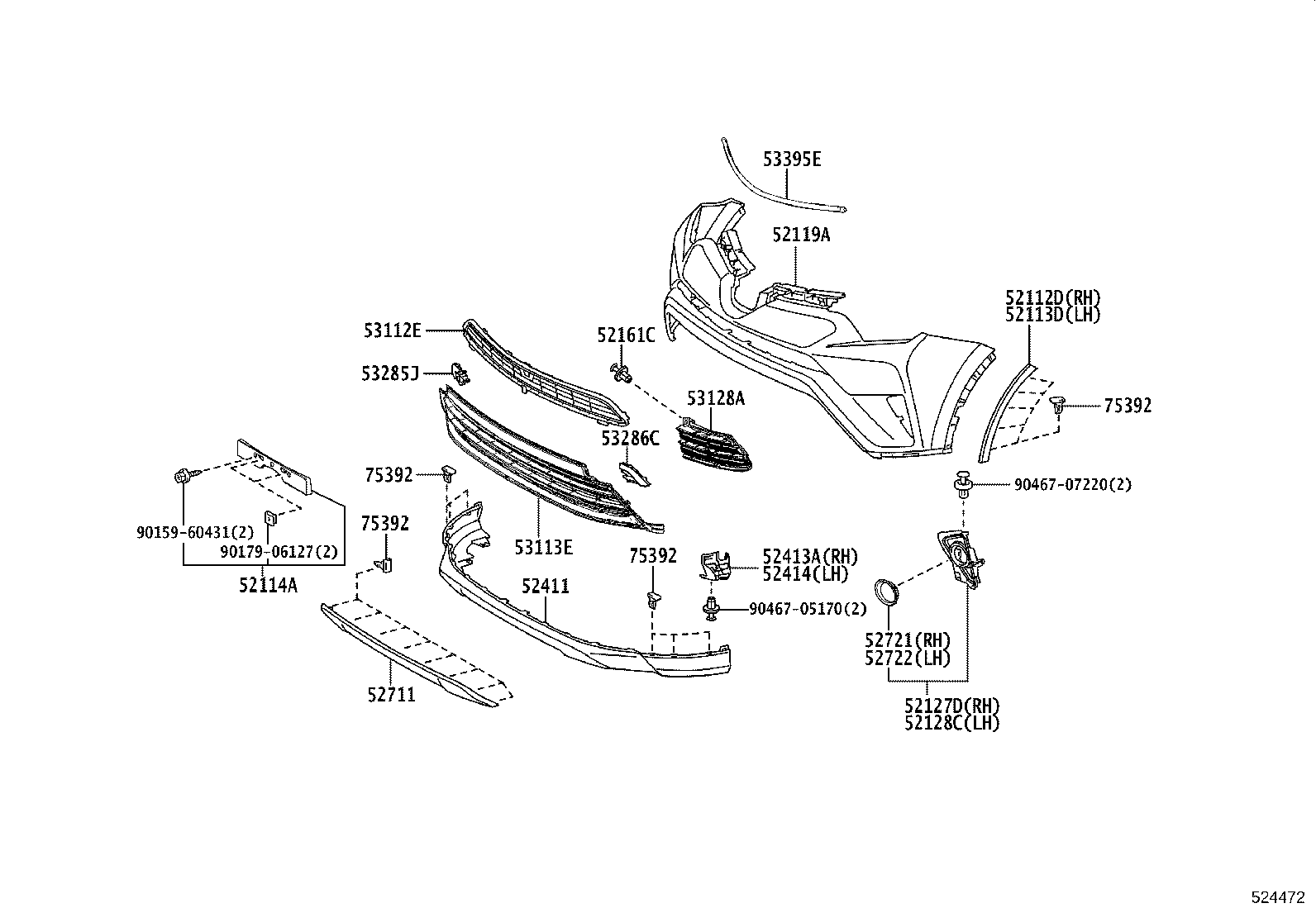

ILLUST NO. 2 OF 2(1510- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52112D - EXTENSION, FRONT BUMPER, RH | ||||
| 52112-42904 |
AVA4#,ZSA44..LHD..M..EUR PAINT REQ.,MID+ PACKAGE&COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52112-42904 |
AVA4#,ZSA44..LHD..M..EUR PAINT REQ.,MID+ PACKAGE&COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52112-42904 |
AVA4#,WWA42,ZSA44..LHD..M..EUR PAINT REQ.,MID+ PACKAGE&COLD AREA SPEC&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE &BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52112-42904 |
AVA4#,WWA42,ZSA44..M..EUR PAINT REQ.,MID+ PACKAGE&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52112-42904 |
AVA4#,WWA42,ZSA44..LHD..M..EUR PAINT REQ.,MID+ PACKAGE&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52112-42100 |
ALA4#,ZSA44 NO PAINT REQ. |
1 | ||
| 52112-42110 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) NO PAINT REQ. |
1 | ||
| 52112-42904 |
AVA4#,ZSA44..M..EUR PAINT REQ.,MID+ PACKAGE&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52112-42904 |
AVA4#,WWA42,ZSA44..LHD..M..EUR PAINT REQ.,MID+ PACKAGE&COLD AREA SPEC&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE &BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52112-42904 |
AVA4#,ZSA44..LHD..M..EUR PAINT REQ.,MID+ PACKAGE&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52112-42904 |
AVA4#,WWA42,ZSA44..LHD..M..EUR PAINT REQ.,MID+ PACKAGE&COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52112-42904 |
AVA4#,WWA42,ZSA44..LHD..M..EUR PAINT REQ.,MID+ PACKAGE&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52112-42904 |
AVA4#,WWA42,ZSA44..LHD..M..EUR PAINT REQ.,MID+ PACKAGE&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52112-42904 |
AVA4#,WWA42,ZSA44..LHD..M..EUR PAINT REQ.,MID+ PACKAGE&COLD AREA SPEC&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52112-42904 |
AVA4#,WWA42,ZSA44..M..EUR PAINT REQ.,PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52112-42904 |
AVA4#,WWA42,ZSA44..LHD..M..EUR PAINT REQ.,MID+ PACKAGE&COLD AREA SPEC & WITH(STEERING HEATER)&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52112-42904 |
AVA4#,WWA42,ZSA44..LHD..M..EUR PAINT REQ.,MID+ PACKAGE&COLD AREA SPEC & WITH(STEERING HEATER)&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACKMONITOR-WITH(*PVM) |
1 | ||
| 52112-42904 |
AVA4#,WWA42,ZSA44..LHD..M..EUR PAINT REQ.,COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52112-42904 |
AVA4#,WWA42,ZSA44..LHD..M..EUR PAINT REQ.,COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52112-42904 |
AVA4#,WWA42,ZSA44..LHD..M..EUR PAINT REQ.,COLD AREA SPEC & WITH(STEERING HEATER)&PRE-COLLISION SYSTEM-WITH&FRONTBUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52112-42904 |
AVA4#,WWA42,ZSA44..LHD..M..EUR PAINT REQ.,COLD AREA SPEC & WITH(STEERING HEATER)&PRE-COLLISION SYSTEM-WITH&FRONTBUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52112-42904 |
AVA4#,WWA42,ZSA44..LHD..M..EUR PAINT REQ.,PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52113D - EXTENSION, FRONT BUMPER, LH | ||||
| 52113-42903 |
AVA4#,WWA42,ZSA44..LHD..M..EUR NO PAINT REQ.,MID+ PACKAGE&COLD AREA SPEC&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52113-42903 |
AVA4#,ZSA44..LHD..M..EUR NO PAINT REQ.,MID+ PACKAGE&COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52113-42903 |
AVA4#,WWA42,ZSA44..LHD..M..EUR NO PAINT REQ.,MID+ PACKAGE&COLD AREA SPEC&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52113-42903 |
AVA4#,ZSA44..LHD..M..EUR NO PAINT REQ.,MID+ PACKAGE&COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52113-42903 |
AVA4#,WWA42,ZSA44..M..EUR NO PAINT REQ.,MID+ PACKAGE&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52113-42903 |
AVA4#,ZSA44..LHD..M..EUR NO PAINT REQ.,MID+ PACKAGE&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52113-42903 |
AVA4#,ZSA44..M..EUR NO PAINT REQ.,MID+ PACKAGE&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52113-42100 |
ALA4#,ZSA44 NO PAINT REQ. |
1 | ||
| 52113-42120 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) NO PAINT REQ. |
1 | ||
| 52113-42903 |
AVA4#,WWA42,ZSA44..LHD..M..EUR NO PAINT REQ.,MID+ PACKAGE&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52113-42903 |
AVA4#,WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52113-42903 |
AVA4#,WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52113-42903 |
AVA4#,WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52113-42903 |
AVA4#,WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52113-42903 |
AVA4#,WWA42,ZSA44..M..EUR PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52113-42903 |
AVA4#,WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52113-42903 |
AVA4#,WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC & WITH(STEERING HEATER)&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52113-42903 |
AVA4#,WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC & WITH(STEERING HEATER)&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52113-42903 |
AVA4#,WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC & WITH(STEERING HEATER)&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52113-42903 |
AVA4#,WWA42,ZSA44..LHD..M..EUR PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52113-42903 |
AVA4#,WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52113-42903 |
AVA4#,WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC & WITH(STEERING HEATER)&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-42120 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-4A904 |
ALA4#,ZSA44 PAINT REQ. |
1 | ||
| 52119-4A905 |
ALA4#,ZSA44..LHD..(G,M) PAINT REQ.,COLD AREA SPEC |
1 | ||
| 52119-4A905 |
ALA4#,ZSA44..LHD..M PAINT REQ.,FRONT BUMPER-W(PLATING MOULDING)&HEADLAMP-DISCHARGE & W(*AHB) |
1 | ||
| 52119-4A905 |
ALA4#,ZSA44..LHD..M PAINT REQ.,COLD AREA SPEC&FRONT BUMPER-W(PLATING MOULDING) |
1 | ||
| 52119-4A905 |
ALA49,ZSA44..LHD..M PAINT REQ.,COLD AREA SPEC&FRONT BUMPER-W(PLATING MOULDING)&HEADLAMP-DISCHARGE & W(*AHB) |
1 | ||
| 52119-4A905 |
ALA49,ZSA44..LHD..(G,M) PAINT REQ.,COLD AREA SPEC&HEADLAMP-DISCHARGE |
1 | ||
| 52119-4A905 |
ALA49,ZSA44..LHD..M PAINT REQ.,COLD AREA SPEC&FRONT BUMPER-W(PLATING MOULDING)&HEADLAMP-DISCHARGE |
1 | ||
| 52119-4A905 |
ALA49,ZSA44..LHD..(G,M) PAINT REQ.,COLD AREA SPEC&HEADLAMP-DISCHARGE & W(*AHB) |
1 | ||
| 52119-4A905 |
ALA4#,ZSA44..LHD..M PAINT REQ.,FRONT BUMPER-W(PLATING MOULDING)&HEADLAMP-DISCHARGE |
1 | ||
| 52119-4A905 |
ALA4#,ZSA44..LHD..(G,M) PAINT REQ.,HEADLAMP-DISCHARGE & W(*AHB) |
1 | ||
| 52119-4A905 |
ALA49..LHD..G..DCR;ALA49..(G,M)..(DCRE,DCRL);ALA40,41,ZSA44..LHD..(G,M) PAINT REQ.,HEADLAMP-DISCHARGE |
1 | ||
| 52119-4A905 |
ALA4#,ZSA44..LHD..X PAINT REQ.,COLD AREA SPEC&FRONT FOG LAMP-WITH |
1 | ||
| 52119-4A911 |
AVA4#,WWA42,ZSA44..M..EUR PAINT REQ.,MID+ PACKAGE&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52119-4A911 |
AVA4#,WWA42,ZSA44..LHD..M..EUR PAINT REQ.,MID+ PACKAGE&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52119-4A911 |
AVA4#,ZSA44..M..EUR PAINT REQ.,MID+ PACKAGE&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52119-4A913 |
AVA4#,ZSA44..LHD..M..EUR PAINT REQ.,MID+ PACKAGE&COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52119-4A913 |
AVA4#,ZSA44..LHD..M..EUR PAINT REQ.,MID+ PACKAGE&COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52119-4A911 |
AVA4#,ZSA44..LHD..M..EUR PAINT REQ.,MID+ PACKAGE&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52119-4A913 |
AVA4#,WWA42,ZSA44..LHD..M..EUR PAINT REQ.,MID+ PACKAGE&COLD AREA SPEC&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE &BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52119-4A911 |
AVA4#,WWA42,ZSA44..M..EUR PAINT REQ.,MID+ PACKAGE&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52119-4A913 |
AVA4#,WWA42,ZSA44..LHD..M..EUR PAINT REQ.,MID+ PACKAGE&COLD AREA SPEC&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE &BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52119-4A911 |
WWA42..RHD..M;AVA4#,ZSA44..M..EUR PAINT REQ.,MID+ PACKAGE&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52119-4A911 |
AVA4#,WWA42,ZSA44..M..EUR PAINT REQ.,CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52119-4A910 |
ASA44,AVA4#,WWA42,ZSA44..(M,X)..EUR PAINT REQ. |
1 | ||
| 52119-4A911 |
AVA4#,ZSA44..M..EUR PAINT REQ.,PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52119-4A912 |
AVA4#,WWA42,ZSA44..LHD..(M,X)..EUR PAINT REQ.,COLD AREA SPEC |
1 | ||
| 52119-4A913 |
AVA4#,ZSA44..LHD..M..EUR PAINT REQ.,MID+ PACKAGE&COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACKSONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52119-4A913 |
AVA4#,WWA42,ZSA44..LHD..M..EUR PAINT REQ.,COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52119-4A913 |
AVA4#,WWA42,ZSA44..LHD..M..EUR PAINT REQ.,MID+ PACKAGE&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52119-4A911 |
AVA4#,WWA42,ZSA44..LHD..M..EUR PAINT REQ.,MID+ PACKAGE&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52119-4A911 |
WWA42,ZSA44..LHD..X..EUR PAINT REQ.,PRE-COLLISION SYSTEM-WITH&AUDIO-6SPEAKER 7INCH DA-FULL EU&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52119-4A913 |
AVA4#,ZSA44..LHD..M..EUR PAINT REQ.,COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52119-4A911 |
AVA4#,WWA42,ZSA44..LHD..M..EUR PAINT REQ.,PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACKMONITOR-WITH(*PVM) |
1 | ||
| 52119-4A911 |
AVA4#,WWA42,ZSA44..LHD..M..EUR PAINT REQ.,PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52119-4A911 |
AVA4#,WWA42,ZSA44..M..EUR PAINT REQ.,PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52119-4A913 |
AVA4#,WWA42,ZSA44..LHD..M..EUR PAINT REQ.,MID+ PACKAGE&COLD AREA SPEC&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52119-4A913 |
AVA4#,WWA42,ZSA44..LHD..M..EUR PAINT REQ.,MID+ PACKAGE&COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52119-4A912 |
AVA4#,WWA42,ZSA44..LHD..M..EUR PAINT REQ.,COLD AREA SPEC & WITH(STEERING HEATER) |
1 | ||
| 52119-4A911 |
AVA4#,WWA42,ZSA44..LHD..M..EUR PAINT REQ.,MID+ PACKAGE&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52119-4A913 |
AVA4#,WWA42,ZSA44..LHD..M..EUR PAINT REQ.,COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52119-4A913 |
AVA4#,WWA42,ZSA44..LHD..M..EUR PAINT REQ.,MID+ PACKAGE&COLD AREA SPEC & WITH(STEERING HEATER)&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52119-4A913 |
AVA4#,WWA42,ZSA44..LHD..M..EUR PAINT REQ.,MID+ PACKAGE&COLD AREA SPEC & WITH(STEERING HEATER)&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACKMONITOR-WITH(*PVM) |
1 | ||
| 52119-4A913 |
AVA4#,WWA42,ZSA44..LHD..M..EUR PAINT REQ.,MID+ PACKAGE&COLD AREA SPEC & WITH(STEERING HEATER)&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52119-4A913 |
AVA4#,WWA42,ZSA44..LHD..M..EUR PAINT REQ.,MID+ PACKAGE&COLD AREA SPEC & WITH(STEERING HEATER)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52119-4A913 |
AVA4#,WWA42,ZSA44..LHD..M..EUR PAINT REQ.,COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52119-4A913 |
AVA4#,WWA42,ZSA44..LHD..M..EUR PAINT REQ.,COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52119-4A913 |
WWA42,ZSA44..LHD..X..EUR PAINT REQ.,COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&AUDIO-6SPEAKER 7INCH DA-FULL EU&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52119-4A913 |
AVA4#,WWA42,ZSA44..LHD..M..EUR PAINT REQ.,COLD AREA SPEC & WITH(STEERING HEATER)&PRE-COLLISION SYSTEM-WITH&FRONTBUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52119-4A913 |
AVA4#,WWA42,ZSA44..LHD..M..EUR PAINT REQ.,COLD AREA SPEC & WITH(STEERING HEATER)&PRE-COLLISION SYSTEM-WITH&FRONTBUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52119-4A913 |
AVA4#,WWA42,ZSA44..LHD..M..EUR PAINT REQ.,COLD AREA SPEC & WITH(STEERING HEATER)&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52119-4A913 |
AVA4#,WWA42,ZSA44..LHD..M..EUR PAINT REQ.,COLD AREA SPEC & WITH(STEERING HEATER)&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52119-4A913 |
AVA4#,WWA42,ZSA44..LHD..M..EUR PAINT REQ.,COLD AREA SPEC & WITH(STEERING HEATER)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52119-4A913 |
ZSA44..X..EUR PAINT REQ.,COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-42090 |
ALA49..G,M;ALA49..RHD..X;ALA40,41,ZSA44..RHD;ALA40,41,ZSA44..LHD..(G,M) |
1 | ||
| 52127-42090 |
ALA4#,ZSA44..LHD..X COLD AREA SPEC&FRONT FOG LAMP-WITH |
1 | ||
| 52127-42130 |
ALA4#,ZSA44..LHD..M FRENCH SPEC&BASIC PACKAGE&FRONT BUMPER-W(PLATING MOULDING) |
1 | ||
| 52030-42070 |
ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52127-42090 |
ALA4#,ZSA44..LHD..X FRONT FOG LAMP-WITH |
1 | ||
| 52127-42130 |
ALA4#,ZSA44..LHD..X |
1 | ||
| 52030-42070 |
ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52030-42070 |
WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52030-42040 |
AVA4#..EUR;WWA42,ZSA44..G..EUR;WWA42,ZSA44..LHD..M..EUR BASIC PACKAGE&FRONT BUMPER-WITH(COLOR & MOLDING)&BACK MONITOR-WITHOUT |
1 | ||
| 52030-42040 |
ASA44,WWA42,ZSA44..X..EUR |
1 | ||
| 52030-42070 |
WWA42,ZSA44..LHD..EUR COLD AREA SPEC |
1 | ||
| 52030-42070 |
WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52030-42070 |
ZSA44..LHD..M..EUR COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52030-42060 |
ASA44..G..EUR;AVA4#,WWA42,ZSA44..(G,M)..(DCRE,HTWC,HTWVM) |
1 | ||
| 52030-42070 |
WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52030-42070 |
WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52030-42070 |
WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52030-42070 |
ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52030-42070 |
WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC & WITH(STEERING HEATER)&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52030-42070 |
WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52030-42070 |
WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52030-42070 |
WWA42,ZSA44..LHD..X..EUR COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&AUDIO-6SPEAKER 7INCH DA-FULL EU&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52030-42070 |
WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52030-42070 |
WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC & WITH(STEERING HEATER)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52030-42070 |
WWA42,ZSA44..LHD..(G,M)..EUR COLD AREA SPEC & WITH(STEERING HEATER) |
1 | ||
| 52030-42070 |
WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52030-42070 |
WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC & WITH(STEERING HEATER)&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACKSONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52030-42060 |
WWA42,ZSA44..LHD..X..EUR PRE-COLLISION SYSTEM-WITH&AUDIO-6SPEAKER 7INCH DA-FULL EU&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52030-42070 |
WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC & WITH(STEERING HEATER)&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52030-42070 |
WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC & WITH(STEERING HEATER)&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52030-42070 |
WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC & WITH(STEERING HEATER)&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52030-42070 |
WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC & WITH(STEERING HEATER)&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52030-42070 |
WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC & WITH(STEERING HEATER)&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACKSONAR-WITH(FRONT&REAR) |
1 | ||
| 52030-42070 |
WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC & WITH(STEERING HEATER)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52030-42070 |
ZSA44..X..EUR COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52128C - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-42090 |
ALA49..G,M;ALA49..RHD..X;ALA40,41,ZSA44..RHD;ALA40,41,ZSA44..LHD..(G,M) |
1 | ||
| 52128-42130 |
ALA4#,ZSA44..LHD..M FRENCH SPEC&BASIC PACKAGE&FRONT BUMPER-W(PLATING MOULDING) |
1 | ||
| 52128-42090 |
ALA4#,ZSA44..LHD..X FRONT FOG LAMP-WITH |
1 | ||
| 52128-42090 |
ALA4#,ZSA44..LHD..X COLD AREA SPEC&FRONT FOG LAMP-WITH |
1 | ||
| 52040-42070 |
ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52128-42130 |
ALA4#,ZSA44..LHD..X |
1 | ||
| 52040-42070 |
WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52040-42070 |
WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52040-42070 |
ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52040-42070 |
WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52040-42040 |
AVA4#..EUR;WWA42,ZSA44..G..EUR;WWA42,ZSA44..LHD..M..EUR BASIC PACKAGE&FRONT BUMPER-WITH(COLOR & MOLDING)&BACK MONITOR-WITHOUT |
1 | ||
| 52040-42070 |
ZSA44..LHD..M..EUR COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52040-42040 |
ASA44,WWA42,ZSA44..X..EUR |
1 | ||
| 52040-42070 |
ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52040-42060 |
ASA44..G..EUR;AVA4#,WWA42,ZSA44..(G,M)..(DCRE,HTWC,HTWVM) |
1 | ||
| 52040-42070 |
WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52040-42070 |
WWA42,ZSA44..LHD..EUR COLD AREA SPEC |
1 | ||
| 52040-42060 |
WWA42,ZSA44..LHD..X..EUR PRE-COLLISION SYSTEM-WITH&AUDIO-6SPEAKER 7INCH DA-FULL EU&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52040-42070 |
WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52040-42070 |
WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52040-42070 |
WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC & WITH(STEERING HEATER)&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52040-42070 |
WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52040-42070 |
WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC & WITH(STEERING HEATER)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52040-42070 |
WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52040-42070 |
WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC & WITH(STEERING HEATER)&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52040-42070 |
WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC & WITH(STEERING HEATER)&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52040-42070 |
WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC & WITH(STEERING HEATER)&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACKSONAR-WITH(FRONT&REAR) |
1 | ||
| 52040-42070 |
WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52040-42070 |
WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC & WITH(STEERING HEATER)&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52040-42070 |
WWA42,ZSA44..LHD..X..EUR COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&AUDIO-6SPEAKER 7INCH DA-FULL EU&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52040-42070 |
WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC & WITH(STEERING HEATER)&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52040-42070 |
WWA42,ZSA44..LHD..(G,M)..EUR COLD AREA SPEC & WITH(STEERING HEATER) |
1 | ||
| 52040-42070 |
WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC & WITH(STEERING HEATER)&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACKSONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52040-42070 |
WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC & WITH(STEERING HEATER)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52040-42070 |
ZSA44..X..EUR COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ALA4#,ZSA44 |
6 | ||
| 52161-16010 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
2 | ||
| 52411 - GUARD, FRONT BUMPER | ||||
| 52411-42040 |
ALA49,ZSA44..LHD..M COLD AREA SPEC&FRONT BUMPER-W(PLATING MOULDING)&HEADLAMP-DISCHARGE & W(*AHB) |
1 | ||
| 52411-42040 |
ALA4#,ZSA44..LHD..M COLD AREA SPEC&FRONT BUMPER-W(PLATING MOULDING) |
1 | ||
| 52411-42030 |
ALA49..RHD..X;ALA49..LHD..(M,X);ALA40,41,ZSA44..X;ALA40,41,ZSA44..LHD..M |
1 | ||
| 52411-42040 |
ALA49,ZSA44..LHD..M COLD AREA SPEC&FRONT BUMPER-W(PLATING MOULDING)&HEADLAMP-DISCHARGE |
1 | ||
| 52411-42040 |
ALA4#,ZSA44..LHD..M FRONT BUMPER-W(PLATING MOULDING)&HEADLAMP-DISCHARGE & W(*AHB) |
1 | ||
| 52411-42040 |
ALA4#,ZSA44..LHD..M FRONT BUMPER-W(PLATING MOULDING)&HEADLAMP-DISCHARGE |
1 | ||
| 52411-42040 |
ALA4#,ZSA44..LHD..M FRENCH SPEC&BASIC PACKAGE&FRONT BUMPER-W(PLATING MOULDING) |
1 | ||
| 52411-42040 |
ALA4#,ZSA44..LHD..M FRONT BUMPER-W(PLATING MOULDING) |
1 | ||
| 52411-42906 |
AVA4#,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52411-42906 |
AVA4#,WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52411-42906 |
AVA4#,WWA42,ZSA44..M..EUR MID+ PACKAGE&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52411-42906 |
AVA4#,ZSA44..M..EUR MID+ PACKAGE&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE &BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52411-42906 |
AVA4#,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52411-42906 |
AVA4#,WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52411-42906 |
AVA4#,WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52411-42906 |
AVA4#,ZSA44..LHD..M..EUR MID+ PACKAGE&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE &BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52411-42070 |
ASA44,WWA42..X;ZSA44..RUP..6F..X;ALA49,ZSA4#..JPP..X |
1 | ||
| 52411-42080 |
ZSA42..6F..(G,M);ZSA42..JPP..B..(G,M);ALA49,ASA44,AVA4#,WWA42,ZSA44..JPP..(G,M) |
1 | ||
| 52411-42070 |
AVA4#..EUR;WWA42,ZSA44..G..EUR;WWA42,ZSA44..LHD..M..EUR BASIC PACKAGE&FRONT BUMPER-WITH(COLOR & MOLDING)&BACK MONITOR-WITHOUT |
1 | ||
| 52411-42080 |
WWA42,ZSA44..LHD..X..EUR PRE-COLLISION SYSTEM-WITH&AUDIO-6SPEAKER 7INCH DA-FULL EU&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52411-42906 |
AVA4#,WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52411-42906 |
AVA4#,WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52411-42906 |
AVA4#,WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52411-42080 |
WWA42,ZSA44..LHD..X..EUR COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&AUDIO-6SPEAKER 7INCH DA-FULL EU&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52411-42906 |
AVA4#,WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52411-42906 |
AVA4#,WWA42,ZSA44..M..EUR PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52411-42906 |
AVA4#,WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52411-42906 |
AVA4#,WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52411-42906 |
AVA4#,WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC & WITH(STEERING HEATER)&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52411-42906 |
AVA4#,WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC & WITH(STEERING HEATER)&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52411-42906 |
AVA4#,WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC & WITH(STEERING HEATER)&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52411-42906 |
AVA4#,WWA42,ZSA44..LHD..M..EUR PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52411-42080 |
ZSA44..X..EUR COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52411-42906 |
AVA4#,WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC & WITH(STEERING HEATER)&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52413A - PAD, FRONT BUMPER GUARD, RH | ||||
| 52413-42010 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 52414 - PAD, FRONT BUMPER GUARD, LH | ||||
| 52414-42010 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 52711 - MOULDING, FRONT BUMPER | ||||
| 52711-42040 |
ALA4#,ZSA44..LHD..M PLATED,FRENCH SPEC&BASIC PACKAGE&FRONT BUMPER-W(PLATING MOULDING) |
1 | ||
| 52711-42040 |
ALA49,ZSA44..LHD..M PLATED,COLD AREA SPEC&FRONT BUMPER-W(PLATING MOULDING)&HEADLAMP-DISCHARGE & W(*AHB) |
1 | ||
| 52711-42040 |
ALA4#,ZSA44..LHD..M PLATED,FRONT BUMPER-W(PLATING MOULDING) |
1 | ||
| 52711-42040 |
ALA49,ZSA44..LHD..M PLATED,COLD AREA SPEC&FRONT BUMPER-W(PLATING MOULDING)&HEADLAMP-DISCHARGE |
1 | ||
| 52711-42040 |
ALA4#,ZSA44..LHD..M PLATED,COLD AREA SPEC&FRONT BUMPER-W(PLATING MOULDING) |
1 | ||
| 52711-42040 |
ALA4#,ZSA44..LHD..M PLATED,FRONT BUMPER-W(PLATING MOULDING)&HEADLAMP-DISCHARGE |
1 | ||
| 52711-42040 |
ALA4#,ZSA44..LHD..M PLATED,FRONT BUMPER-W(PLATING MOULDING)&HEADLAMP-DISCHARGE & W(*AHB) |
1 | ||
| 52711-42110B0 |
AVA4#..EUR;ASA44,WWA42..G,M;AVA4#,ZSA4#..CVT..G..RUS;ALA49,ZSA4#..M..(DCRE,EFI);ALA49,ZSA44..(G,M)..(DCRL,HTWVM) SILVER ME.,040 ,070 ,1F7 ,1G3 ,209 ,3R3 ,3T0 ,4R8 ,4T3 ,4U5 ,8X7 |
1 | ||
| 52711-42110B2 |
WWA42,ZSA44..LHD..X..EUR PRE-COLLISION SYSTEM-WITH&AUDIO-6SPEAKER 7INCH DA-FULL EU&CLEARANCE & BACK SONAR-WITH(FRONT&REAR),SILVER ME.,040 ,070 ,1D6 ,1G3 ,209 ,221 ,3T0 ,3T3 ,4T3 ,4U5 |
1 | ||
| 52711-42110B2 |
AVA4#..G..RUS;ZSA44..JPP..(G,M);AVA4#,WWA42..(G,M)..EUR;ALA49,ASA44,ZSA42..JPP..(6FC,B)..(G,M)..RUS SILVER ME.,040 ,070 ,1D6 ,1G3 ,209 ,221 ,3T0 ,3T3 ,4T3 ,4U5 ,8X7 |
1 | ||
| 52711-42110B2 |
ZSA44..X..EUR COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR),SILVER ME.,040 ,070 ,1D6 ,1G3 ,209 ,221 ,3T0 ,3T3 ,4T3 ,4U5 |
1 | ||
| 52711-42110B2 |
WWA42,ZSA44..LHD..X..EUR COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&AUDIO-6SPEAKER 7INCH DA-FULL EU&CLEARANCE & BACK SONAR-WITH(FRONT&REAR),SILVER ME.,040 ,070 ,1D6 ,1G3 ,209 ,221 ,3T0 ,3T3 ,4T3 ,4U5 |
1 | ||
| 52711-42110C1 |
ASA44..JPP..RUS;ALA49,AVA4#,WWA42,ZSA4#..JPP..(G,M) BLACK,040 ,070 ,1D6 ,1G3 ,209 ,221 ,3T3 ,4T3 ,4U5 |
1 | ||
| 52721 - MOULDING, FRONT BUMPER EXTENSION, RH | ||||
| 52721-42020 |
ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52721-42010 |
ASA44..G..EUR;AVA4#,WWA42,ZSA44..(G,M)..(DCRE,HTWC,HTWVM) |
1 | ||
| 52721-42020 |
WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52721-42020 |
ZSA44..LHD..M..EUR COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52721-42020 |
ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52721-42010 |
WWA42,ZSA44..LHD..X..EUR PRE-COLLISION SYSTEM-WITH&AUDIO-6SPEAKER 7INCH DA-FULL EU&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52721-42020 |
WWA42,ZSA44..LHD..EUR COLD AREA SPEC |
1 | ||
| 52721-42020 |
WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52721-42020 |
ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52721-42020 |
WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52721-42020 |
WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52721-42020 |
WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52721-42020 |
WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52721-42020 |
WWA42,ZSA44..LHD..(G,M)..EUR COLD AREA SPEC & WITH(STEERING HEATER) |
1 | ||
| 52721-42020 |
WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC & WITH(STEERING HEATER)&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52721-42020 |
WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC & WITH(STEERING HEATER)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52721-42020 |
WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52721-42020 |
WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC & WITH(STEERING HEATER)&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52721-42020 |
WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC & WITH(STEERING HEATER)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52721-42020 |
WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC & WITH(STEERING HEATER)&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52721-42020 |
WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC & WITH(STEERING HEATER)&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52721-42020 |
WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC & WITH(STEERING HEATER)&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52721-42020 |
WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52721-42020 |
WWA42,ZSA44..LHD..X..EUR COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&AUDIO-6SPEAKER 7INCH DA-FULL EU&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52721-42020 |
WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC & WITH(STEERING HEATER)&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACKSONAR-WITH(FRONT&REAR) |
1 | ||
| 52721-42020 |
ZSA44..X..EUR COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52721-42020 |
WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC & WITH(STEERING HEATER)&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACKSONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52721-42020 |
WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52722 - MOULDING, FRONT BUMPER EXTENSION, LH | ||||
| 52722-42020 |
ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52722-42020 |
WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52722-42020 |
ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52722-42020 |
WWA42,ZSA44..LHD..EUR COLD AREA SPEC |
1 | ||
| 52722-42020 |
ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52722-42020 |
WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52722-42020 |
WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52722-42010 |
ASA44..G..EUR;AVA4#,WWA42,ZSA44..(G,M)..(DCRE,HTWC,HTWVM) |
1 | ||
| 52722-42020 |
WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52722-42010 |
WWA42,ZSA44..LHD..X..EUR PRE-COLLISION SYSTEM-WITH&AUDIO-6SPEAKER 7INCH DA-FULL EU&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52722-42020 |
WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52722-42020 |
WWA42,ZSA44..LHD..(G,M)..EUR COLD AREA SPEC & WITH(STEERING HEATER) |
1 | ||
| 52722-42020 |
WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52722-42020 |
WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC & WITH(STEERING HEATER)&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52722-42020 |
ZSA44..LHD..M..EUR COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52722-42020 |
WWA42,ZSA44..LHD..X..EUR COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&AUDIO-6SPEAKER 7INCH DA-FULL EU&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52722-42020 |
WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52722-42020 |
WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52722-42020 |
WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC & WITH(STEERING HEATER)&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52722-42020 |
WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC & WITH(STEERING HEATER)&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACKSONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52722-42020 |
ZSA44..X..EUR COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52722-42020 |
WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC & WITH(STEERING HEATER)&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52722-42020 |
WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC & WITH(STEERING HEATER)&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52722-42020 |
WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52722-42020 |
WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC & WITH(STEERING HEATER)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 52722-42020 |
WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC & WITH(STEERING HEATER)&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACKSONAR-WITH(FRONT&REAR) |
1 | ||
| 52722-42020 |
WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC & WITH(STEERING HEATER)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52722-42020 |
WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC & WITH(STEERING HEATER)&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-42110 |
AVA4#,ZSA44..LHD..M..EUR NO PAINT REQ.,MID+ PACKAGE&COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 53112-42110 |
AVA4#,WWA42,ZSA44..LHD..M..EUR NO PAINT REQ.,MID+ PACKAGE&COLD AREA SPEC&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 53112-42110 |
AVA4#,ZSA44..LHD..M..EUR NO PAINT REQ.,MID+ PACKAGE&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 53112-42090 |
ALA4#,ZSA44 NO PAINT REQ. |
1 | ||
| 53112-42110 |
AVA4#,WWA42,ZSA44..LHD..M..EUR NO PAINT REQ.,MID+ PACKAGE&FRONT BUMPER-WITH(2TONE COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 53112-42110 |
AVA4#,WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 53112-42110 |
AVA4#,WWA42,ZSA44..M..EUR MID+ PACKAGE&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 53112-42100 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) NO PAINT REQ. |
1 | ||
| 53112-42110 |
AVA4#,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 53112-42110 |
WWA42..RHD..M;AVA4#,ZSA44..M..EUR MID+ PACKAGE&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 53112-42110 |
AVA4#,WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 53112-42110 |
AVA4#,WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 53112-42110 |
AVA4#,WWA42,ZSA44..LHD..M..EUR PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 53112-42110 |
AVA4#,WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 53112-42110 |
AVA4#,WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 53112-42110 |
AVA4#,WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC & WITH(STEERING HEATER)&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 53112-42110 |
AVA4#,WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC & WITH(STEERING HEATER)&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 53112-42110 |
AVA4#,WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 53112-42110 |
AVA4#,WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC & WITH(STEERING HEATER)&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 53112-42110 |
AVA4#,WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 53112-42110 |
AVA4#,WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC & WITH(STEERING HEATER)&PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 53112-42110 |
AVA4#,WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC & WITH(STEERING HEATER)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 53112-42110 |
AVA4#,WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC & WITH(STEERING HEATER)&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACKSONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 53112-42110 |
AVA4#,WWA42,ZSA44..LHD..M..EUR PRE-COLLISION SYSTEM-WITH&FRONT BUMPER-WITH(FULL COLOR)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 53113E - GRILLE, RADIATOR, LOWER NO.2 | ||||
| 53113-42080 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 53128A - GRILLE, RADIATOR, LOWER LH | ||||
| 53128-42080 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,AVA44,ZSA42..JPP..(ATM,CVT)..(G,M) |
1 | ||
| 53128-42020 |
ALA4#,ZSA44..6F,A |
1 | ||
| 53285J - COVER, FRONT BUMPER ARM HOLE, RH | ||||
| 53285-42100 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 53285-42080 |
ALA4#,ZSA44 |
1 | ||
| 53286C - COVER, FRONT BUMPER ARM HOLE, LH | ||||
| 53286-42090 |
ALA4#,ZSA44 |
1 | ||
| 53286-42110 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 53395E - SEAL, HOOD TO FRONT END PANEL | ||||
| 53395-42070 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 53395-42060 |
ALA4#,ZSA44 |
1 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
ZSA44..JPP..B..X;ALA49,ZSA42..JPP..X;ASA44,ZSA44..LHD..X..EUR |
16 | ||
| 75392-35220 |
ALA4#,ZSA44 |
18 | ||
| 75392-35220 |
ZSA44..JPP..B..G;ZSA44..JPP..M..RUS;AVA42,ZSA44..(G,M)..EUR;ALA49,ASA44,AVA44,ZSA42..JPP..(ATM,CVT)..(G,M) |
27 | ||
| 75392-35220 |
WWA42,ZSA44..LHD..X..EUR COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&AUDIO-6SPEAKER 7INCH DA-FULL EU&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
27 | ||
| 75392-35220 |
AVA4#..EUR;WWA42,ZSA44..G..EUR;WWA42,ZSA44..LHD..M..EUR BASIC PACKAGE&FRONT BUMPER-WITH(COLOR & MOLDING)&BACK MONITOR-WITHOUT |
16 | ||
| 75392-35220 |
ZSA44..X..EUR COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
27 | ||
| 75392-35220 |
WWA42,ZSA44..LHD..X..EUR PRE-COLLISION SYSTEM-WITH&AUDIO-6SPEAKER 7INCH DA-FULL EU&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
27 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
ZSA44..JPP..B..X;ALA49,ZSA42..JPP..X;ASA44,ZSA44..LHD..X..EUR |
16 | ||
| 75392-35220 |
ALA4#,ZSA44 |
18 | ||
| 75392-35220 |
ZSA44..JPP..B..G;ZSA44..JPP..M..RUS;AVA42,ZSA44..(G,M)..EUR;ALA49,ASA44,AVA44,ZSA42..JPP..(ATM,CVT)..(G,M) |
27 | ||
| 75392-35220 |
WWA42,ZSA44..LHD..X..EUR COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&AUDIO-6SPEAKER 7INCH DA-FULL EU&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
27 | ||
| 75392-35220 |
AVA4#..EUR;WWA42,ZSA44..G..EUR;WWA42,ZSA44..LHD..M..EUR BASIC PACKAGE&FRONT BUMPER-WITH(COLOR & MOLDING)&BACK MONITOR-WITHOUT |
16 | ||
| 75392-35220 |
ZSA44..X..EUR COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
27 | ||
| 75392-35220 |
WWA42,ZSA44..LHD..X..EUR PRE-COLLISION SYSTEM-WITH&AUDIO-6SPEAKER 7INCH DA-FULL EU&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
27 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
ZSA44..JPP..B..X;ALA49,ZSA42..JPP..X;ASA44,ZSA44..LHD..X..EUR |
16 | ||
| 75392-35220 |
ALA4#,ZSA44 |
18 | ||
| 75392-35220 |
ZSA44..JPP..B..G;ZSA44..JPP..M..RUS;AVA42,ZSA44..(G,M)..EUR;ALA49,ASA44,AVA44,ZSA42..JPP..(ATM,CVT)..(G,M) |
27 | ||
| 75392-35220 |
WWA42,ZSA44..LHD..X..EUR COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&AUDIO-6SPEAKER 7INCH DA-FULL EU&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
27 | ||
| 75392-35220 |
AVA4#..EUR;WWA42,ZSA44..G..EUR;WWA42,ZSA44..LHD..M..EUR BASIC PACKAGE&FRONT BUMPER-WITH(COLOR & MOLDING)&BACK MONITOR-WITHOUT |
16 | ||
| 75392-35220 |
ZSA44..X..EUR COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
27 | ||
| 75392-35220 |
WWA42,ZSA44..LHD..X..EUR PRE-COLLISION SYSTEM-WITH&AUDIO-6SPEAKER 7INCH DA-FULL EU&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
27 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
ZSA44..JPP..B..X;ALA49,ZSA42..JPP..X;ASA44,ZSA44..LHD..X..EUR |
16 | ||
| 75392-35220 |
ALA4#,ZSA44 |
18 | ||
| 75392-35220 |
ZSA44..JPP..B..G;ZSA44..JPP..M..RUS;AVA42,ZSA44..(G,M)..EUR;ALA49,ASA44,AVA44,ZSA42..JPP..(ATM,CVT)..(G,M) |
27 | ||
| 75392-35220 |
WWA42,ZSA44..LHD..X..EUR COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&AUDIO-6SPEAKER 7INCH DA-FULL EU&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
27 | ||
| 75392-35220 |
AVA4#..EUR;WWA42,ZSA44..G..EUR;WWA42,ZSA44..LHD..M..EUR BASIC PACKAGE&FRONT BUMPER-WITH(COLOR & MOLDING)&BACK MONITOR-WITHOUT |
16 | ||
| 75392-35220 |
ZSA44..X..EUR COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
27 | ||
| 75392-35220 |
WWA42,ZSA44..LHD..X..EUR PRE-COLLISION SYSTEM-WITH&AUDIO-6SPEAKER 7INCH DA-FULL EU&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
27 | ||
| Common parts | ||||
| 90159-60431 | ||||
| 90179-06127 | ||||
| 90467-05170 | ||||
| 90467-07220 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
