ZSA44L-ANFXPW (2015)

Toyota Rav4

Production Oct 2015 - Oct 2018
Engine 3ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1212- )

Click highlighted areas on diagram

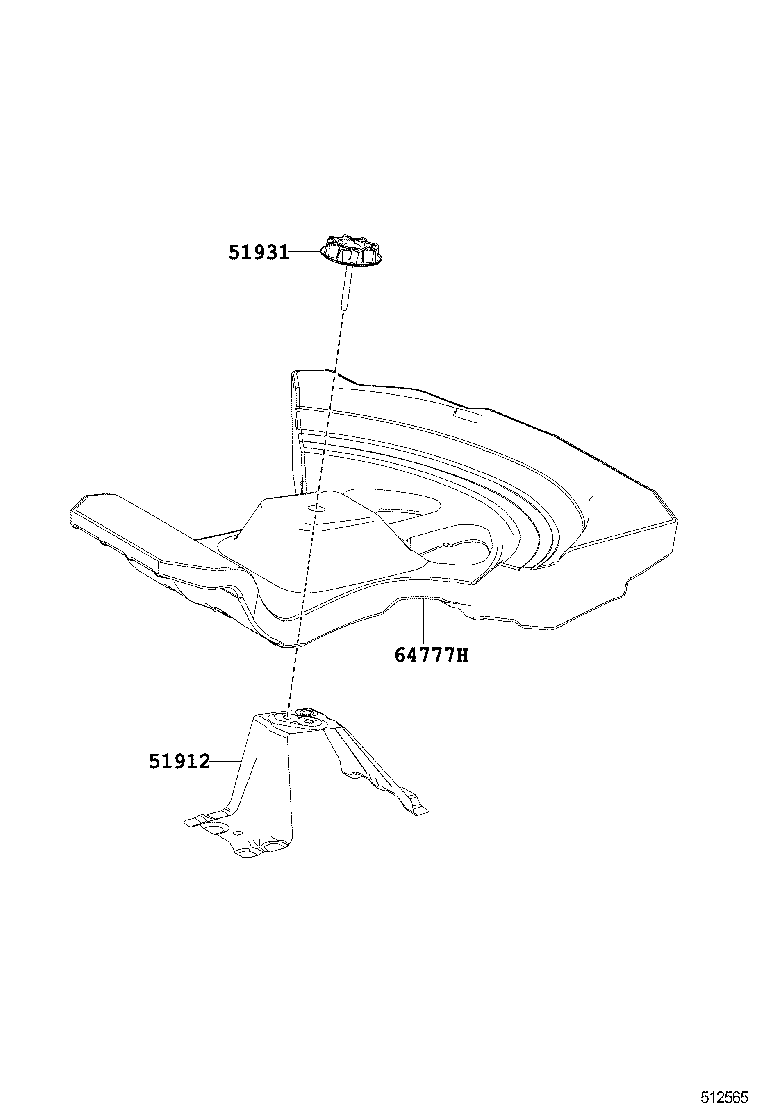

diagram 51912 51931 64777H
Part # Description Qty Price
51912 - BRACKET, SPARE WHEEL
51912-42010

ALA4#,ZSA44..DCRE,DCRL,HTWVM

SPARE TIRE-GROUND TIRE

 1
51912-42010

AVA4#,WWA42,ZSA44..EUR

SPARE TIRE-165/80D17(REINFORCED TEMPORARY)

 1
51912-42010

AVA4#,WWA42,ZSA44..EUR

SPARE TIRE-GROUND TIRE

 1
51912-42010

ALA4#,ZSA44..DCRE,DCRL,HTWVM

SPARE TIRE-165/80D17(REINFORCED TEMPORARY)

 1
51912-42010

AVA4#,WWA42,ZSA44..EUR

SPARE TIRE-165/80D17ST(TEMPORARY)

 1
51931 - CARRIER, SPARE WHEEL, NO.1
51931-47020

ALA4#,ZSA44

SPARE TIRE-165/80D17(REINFORCED TEMPORARY)

 1
51931-47020

AVA42..EUR;ASA44..X..EUR;AVA44..G..EUR;ZSA44..LHD..EUR;ZSA44..JPP..B..X;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ASA44,ZSA42..JPP..(6FC,B)..M;ALA49,ZSA42..JPP..X..(DCRE,EFI);ALA49,AVA44..JPP..(M,X)..(DCRL,HTWC)

SPARE TIRE-165/80D17(REINFORCED TEMPORARY)

 1
51931-33230

ALA4#,ZSA44..DCRE,DCRL,HTWVM

SPARE TIRE-GROUND TIRE

 1
51931-47020

AVA4#,WWA42,ZSA44..EUR

SPARE TIRE-165/80D17ST(TEMPORARY)

 1
51931-33230

AVA4#..EUR;AVA44..G..RUS;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ALA49,ASA44,ZSA4#..JPP..(6FC,B)..G

SPARE TIRE-GROUND TIRE

 1
64777H - CUSHION, SPARE WHEEL
64777-42040

ALA4#,ZSA44

SPARE TIRE-165/80D17(REINFORCED TEMPORARY)

 1
64777-42050

ALA4#,ZSA44..DCRE,DCRL,HTWVM

SPARE TIRE-GROUND TIRE

 1
64777-42050

AVA4#..EUR;AVA44..G..RUS;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ALA49,ASA44,ZSA4#..JPP..(6FC,B)..G

SPARE TIRE-GROUND TIRE

 1
64777-42060

AVA4#,WWA42,ZSA44..EUR

SPARE TIRE-165/80D17ST(TEMPORARY)

 1
64777-42060

AVA42..EUR;ASA44..X..EUR;AVA44..G..EUR;ZSA44..LHD..EUR;ZSA44..JPP..B..X;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ASA44,ZSA42..JPP..(6FC,B)..M;ALA49,ZSA42..JPP..X..(DCRE,EFI);ALA49,AVA44..JPP..(M,X)..(DCRL,HTWC)

SPARE TIRE-165/80D17(REINFORCED TEMPORARY)

 1
