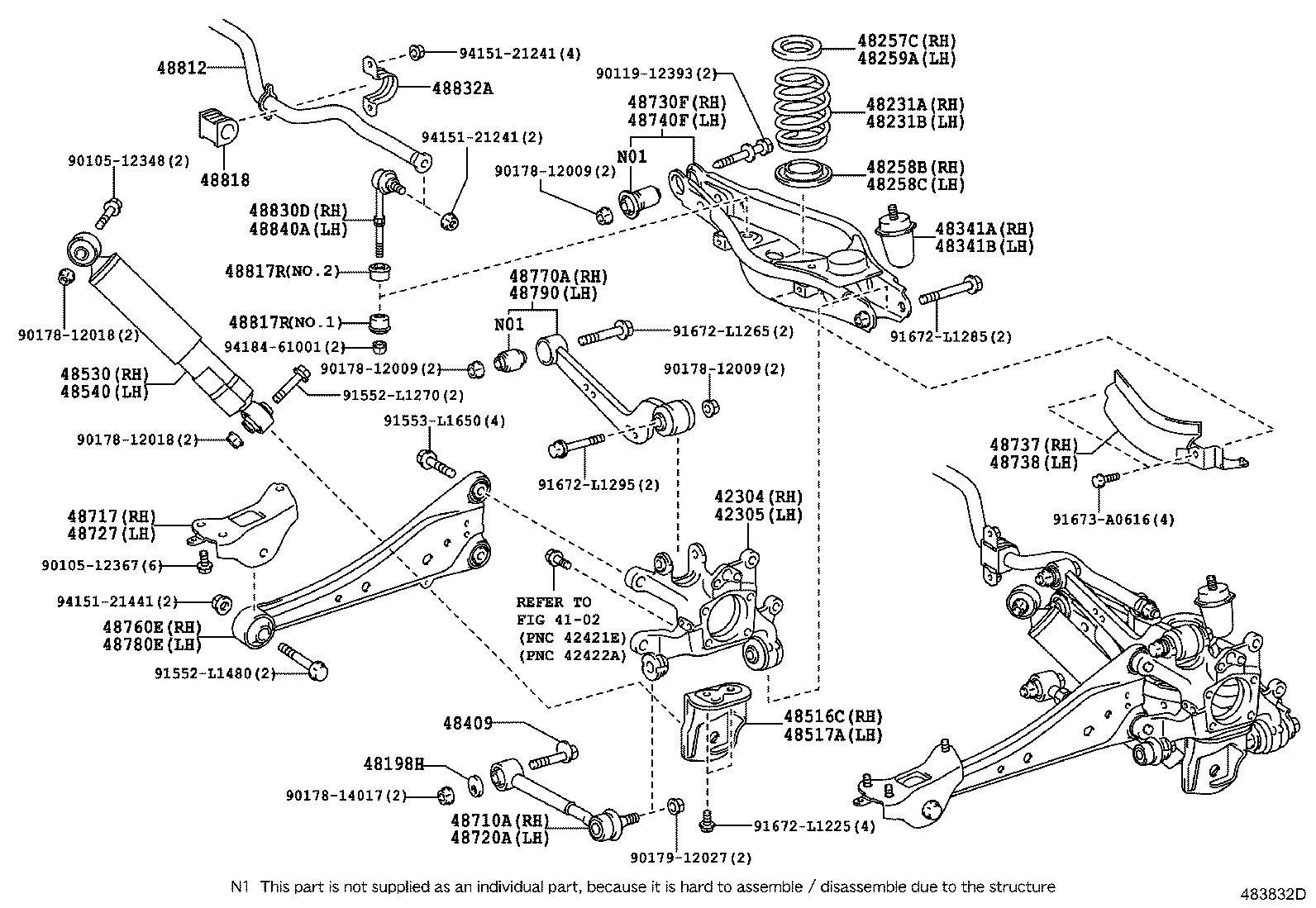

ZSA44L-ANFXPW (2015)
Toyota Rav4
(1212- )ALA4#,ASA44,WWA42,ZSA44..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-42020 |
ALA4#,ZSA44 |
1 | ||
| 42304-42020 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-42020 |
ALA4#,ZSA44 |
1 | ||
| 42305-42020 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 48198H - CAM, CAMBER ADJUST, NO.2 | ||||
| 48198-42010 |
ALA4#,ZSA44 |
2 | ||
| 48198-42010 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
2 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-42360 |
ZSA44 |
1 | ||
| 48231-42380 |
ZSA44..LHD UKURAINE SPEC&ROUGH ROAD AREA SPEC-WITH(SPEC.2) |
1 | ||
| 48231-42380 |
ZSA44..LHD *334&ROUGH ROAD AREA SPEC-WITH(SPEC.2) |
1 | ||
| 48231-42380 |
ZSA44..LHD NON-WVTA&ROUGH ROAD AREA SPEC-WITH(SPEC.2) |
1 | ||
| 48231-42360 |
ZSA44..EUR |
1 | ||
| 48231-42380 |
ZSA44..LHD..EUR ROUGH ROAD AREA SPEC.-SPEC.2 |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-42380 |
ZSA44..LHD *334&ROUGH ROAD AREA SPEC-WITH(SPEC.2) |
1 | ||
| 48231-42360 |
ZSA44 |
1 | ||
| 48231-42380 |
ZSA44..LHD UKURAINE SPEC&ROUGH ROAD AREA SPEC-WITH(SPEC.2) |
1 | ||
| 48231-42360 |
ZSA44..EUR |
1 | ||
| 48231-42380 |
ZSA44..LHD NON-WVTA&ROUGH ROAD AREA SPEC-WITH(SPEC.2) |
1 | ||
| 48231-42380 |
ZSA44..LHD..EUR ROUGH ROAD AREA SPEC.-SPEC.2 |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-42030 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 48257-42030 |
ALA4#,ZSA44 |
1 | ||
| 48258B - INSULATOR, REAR COIL SPRING, LOWER RH | ||||
| 48258-42020 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 48258-42020 |
ALA4#,ZSA44 |
1 | ||
| 48258C - INSULATOR, REAR COIL SPRING, LOWER LH | ||||
| 48258-42020 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 48258-42020 |
ALA4#,ZSA44 |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-42030 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 48257-42030 |
ALA4#,ZSA44 |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-42010 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 48341-42010 |
ALA4#,ZSA44 |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-42010 |
ALA4#,ZSA44 |
1 | ||
| 48341-42010 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 48409 - CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST | ||||
| 48409-42030 |
ALA4#,ZSA44 |
2 | ||
| 48409-42030 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
2 | ||
| 48516C - BRACKET, REAR SHOCK ABSORBER, NO.1 RH | ||||
| 48505-42010 |
ALA4#,ZSA44 |
1 | ||
| 48505-42010 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 48517A - BRACKET, REAR SHOCK ABSORBER, NO.1 LH | ||||
| 48506-42010 |
ALA4#,ZSA44 |
1 | ||
| 48506-42010 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-42270 |
ZSA44 MARK 48531-42270 |
1 | ||
| 48531-42300 |
ALA49..DCR;ZSA44..LHD MARK 48531-42300,ROUGH ROAD AREA SPEC-WITH(SPEC.2) |
1 | ||
| 48531-42470 |
ZSA44..EUR MARK 48531-42470 |
1 | ||
| 48531-42480 |
ZSA44..LHD..EUR MARK 48531-42480,ROUGH ROAD AREA SPEC.-SPEC.2 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-42270 |
ZSA44 MARK 48531-42270 |
1 | ||
| 48531-42300 |
ALA49..DCR;ZSA44..LHD MARK 48531-42300,ROUGH ROAD AREA SPEC-WITH(SPEC.2) |
1 | ||
| 48531-42470 |
ZSA44..EUR MARK 48531-42470 |
1 | ||
| 48531-42480 |
ZSA44..LHD..EUR MARK 48531-42480,ROUGH ROAD AREA SPEC.-SPEC.2 |
1 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-42030 |
ALA4#,ZSA44 |
1 | ||
| 48710-42030 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 48717 - BRACKET, REAR SUSPENSION ARM, RH | ||||
| 48717-42010 |
ALA4#,ZSA44 |
1 | ||
| 48717-42010 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-42030 |
ALA4#,ZSA44 |
1 | ||
| 48710-42030 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 48727 - BRACKET, REAR SUSPENSION ARM, LH | ||||
| 48727-42010 |
ALA4#,ZSA44 |
1 | ||
| 48727-42010 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH | ||||
| 48730-42040 |
ALA4#,ZSA44 |
1 | ||
| 48730-42040 |
ASA44,AVA4#,WWA42,ZSA44..EUR |
1 | ||
| 48737 - COVER, REAR SUSPENSION ARM, RH | ||||
| 48737-42021 |
ALA4#,ZSA44 |
1 | ||
| 48737-42021 |
ASA44,AVA4#,WWA42,ZSA44..EUR |
1 | ||
| 48738 - COVER, REAR SUSPENSION ARM, LH | ||||
| 48738-42021 |
ASA44,AVA4#,WWA42,ZSA44..EUR |
1 | ||
| 48738-42021 |
ALA4#,ZSA44 |
1 | ||
| 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH | ||||
| 48740-42010 |
ALA4#,ZSA44 |
1 | ||
| 48740-42010 |
ASA44,AVA4#,WWA42,ZSA44..EUR |
1 | ||
| 48760E - ARM ASSY, TRAILING, REAR RH | ||||
| 48760-42030 |
ALA4#,ZSA44 |
1 | ||
| 48760-48110 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP |
1 | ||
| 48770A - ARM ASSY, UPPER CONTROL, REAR RH | ||||
| 48770-42040 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 48770-42040 |
ALA4#,ZSA44 |
1 | ||
| 48780E - ARM ASSY, TRAILING, REAR LH | ||||
| 48780-42030 |
ALA4#,ZSA44 |
1 | ||
| 48780-48110 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP |
1 | ||
| 48790 - ARM ASSY, UPPER CONTROL, REAR LH | ||||
| 48790-42020 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 48790-42020 |
ALA4#,ZSA44 |
1 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-42040 |
ASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
1 | ||
| 48812-42040 |
ALA4#,ZSA44 |
1 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-12020 |
ALA4#,ZSA44 NO.2 |
2 | ||
| 48817-12030 |
ALA4#,ZSA44 NO.1 |
2 | ||
| 48817-48020 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) NO.1 |
2 | ||
| 48817-48010 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) NO.2 |
2 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-12020 |
ALA4#,ZSA44 NO.2 |
2 | ||
| 48817-12030 |
ALA4#,ZSA44 NO.1 |
2 | ||
| 48817-48020 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) NO.1 |
2 | ||
| 48817-48010 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) NO.2 |
2 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-42020 |
ASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
2 | ||
| 48818-42020 |
ALA4#,ZSA44 |
2 | ||
| 48830D - LINK ASSY, REAR STABILIZER, RH | ||||
| 48830-42021 |
ALA4#,ZSA44 |
1 | ||
| 48830-42022 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 48832A - BRACKET, REAR STABILIZER BAR, NO.1 | ||||
| 48832-42010 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
2 | ||
| 48832-42010 |
ALA4#,ZSA44 |
2 | ||
| 48840A - LINK ASSY, REAR STABILIZER, LH | ||||
| 48830-42021 |
ALA4#,ZSA44 |
1 | ||
| 48830-42022 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| Common parts | ||||
| 90105-12348 | ||||
| 90105-12367 | ||||
| 90119-12393 | ||||
| 90178-12009 | ||||
| 90178-12018 | ||||
| 90178-14017 | ||||
| 90179-12027 | ||||
| 91552-L1270 | ||||
| 91552-L1480 | ||||
| 91553-L1650 | ||||
| 91672-L1225 | ||||
| 91672-L1265 | ||||
| 91672-L1285 | ||||
| 91672-L1295 | ||||
| 91673-A0616 | ||||
| 94151-21241 | ||||
| 94151-21441 | ||||
| 94184-61001 | ||||
| Linked diagrams | ||||
| 4102 | ||||
