ZSA44L-ANFXPW (2015)

Toyota Rav4

Production Oct 2015 - Oct 2018
Engine 3ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1212- )

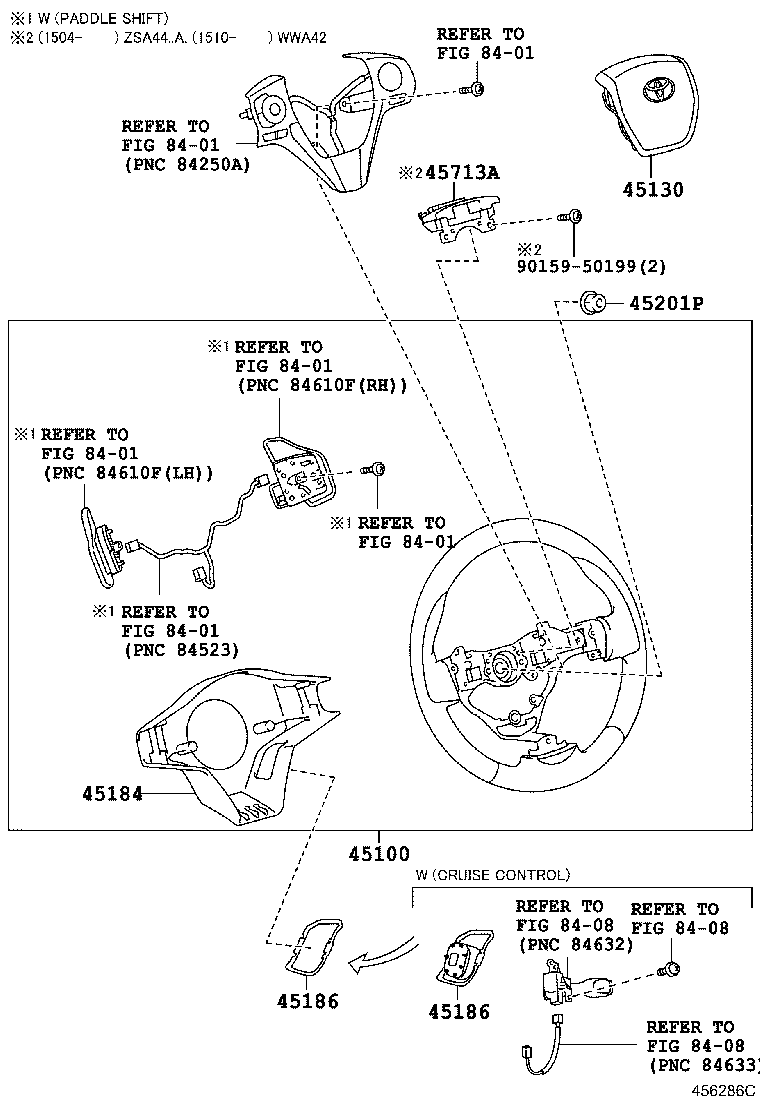

Click highlighted areas on diagram

3-SPOKE

diagram 45100 45130 45184 45186 45186 45201P 45713A 8401 8401 8401 8401 8401 8401 8408 8408 8408 9015950199
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-12F90C0

ALA49..LHD..6FC..G..DCR;ALA49,ZSA44..(6FC,A)..(G,M)..(DCRL,HTWVM)

3-SPOKE,LEATHER,BLACK,TRIM1#,2#,3#,4#

 1
45100-12F80C0

ALA4#,ZSA44..6F..(G,M);ALA49..RHD..6FC..G..DCR

3-SPOKE,LEATHER,BLACK,TRIM1#,2#,3#,4#

 1
45100-12F70C0

ALA49..LHD..6F..X..DCR;ALA40,49,ZSA44..LHD..X..(DCRE,DCRL,HTWVM)

3-SPOKE,URETHANE,BLACK,TRIM1#,2#,3#,4#

 1
45100-12F80C0

ZSA44..LHD..A..(G,M)

3-SPOKE,LEATHER,FRENCH SPEC&BASIC PACKAGE,BLACK,TRIM1#,2#,3#,4#

 1
45100-12F70C0

ZSA44..JPP..B..X;ALA49,ZSA42..JPP..X;ASA44,ZSA44..LHD..X..EUR

3-SPOKE,URETHANE,BLACK,TRIM2#

 1
45100-42290C0

ZSA44..JPP..6F..M;ALA49,ASA44,AVA4#,WWA42,ZSA42..JPP..(6F,6FC,A)..M..(DCRE,EFI,HTWC)

3-SPOKE,LEATHER,BLACK,TRIM2#,3#

 1
45100-12F80C0

ALA49..LHD..X..DCR;ALA4#,ZSA44..X..(DCRE,DCRL,HTWVM)

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER,BLACK,TRIM2#

 1
45100-42290C0

ZSA44..JPP..B..X;ZSA44..LHD..X..EUR;ALA49,ZSA42..JPP..X

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER,BLACK,TRIM2#

 1
45100-42290C0

ZSA44..A..(G,M)

3-SPOKE,LEATHER,BASIC PACKAGE,BLACK,TRIM2#

 1
45100-42330C0

AVA4#,WWA42,ZSA44..LHD..M..EUR

3-SPOKE,LEATHER,COLD AREA SPEC & WITH(STEERING HEATER),BLACK,TRIM2#

 1
45100-42300C0

ZSA44..A..M

3-SPOKE,LEATHER,BLACK,TRIM2#,3#

 1
45130 - BUTTON ASSY, HORN
45130-42201C0

ALA4#,ZSA44..G,M

BLACK,TRIM1#,2#,3#,4#

 1
45130-42210C0

ALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP..(6F,6FC,A)..M

BLACK,TRIM2#,3#

 1
45130-42201C0

ALA4#,ZSA44..X

BLACK,TRIM2#

 1
45130-42210C0

ZSA42..JPP..B..M;ALA49,ZSA42..JPP..X;ZSA44..JPP..B..(M,X);ASA44,ZSA44..LHD..X..EUR

BLACK,TRIM2#

 1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-12380C0

ALA49..LHD..6FC..G..DCR;ALA49,ZSA44..(6FC,A)..(G,M)..(DCRL,HTWVM)

BLACK,TRIM1#,2#,3#,4#

 1
45184-12370C0

ZSA44..A..(G,M)

BASIC PACKAGE,BLACK,TRIM2#

 1
45184-12370C0

ZSA42..JPP..B..M;ASA44,ZSA44..LHD..X..EUR;ALA49,ZSA42..JPP..X..(DCRE,EFI);ALA49,ZSA44..JPP..(6FC,B)..(M,X)

BLACK,TRIM2#

 1
45184-12370C0

ALA4#,ZSA44..6F..(G,M);ALA49..LHD..6F..X..DCR;ALA49..RHD..6FC..G..DCR;ALA40,49,ZSA44..LHD..X..(DCRE,DCRL,HTWVM)

BLACK,TRIM1#,2#,3#,4#

 1
45184-12370C0

ZSA44..JPP..6F..M;ALA49,ASA44,AVA4#,WWA42,ZSA42..JPP..(6F,6FC,A)..M..(DCRE,EFI,HTWC)

BLACK,TRIM2#,3#

 1
45184-12370C0

ZSA44..LHD..A..(G,M)

FRENCH SPEC&BASIC PACKAGE,BLACK,TRIM1#,2#,3#,4#

 1
45184-12380C0

ZSA44..A..M

BLACK,TRIM2#,3#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-12030C0

ALA49..LHD..6F..X..DCR;ALA40,49,ZSA44..LHD..X..(DCRE,DCRL,HTWVM)

BLACK,TRIM1#,2#,3#,4#

 1
45186-12040C0

ALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP..(6F,6FC,A)..M

BLACK,TRIM2#,3#

 1
45186-12040C0

WWA42,ZSA44..X..EUR

CRUISE CONTROL-WITH(RADAR TYPE),BLACK,TRIM2#

 1
45186-12040C0

ALA41..X;ALA40,49,ZSA44..LHD..X..(DCRE,DCRL,HTWVM)

CRUISE CONTROL-WITH(ELECTRIC TYPE),BLACK,TRIM2#

 1
45186-12040C0

ALA4#,ZSA44..G,M

BLACK,TRIM1#,2#,3#,4#

 1
45186-12040C0

ASA44,WWA42,ZSA44..X..EUR

CRUISE CONTROL-WITH(ELECTRIC TYPE),BLACK,TRIM2#

 1
45186-12030C0

ZSA44..JPP..B..X;ALA49,ZSA42..JPP..X;ASA44,ZSA44..LHD..X..EUR

BLACK,TRIM2#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-12030C0

ALA49..LHD..6F..X..DCR;ALA40,49,ZSA44..LHD..X..(DCRE,DCRL,HTWVM)

BLACK,TRIM1#,2#,3#,4#

 1
45186-12040C0

ALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP..(6F,6FC,A)..M

BLACK,TRIM2#,3#

 1
45186-12040C0

WWA42,ZSA44..X..EUR

CRUISE CONTROL-WITH(RADAR TYPE),BLACK,TRIM2#

 1
45186-12040C0

ALA41..X;ALA40,49,ZSA44..LHD..X..(DCRE,DCRL,HTWVM)

CRUISE CONTROL-WITH(ELECTRIC TYPE),BLACK,TRIM2#

 1
45186-12040C0

ALA4#,ZSA44..G,M

BLACK,TRIM1#,2#,3#,4#

 1
45186-12040C0

ASA44,WWA42,ZSA44..X..EUR

CRUISE CONTROL-WITH(ELECTRIC TYPE),BLACK,TRIM2#

 1
45186-12030C0

ZSA44..JPP..B..X;ALA49,ZSA42..JPP..X;ASA44,ZSA44..LHD..X..EUR

BLACK,TRIM2#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M)

 1
90179-12071

ALA4#,ZSA44

 1
45713A - DAMPER, STEERING SHAKE
45713-12180

WWA42;ZSA44..A

 1
Common parts
90159-50199
Linked diagrams
8401
8408
