ZSA44L-ANFXPW (2015)

Toyota Rav4

Production Oct 2015 - Oct 2018
Engine 3ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1212- )3ZRFAE

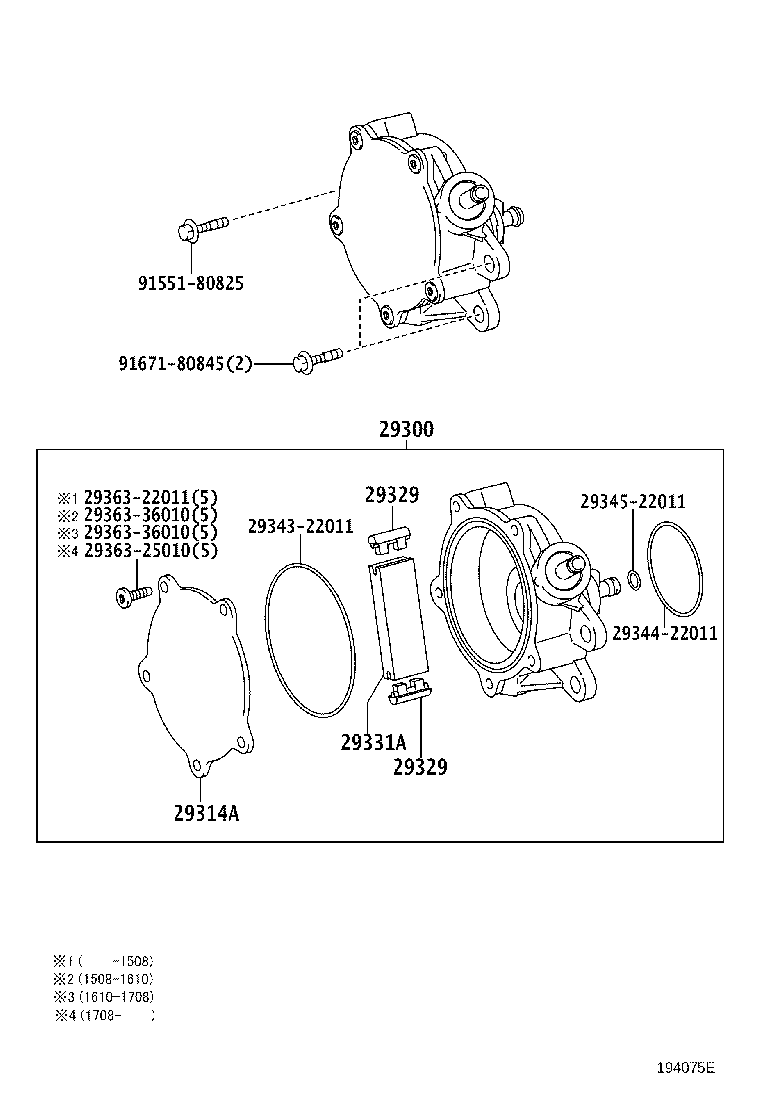

Click highlighted areas on diagram

diagram 29300 29314A 29329 29329 29331A 2934322011 2934422011 2934522011 2936322011 2936325010 2936336010 2936336010 9155180825 9167180845
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-37010

3ZRFAE..ZSA44

 1
29300-37010

3ZRFAE..ZSA44

 1
29300-37011

3ZRFAE..ZSA44

 1
29314A - COVER, END
29314-37010

3ZRFAE..ZSA44

 1
29314-37010

3ZRFAE..ZSA44

 1
29314-37011

3ZRFAE..ZSA44

 1
29329 - CAP, VACUUM PUMP VANE
29329-37010

3ZRFAE..ZSA44

 2
29329-37010

3ZRFAE..ZSA44

 2
29329 - CAP, VACUUM PUMP VANE
29329-37010

3ZRFAE..ZSA44

 2
29329-37010

3ZRFAE..ZSA44

 2
29331A - VANE, VACUUM PUMP
29331-37010

3ZRFAE..ZSA44

 1
29331-37010

3ZRFAE..ZSA44

 1
Common parts
29343-22011
29344-22011
29345-22011
29363-22011
29363-25010
29363-36010
91551-80825
91671-80845
