ZSA44L-ANFXPW (2015)

Toyota Rav4

Production Oct 2015 - Oct 2018
Engine 3ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1510- )3ZR#

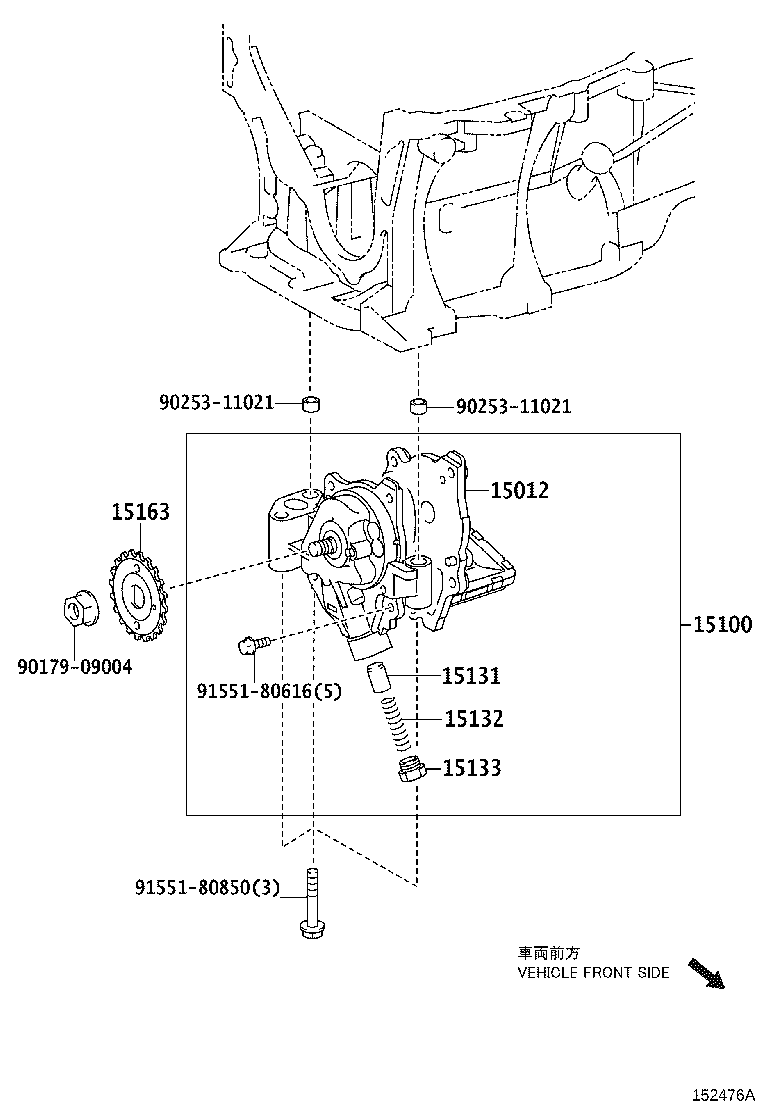

Click highlighted areas on diagram

diagram 15012 15100 15131 15132 15133 15163 9017909004 9025311021 9025311021 9155180616 9155180850
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-37021

3ZRFAE..ZSA44

 1
15100-37020

3ZRFAE..ZSA44

 1
15163 - GEAR, OIL PUMP DRIVE SHAFT
15163-28010

3ZRFAE..ZSA44..LHD;3ZRFE..ZSA42..JPP..X;3ZRFE..ZSA44..JPP..M;3ZRFAE..ZSA44..RHD..(G,M);3ZRFE..ZSA42..JPP..B..(G,M);3ZRFE..ZSA44..JPP..B..(G,X)

 1
15163-28010

3ZRFAE..ZSA44

 1
Common parts
90179-09004
90253-11021
91551-80616
91551-80850
