ZSA44L-ANFXPW (2015)

Toyota Rav4

Production Oct 2015 - Oct 2018
Engine 3ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1510- )3ZRFAE..6F

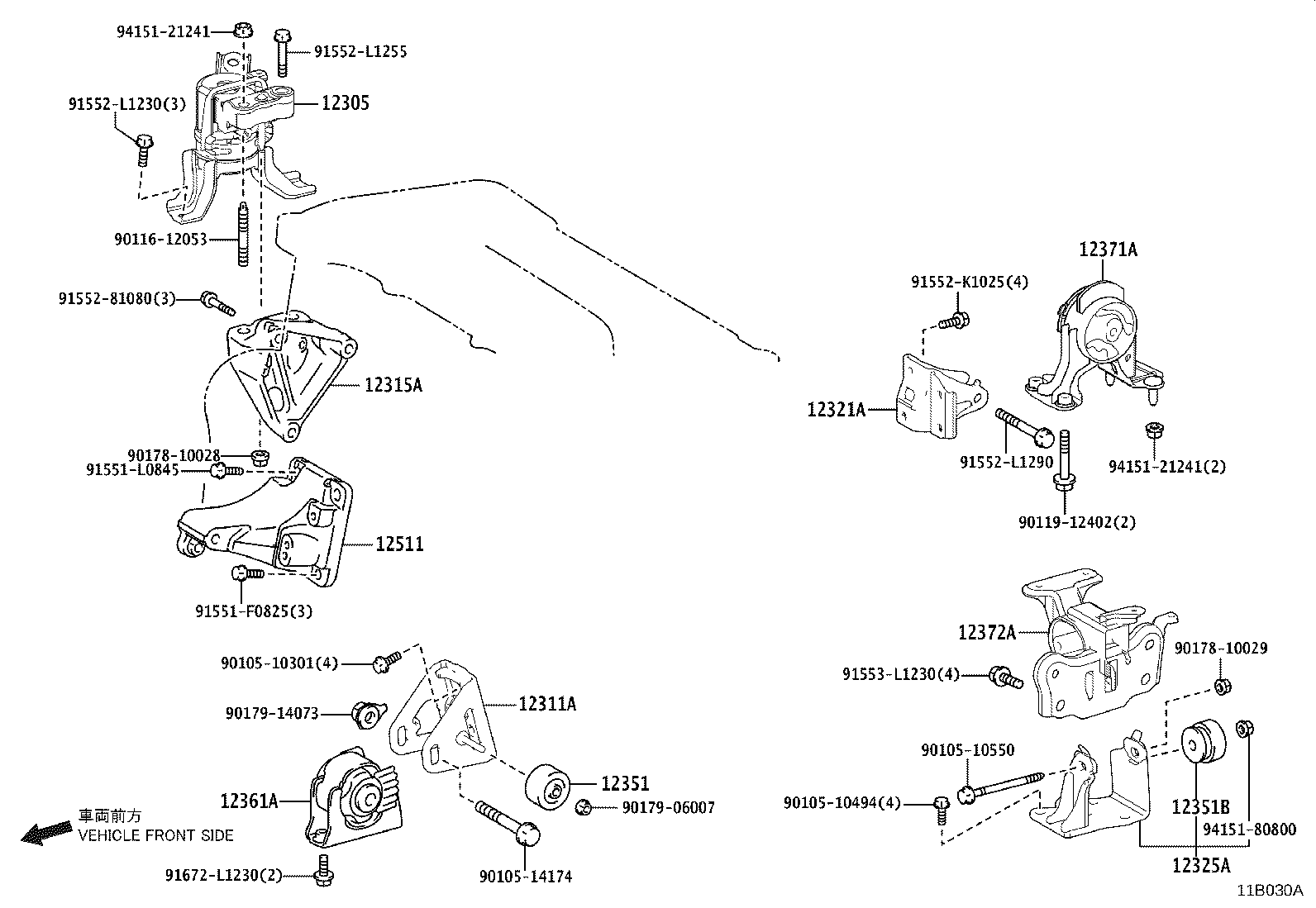

Click highlighted areas on diagram

diagram 12305 12311A 12315A 12321A 12325A 12351 12351B 12361A 12371A 12372A 12511 9010510301 9010510494 9010510550 9010514174 9011612053 9011912402 9017810028 9017810029 9017906007 9017914073 91551F0825 91551L0845 9155281080 91552K1025 91552L1230 91552L1255 91552L1290 91553L1230 91672L1230 9415121241 9415121241 9415180800
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-37280

3ZRFAE..ZSA44..A

 1
12305-37280

3ZRFAE..ZSA44..6F

 1
12305-37280

3ZRFAE..ZSA44..6F;3ZRFE..ZSA42..JPP..X;3ZRFE..ZSA44..JPP..M;3ZRFE..ZSA42..JPP..B..(G,M);3ZRFE..ZSA44..JPP..B..(G,X)

 1
12305-37330

3ZRFAE..ZSA44..A

 1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-37100

3ZRFAE..ZSA44..6F

 1
12311-37180

3ZRFAE..ZSA44..A

 1
12311-37200

3ZRFAE..ZSA44..A

 1
12311-37100

3ZRFAE..ZSA44..6F;3ZRFE..ZSA42..JPP..6F..X;3ZRFE..ZSA44..JPP..6F..M

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-37030

3ZRFAE..ZSA44

 1
12315-37030

3ZRFAE..ZSA44..LHD;3ZRFE..ZSA42..JPP..X;3ZRFE..ZSA44..JPP..M;3ZRFAE..ZSA44..RHD..(G,M);3ZRFE..ZSA42..JPP..B..(G,M);3ZRFE..ZSA44..JPP..B..(G,X)

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-37080

3ZRFAE..ZSA44..6F

 1
12321-37090

3ZRFAE..ZSA44..A

 1
12321-37080

3ZRFAE..ZSA44..6F;3ZRFE..ZSA44..JPP..6F..M

 1
12321-37210

3ZRFAE..ZSA44..A

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12304-37110

3ZRFAE..ZSA44..A

 1
12304-37070

3ZRFAE..ZSA44..6F

 1
12304-37070

3ZRFAE..ZSA44..6F;3ZRFE..ZSA42..JPP..6F..X;3ZRFE..ZSA44..JPP..6F..M

 1
12325-37200

3ZRFAE..ZSA44..A

 1
12351 - DAMPER, ENGINE MOUNTING
12351-37080

3ZRFAE..ZSA44..6F

 1
12351-11023

3ZRFAE..ZSA44..A

 1
12351-37080

3ZRFAE..ZSA44..6F;3ZRFE..ZSA42..JPP..6F..X;3ZRFE..ZSA44..JPP..6F..M

 1
12351B - DAMPER, ENGINE MOUNTING
12351-28090

3ZRFAE..ZSA44..A

 1
12351-11023

3ZRFAE..ZSA44..6F;3ZRFE..ZSA42..JPP..6F..X;3ZRFE..ZSA44..JPP..6F..M

 1
12351-11023

3ZRFAE..ZSA44..6F

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-37180

3ZRFAE..ZSA44..6F

 1
12361-37190

3ZRFAE..ZSA44..LHD..A

ISRAEL SPEC

 1
12361-28280

3ZRFAE..ZSA44..A

 1
12361-37180

3ZRFAE..ZSA44..6F;3ZRFE..ZSA42..JPP..6F..X;3ZRFE..ZSA44..JPP..6F..M

 1
12361-37240

3ZRFAE..ZSA44..A

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-37180

3ZRFAE..ZSA44..6F

 1
12371-37180

3ZRFAE..ZSA44..6F;3ZRFE..ZSA44..JPP..6F..M

 1
12371-37340

3ZRFAE..ZSA44..A

 1
12371-37200

3ZRFAE..ZSA44..A

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-37250

3ZRFAE..ZSA44..6F

 1
12372-37270

3ZRFAE..ZSA44..A

 1
12372-37260

3ZRFAE..ZSA44..A

 1
12372-37250

3ZRFAE..ZSA44..6F;3ZRFE..ZSA42..JPP..6F..X;3ZRFE..ZSA44..JPP..6F..M

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-37010

3ZRFAE..ZSA44

 1
12501-37020

3ZRFAE..ZSA44

 1
Common parts
90105-10301
90105-10494
90105-10550
90105-14174
90116-12053
90119-12402
90178-10028
90178-10029
90179-06007
90179-14073
91551-F0825
91551-L0845
91552-81080
91552-K1025
91552-L1230
91552-L1255
91552-L1290
91553-L1230
91672-L1230
94151-21241
94151-80800
