ZSA44L-ANFXPW (2015)

Toyota Rav4

Production Oct 2015 - Oct 2018
Engine 3ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1212- )3ZR#

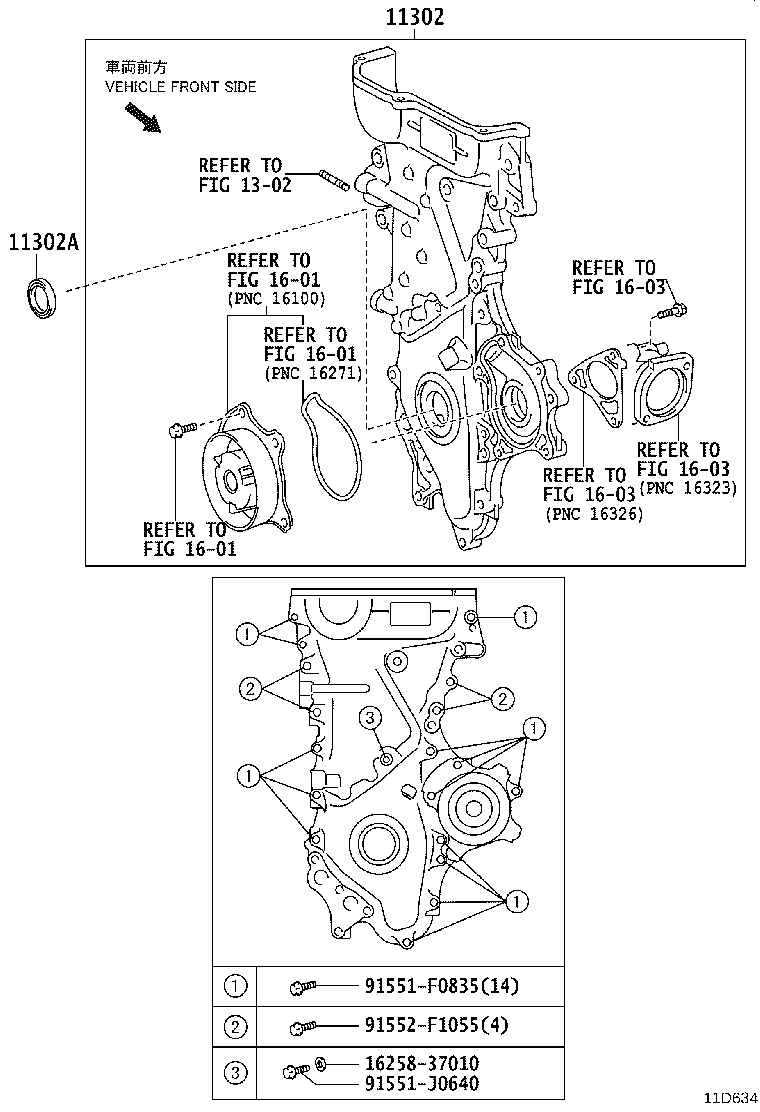

Click highlighted areas on diagram

diagram 11302 11302A 1302 1601 1601 1601 1603 1603 1603 1625837010 91551F0835 91551J0640 91552F1055
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-37032

3ZRFAE..ZSA44

 1
11310-37070

3ZRFAE..ZSA44

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-38096

3ZRFAE..ZSA44..LHD;3ZRFE..ZSA42..JPP..X;3ZRFE..ZSA44..JPP..M;3ZRFAE..ZSA44..RHD..(G,M);3ZRFE..ZSA42..JPP..B..(G,M);3ZRFE..ZSA44..JPP..B..(G,X)

 1
90311-38096

3ZRFAE..ZSA44

 1
Common parts
16258-37010
91551-F0835
91551-J0640
91552-F1055
Linked diagrams
1302
1601
1603
