ZSA44L-ANFXKX (2015)
Toyota Rav4
(1510- )3ZRFE..ZSA44..6F

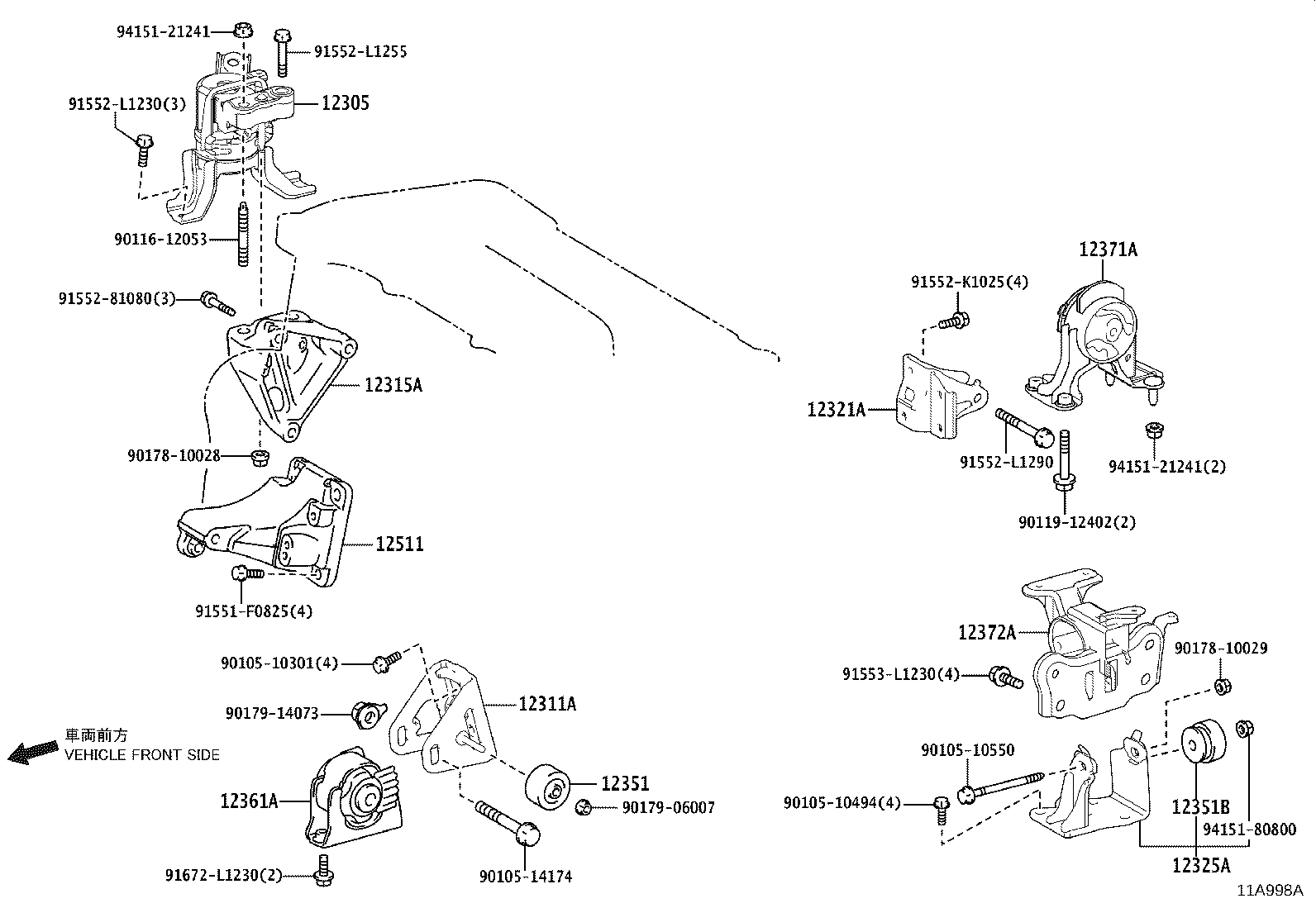

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-37280 |
3ZRFE..ZSA4#..RUP;3ZRFE..ZSA42..JPP..6F..(G,M);3ZRFE..ZSA44..JPP..6F..(G,X) |
1 | ||
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-37100 |
3ZRFE..ZSA42..RUP..6F;3ZRFE..ZSA44..6F..(G,X);3ZRFE..ZSA44..RUP..6F..M;3ZRFE..ZSA42..JPP..6F..(G,M) |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-37030 |
3ZRFE..ZSA4#..RUP;3ZRFAE..ZSA44..RHD..X;3ZRFE..ZSA42..JPP..6F..(G,M);3ZRFE..ZSA44..JPP..6F..(G,X) |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-37080 |
3ZRFE..ZSA44..6F..(G,X);3ZRFE..ZSA44..RUP..6F..M |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12304-37070 |
3ZRFE..ZSA42..RUP..6F;3ZRFE..ZSA44..6F..(G,X);3ZRFE..ZSA44..RUP..6F..M;3ZRFE..ZSA42..JPP..6F..(G,M) |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-37080 |
3ZRFE..ZSA42..RUP..6F;3ZRFE..ZSA44..6F..(G,X);3ZRFE..ZSA44..RUP..6F..M;3ZRFE..ZSA42..JPP..6F..(G,M) |
1 | ||
| 12351B - DAMPER, ENGINE MOUNTING | ||||
| 12351-11023 |
3ZRFE..ZSA42..RUP..6F;3ZRFE..ZSA44..6F..(G,X);3ZRFE..ZSA44..RUP..6F..M;3ZRFE..ZSA42..JPP..6F..(G,M) |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-37180 |
3ZRFE..ZSA42..RUP..6F;3ZRFE..ZSA44..6F..(G,X);3ZRFE..ZSA44..RUP..6F..M;3ZRFE..ZSA42..JPP..6F..(G,M) |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-37180 |
3ZRFE..ZSA44..6F..(G,X);3ZRFE..ZSA44..RUP..6F..M |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-37250 |
3ZRFE..ZSA42..RUP..6F;3ZRFE..ZSA44..6F..(G,X);3ZRFE..ZSA44..RUP..6F..M;3ZRFE..ZSA42..JPP..6F..(G,M) |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-37010 |
3ZRFE..ZSA4#..RUP;3ZRFE..ZSA42..JPP..6F..(G,M);3ZRFE..ZSA44..JPP..6F..(G,X) |
1 | ||
| Common parts | ||||
| 90105-10301 | ||||
| 90105-10494 | ||||
| 90105-10550 | ||||
| 90105-14174 | ||||
| 90116-12053 | ||||
| 90119-12402 | ||||
| 90178-10028 | ||||
| 90178-10029 | ||||
| 90179-06007 | ||||
| 90179-14073 | ||||
| 91551-F0825 | ||||
| 91552-81080 | ||||
| 91552-K1025 | ||||
| 91552-L1230 | ||||
| 91552-L1255 | ||||
| 91552-L1290 | ||||
| 91553-L1230 | ||||
| 91672-L1230 | ||||
| 94151-21241 | ||||
| 94151-80800 | ||||
