ZSA44L-ANFMKX (2015)

Toyota Rav4

Production Oct 2015 - Oct 2018
Engine 3ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1510- )ASA44,ZSA42..G,M ; (1510- )ALA49,ZSA44..RUP..G,M ; (1510- )ASA44,Z

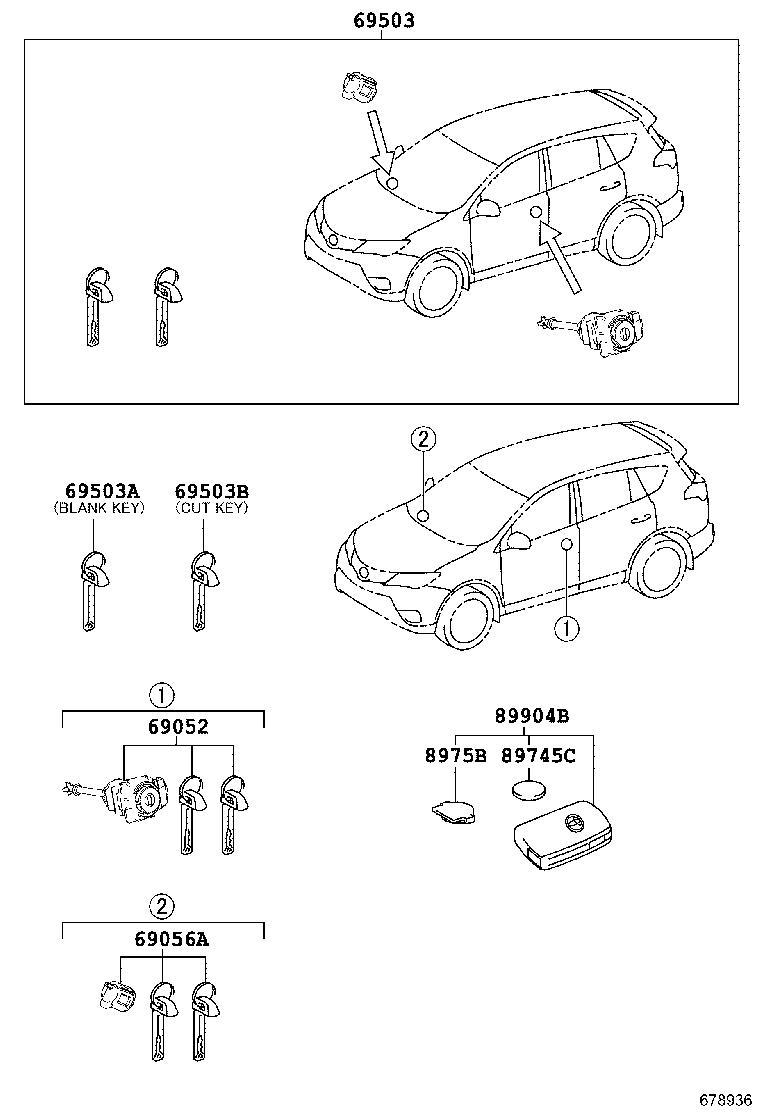

Click highlighted areas on diagram

W(SMART ENTRY)

diagram 69052 69056A 69503 69503A 69503B 89745C 8975B 89904B
Part # Description Qty Price
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-42200

ALA4#,ZSA44..LHD..(M,X)

 1
69052-42190

ZSA44..JPP..LHD..M;ALA49,ASA44,ZSA42..JPP..(6FC,B)..M

POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART

 1
69052-42210

ASA44..X..EUR;ZSA44..JPP..B..X;ZSA44..JPP..M..RUS;ASA44,ZSA42..JPP..(6FC,B)..M;ALA49,ZSA42..JPP..X..(DCRE,EFI);ALA49,ZSA44..JPP..LHD..(M,X)..(DCRL,HTWVM)

 1
69052-42190

ZSA44..JPP..LHD..M;ALA49,ASA44,ZSA42..JPP..(6FC,B)..M

POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART

 1
69052-42210

ALA49,ASA44,WWA42,ZSA4#..JPP..LHD..(6F,6FC,A)..M

KEY PLATE-MASTER 2 FOR SMART

 1
69052-42210

ASA44..X..RUS;ASA44..RUP..M;WWA42..LHD..(M,X);ZSA44..JPP..6F..X..RUS;ALA49,ZSA4#..RUP..(M,X);ALA49,ZSA42..JPP..6F..M

 1
69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-42100

ALA4#,ZSA44..M,X

 1
69056-30240

ASA44..X..EUR;ZSA44..RHD..M;ZSA44..JPP..B..X;ZSA44..JPP..M..RUS;ASA44,ZSA42..JPP..(6FC,B)..M;ALA49,ZSA42..JPP..X..(DCRE,EFI);ALA49,ZSA44..JPP..LHD..(M,X)..(DCRL,HTWVM)

 1
69056-30240

ALA49,ASA44,WWA42,ZSA4#..JPP..(6F,6FC,A)..M

KEY PLATE-MASTER 2 FOR SMART

 1
69056-30240

WWA42..M,X;ASA44..X..RUS;ASA44..RUP..M;ZSA44..RHD..X;ZSA44..JPP..6F..X..RUS;ALA49,ZSA4#..RUP..(M,X);ALA49,ZSA42..JPP..6F..M

 1
69056-33230

ZSA44..JPP..M;ALA49,ASA44,ZSA42..JPP..(6FC,B)..M

POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART

 1
69056-33230

ZSA44..JPP..M;ALA49,ASA44,ZSA42..JPP..(6FC,B)..M

POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART

 1
69503 - CYLINDER SET, LOCK
69005-42600

ALA4#,ZSA44..LHD..M

POWER DOOR LOCK-WITH(POWER BACK DOOR)

 1
69005-42680

ALA4#,ZSA44..LHD..(M,X)

 1
69503A - KEY, BLANK
69515-33100

ZSA44..JPP..M;ALA49,ASA44,ZSA42..JPP..(6FC,B)..M

MASTER KEY,W(*68),POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART

 1
69515-33100

ZSA44..JPP..M;ALA49,ASA44,ZSA42..JPP..(6FC,B)..M

MASTER KEY,W(*68),POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART

 1
89745C - BATTERY, TRANSMITTER
89745-50020

ZSA44..JPP..M;ALA49,ASA44,ZSA42..JPP..(6FC,B)..M

CR2032,POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART,TYPE B:REFER ILLUST.

 1
89745-50020

ZSA44..JPP..M;ALA49,ASA44,ZSA42..JPP..(6FC,B)..M

CR2032,POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR)&KEY PLATE-MASTER 2FOR SMART,TYPE B:REFER ILLUST.

 1
8975B - COVER, TRANSMITTER BATTERY HOUSING
8975B-33010

ZSA44..JPP..M;ALA49,ASA44,ZSA42..JPP..(6FC,B)..M

POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART,TYPE B:REFER ILLUST.

 2
8975B-33010

ZSA44..JPP..M;ALA49,ASA44,ZSA42..JPP..(6FC,B)..M

POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART,TYPE B:REFER ILLUST.

 2
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904-42180

ZSA44..JPP..M;ALA49,ASA44,ZSA42..JPP..(6FC,B)..M

POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART,TYPE B:REFER ILLUST.

 2
89904-42180

ZSA44..JPP..M;ALA49,ASA44,ZSA42..JPP..(6FC,B)..M

POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART,TYPE B:REFER ILLUST.

 2
