ZSA30R-BWXXPW (2010)

Toyota Rav4

Production Feb 2010 - Dec 2012
Engine 3ZRFAE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

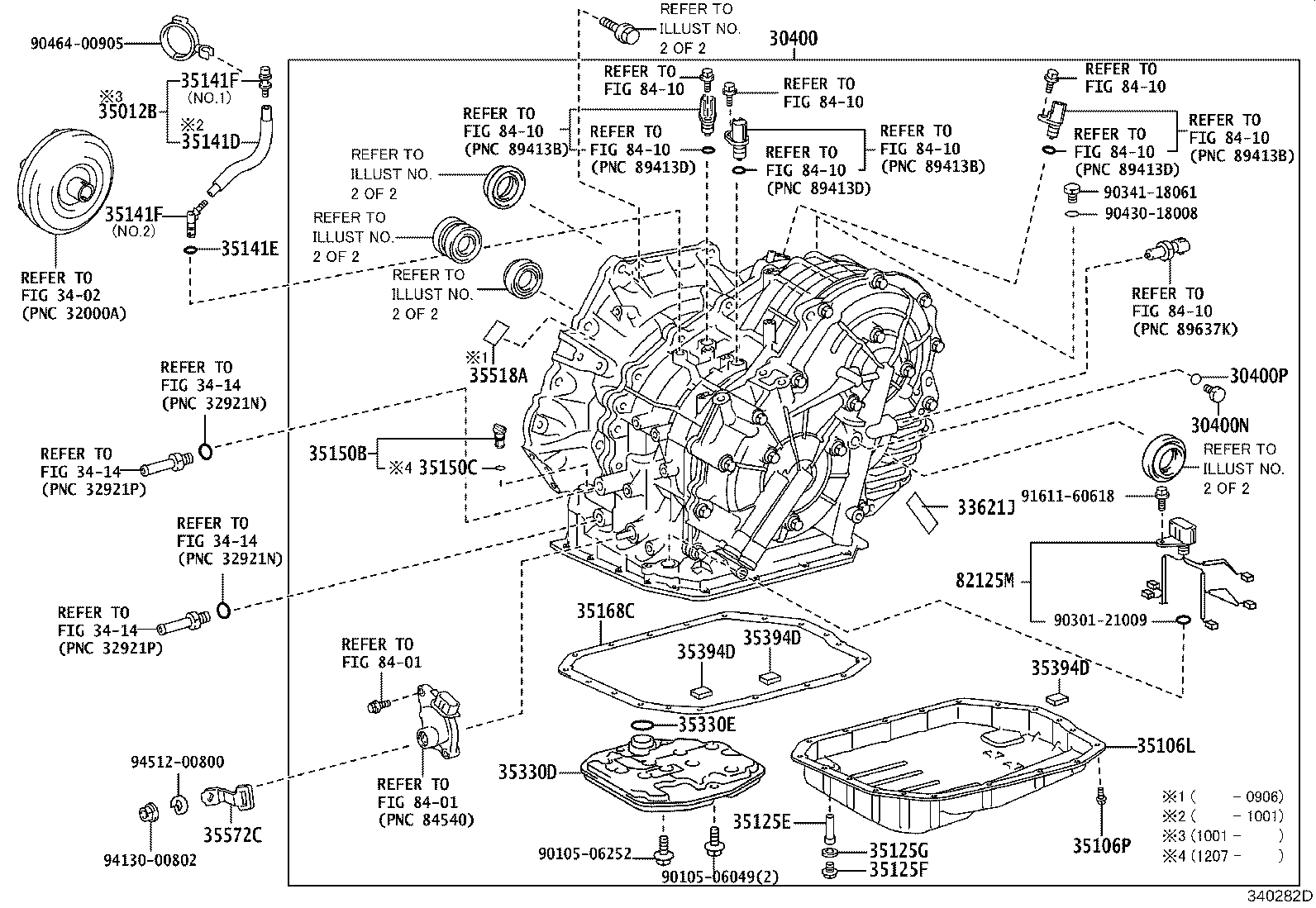

ILLUST NO. 1 OF 2(1009- )CVFC

Click highlighted areas on diagram

K111F

diagram 30400 30400N 30400P 33621J 3402 3414 3414 3414 3414 35012B 35106L 35106P 35125E 35125F 35125G 35141D 35141E 35141F 35141F 35150B 35150C 35168C 35330D 35330E 35394D 35394D 35394D 35518A 35572C 82125M 8401 8401 8410 8410 8410 8410 8410 8410 8410 8410 8410 8410 9010506049 9010506252 9030121009 9034118061 9043018008 9046400905 9161160618 9413000802 9451200800
Part # Description Qty Price
35012B - HOSE SUB-ASSY, TRANSMISSION BREATHER
3510A-44011

ZSA30..CVFC

 1
3510A-44012

ZSA30..CVFC

 1
35106L - PAN SUB-ASSY, TRANSAXLE OIL(CVT)
35106-20031

ZSA30..CVFC

 1
35150B - PLUG ASSY, TRANSMISSION CASE
35150-48010

ZSA30..CVFC

 1
35150C - RING, O (FOR TRANSMISSION CASE PLUG)
90301-09173

ZSA30..CVFC

 1
Common parts
90105-06049
90105-06252
90301-21009
90341-18061
90430-18008
90464-00905
91611-60618
94130-00802
94512-00800
Linked diagrams
3402
3414
8401
8410
