ZSA30L-AWXXPW (2008)

Toyota Rav4

Production Dec 2008 - Aug 2010
Engine 3ZRFAE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0812- )LHD..EUR..ATYPE

Click highlighted areas on diagram

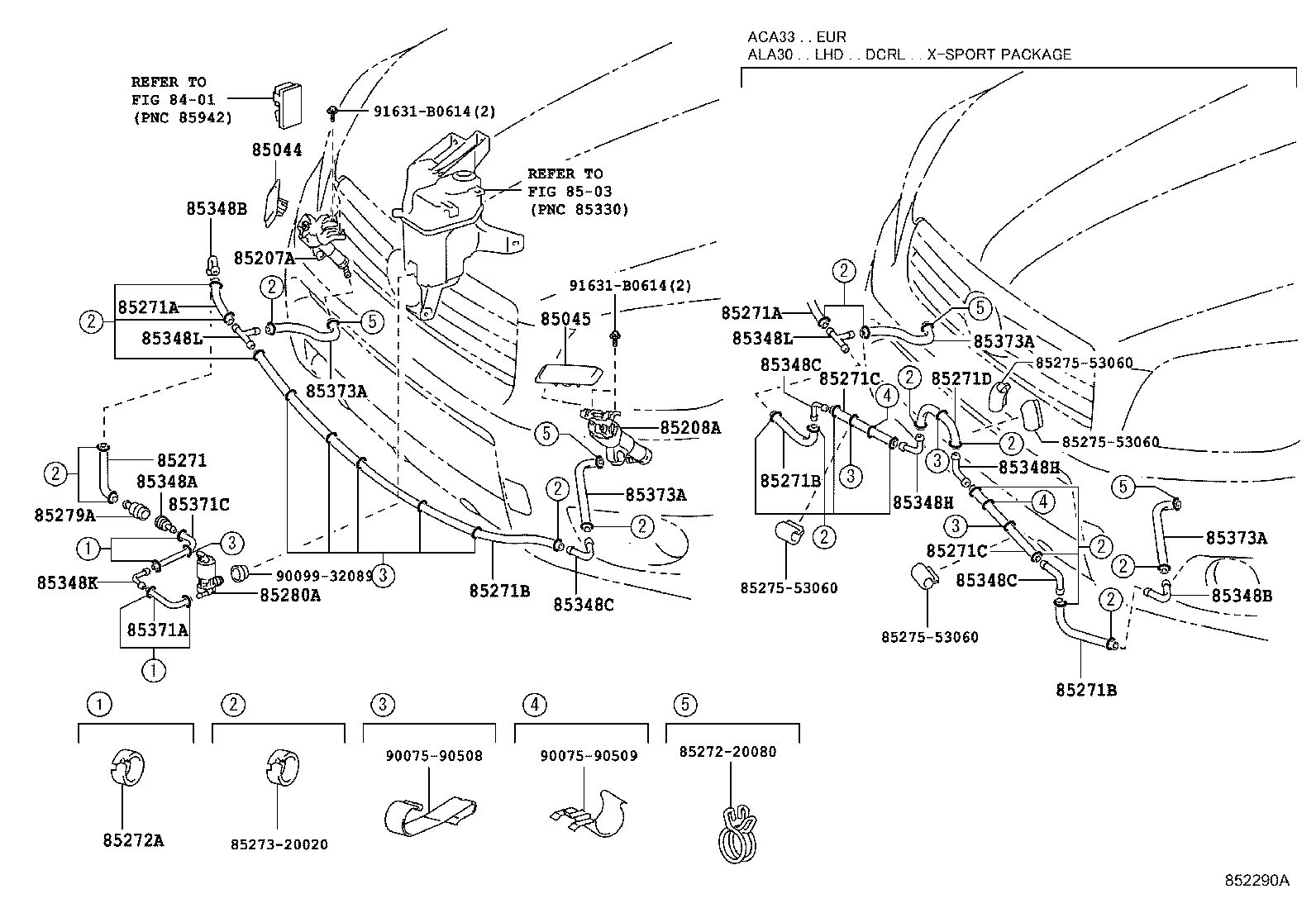

diagram 8401 8503 85044 85045 85207A 85208A 85271 85271A 85271A 85271B 85271B 85271B 85271C 85271C 85271D 8527220080 85272A 8527320020 8527553060 8527553060 8527553060 8527553060 85279A 85280A 85348A 85348B 85348B 85348C 85348C 85348C 85348H 85348H 85348K 85348L 85348L 85371A 85371C 85373A 85373A 85373A 85373A 9007590508 9007590509 9009932089 91631B0614 91631B0614
Part # Description Qty Price
85044 - NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH
85044-42060G0

ACA30,ALA3#,ZSA3#..LHD

HEADLAMP CLEANER-WITH,DK.GREEN MC.,6T3

 1
85044-42060D0

ZSA30..LHD..CVFC;ACA30,ALA30..LHD..(DCR,HTWC)

HEADLAMP CLEANER-WITH,RED M.M.,3R3

 1
85044-42060D1

ACA30,ALA30,ZSA30..LHD..ATYPE

HEADLAMP CLEANER-WITH,DK. RED M.M.,3Q3

 1
85045 - NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH
85045-42020D0

ZSA30..LHD..CVFC;ACA30,ALA30..LHD..(DCR,HTWC)

HEADLAMP CLEANER-WITH,RED M.M.,3R3

 1
85045-42020G0

ACA30,ALA3#,ZSA3#..LHD

HEADLAMP CLEANER-WITH,DK.GREEN MC.,6T3

 1
85045-42020D1

ACA30,ALA30,ZSA30..LHD..ATYPE

HEADLAMP CLEANER-WITH,DK. RED M.M.,3Q3

 1
Common parts
85272-20080
85273-20020
85275-53060
90075-90508
90075-90509
90099-32089
91631-B0614
Linked diagrams
8401
8503
