ZSA30L-AWXXPW (2008)

Toyota Rav4

Production Dec 2008 - Aug 2010
Engine 3ZRFAE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 7 OF 7(0511- )

Click highlighted areas on diagram

REAR SEAT:LH

diagram 66994 66994 71016A 71018 71076S 71078S 71499D 7152 7152 7152 71612A 71652S 71693A 71694 71695 71695B 71826B 71829B 71918B 71918B 71931A 71931A 71940A 71960B 72054A 72380 72598 72620C 7262242010 72635 72635 72678 72690A 72736 72740A 72740A 72749 72749 72809A 72830 72840 72868 72869 72987 72997 72998C 7889942010 7889942010 7889942020 7889942020 79958A 79959 79967 79968 9010510539 9010510539 9010510539 9016740044 9016740044 9016740044 9016740044 9016740044 9017608030 9017908241 9017908241 9017908241 9046310060 9046713046 9155380818 9167380616 9326954008 9415080600 9616000900 9616000900
Part # Description Qty Price
66994 - COVER, CUP HOLDER
66994-42010B0

ALA30,ZSA3#..LHD

NORWAY SPEC OR DENMARK SPEC&REAR SEAT-WITHOUT,DK.GRAY,TRIM1#

 2
66994-42010B0

ALA30,ZSA3#..LHD;ALA30..RHD..(DCR,DCRE)

REAR SEAT-WITHOUT,DK.GRAY,TRIM1#

 2
66994 - COVER, CUP HOLDER
66994-42010B0

ALA30,ZSA3#..LHD

NORWAY SPEC OR DENMARK SPEC&REAR SEAT-WITHOUT,DK.GRAY,TRIM1#

 2
66994-42010B0

ALA30,ZSA3#..LHD;ALA30..RHD..(DCR,DCRE)

REAR SEAT-WITHOUT,DK.GRAY,TRIM1#

 2
71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)
71076-42440B1

ALA30..X;ZSA3#..LHD..X

REAR SEAT-WITHOUT,DK.GRAY,TRIM1#

 1
71076-42440B1

ALA30,ZSA3#..LHD..X

NORWAY SPEC OR DENMARK SPEC&REAR SEAT-WITHOUT,DK.GRAY,TRIM1#

 1
71076-42440B1

ACA30,ALA30,ZSA3#..X

DK.GRAY,TRIM1#

 1
71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71078-42420B1

ALA30,ZSA3#..LHD..X

NORWAY SPEC OR DENMARK SPEC&REAR SEAT-WITHOUT,DK.GRAY,TRIM1#

 1
71078-42420B1

ACA30,ALA30,ZSA3#..X

DK.GRAY,TRIM1#

 1
71078-42420B1

ALA30..X;ZSA3#..LHD..X

REAR SEAT-WITHOUT,DK.GRAY,TRIM1#

 1
72678 - BASE, REAR SEAT BACK LOCK CONTROL LEVER, LH
72678-42010B0

ZSA3#..LHD;ALA30..DCR,DCRE

REAR SEAT-WITHOUT,DK.GRAY,TRIM1#

 1
72678-42010B0

ALA30,ZSA3#..LHD..(DCR,DCRE,HTWVM)

NORWAY SPEC OR DENMARK SPEC&REAR SEAT-WITHOUT,DK.GRAY,TRIM1#

 1
72690A - STRAP ASSY, REAR SEAT LOCK RELEASE
72690-42010C0

ALA3#,ZSA3#..LHD

NORWAY SPEC OR DENMARK SPEC&REAR SEAT-WITHOUT,BLACK,TRIM1#

 1
72690-42010C0

ALA3#..RHD..(DCR,DCRE);ALA3#..LHD..DCR..BTYPE;ALA30,ZSA3#..LHD..ATYPE

REAR SEAT-WITHOUT,BLACK,TRIM1#

 1
72736 - LEVER, REAR SEAT RECLINING RELEASE, LH
72736-42010B0

ZSA3#..LHD;ALA30..DCR,DCRE

REAR SEAT-WITHOUT,DK.GRAY,TRIM1#

 1
72736-42010B0

ALA30,ZSA3#..LHD..(DCR,DCRE,HTWVM)

NORWAY SPEC OR DENMARK SPEC&REAR SEAT-WITHOUT,DK.GRAY,TRIM1#

 1
72830 - ARMREST ASSY, REAR SEAT, CENTER
72830-42060B2

ALA30,ZSA3#..LHD..X

NORWAY SPEC OR DENMARK SPEC&REAR SEAT-WITHOUT,DARK GRAY,TRIM1#

 1
72830-42060B2

ALA30..X;ZSA3#..LHD..X

REAR SEAT-WITHOUT,DARK GRAY,TRIM1#

 1
Common parts
72622-42010
78899-42010
78899-42020
90105-10539
90167-40044
90176-08030
90179-08241
90463-10060
90467-13046
91553-80818
91673-80616
93269-54008
94150-80600
96160-00900
Linked diagrams
7152

ILLUST NO. 6 OF 7(0511- )

Click highlighted areas on diagram

REAR SEAT:RH

diagram 71015A 71017 71075S 71077S 7152 71611A 71651S 71691E 71692E 71695 71695A 71825B 71828B 71918A 71918A 71931A 71931A 71940A 72053C 72380 72597A 72620B 72677A 72730A 72735 72749 72749 72995A 72996 7889942010 7889942010 7889942020 7889942020 79957A 79959 79965 79966 9010510539 9010510539 9010510539 9016740044 9016740044 9016740044 9016740044 9017908241 9046310060 9046713046 9167380616 9326954008 9415080600 9616000900 9616000900
Part # Description Qty Price
71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)
71075-42440B1

ALA30..X;ZSA3#..LHD..X

REAR SEAT-WITHOUT,DK.GRAY,TRIM1#

 1
71075-42440B1

ACA30,ALA30,ZSA3#..X

DK.GRAY,TRIM1#

 1
71075-42440B1

ALA30,ZSA3#..LHD..X

NORWAY SPEC OR DENMARK SPEC&REAR SEAT-WITHOUT,DK.GRAY,TRIM1#

 1
71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)
71077-42430B1

ACA30,ALA30,ZSA3#..X

DK.GRAY,TRIM1#

 1
71077-42430B1

ALA30,ZSA3#..LHD..X

NORWAY SPEC OR DENMARK SPEC&REAR SEAT-WITHOUT,DK.GRAY,TRIM1#

 1
71077-42430B1

ALA30..X;ZSA3#..LHD..X

REAR SEAT-WITHOUT,DK.GRAY,TRIM1#

 1
72677A - BASE, REAR SEAT BACK LOCK CONTROL LEVER, RH
72677-42010B0

ALA30,ZSA3#..LHD..(DCR,DCRE,HTWVM)

NORWAY SPEC OR DENMARK SPEC&REAR SEAT-WITHOUT,DK.GRAY,TRIM1#

 1
72677-42010B0

ZSA3#..LHD;ALA30..DCR,DCRE

REAR SEAT-WITHOUT,DK.GRAY,TRIM1#

 1
72735 - LEVER, REAR SEAT RECLINING RELEASE
72735-42010B0

ALA30,ZSA3#..LHD..(DCR,DCRE,HTWVM)

NORWAY SPEC OR DENMARK SPEC&REAR SEAT-WITHOUT,DK.GRAY,TRIM1#

 1
72735-42010B0

ZSA3#..LHD;ALA30..DCR,DCRE

REAR SEAT-WITHOUT,DK.GRAY,TRIM1#

 1
Common parts
78899-42010
78899-42020
90105-10539
90167-40044
90179-08241
90463-10060
90467-13046
91673-80616
93269-54008
94150-80600
96160-00900
Linked diagrams
7152

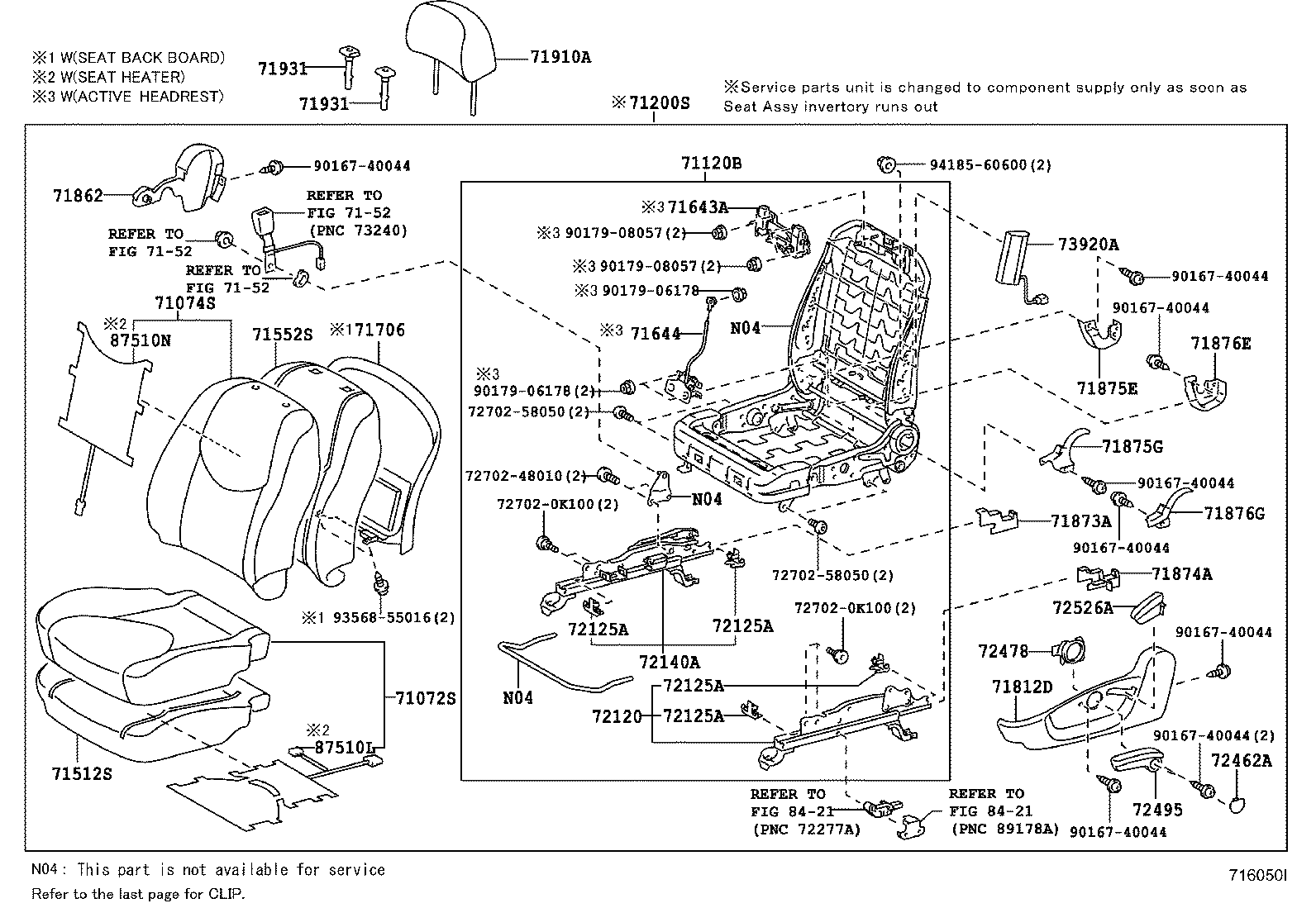

ILLUST NO. 1 OF 7(0812- )ACA30,ALA30,ZSA3#..LHD ; (0908- )ACA33,ALA35..LHD..EUR

Click highlighted areas on diagram

DRIVER-W(SIDE AIR BAG)

diagram 71072S 71074S 71120B 71200S 71512S 7152 7152 7152 71552S 71643A 71644 71706 71812D 71862 71873A 71874A 71875E 71875G 71876E 71876G 71910A 71931 71931 72120 72125A 72125A 72125A 72125A 72140A 72462A 72478 72495 72526A 727020K100 727020K100 7270248010 7270258050 7270258050 73920A 8421 8421 87510L 87510N 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9017906178 9017906178 9017908057 9017908057 9356855016 9418560600
Part # Description Qty Price
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71073-42540B2

ALA30,ZSA3#..LHD..X

WITH(FRONT WHEEL SPLASH SHIELD),DK.GRAY,TRIM1#

 1
71074-42210B2

ACA30,ALA30,ZSA3#..LHD..X

SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM1#

 1
71074-42200B2

ACA30,ALA30,ZSA3#..X

DK.GRAY,TRIM1#

 1
71200S - SEAT ASSY, FRONT LH
71200-42K10B2

ACA30,ALA30,ZSA3#..LHD..X

SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM1#

 1
71200-42K30B2

ACA30,ALA30,ZSA3#..LHD..X

DK.GRAY,TRIM1#

 1
Common parts
72702-0K100
72702-48010
72702-58050
90167-40044
90179-06178
90179-08057
93568-55016
94185-60600
Linked diagrams
7152
8421

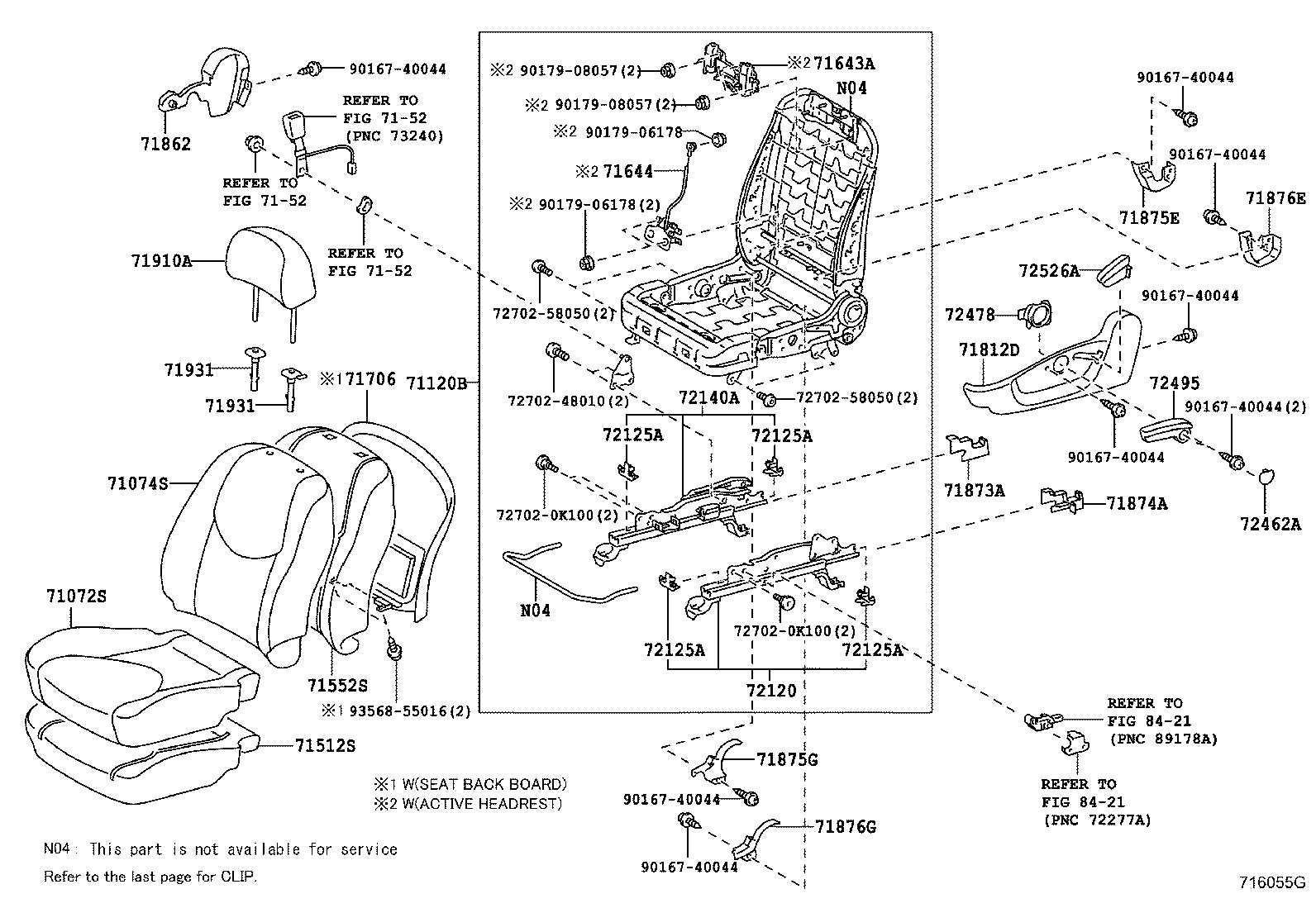

ILLUST NO. 1 OF 7(0812- )ALA3#,ZSA3#..LHD

Click highlighted areas on diagram

DRIVER SIDE

diagram 71072S 71074S 71120B 71512S 7152 7152 7152 71552S 71643A 71644 71706 71812D 71862 71873A 71874A 71875E 71875G 71876E 71876G 71910A 71931 71931 72120 72125A 72125A 72125A 72125A 72140A 72462A 72478 72495 72526A 727020K100 727020K100 7270248010 7270258050 7270258050 8421 8421 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9017906178 9017906178 9017908057 9017908057 9356855016
Part # Description Qty Price
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71073-42540B2

ALA30,ZSA3#..LHD..X

WITH(FRONT WHEEL SPLASH SHIELD),DK.GRAY,TRIM1#

 1
71074-42210B2

ACA30,ALA30,ZSA3#..LHD..X

SEAT HEATER-WITH(DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM1#

 1
71074-42200B2

ACA30,ALA30,ZSA3#..X

DK.GRAY,TRIM1#

 1
Common parts
72702-0K100
72702-48010
72702-58050
90167-40044
90179-06178
90179-08057
93568-55016
Linked diagrams
7152
8421

ILLUST NO. 5 OF 7(0511- )

Click highlighted areas on diagram

FRONT SEAT(SEAT TRACK COVER)

diagram 72123A 72124 72127A 72128A 9011910966 9011910966 9011910966 9011910966
Part # Description Qty Price
Common parts
90119-10966

(0511- )

Click highlighted areas on diagram

CLIP

diagram 9046816019 9046818008
Part # Description Qty Price
Common parts
90468-16019
90468-18008
