ZCA26R-AWMNKW (2000)

Toyota Rav4

Production May 2000 - Nov 2005
Engine 1ZZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0005- )ZCA2#..RHD

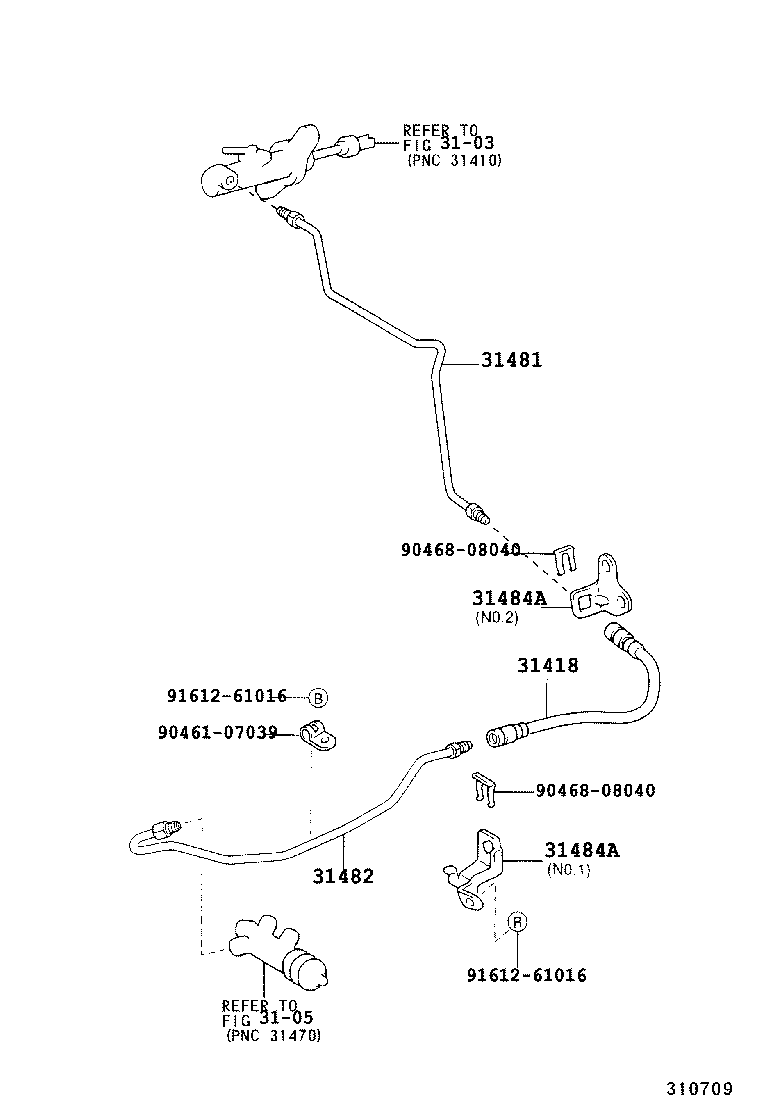

Click highlighted areas on diagram

diagram 3103 3105 31418 31481 31482 31484A 31484A 9046107039 9046808040 9046808040 9161261016 9161261016
Part # Description Qty Price
31418 - HOSE, CLUTCH
90947-02D01

ACA2#,CLA2#,ZCA2#..MTM

 1
90947-02D01

ACA2#,CLA2#,ZCA2#..MTM

 1
90947-02C56

ACA2#,ZCA2#..MTM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-42040

ACA2#,ZCA2#..RHD..MTM

 1
31481-42040

ACA20,21,ZCA2#..RHD..MTM

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-42030

ZCA2#

 1
31482-42030

ZCA2#

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-42040

ZCA2#

NO.1

 1
31484-42050

ACA2#,ZCA2#..MTM

NO.2

 1
31484-42050

ACA2#,ZCA2#..MTM

NO.2

 1
31484-42040

ZCA2#

NO.1

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-42040

ZCA2#

NO.1

 1
31484-42050

ACA2#,ZCA2#..MTM

NO.2

 1
31484-42050

ACA2#,ZCA2#..MTM

NO.2

 1
31484-42040

ZCA2#

NO.1

 1
Common parts
90461-07039
90468-08040
91612-61016
Linked diagrams
3103
3105

ILLUST NO. 1 OF 2(0005- )MTM

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301B 31301C 31301C 31301F 31301P 31301R 31321 31324 31324A 31353 31358 31395 31395 31453A 31453B 55107A 8401 9011908750 9017910088 9046816142 9413061000 9616000600
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-42050

ACA2#,CLA2#,ZCA2#..RHD..MTM

 1
31301-42050

ACA2#,CLA2#,ZCA2#..RHD..MTM

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90905-07033

ACA2#,CLA2#,ZCA2#..MTM

 1
90905-07033

ACA20,21,ZCA2#..MTM

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

ACA2#,CLA2#,ZCA2#..MTM

 2
90541-06036

ACA2#,CLA2#,ZCA2#..MTM

 2
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

ACA2#,CLA2#,ZCA2#..MTM

 2
90541-06036

ACA2#,CLA2#,ZCA2#..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

ACA2#,CLA2#,ZCA2#..MTM

 2
90386-13015

ACA2#,CLA2#,ZCA2#..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

ACA2#,CLA2#,ZCA2#..MTM

 2
90386-13015

ACA2#,CLA2#,ZCA2#..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

ACA2#,CLA2#,ZCA2#..MTM

 1
90101-10369

ACA2#,ZCA2#..MTM

 1
90101-10369

ACA2#,ZCA2#..MTM

 1
31301P - BUSH(FOR CLUTCH PEDAL TURNOVER)
90389-06055

ACA2#,CLA2#,ZCA2#..MTM

 1
90389-06055

ACA2#,CLA2#,ZCA2#..MTM

 1
31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT)
90949-03098

ACA2#,ZCA2#..RHD..MTM

 1
90949-03098

ACA20,21,ZCA2#..RHD..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-52010

ACA2#,CLA2#,ZCA2#..MTM

 1
31321-52010

ACA2#,CLA2#,ZCA2#..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10015

ACA2#,CLA2#,ZCA2#..MTM

 1
90101-10015

ACA2#,CLA2#,ZCA2#..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

ACA2#,CLA2#,ZCA2#..MTM

 1
90387-10003

ACA2#,CLA2#,ZCA2#..MTM

 1
31353 - HOLDER, CLUTCH PEDAL SPRING
31353-14010

CLA2#..LHD;ACA20,21,ZCA2#..MTM

 1
31353-14010

CLA2#..LHD;ACA2#,ZCA2#..MTM

 1
31358 - CAP, OVER CENTER SPRING
31358-42010

ACA2#,CLA2#,ZCA2#..MTM

 1
31358-42010

ACA2#,CLA2#,ZCA2#..MTM

 1
31395 - HOOK, PEDAL SPRING
31395-33020

ACA2#,CLA2#,ZCA2#..MTM

NO.2

 1
31395-33010

ACA20,21,ZCA2#..MTM

NO.1

 1
31395-33010

ACA2#,CLA2#,ZCA2#..MTM

NO.1

 1
31395-33020

ACA20,21,ZCA2#..MTM

NO.2

 1
31395 - HOOK, PEDAL SPRING
31395-33020

ACA2#,CLA2#,ZCA2#..MTM

NO.2

 1
31395-33010

ACA20,21,ZCA2#..MTM

NO.1

 1
31395-33010

ACA2#,CLA2#,ZCA2#..MTM

NO.1

 1
31395-33020

ACA20,21,ZCA2#..MTM

NO.2

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08018

ACA2#,CLA2#,ZCA2#..MTM

L=29.5

 1
90249-08018

ACA2#,CLA2#,ZCA2#..MTM

L=29.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08036

ACA2#,CLA2#,ZCA2#..MTM

 1
90386-08036

ACA2#,CLA2#,ZCA2#..MTM

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-42040

ACA2#,CLA2#,ZCA2#..RHD..MTM

 1
55107-42040

ACA2#,CLA2#,ZCA2#..RHD..MTM

 1
Common parts
90119-08750
90179-10088
90468-16142
94130-61000
96160-00600
Linked diagrams
8401
