ZCA26L-AWMNKW (2000)
Toyota Rav4
Production
May 2000
-
Nov 2005
Engine
1ZZFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0005- )ZCA2#

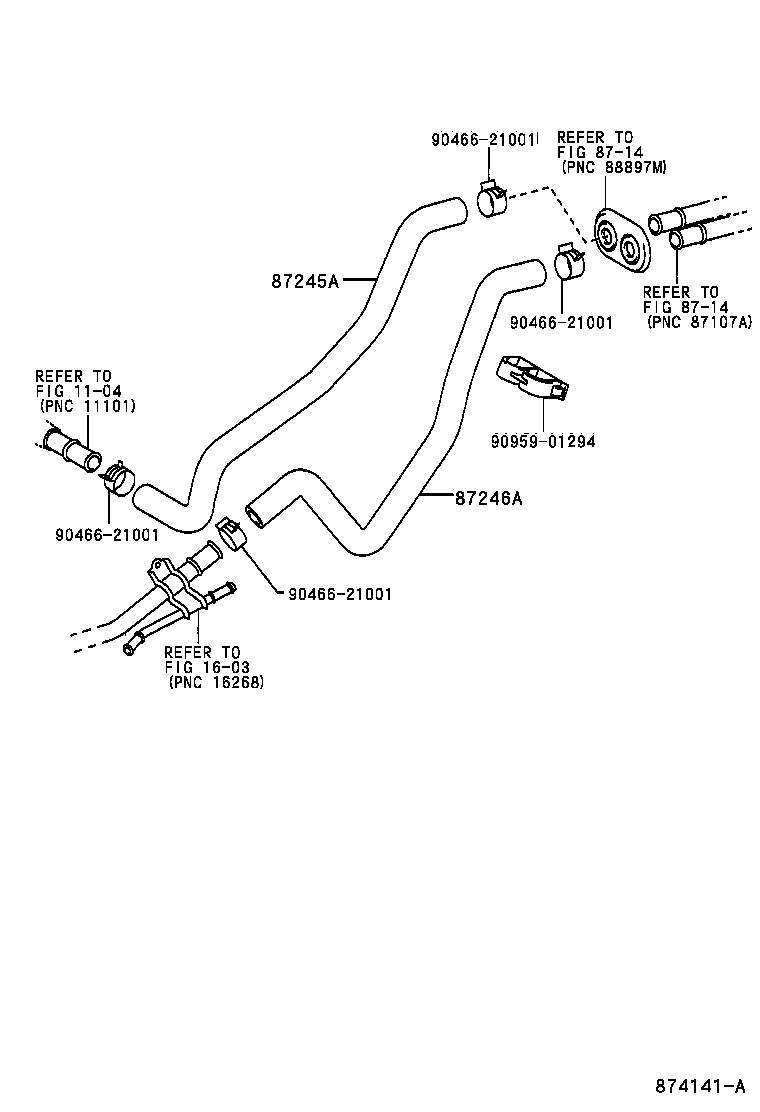

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-42230 |
ZCA2# |
1 | ||
| 87245-42230 |
ZCA2# |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-42240 |
ZCA2# |
1 | ||
| 87245-42240 |
ZCA2# |
1 | ||
| Common parts | ||||
| 90466-21001 | ||||
| 90959-01294 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1603 | ||||
| 8714 | ||||
