ZCA26L-AWMNKW (2000)

Toyota Rav4

Production May 2000 - Nov 2005
Engine 1ZZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0005- )ZCA2#..LHD

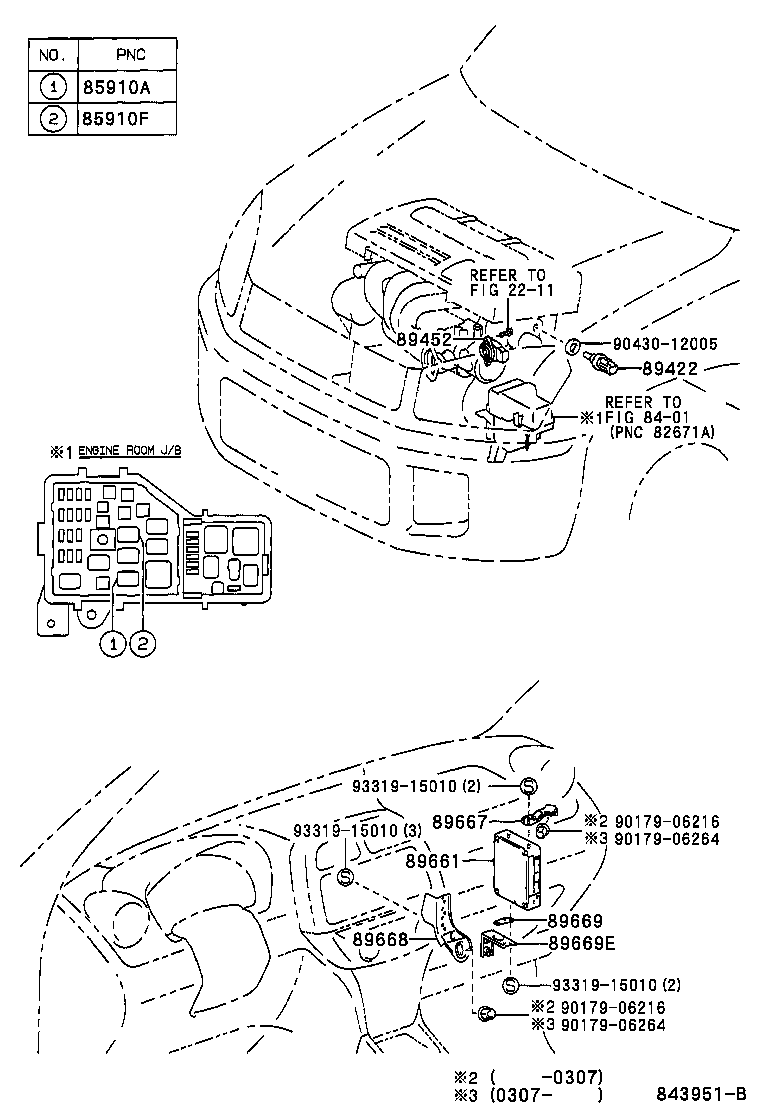

Click highlighted areas on diagram

diagram 2211 8401 85910A 85910F 89422 89452 89661 89667 89668 89669 89669E 9017906216 9017906216 9017906264 9017906264 9043012005 9331915010 9331915010 9331915010
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02027

ACA2#,ZCA2#

 1
90987-02012

ACA2#,ZCA2#

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02012

ACA2#,ZCA2#

 1
90987-02027

ACA2#,ZCA2#

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-35010

ACA2#,ZCA2#

 1
89422-35010

ZCA2#;ACA21..GEN

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-20130

ZCA2#

 1
89452-20130

ZCA2#

 1
89661 - COMPUTER, ENGINE CONTROL
89661-42730

ZCA2#

PART NUMBER LABEL=89661-42730

 1
89661-42770

ZCA2#

PART NUMBER LABEL=89661-42770

 1
89661-42770

ZCA2#

PART NUMBER LABEL=89661-42770

 1
89661-42730

ZCA2#

PART NUMBER LABEL=89661-42730

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-42040

ACA20,21,ZCA2#..LHD

 1
89667-42040

ACA2#,ZCA2#..LHD

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-42040

ACA2#,ZCA2#..LHD

 1
89668-42040

ACA20,21,ZCA2#..LHD

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-42040

ACA2#,ZCA2#

 1
89669-42040

ACA2#,ZCA2#

 1
89669E - BRACKET, ENGINE CONTROL COMPUTER, NO.4
89669-42030

ZCA2#

 1
89669-42030

ZCA2#

 1
Common parts
90179-06216
90179-06264
90430-12005
93319-15010
Linked diagrams
2211
8401
