ZCA26L-AWMNKW (2000)
Toyota Rav4
ILLUST NO. 6 OF 6(0005- )
DOOR,ROOF & FLOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-42040 |
ACA2#,ZCA2# NO.1 |
1 | ||
| 83320-49195 |
ACA2#,CLA2#,ZCA2# NO.2 |
1 | ||
| 83320-42041 |
ACA2#,CLA2#,ZCA2# NO.1 |
1 | ||
| 83320-49195 |
ACA2#,CLA2#,ZCA2# NO.2 |
1 | ||
| 83320-42041 |
ACA2#,CLA2#,ZCA2# NO.1 |
1 | ||
| 83320-49165 |
ACA2#,ZCA2# NO.2 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-42040 |
ACA2#,ZCA2# NO.1 |
1 | ||
| 83320-49195 |
ACA2#,CLA2#,ZCA2# NO.2 |
1 | ||
| 83320-42041 |
ACA2#,CLA2#,ZCA2# NO.1 |
1 | ||
| 83320-49195 |
ACA2#,CLA2#,ZCA2# NO.2 |
1 | ||
| 83320-42041 |
ACA2#,CLA2#,ZCA2# NO.1 |
1 | ||
| 83320-49165 |
ACA2#,ZCA2# NO.2 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
ACA21,23,CLA21,ZCA26 |
2 | ||
| 84231-53010 |
ACA21,CLA21,ZCA26 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
ACA21,23,CLA21,ZCA26 |
2 | ||
| 84231-53010 |
ACA21,CLA21,ZCA26 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ACA21,CLA21,ZCA26 |
2 | ||
| 84231-60070 |
ACA21,23,CLA21,ZCA26 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ACA21,CLA21,ZCA26 |
2 | ||
| 84231-60070 |
ACA21,23,CLA21,ZCA26 |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-42030 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 84656C - BEZEL, SWITCH NO.2 | ||||
| 84656-32020B5 |
ACA21,CLA21,ZCA26..EUR,GCC,GEN BLUE GRAY,TRIM14,15 |
2 | ||
| 84656-32020B4 |
ACA21,23,CLA21,ZCA26 DK.GRAY,TRIM1# |
2 | ||
| 84656C - BEZEL, SWITCH NO.2 | ||||
| 84656-32020B5 |
ACA21,CLA21,ZCA26..EUR,GCC,GEN BLUE GRAY,TRIM14,15 |
2 | ||
| 84656-32020B4 |
ACA21,23,CLA21,ZCA26 DK.GRAY,TRIM1# |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12080 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 84810-12080 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-12080 |
ACA21,CLA21,ZCA26 |
2 | ||
| 84810-12080 |
ACA21,23,CLA21,ZCA26 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-12080 |
ACA21,CLA21,ZCA26 |
2 | ||
| 84810-12080 |
ACA21,23,CLA21,ZCA26 |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-42120 |
ACA21..LHD..EUR;ACA20,CLA2#,ZCA2#..LHD W(POWER WINDOW = FRONT ONLY) |
1 | ||
| 84820-42140 |
ACA21,CLA21,ZCA26..LHD..EUR |
1 | ||
| 84820-42160 |
ACA2#,CLA2#,ZCA2#..LHD..EUR W(POWER WINDOW = FRONT ONLY) |
1 | ||
| 84820-42160 |
ACA20,21,CLA2#,ZCA2#..LHD..EUR W(POWER WINDOW = FRONT ONLY) |
1 | ||
| 84820-42090 |
ACA21,CLA21,ZCA26..LHD |
1 | ||
| 84820-42180 |
ACA21,CLA21,ZCA26..LHD..EUR |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-33020 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85530-42010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85535C - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-34030B0 |
ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN BLUE GRAY,TRIM14,15 |
1 | ||
| 85535-34030B4 |
ACA2#,CLA2#,ZCA2# DK.GRAY,TRIM1# |
1 | ||
| 85539A - LABEL, POWER OUTLET NOTICE, REAR | ||||
| 85539-60020 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85539-60020 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85920 - RELAY & SWITCH ASSY, SLIDING ROOF | ||||
| 85920-0W010B4 |
ACA2#,CLA2#,ZCA2# NEW GRAY,TRIM1# |
1 | ||
| 85920-0W010B2 |
ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN LT.BLUISH GRAY,TRIM14,15 |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90167-60014 | ||||
| 90167-70003 | ||||
| 93319-A4010 | ||||
| Linked diagrams | ||||
| 7751 | ||||
ILLUST NO. 2 OF 6(0005- )ACA2#,ZCA2#
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02012 |
1AZFE,1CDFTV,1ZZFE..ACA2#,CLA2#,ZCA2# |
1 | ||
| 90987-02027 |
1AZFE,2AZFE,1ZZFE..ACA2#,ZCA2# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09007 |
ACA2#,CLA2#,ZCA2# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09013 |
ACA2#,CLA2#,ZCA2# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09009 |
ACA2#,CLA2#,ZCA2# 10A,MINI FUSE,RED |
1 | ||
| 90982-09009 |
ACA2#,CLA2#,ZCA2# 10A,MINI FUSE,RED |
1 | ||
| 90982-09010 |
ACA2#,CLA2#,ZCA2# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09008 |
ACA2#,CLA2#,ZCA2# 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09011 |
ACA2#,CLA2#,ZCA2# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09008 |
ACA2#,CLA2#,ZCA2# 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09011 |
CLA2#..LHD;ACA2#,ZCA2# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09007 |
ACA2#,CLA2#,ZCA2# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09013 |
ACA2#,CLA2#,ZCA2# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
ACA2#,CLA2#,ZCA2# 25A,MINI FUSE |
1 | ||
| 90982-09012 |
ACA2#,CLA2#,ZCA2# 25A,MINI FUSE |
1 | ||
| 90982-09010 |
CLA2#..LHD;ACA2#,ZCA2# 15A,MINI FUSE,BLUE |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09007 |
ACA2#,CLA2#,ZCA2# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09013 |
ACA2#,CLA2#,ZCA2# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09009 |
ACA2#,CLA2#,ZCA2# 10A,MINI FUSE,RED |
1 | ||
| 90982-09009 |
ACA2#,CLA2#,ZCA2# 10A,MINI FUSE,RED |
1 | ||
| 90982-09010 |
ACA2#,CLA2#,ZCA2# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09008 |
ACA2#,CLA2#,ZCA2# 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09011 |
ACA2#,CLA2#,ZCA2# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09008 |
ACA2#,CLA2#,ZCA2# 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09011 |
CLA2#..LHD;ACA2#,ZCA2# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09007 |
ACA2#,CLA2#,ZCA2# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09013 |
ACA2#,CLA2#,ZCA2# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
ACA2#,CLA2#,ZCA2# 25A,MINI FUSE |
1 | ||
| 90982-09012 |
ACA2#,CLA2#,ZCA2# 25A,MINI FUSE |
1 | ||
| 90982-09010 |
CLA2#..LHD;ACA2#,ZCA2# 15A,MINI FUSE,BLUE |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09007 |
ACA2#,CLA2#,ZCA2# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09013 |
ACA2#,CLA2#,ZCA2# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09009 |
ACA2#,CLA2#,ZCA2# 10A,MINI FUSE,RED |
1 | ||
| 90982-09009 |
ACA2#,CLA2#,ZCA2# 10A,MINI FUSE,RED |
1 | ||
| 90982-09010 |
ACA2#,CLA2#,ZCA2# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09008 |
ACA2#,CLA2#,ZCA2# 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09011 |
ACA2#,CLA2#,ZCA2# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09008 |
ACA2#,CLA2#,ZCA2# 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09011 |
CLA2#..LHD;ACA2#,ZCA2# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09007 |
ACA2#,CLA2#,ZCA2# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09013 |
ACA2#,CLA2#,ZCA2# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
ACA2#,CLA2#,ZCA2# 25A,MINI FUSE |
1 | ||
| 90982-09012 |
ACA2#,CLA2#,ZCA2# 25A,MINI FUSE |
1 | ||
| 90982-09010 |
CLA2#..LHD;ACA2#,ZCA2# 15A,MINI FUSE,BLUE |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 82616-20010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-42040 |
ACA2#,CLA2#,ZCA2#..LHD |
1 | ||
| 82620-42040 |
ACA20,21,CLA2#,ZCA2#..LHD |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-42040 |
ACA2#,CLA2#,ZCA2#..LHD |
1 | ||
| 82620-42040 |
ACA20,21,CLA2#,ZCA2#..LHD |
1 | ||
| 82642A - RELAY, RUNNING LIGHT | ||||
| 90987-02016 |
ACA20,21,CLA2#,ZCA2#..LHD..EUR |
1 | ||
| 90987-02025 |
ACA20,21,CLA2#,ZCA2#..LHD..EUR |
1 | ||
| 90987-02016 |
ACA2#,CLA2#,ZCA2#..LHD..EUR |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82721-42040 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 82721-42020 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-42070 |
ACA2#,ZCA2# |
1 | ||
| 82672-42140 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 82672-42080 |
ACA2#,ZCA2#..LHD..EUR W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82674 - COVER, JUNCTION BLOCK LOWER | ||||
| 82674-42010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 82674-42010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 82740 - BLOCK ASSY, ENGINE ROOM RELAY | ||||
| 82740-42030 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 82740-42030 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-30140 |
ACA2#,CLA2#,ZCA2#..MTM |
1 | ||
| 82824-30140 |
ACA2#,CLA2#,ZCA2#..MTM..(ARL,EUR,GEN) |
1 | ||
| 82824Z - PIN, SHORT | ||||
| 82824-20140 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 82824-20140 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 82824Z - PIN, SHORT | ||||
| 82824-20140 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 82824-20140 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 83482 - SENSOR, OUTER AMBIENT TEMPERATURE | ||||
| 88790-42041 |
ACA2#,CLA2#,ZCA2#..EUR W/O(AIR CONDITIONER) |
1 | ||
| 88790-42020 |
ACA2#,CLA2#,ZCA2#..EUR W(MANUAL AIR CONDITIONER) |
1 | ||
| 88790-42050 |
ACA20,21,CLA2#,ZCA2#..EUR W(MANUAL AIR CONDITIONER) |
1 | ||
| 88790-42040 |
ACA2#,CLA2#,ZCA2#..EUR W/O(AIR CONDITIONER) |
1 | ||
| 88790-42021 |
ACA2#,CLA2#,ZCA2#..EUR W(MANUAL AIR CONDITIONER) |
1 | ||
| 88790-42060 |
ACA20,21,CLA2#,ZCA2#..EUR W/O(AIR CONDITIONER) |
1 | ||
| 85913C - RELAY, HEATER, NO.1 | ||||
| 90987-04006 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 90987-04006 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 90987-04010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02012 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 90987-02027 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 90987-04004 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-02012 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 90987-02027 |
ACA2#,CLA2#,ZCA2# PART NUMBER LABEL=90987-02027 |
1 | ||
| 90987-02012 |
ZCA2# PART NUMBER LABEL=90987-02012 |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-33010 |
ACA2#,ZCA2#..LHD..EUR |
1 | ||
| 85942-33010 |
ACA20,21,ZCA2#..LHD..EUR |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-33010 |
ACA2#,ZCA2#..LHD..EUR |
1 | ||
| 85942-33010 |
ACA20,21,ZCA2#..LHD..EUR |
1 | ||
| 89438 - SWITCH, POWER STEERING OIL PRESSURE | ||||
| 89438-33010 |
ACA2#,ZCA2# |
1 | ||
| 89438-33010 |
ACA2#,ZCA2# |
1 | ||
| Common parts | ||||
| 90075-05002 | ||||
| 90075-10014 | ||||
| 90179-08204 | ||||
| 91621-J0612 | ||||
| 91651-B0620 | ||||
| Linked diagrams | ||||
| 8201 | ||||
| 8202 | ||||
| 8404 | ||||
| 8414 | ||||
| 8505 | ||||
ILLUST NO. 3 OF 6(0005- )LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-50030 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 81980-50030 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09007 |
ACA2#,CLA2#,ZCA2# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09013 |
ACA2#,CLA2#,ZCA2# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09009 |
ACA2#,CLA2#,ZCA2# 10A,MINI FUSE,RED |
1 | ||
| 90982-09009 |
ACA2#,CLA2#,ZCA2# 10A,MINI FUSE,RED |
1 | ||
| 90982-09010 |
ACA2#,CLA2#,ZCA2# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09008 |
ACA2#,CLA2#,ZCA2# 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09011 |
ACA2#,CLA2#,ZCA2# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09008 |
ACA2#,CLA2#,ZCA2# 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09011 |
CLA2#..LHD;ACA2#,ZCA2# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09007 |
ACA2#,CLA2#,ZCA2# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09013 |
ACA2#,CLA2#,ZCA2# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
ACA2#,CLA2#,ZCA2# 25A,MINI FUSE |
1 | ||
| 90982-09012 |
ACA2#,CLA2#,ZCA2# 25A,MINI FUSE |
1 | ||
| 90982-09010 |
CLA2#..LHD;ACA2#,ZCA2# 15A,MINI FUSE,BLUE |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09007 |
ACA2#,CLA2#,ZCA2# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09013 |
ACA2#,CLA2#,ZCA2# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09009 |
ACA2#,CLA2#,ZCA2# 10A,MINI FUSE,RED |
1 | ||
| 90982-09009 |
ACA2#,CLA2#,ZCA2# 10A,MINI FUSE,RED |
1 | ||
| 90982-09010 |
ACA2#,CLA2#,ZCA2# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09008 |
ACA2#,CLA2#,ZCA2# 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09011 |
ACA2#,CLA2#,ZCA2# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09008 |
ACA2#,CLA2#,ZCA2# 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09011 |
CLA2#..LHD;ACA2#,ZCA2# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09007 |
ACA2#,CLA2#,ZCA2# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09013 |
ACA2#,CLA2#,ZCA2# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
ACA2#,CLA2#,ZCA2# 25A,MINI FUSE |
1 | ||
| 90982-09012 |
ACA2#,CLA2#,ZCA2# 25A,MINI FUSE |
1 | ||
| 90982-09010 |
CLA2#..LHD;ACA2#,ZCA2# 15A,MINI FUSE,BLUE |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
ACA2#,CLA2#,ZCA2# 30A,PINK |
1 | ||
| 90982-10001 |
CLA2#..LHD;ACA2#,ZCA2# 30A,PINK |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
ACA2#,CLA2#,ZCA2# 30A,PINK |
1 | ||
| 90982-10001 |
CLA2#..LHD;ACA2#,ZCA2# 30A,PINK |
1 | ||
| 82642D - RELAY, RUNNING LIGHT NO.2 | ||||
| 90987-02027 |
ACA20,21,CLA2#,ZCA2#..LHD..EUR |
1 | ||
| 90987-02020 |
ACA2#,CLA2#,ZCA2#..LHD..EUR |
1 | ||
| 90987-02020 |
ACA20,21,CLA2#,ZCA2#..LHD..EUR |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-42060 |
ACA2#,CLA2#,ZCA2#..LHD |
1 | ||
| 82673-42060 |
ACA20,21,CLA2#,ZCA2#..LHD |
1 | ||
| 82683 - PLATE, FUSE BLOCK CAUTION | ||||
| 82683-42100 |
ACA20,21,CLA2#,ZCA2#..LHD |
1 | ||
| 82683-42090 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 82731 - BLOCK, DRIVER SIDE JUNCTION | ||||
| 82731-42010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 82731-42010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-42010 |
ZCA2# |
1 | ||
| 84340-42010 |
ACA2#,ZCA2# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
ACA20,21,CLA2#,ZCA2#..LHD |
1 | ||
| 84550-33010 |
ACA2#,CLA2#,ZCA2#..LHD |
1 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90987-02020 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 90987-02020 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 90987-02027 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02020 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 90987-02020 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 90987-02027 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02020 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 90987-02020 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 90987-02027 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02027 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 90987-02020 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02020 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 90987-02027 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 90987-02020 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| Common parts | ||||
| 91621-J0612 | ||||
| 93315-14012 | ||||
| 94130-61000 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 4 OF 6(0005- )LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-44010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 84118-44010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-42010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 84119-42010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-42010 |
ACA2#,ZCA2#..LHD..EUR |
1 | ||
| 84150-42010 |
ACA20,21,ZCA2#..LHD..EUR |
1 | ||
| 84150E - BULB, HEADLAMP CLEANER SWITCH | ||||
| 84999-10860 |
ACA20,21,ZCA2#..LHD..EUR 14V 0.91W |
1 | ||
| 84999-10860 |
ACA2#,ZCA2#..LHD..EUR 14V 0.91W |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-42020 |
ACA2#,CLA2#,ZCA2#..EUR |
1 | ||
| 84152-20050 |
ACA20,21,CLA2#,ZCA2#..EUR,GCC |
1 | ||
| 84152B - BULB (FOR HEADLAMP LEVELING SWITCH) | ||||
| 90010-08106 |
ACA20,21,CLA2#,ZCA2#..EUR,GCC 14V 40MA |
1 | ||
| 90010-08101 |
ACA2#,CLA2#,ZCA2#..EUR 14V 40MA, ORANGE |
1 | ||
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84165-42010 |
ACA2#,CLA2#,ZCA2#..EUR |
1 | ||
| 84165-42010 |
ACA20,21,CLA2#,ZCA2#..EUR |
1 | ||
| 84162C - BULB (FOR REAR FOG LAMP SWITCH) | ||||
| 90010-09011 |
ACA20,21,CLA2#,ZCA2#..EUR 14V 40MA |
1 | ||
| 90010-09011 |
ACA2#,CLA2#,ZCA2#..EUR 14V 40MA |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-42020 |
ACA2#,CLA2#,ZCA2#..LHD..EUR LH |
1 | ||
| 84751-42020 |
ACA20,21,CLA2#,ZCA2#..LHD..EUR LH |
1 | ||
| 84751-42030 |
ACA20,21,CLA2#,ZCA2#..LHD..EUR RH |
1 | ||
| 84751-42030 |
ACA2#,CLA2#,ZCA2#..LHD..EUR RH |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-42020 |
ACA2#,CLA2#,ZCA2#..LHD..EUR LH |
1 | ||
| 84751-42020 |
ACA20,21,CLA2#,ZCA2#..LHD..EUR LH |
1 | ||
| 84751-42030 |
ACA20,21,CLA2#,ZCA2#..LHD..EUR RH |
1 | ||
| 84751-42030 |
ACA2#,CLA2#,ZCA2#..LHD..EUR RH |
1 | ||
| 84751B - BULB, SEAT HEATER SWITCH | ||||
| 84999-10330 |
ACA2#,CLA2#,ZCA2#..LHD..EUR 14.5V 0.87W |
2 | ||
| 84999-10330 |
ACA20,21,CLA2#,ZCA2#..LHD..EUR 14.5V 0.87W |
2 | ||
| 84751B - BULB, SEAT HEATER SWITCH | ||||
| 84999-10330 |
ACA2#,CLA2#,ZCA2#..LHD..EUR 14.5V 0.87W |
2 | ||
| 84999-10330 |
ACA20,21,CLA2#,ZCA2#..LHD..EUR 14.5V 0.87W |
2 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-34010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 84870-34010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-42020 |
ACA2#,CLA2#,ZCA2#..ARL,EUR,GEN |
1 | ||
| 84930C - BULB(FOR DOOR CONTROL SWITCH) | ||||
| 84999-10310 |
ACA2#,CLA2#,ZCA2#..ARL,EUR,GEN 14V 0.91W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12240 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85500-28050 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85500-12240 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12240 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85500-28050 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85500-12240 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90010-01030 |
ACA2#,CLA2#,ZCA2# 14V1.4W,W/ORANGE CAP |
1 | ||
| 90010-01030 |
ACA2#,CLA2#,ZCA2# 14V1.4W,W/ORANGE CAP |
1 | ||
| 85510 - SOCKET & RETAINER ASSY, CIGARLIGHTER | ||||
| 85510-16040 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85510-16040 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85513-28010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-22040 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85515-22040 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85520-28010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85520-28010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85530-33020 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-42030B0 |
ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN BLUE GRAY,TRIM14,15 |
1 | ||
| 85535-42030B1 |
ACA2#,CLA2#,ZCA2# DK.GRAY,TRIM1# |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60020 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85539-60020 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| Common parts | ||||
| 90170-09002 | ||||
| Linked diagrams | ||||
| 8302 | ||||
ILLUST NO. 5 OF 6(0005-0307)LHD
IGNITION & COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-60020 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 84052-60020 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-42010 |
ACA2#,CLA2#,ZCA2#..LHD W(FRONT FOG LAMP SW) |
1 | ||
| 84140-52020 |
ACA2#,CLA2#,ZCA2#..LHD |
1 | ||
| 84140-52020 |
ACA21..LHD..GEN;ACA20,21,CLA2#,ZCA2#..EUR,GCC TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 84140-42010 |
ACA21..LHD..GEN;ACA20,21,CLA2#,ZCA2#..EUR,GCC TYPE B:REFER TO ILLUSTRATION & W(FRONT FOG LAMP SW) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-52020 |
ACA2#,CLA2#,ZCA2#..ARL,EUR,GCC |
1 | ||
| 84306-42010 |
ACA20,21,CLA2#,ZCA2#..EUR TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-52010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 84450-52010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-42110 |
ACA2#,CLA2#,ZCA2#..LHD |
1 | ||
| 84652-1A830 |
ACA21..LHD..GEN;ACA20,21,CLA2#,ZCA2#..EUR,GCC TYPE B:REFER TO ILLUSTRATION |
1 | ||
| Common parts | ||||
| 90168-40129 | ||||

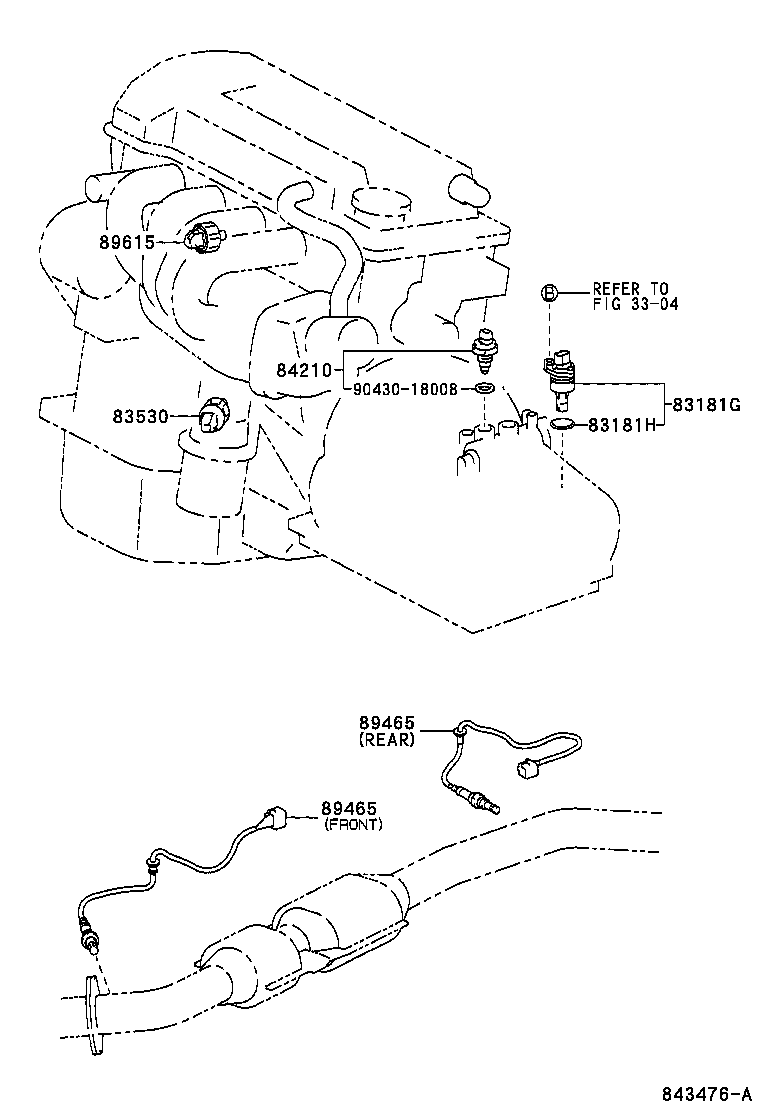

ILLUST NO. 1 OF 6(0005- )ZCA2#
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83181G - SENSOR, SPEEDOMETER | ||||
| 83181-12020 |
ZCA2# |
1 | ||
| 83181-12020 |
ZCA2# |
1 | ||
| 83181H - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24030 |
ACA2#,CLA2#,ZCA2#..MTM |
1 | ||
| 96711-24030 |
ACA2#,CLA2#,ZCA2#..MTM |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60020 |
ACA2#,ZCA2# YAZAKI |
1 | ||
| 83530-28020 |
ACA2#,ZCA2# DENSO |
1 | ||
| 83530-60020 |
ACA2#,ZCA2# YAZAKI |
1 | ||
| 83530-28020 |
ACA2#,ZCA2# DENSO |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
ACA2#,CLA2#,ZCA2#..MTM |
1 | ||
| 84210-12040 |
ACA2#,CLA2#,ZCA2#..MTM |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-42060 |
ZCA2# FRONT |
1 | ||
| 89465-42070 |
ZCA2# REAR |
1 | ||
| 89465-42070 |
ZCA2# REAR |
1 | ||
| 89465-42060 |
ZCA2# FRONT |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-42060 |
ZCA2# FRONT |
1 | ||
| 89465-42070 |
ZCA2# REAR |
1 | ||
| 89465-42070 |
ZCA2# REAR |
1 | ||
| 89465-42060 |
ZCA2# FRONT |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-12120 |
ZCA2# |
1 | ||
| 89615-12120 |
ZCA2# |
1 | ||
| Common parts | ||||
| 90430-18008 | ||||
| Linked diagrams | ||||
| 3304 | ||||
ILLUST NO. 5 OF 6(0307- )
IGNITION & COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-60020 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 84052-60020 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-42010 |
ACA2#,CLA2#,ZCA2#..LHD W(FRONT FOG LAMP SW) |
1 | ||
| 84140-52020 |
ACA2#,CLA2#,ZCA2#..LHD |
1 | ||
| 84140-52020 |
ACA21..LHD..GEN;ACA20,21,CLA2#,ZCA2#..EUR,GCC TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 84140-42010 |
ACA21..LHD..GEN;ACA20,21,CLA2#,ZCA2#..EUR,GCC TYPE B:REFER TO ILLUSTRATION & W(FRONT FOG LAMP SW) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-42010 |
ACA2#,CLA2#,ZCA2#..LHD W(FRONT FOG LAMP SW) |
1 | ||
| 84140-52020 |
ACA2#,CLA2#,ZCA2#..LHD |
1 | ||
| 84140-52020 |
ACA21..LHD..GEN;ACA20,21,CLA2#,ZCA2#..EUR,GCC TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 84140-42010 |
ACA21..LHD..GEN;ACA20,21,CLA2#,ZCA2#..EUR,GCC TYPE B:REFER TO ILLUSTRATION & W(FRONT FOG LAMP SW) |
1 | ||
| 84247A - SWITCH, STEERING PAD, LH | ||||
| 84247-42010C0 |
ACA20,21,CLA2#,ZCA2#..EUR BLACK,TRIM1# |
1 | ||
| 84258A - COVER, STEERING PAD, RH | ||||
| 84258-68020C0 |
ACA20,21,CLA2#,ZCA2#..EUR BLACK,TRIM1# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-52020 |
ACA2#,CLA2#,ZCA2#..ARL,EUR,GCC |
1 | ||
| 84306-42010 |
ACA20,21,CLA2#,ZCA2#..EUR TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-52010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 84450-52010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-42110 |
ACA2#,CLA2#,ZCA2#..LHD |
1 | ||
| 84652-1A830 |
ACA21..LHD..GEN;ACA20,21,CLA2#,ZCA2#..EUR,GCC TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-42110 |
ACA2#,CLA2#,ZCA2#..LHD |
1 | ||
| 84652-1A830 |
ACA21..LHD..GEN;ACA20,21,CLA2#,ZCA2#..EUR,GCC TYPE B:REFER TO ILLUSTRATION |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
