ZCA26L-AWMNKW (2000)
Toyota Rav4
Production
May 2000
-
Nov 2005
Engine
1ZZFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

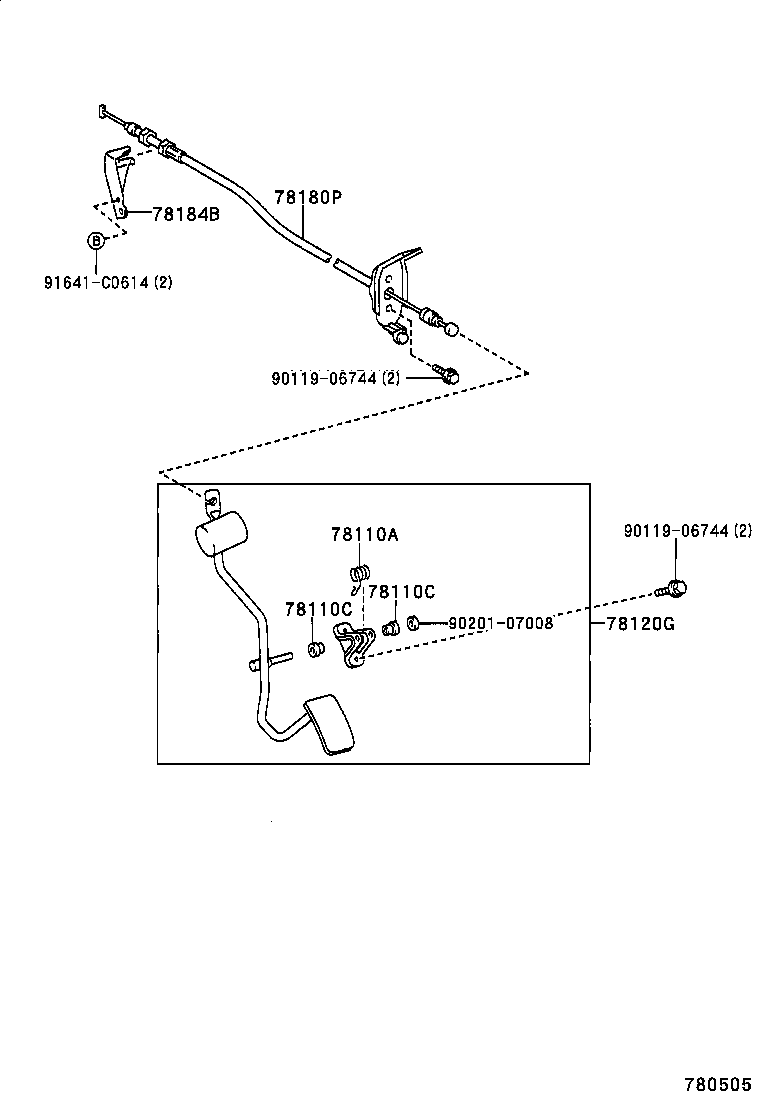

(0005-0307)ZCA2#..LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90959-03292 |
ACA2#,ZCA2#..LHD..MTM;ACA2#..LHD..ATM..(GCC,GEN) |
1 | ||
| 90959-03292 |
ZCA2#..LHD;ACA21..LHD..GEN |
1 | ||
| 78110C - BUSH (FOR ACCELERATOR PEDAL ROD) | ||||
| 90386-08063 |
ACA2#,ZCA2#..LHD |
2 | ||
| 90386-08063 |
ZCA2#..LHD;ACA21..LHD..GEN |
2 | ||
| 78110C - BUSH (FOR ACCELERATOR PEDAL ROD) | ||||
| 90386-08063 |
ACA2#,ZCA2#..LHD |
2 | ||
| 90386-08063 |
ZCA2#..LHD;ACA21..LHD..GEN |
2 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-42110 |
ZCA2#..LHD;ACA21..LHD..GEN |
1 | ||
| 78120-42110 |
ACA2#,ZCA2#..LHD..MTM;ACA2#..LHD..ATM..(GCC,GEN) |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-42130 |
ZCA2#..LHD |
1 | ||
| 78180-42130 |
ZCA2#..LHD |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-42010 |
ZCA2# |
1 | ||
| 78184-42010 |
ZCA2# |
1 | ||
| Common parts | ||||
| 90119-06744 | ||||
| 90201-07008 | ||||
| 91641-C0614 | ||||

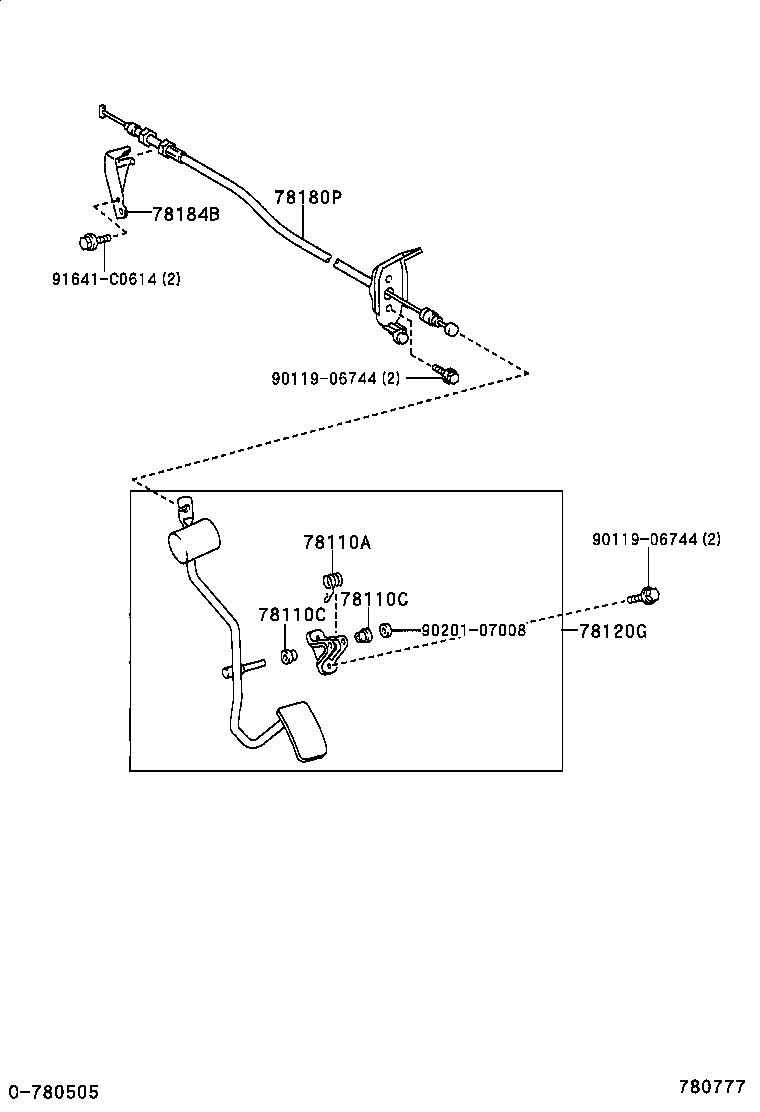

(0307- )ZCA2#..LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90959-03292 |
ACA2#,ZCA2#..LHD..MTM;ACA2#..LHD..ATM..(GCC,GEN) |
1 | ||
| 90959-03292 |
ZCA2#..LHD;ACA21..LHD..GEN |
1 | ||
| 78110C - BUSH (FOR ACCELERATOR PEDAL ROD) | ||||
| 90386-08063 |
ACA2#,ZCA2#..LHD |
2 | ||
| 90386-08063 |
ZCA2#..LHD;ACA21..LHD..GEN |
2 | ||
| 78110C - BUSH (FOR ACCELERATOR PEDAL ROD) | ||||
| 90386-08063 |
ACA2#,ZCA2#..LHD |
2 | ||
| 90386-08063 |
ZCA2#..LHD;ACA21..LHD..GEN |
2 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-42110 |
ZCA2#..LHD;ACA21..LHD..GEN |
1 | ||
| 78120-42110 |
ACA2#,ZCA2#..LHD..MTM;ACA2#..LHD..ATM..(GCC,GEN) |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-42130 |
ZCA2#..LHD |
1 | ||
| 78180-42130 |
ZCA2#..LHD |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-42010 |
ZCA2# |
1 | ||
| 78184-42010 |
ZCA2# |
1 | ||
| Common parts | ||||
| 90119-06744 | ||||
| 90201-07008 | ||||
| 91641-C0614 | ||||
