ZCA26L-AWMNKW (2000)

Toyota Rav4

Production May 2000 - Nov 2005
Engine 1ZZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0005- )ZCA2#..LHD

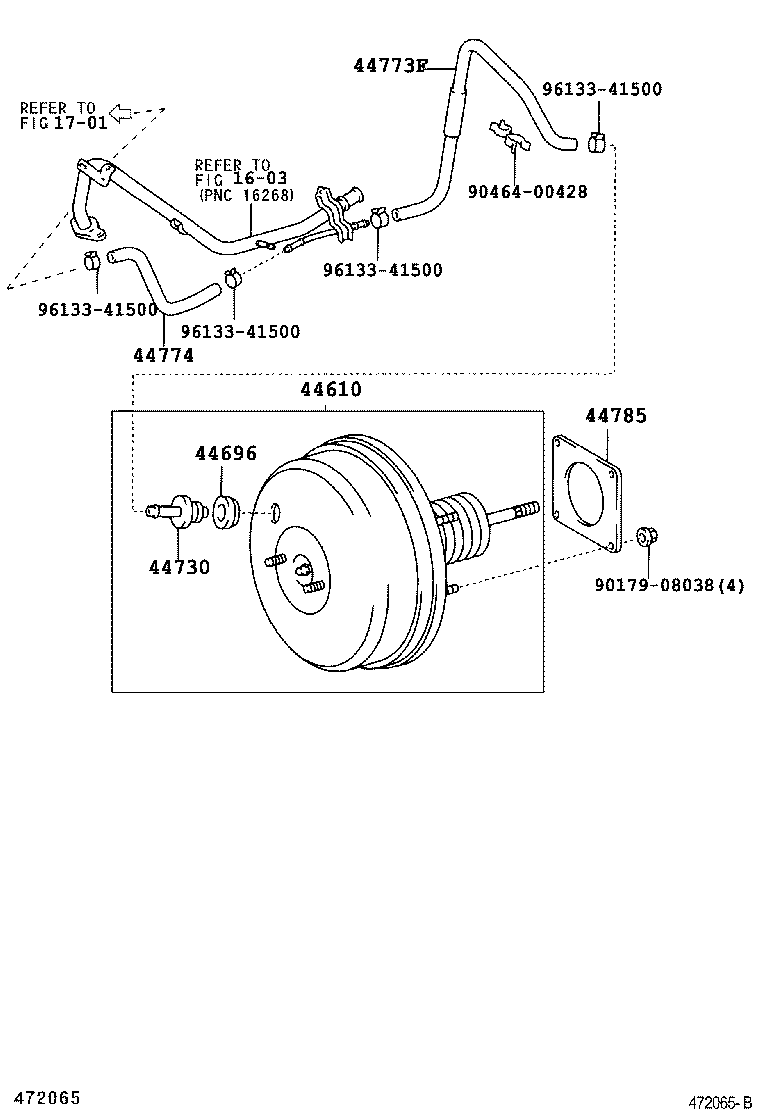

Click highlighted areas on diagram

diagram 1603 1701 44610 44696 44730 44773F 44774 44785 9017908038 9046400428 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-42140

ACA2#,ZCA2#..LHD..EUR

 1
44610-42131

ACA20,21,ZCA2#..LHD

 1
44610-42140

ACA20,21,ZCA2#..LHD..EUR

CHINA OR GERMANY SPEC

 1
44696 - GROMMET, CHECK VALVE
90480-24015

ACA20,21,ZCA2#..LHD

 1
90480-24015

ACA2#,ZCA2#..LHD

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-30010

ACA2#,ZCA2#..LHD

 1
44730-28030

ACA2#,ZCA2#..LHD

 1
44730-28030

ACA20,21,ZCA2#..LHD

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-42110

ZCA2#..LHD

 1
44773-42110

ZCA2#..LHD

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-20310

ZCA2#

 1
44774-63010

ZCA2#

 1
44774-20310

ZCA2#

 1
44785 - GASKET, BRAKE BOOSTER
44785-20020

ACA2#,CLA2#,ZCA2#

 1
44785-20020

ACA2#,CLA2#,ZCA2#

 1
Common parts
90179-08038
90464-00428
96133-41500
Linked diagrams
1603
1701
