ZCA26L-AWMNKW (2000)

Toyota Rav4

Production May 2000 - Nov 2005
Engine 1ZZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0005- )ZCA2#..LHD

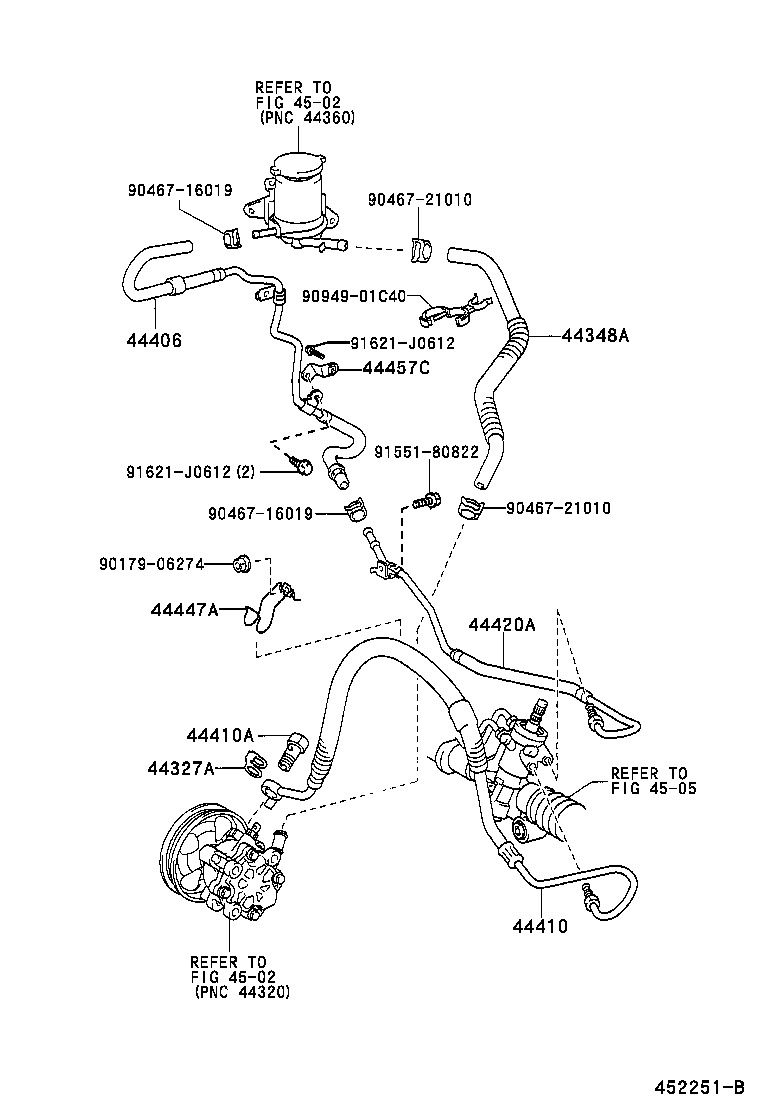

Click highlighted areas on diagram

diagram 44327A 44348A 44406 44410 44410A 44420A 44447A 44457C 4502 4502 4505 9017906274 9046716019 9046716019 9046721010 9046721010 9094901C40 9155180822 91621J0612 91621J0612
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-30030

ACA2#,CLA2#,ZCA2#

 1
44327-30030

ACA2#,CLA2#,ZCA2#

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-42060

ZCA2#

 1
44348-42060

ZCA2#

 1
44406 - TUBE SUB-ASSY, RETURN
44406-42080

ACA2#,ZCA2#

 1
44406-42100

ACA2#,ZCA2#

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-42090

ZCA2#..LHD

 1
44410-42090

ZCA2#..LHD

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
96341-41603

ACA2#,CLA2#,ZCA2#

 1
96341-41603

ACA2#,CLA2#,ZCA2#

 1
44420A - TUBE ASSY, RETURN
44420-42060

ACA20,21,CLA2#,ZCA2#..LHD

 1
44420-42050

ACA2#,CLA2#,ZCA2#..LHD

 1
44447A - BRACKET, HOSE SUPPORT, NO.1
44447-42010

ZCA2#

 1
44447-42010

ZCA2#

 1
44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1
44457-42030

ACA2#,CLA2#,ZCA2#..LHD

 1
44457-42030

ACA20,21,CLA2#,ZCA2#..LHD

 1
Common parts
90179-06274
90467-16019
90467-21010
90949-01C40
91551-80822
91621-J0612
Linked diagrams
4502
4505
