ZCA26L-AWMNKW (2000)

Toyota Rav4

Production May 2000 - Nov 2005
Engine 1ZZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0005- )ZCA2#

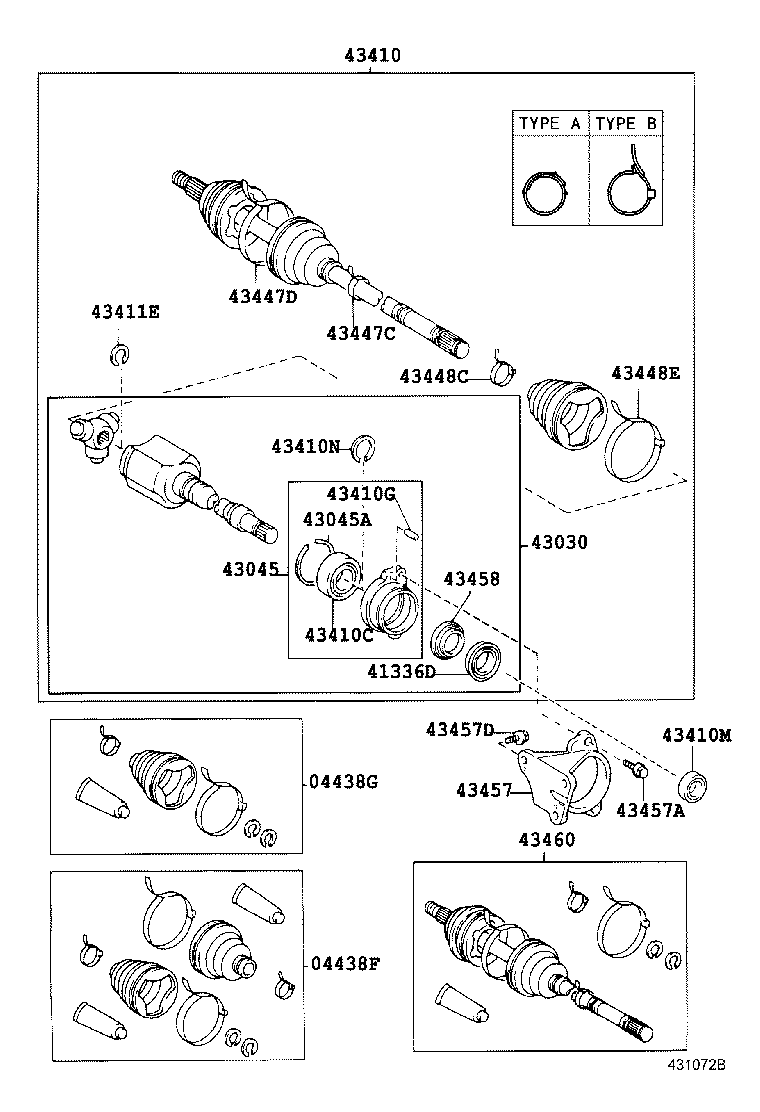

Click highlighted areas on diagram

RH

diagram 04438F 04438G 41336D 43030 43045 43045A 43410 43410C 43410G 43410M 43410N 43411E 43447C 43447D 43448C 43448E 43457 43457A 43457D 43458 43460
Part # Description Qty Price
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04438-42100

ZCA2#

 1
04427-42060

ZCA2#

 1
04438-42102

ZCA2#

 1
04438-42102

ZCA2#

 1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04438-42091

ZCA2#

 1
04438-42090

ZCA2#

 1
04438-42091

ZCA2#

 1
04438-42180

ZCA2#

 1
41336D - COVER, FRONT DRIVE SHAFT DUST, RH
41336-20050

ZCA2#

 1
41336-20050

ZCA2#

 1
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
43030-42030

ZCA2#

 1
43030-42031

ZCA2#

 1
43030-42031

ZCA2#

 1
43045 - CASE SUB ASSY, DRIVE SHAFT BEARING
43045-20010

ZCA2#

 1
43045-20010

ZCA2#

 1
43045A - RING, SNAP (FOR CASE SUB ASSY, DRIVE SHAFT BEARING)
96153-00680

ZCA2#

 1
96153-00680

ZCA2#

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-42100

ZCA2#

W(ABS)

 1
43410-42110

ZCA2#

 1
43410-42100

ZCA2#

W(ABS)

 1
43410C - BEARING (FOR FRONT DRIVE SHAFT)
90363-36004

ZCA2#

 1
90363-36004

ZCA2#

 1
43410G - PIN, STRAIGHT (FOR FRONT DRIVE SHAFT)
90250-06003

ZCA2#

 1
90250-06003

ZCA2#

 1
43410M - OIL SEAL, FRONT DRIVE SHAFT, RH
90311-35051

ZCA2#

 1
90311-35051

ZCA2#

 1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
90520-33008

ZCA2#

 1
90520-33008

ZCA2#

 1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-28010

ACA2#,CLA2#,ZCA2#

 1
43425-28010

ACA2#,CLA2#,ZCA2#

 1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-20040

ACA2#,CLA2#,ZCA2#

 1
42345-20040

ACA2#,CLA2#,ZCA2#

 1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-28020

ACA2#,CLA2#,ZCA2#

 1
42345-28020

ACA2#,CLA2#,ZCA2#

 1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-42010

ACA2#,CLA2#,ZCA2#

TYPE A:REFER TO ILLUSTRATION

 1
90949-01559

ACA2#,CLA2#,ZCA2#

 1
90949-01559

ACA2#,CLA2#,ZCA2#

TYPE B:REFER TO ILLUSTRATION

 1
42345-42010

ACA2#,CLA2#,ZCA2#

TYPE A:REFER TO ILLUSTRATION

 1
90949-01559

ACA2#,CLA2#,ZCA2#

TYPE B:REFER TO ILLUSTRATION

 1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12160

ACA2#,CLA2#,ZCA2#

 1
90949-01076

ACA2#,CLA2#,ZCA2#

 1
42345-12160

ACA2#,CLA2#,ZCA2#

 1
43457 - BRACKET, DRIVE SHAFT BEARING
43457-20080

ZCA2#

 1
43457-20080

ZCA2#

 1
43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90105-10361

ZCA2#

*10-1.25PX22-19.5

 2
90105-10285

ZCA2#

*10-1.25PX22-19.5

 2
43457D - BOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
90105-10381

ZCA2#

 3
90105-10381

ZCA2#

 3
43458 - COVER, FRONT DRIVE SHAFT DUST
43458-20011

ZCA2#

 1
43458-20011

ZCA2#

 1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43460-49085

ZCA2#

 1
43470-29635

ZCA2#

W(ABS)

 1
43470-29636

ZCA2#

W(ABS)

 1
43470-80075

ZCA2#

 1
43460-49086

ZCA2#

 1
43470-29636

ZCA2#

W(ABS)

 1

(0005- )ZCA2#

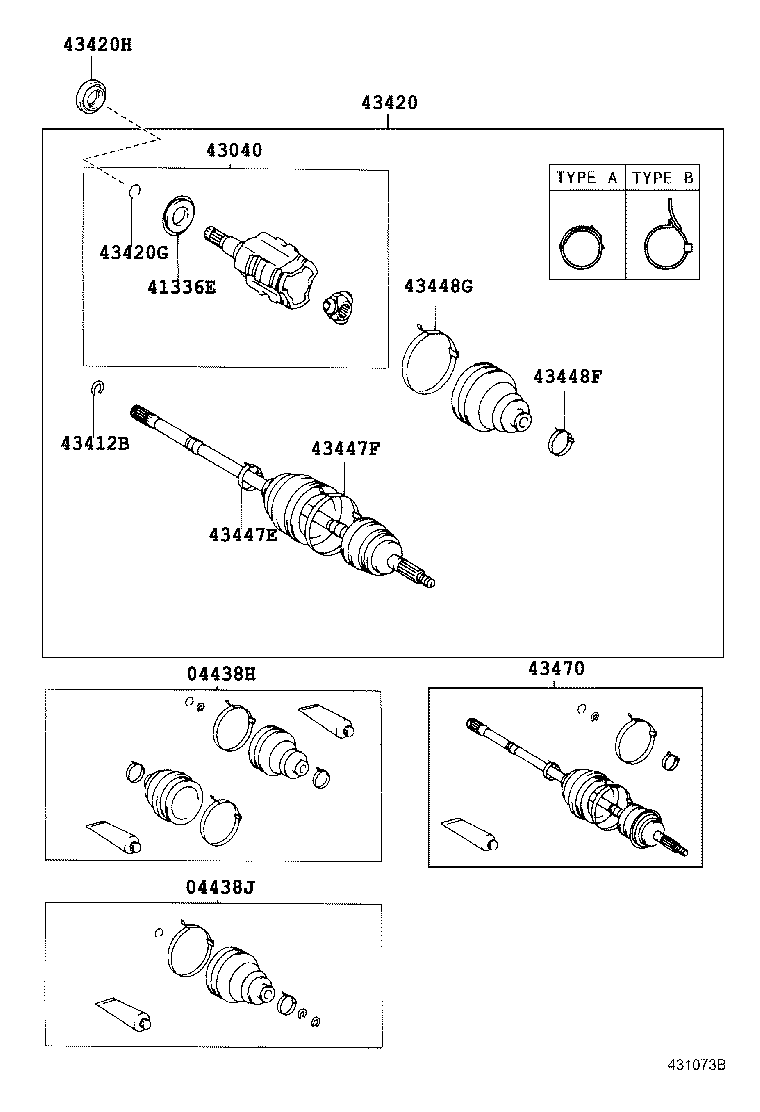

Click highlighted areas on diagram

LH

diagram 04438H 04438J 41336E 43040 43412B 43420 43420G 43420H 43447E 43447F 43448F 43448G 43470
Part # Description Qty Price
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04438-42100

ZCA2#

 1
04428-42080

ZCA2#

 1
04438-42102

ZCA2#

 1
04438-42102

ZCA2#

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-42090

ZCA2#

 1
04438-42190

ZCA2#

 1
04438-42091

ZCA2#

 1
04438-42091

ZCA2#

 1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-32020

ZCA2#

 1
41336-32020

ZCA2#

 1
43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH
43040-42031

ZCA2#

 1
43040-42030

ZCA2#

 1
43040-42031

ZCA2#

 1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-28010

ACA2#,CLA2#,ZCA2#

 1
43425-28010

ACA2#,CLA2#,ZCA2#

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-42110

ZCA2#

 1
43420-42100

ZCA2#

W(ABS)

 1
43420-42100

ZCA2#

W(ABS)

 1
43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
90521-27005

ZCA2#

 1
90521-27005

ZCA2#

 1
43420H - OIL SEAL, FRONT DRIVE SHAFT, LH
90311-35044

ZCA2#

 1
90311-35058

ZCA2#

 1
90311-35044

ZCA2#

 1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-20040

ACA2#,CLA2#,ZCA2#

 1
42345-20040

ACA2#,CLA2#,ZCA2#

 1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-28020

ACA2#,CLA2#,ZCA2#

 1
42345-28020

ACA2#,CLA2#,ZCA2#

 1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
90949-01559

ACA2#,CLA2#,ZCA2#

TYPE B:REFER TO ILLUSTRATION

 1
90949-01559

ACA2#,CLA2#,ZCA2#

 1
42345-42010

ACA2#,CLA2#,ZCA2#

TYPE A:REFER TO ILLUSTRATION

 1
90949-01559

ACA2#,CLA2#,ZCA2#

TYPE B:REFER TO ILLUSTRATION

 1
42345-42010

ACA2#,CLA2#,ZCA2#

TYPE A:REFER TO ILLUSTRATION

 1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-12160

ACA2#,CLA2#,ZCA2#

 1
90949-01076

ACA2#,CLA2#,ZCA2#

 1
42345-12160

ACA2#,CLA2#,ZCA2#

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-49145

ZCA2#

W(ABS)

 1
43470-49175

ZCA2#

 1
43470-49176

ZCA2#

 1
43470-49146

ZCA2#

W(ABS)

 1
43470-49146

ZCA2#

W(ABS)

 1
43470-80081

ZCA2#

 1
