ZCA26L-AWMNKW (2000)

Toyota Rav4

Production May 2000 - Nov 2005
Engine 1ZZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0005- )ZCA2#

Click highlighted areas on diagram

C54

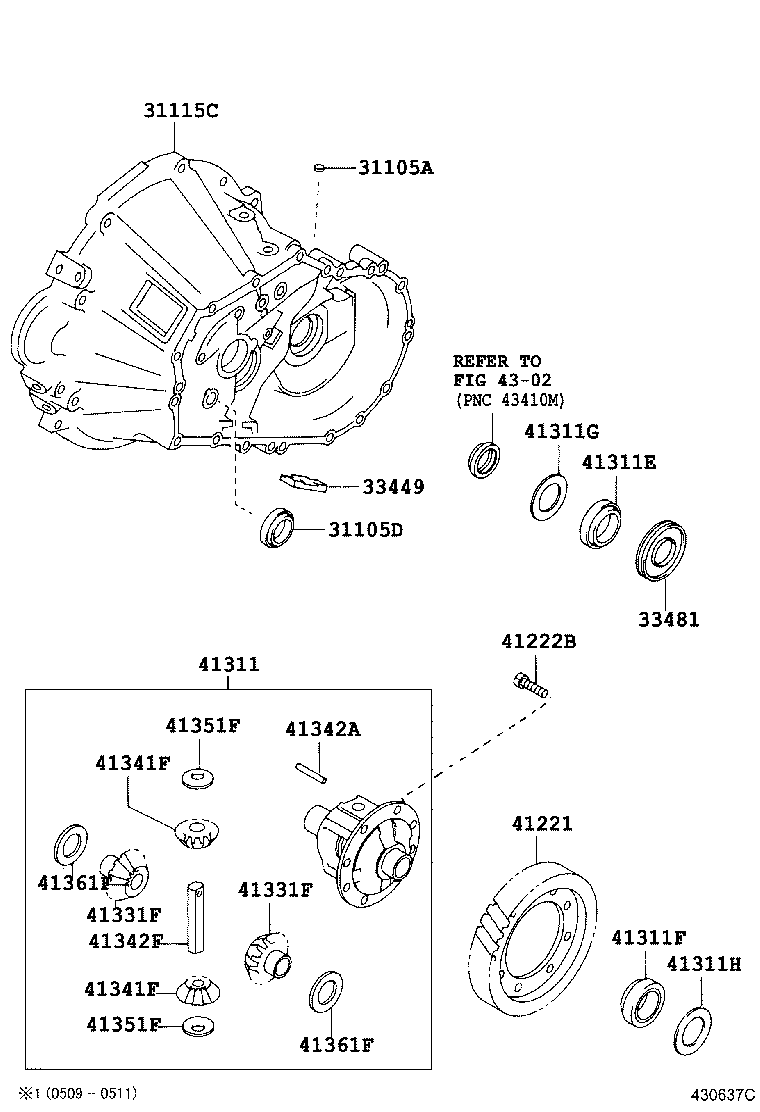

diagram 31105A 31105D 31115C 33449 33481 41221 41222B 41311 41311E 41311F 41311G 41311H 41331F 41331F 41341F 41341F 41342A 41342F 41351F 41351F 41361F 41361F 4302
Part # Description Qty Price
31105A - PLUG, TIGHT(FOR FRONT TRANSAXLE CASE)
90331-08002

ZCA2#

 1
90331-08002

ZCA2#

 1
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-25016

ZCA2#

 1
90311-25011

ZCA2#

 1
90311-25028

ZCA2#

 1
90311-25011

ZCA2#

 1
31115C - CASE, FRONT TRANSAXLE(MTM)
31115-20040

ZCA2#

 1
31115-20040

ZCA2#

 1
31115-20041

ZCA2#

 1
33449 - MAGNET, TRANSMISSION
33449-12020

ZCA2#

 1
33449-12020

ZCA2#

 1
33481 - GEAR, SPEEDOMETER DRIVE (MTM)
33481-42080

ZCA2#

N=32

 1
33481-42080

ZCA2#

N=32

 1
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-20350

ZCA2#

 1
41221-20350

ZCA2#

 1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90105-11040

ZCA2#

 8
90105-11040

ZCA2#

 8
41311 - CASE, FRONT DIFFERENTIAL
41301-32061

ZCA2#

 1
41301-32061

ZCA2#

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-40097

ZCA2#

 1
90366-40097

ZCA2#

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90366-40094

ZCA2#

 1
90366-40094

ZCA2#

 1
41311G - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
90560-41003

ZCA2#

T=2.1

 1
90560-41003

ZCA2#

T=2.1

 1
41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
90564-41015

ZCA2#

T=2.15,MARK BB

 1
90564-41014

ZCA2#

T=2.10,MARK AA

 1
90564-41019

ZCA2#

T=2.35,MARK FF

 1
90564-41018

ZCA2#

T=2.30,MARK EE

 1
90564-41026

ZCA2#

T=2.70,MARK NN

 1
90564-41025

ZCA2#

T=2.65,MARK MM

 1
90564-41023

ZCA2#

T=2.55,MARK KK

 1
90564-41021

ZCA2#

T=2.45,MARK HH

 1
90564-41020

ZCA2#

T=2.40,MARK GG

 1
90564-41029

ZCA2#

T=2.85,MARK RR

 1
90564-41024

ZCA2#

T=2.60,MARK LL

 1
90564-41032

ZCA2#

T=3.00,MARK UU

 1
90564-41022

ZCA2#

T=2.50,MARK JJ

 1
90564-41014

ZCA2#

T=2.10,MARK AA

 1
90564-41021

ZCA2#

T=2.45,MARK HH

 1
90564-41030

ZCA2#

T=2.90,MARK SS

 1
90564-41017

ZCA2#

T=2.25,MARK DD

 1
90564-41016

ZCA2#

T=2.20,MARK CC

 1
90564-41016

ZCA2#

T=2.20,MARK CC

 1
90564-41017

ZCA2#

T=2.25,MARK DD

 1
90564-41031

ZCA2#

T=2.95,MARK TT

 1
90564-41015

ZCA2#

T=2.15,MARK BB

 1
90564-41028

ZCA2#

T=2.80,MARK QQ

 1
90564-41022

ZCA2#

T=2.50,MARK JJ

 1
90564-41018

ZCA2#

T=2.30,MARK EE

 1
90564-41027

ZCA2#

T=2.75,MARK PP

 1
90564-41026

ZCA2#

T=2.70,MARK NN

 1
90564-41025

ZCA2#

T=2.65,MARK MM

 1
90564-41024

ZCA2#

T=2.60,MARK LL

 1
90564-41020

ZCA2#

T=2.40,MARK GG

 1
90564-41027

ZCA2#

T=2.75,MARK PP

 1
90564-41019

ZCA2#

T=2.35,MARK FF

 1
90564-41023

ZCA2#

T=2.55,MARK KK

 1
90564-41028

ZCA2#

T=2.80,MARK QQ

 1
90564-41031

ZCA2#

T=2.95,MARK TT

 1
90564-41032

ZCA2#

T=3.00,MARK UU

 1
90564-41030

ZCA2#

T=2.90,MARK SS

 1
90564-41029

ZCA2#

T=2.85,MARK RR

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-32010

ZCA2#

 2
41331-32010

ZCA2#

 2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-32010

ZCA2#

 2
41331-32010

ZCA2#

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-30011

ZCA2#

 2
41341-30011

ZCA2#

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-30011

ZCA2#

 2
41341-30011

ZCA2#

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058

ZCA2#

 1
90250-06058

ZCA2#

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-32020

ZCA2#

 1
41342-32020

ZCA2#

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-32010

ZCA2#

 2
41351-32010

ZCA2#

 2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-32010

ZCA2#

 2
41351-32010

ZCA2#

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22140

ZCA2#

T=0.95,MARK 14

 2
41361-22020

ZCA2#

T=1.00,MARK 02

 2
41361-22020

ZCA2#

T=1.00,MARK 02

 2
41361-22030

ZCA2#

T=1.10,MARK 03

 2
41361-22040

ZCA2#

T=1.20,MARK 04

 2
41361-22160

ZCA2#

T=1.15,MARK 16

 2
41361-22160

ZCA2#

T=1.15,MARK 16

 2
41361-22140

ZCA2#

T=0.95,MARK 14

 2
41361-22040

ZCA2#

T=1.20,MARK 04

 2
41361-22150

ZCA2#

T=1.05,MARK 15

 2
41361-22150

ZCA2#

T=1.05,MARK 15

 2
41361-22030

ZCA2#

T=1.10,MARK 03

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22140

ZCA2#

T=0.95,MARK 14

 2
41361-22020

ZCA2#

T=1.00,MARK 02

 2
41361-22020

ZCA2#

T=1.00,MARK 02

 2
41361-22030

ZCA2#

T=1.10,MARK 03

 2
41361-22040

ZCA2#

T=1.20,MARK 04

 2
41361-22160

ZCA2#

T=1.15,MARK 16

 2
41361-22160

ZCA2#

T=1.15,MARK 16

 2
41361-22140

ZCA2#

T=0.95,MARK 14

 2
41361-22040

ZCA2#

T=1.20,MARK 04

 2
41361-22150

ZCA2#

T=1.05,MARK 15

 2
41361-22150

ZCA2#

T=1.05,MARK 15

 2
41361-22030

ZCA2#

T=1.10,MARK 03

 2
