ZCA26L-AWMNKW (2000)

Toyota Rav4

Production May 2000 - Nov 2005
Engine 1ZZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0005- )ZCA2#

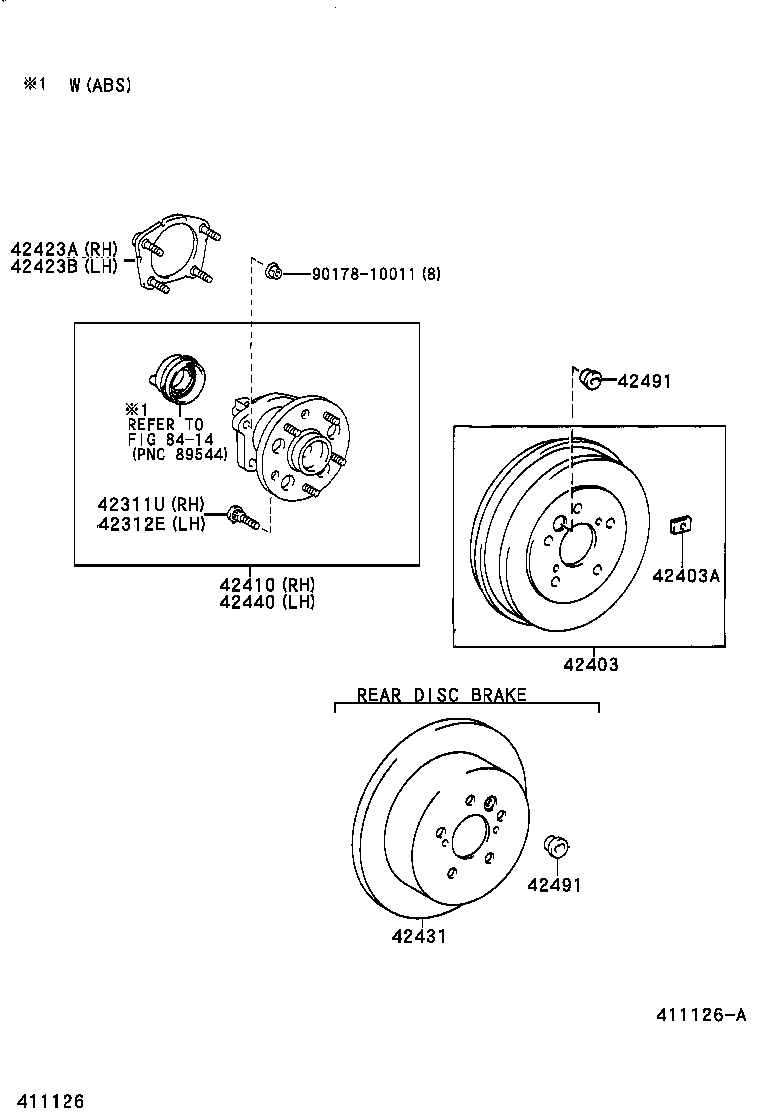

Click highlighted areas on diagram

diagram 42311U 42312E 42403 42403A 42410 42423A 42423B 42431 42440 42491 42491 8414 9017810011
Part # Description Qty Price
42311U - BOLT, HUB (FOR REAR AXLE RH)
90942-02049

ACA2#,CLA2#,ZCA2#

 5
90942-02049

ACA2#,CLA2#,ZCA2#

 5
42312E - BOLT, HUB (FOR REAR AXLE LH)
90942-02049

ACA2#,CLA2#,ZCA2#

 5
90942-02049

ACA2#,CLA2#,ZCA2#

 5
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-42011

ACA2#,CLA2#,ZCA2#..EUR,GCC,GEN

 2
42431-42050

ACA20,21,CLA2#,ZCA2#

 2
42431-42050

ACA2#,CLA2#,ZCA2#..EUR,GCC,GEN

 2
42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM)
90937-01288

ACA2#,CLA2#,ZCA2#

20G

 1
90937-01289

ACA2#,CLA2#,ZCA2#

30G

 1
90937-01287

ACA2#,CLA2#,ZCA2#

10G

 1
90937-01289

ACA2#,CLA2#,ZCA2#

30G

 1
90937-01287

ACA2#,CLA2#,ZCA2#

10G

 1
90937-01288

ACA2#,CLA2#,ZCA2#

20G

 1
42410 - HUB & BEARING ASSY, REAR AXLE, RH
42410-42030

ZCA2#

 1
42450-42030

ZCA2#

W(ABS)

 1
42450-42020

ZCA2#

W(ABS)

 1
42410-42050

ZCA2#

 1
42423A - RETAINER, REAR AXLE BEARING, INNER RH
42423-42010

ZCA2#

 1
42423-42010

ZCA2#

 1
42423B - RETAINER, REAR AXLE BEARING, INNER LH
42423-42010

ZCA2#

 1
42423-42010

ZCA2#

 1
42431 - DISC, REAR
42431-42040

ACA2#,CLA2#,ZCA2#

 2
42431-42040

ACA2#,CLA2#,ZCA2#

 2
42431-42041

ACA2#,CLA2#,ZCA2#

 2
42440 - HUB & BEARING ASSY, REAR AXLE, LH
42410-42030

ZCA2#

 1
42410-42050

ZCA2#

 1
42450-42030

ZCA2#

W(ABS)

 1
42450-42020

ZCA2#

W(ABS)

 1
42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)
47491-14010

ACA2#,CLA2#,ZCA2#

 2
47491-14010

ACA2#,CLA2#,ZCA2#

 2
42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)
47491-14010

ACA2#,CLA2#,ZCA2#

 2
47491-14010

ACA2#,CLA2#,ZCA2#

 2
Common parts
90178-10011
Linked diagrams
8414
