ZCA26L-AWMNKW (2000)

Toyota Rav4

Production May 2000 - Nov 2005
Engine 1ZZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

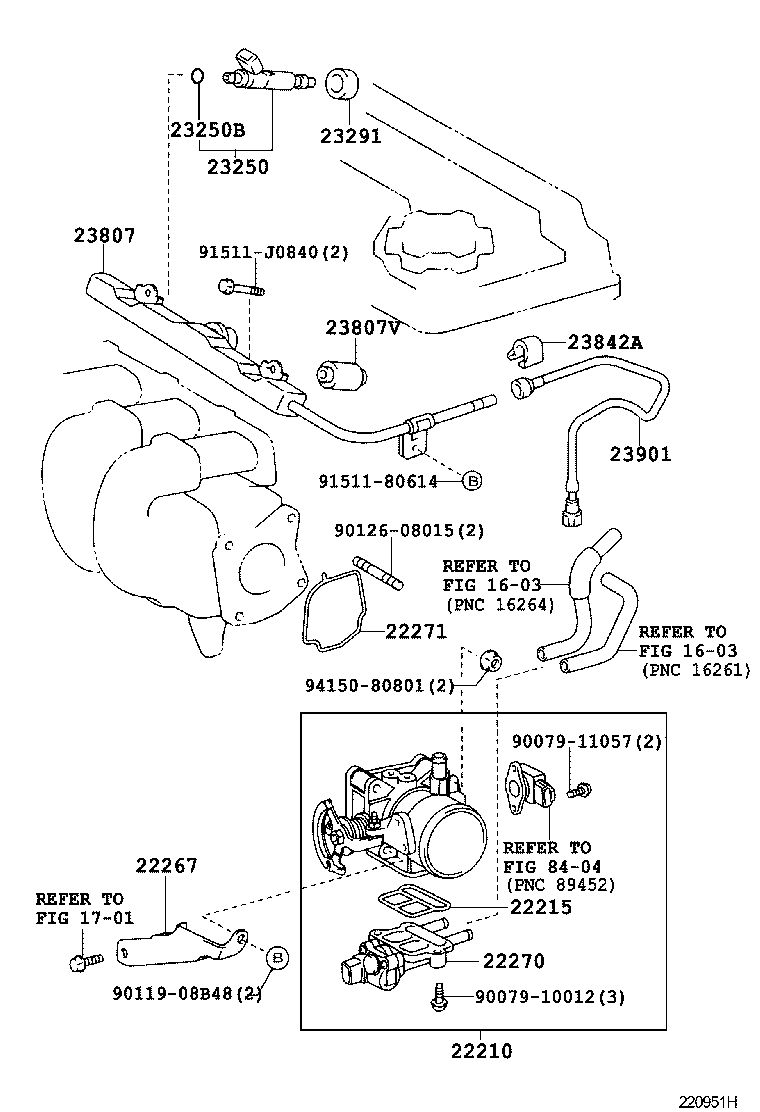

ILLUST NO. 1 OF 2(0005- )1ZZFE

Click highlighted areas on diagram

diagram 1603 1603 1701 22210 22215 22267 22270 22271 23250 23250B 23291 23807 23807V 23842A 23901 8404 9007910012 9007911057 9011908B48 9012608015 9151180614 91511J0840 9415080801
Part # Description Qty Price
22210 - BODY ASSY, THROTTLE
22210-22080

1ZZFE..ZCA2#

 1
22210-22130

1ZZFE..ZCA2#

 1
22210-22130

1ZZFE..ZCA2#

 1
22215 - GASKET, THROTTLE BODY COVER
22215-7A680

1ZZFE..ZCA2#

 1
22215-7A680

1ZZFE..ZCA2#

 1
22267 - BRACKET, THROTTLE BODY
22267-22030

1ZZFE..ZCA2#

 1
22267-22030

1ZZFE..ZCA2#

 1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-22061

1ZZFE..ZCA2#

(J)

 1
22270-0D040

1ZZFE..ZCA2#

(L)

 1
22270-0D040

1ZZFE..ZCA2#

(L)

 1
22270-22060

1ZZFE..ZCA2#

 1
22270-22060

1ZZFE..ZCA2#

(J)

 1
22270-22061

1ZZFE..ZCA2#

(J)

 1
22271 - GASKET, THROTTLE BODY
22271-22040

1ZZFE..ZCA2#

 1
22271-22040

1ZZFE..ZCA2#

 1
23250 - INJECTOR ASSY, FUEL
23209-22040

1ZZFE..ZCA2#

 4
23209-22040

1ZZFE..ZCA2#

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07024

1ZZFE..ZCA2#

 4
90301-07024

1ZZFE..ZCA2#

 4
23291 - INSULATOR, INJECTOR VIBRATION
23291-22020

1ZZFE..ZCA2#

 4
23291-22020

1ZZFE..ZCA2#

 4
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-22030

1ZZFE..ZCA2#

 1
23807-22030

1ZZFE..ZCA2#

 1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
90561-08055

1ZZFE..ZCA2#

 2
90561-08055

1ZZFE..ZCA2#

 2
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23842-22020

1ZZFE..ZCA2#

 1
23842-22020

1ZZFE..ZCA2#

 1
23901 - TUBE SUB-ASSY, FUEL
23901-22110

1ZZFE..ZCA2#

 1
23901-22110

1ZZFE..ZCA2#

 1
Common parts
90079-10012
90079-11057
90119-08B48
90126-08015
91511-80614
91511-J0840
94150-80801
Linked diagrams
1603
1701
8404

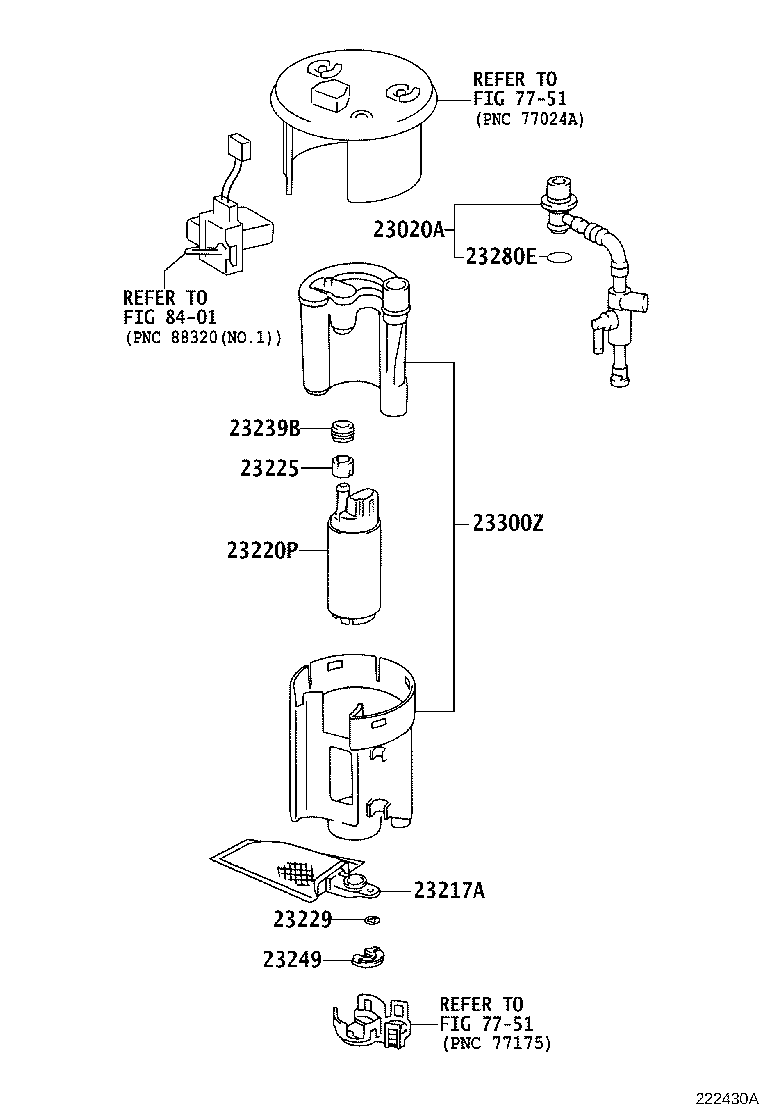

ILLUST NO. 2 OF 2(0005- )1ZZFE

Click highlighted areas on diagram

diagram 23020A 23217A 23220P 23225 23229 23239B 23249 23280E 23300Z 7751 7751 8401
Part # Description Qty Price
23020A - REGULATOR ASSY, FUEL PRESSURE W/JET PUMP
23020-28010

1ZZFE..ZCA2#

 1
23020-28010

1ZZFE..ZCA2#

 1
23217A - FILTER, FUEL PUMP
23217-74021

1ZZFE..ZCA2#

 1
23217-74021

1ZZFE..ZCA2#

 1
23220P - PUMP ASSY, FUEL
23221-28030

1ZZFE..ZCA2#

 1
23221-28030

1ZZFE..ZCA2#

 1
23225 - SPACER, FUEL PUMP
23225-28010

1ZZFE..ZCA2#

 1
23225-28010

1ZZFE..ZCA2#

 1
23229 - CLIP(FOR FUEL PUMP FILTER)
23229-16010

1ZZFE..ZCA2#

 1
23229-16010

1ZZFE..ZCA2#

 1
23239B - SEAL, FUEL PUMP FILTER
23239-21010

1ZZFE..ZCA2#

 1
23239-21010

1ZZFE..ZCA2#

 1
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23249-74610

1ZZFE..ZCA2#

 1
23249-74610

1ZZFE..ZCA2#

 1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07041

1ZZFE..ZCA2#

 1
23300Z - FILTER, FUEL(FOR FUEL TANK)
23300-28030

1ZZFE..ZCA2#

 1
23300-28040

1ZZFE..ZCA2#

 1
23300-28040

1ZZFE..ZCA2#

 1
Linked diagrams
7751
8401
