ZCA26L-AWMNKW (2000)

Toyota Rav4

Production May 2000 - Nov 2005
Engine 1ZZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0005- )1ZZFE

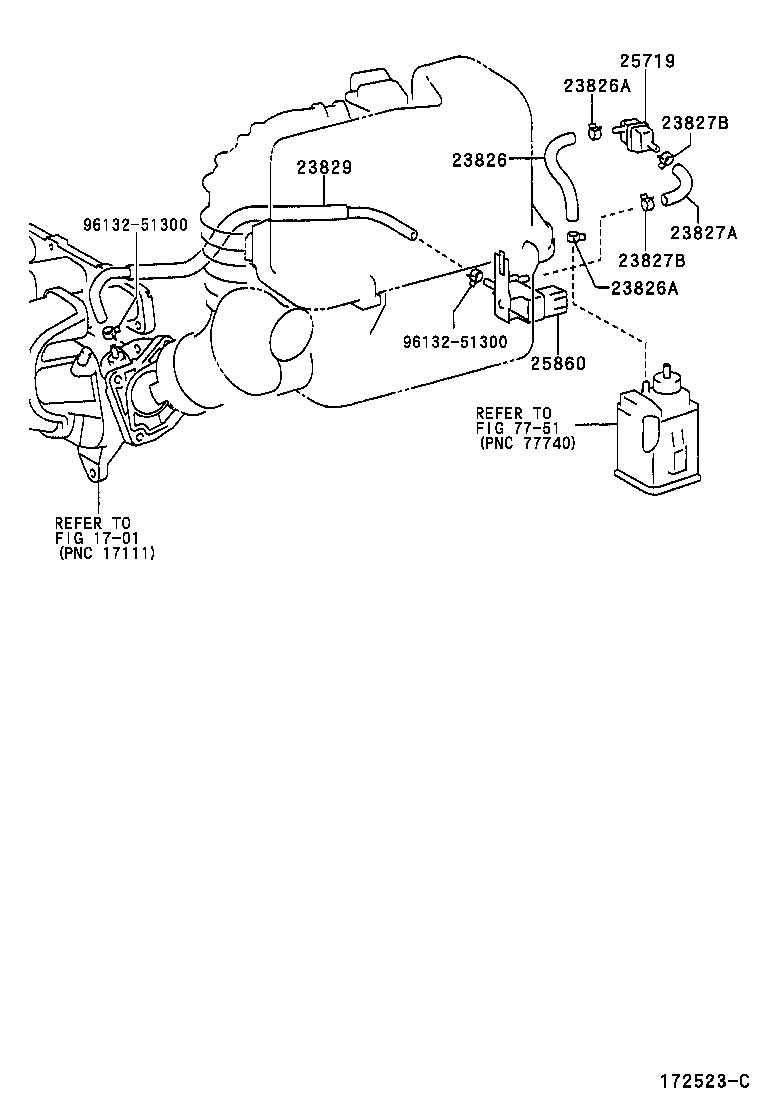

Click highlighted areas on diagram

diagram 1701 23826 23826A 23826A 23827A 23827B 23827B 23829 25719 25860 7751 9613251300 9613251300
Part # Description Qty Price
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-22090

1ZZFE..ZCA2#

 1
23826-22090

1ZZFE..ZCA2#

 1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-41100

1ZZFE..ZCA2#

 2
96132-51100

1ZZFE..ZCA2#

 2
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-41100

1ZZFE..ZCA2#

 2
96132-51100

1ZZFE..ZCA2#

 2
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-22050

1ZZFE..ZCA2#

 1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-41100

1ZZFE..ZCA2#

 2
96132-51100

1ZZFE..ZCA2#

 2
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-41100

1ZZFE..ZCA2#

 2
96132-51100

1ZZFE..ZCA2#

 2
23829 - HOSE, FUEL VAPOR FEED, NO.3
23829-22070

1ZZFE..ZCA2#

 1
23829-22070

1ZZFE..ZCA2#

 1
25719 - TANK, VACUUM SURGE
25719-62040

1ZZFE..ZCA2#

 1
25719-62040

1ZZFE..ZCA2#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-22070

1ZZFE..ZCA2#

 1
25860-22070

1ZZFE..ZCA2#

 1
Common parts
96132-51300
Linked diagrams
1701
7751
