ZCA26L-AWMNKW (2000)

Toyota Rav4

Production May 2000 - Nov 2005
Engine 1ZZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0005- )1ZZFE

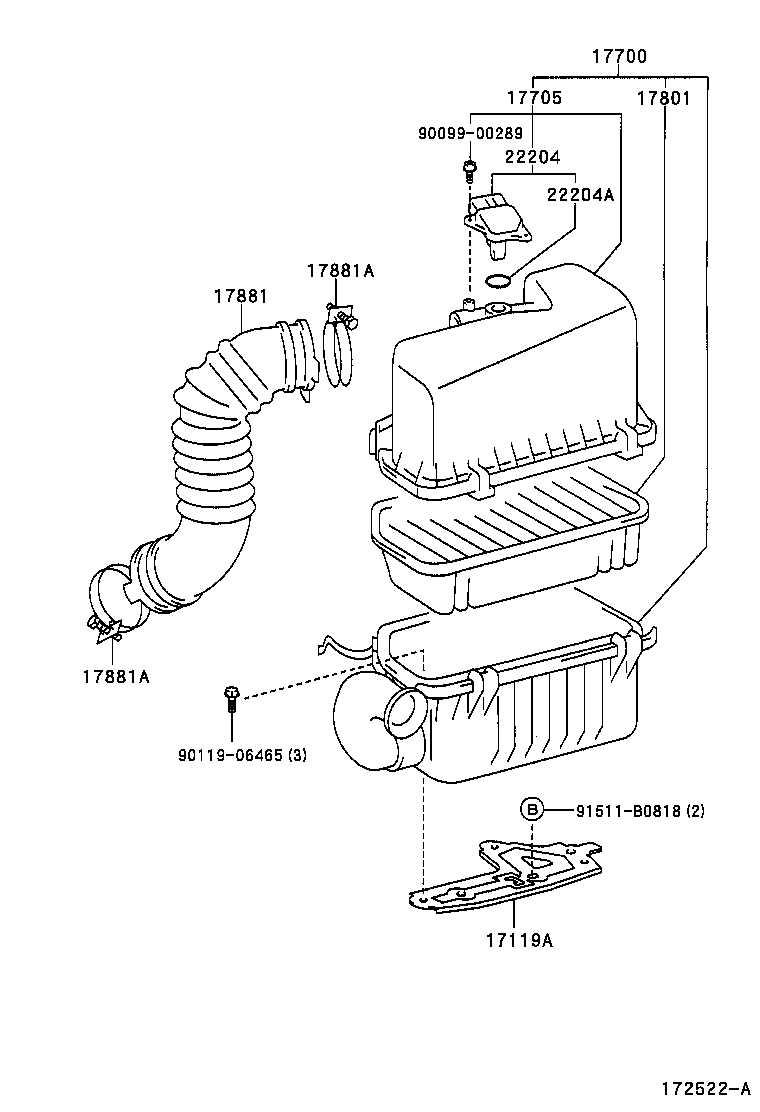

Click highlighted areas on diagram

diagram 17119A 17700 17705 17801 17881 17881A 17881A 22204 22204A 9009900289 9011906465 91511B0818
Part # Description Qty Price
17119A - BRACKET, AIR CLEANER
17119-22050

1ZZFE..ZCA2#

 1
17119-22050

1ZZFE..ZCA2#

 1
17700 - CLEANER ASSY, AIR
17700-22110

1ZZFE..ZCA2#

 1
17700-22110

1ZZFE..ZCA2#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-22110

1ZZFE..ZCA2#

 1
17705-22110

1ZZFE..ZCA2#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-70050

1ZZFE..ZCA2#

 1
17801-70050

1ZZFE..ZCA2#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-22060

1ZZFE..ZCA2#

 1
17881-22060

1ZZFE..ZCA2#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10830

1ZZFE..ZCA2#

 2
96111-10830

1ZZFE..ZCA2#

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10830

1ZZFE..ZCA2#

 2
96111-10830

1ZZFE..ZCA2#

 2
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-22010

1ZZFE..ZCA2#

 1
22204-22010

1ZZFE..ZCA2#

 1
22204A - RING, O(FOR INTAKE AIR FLOW METER)
90099-14141

1ZZFE..ZCA2#

 1
90099-14141

1ZZFE..ZCA2#

 1
Common parts
90099-00289
90119-06465
91511-B0818
