ZCA26L-AWMNKW (2000)

Toyota Rav4

Production May 2000 - Nov 2005
Engine 1ZZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0005- )1ZZFE

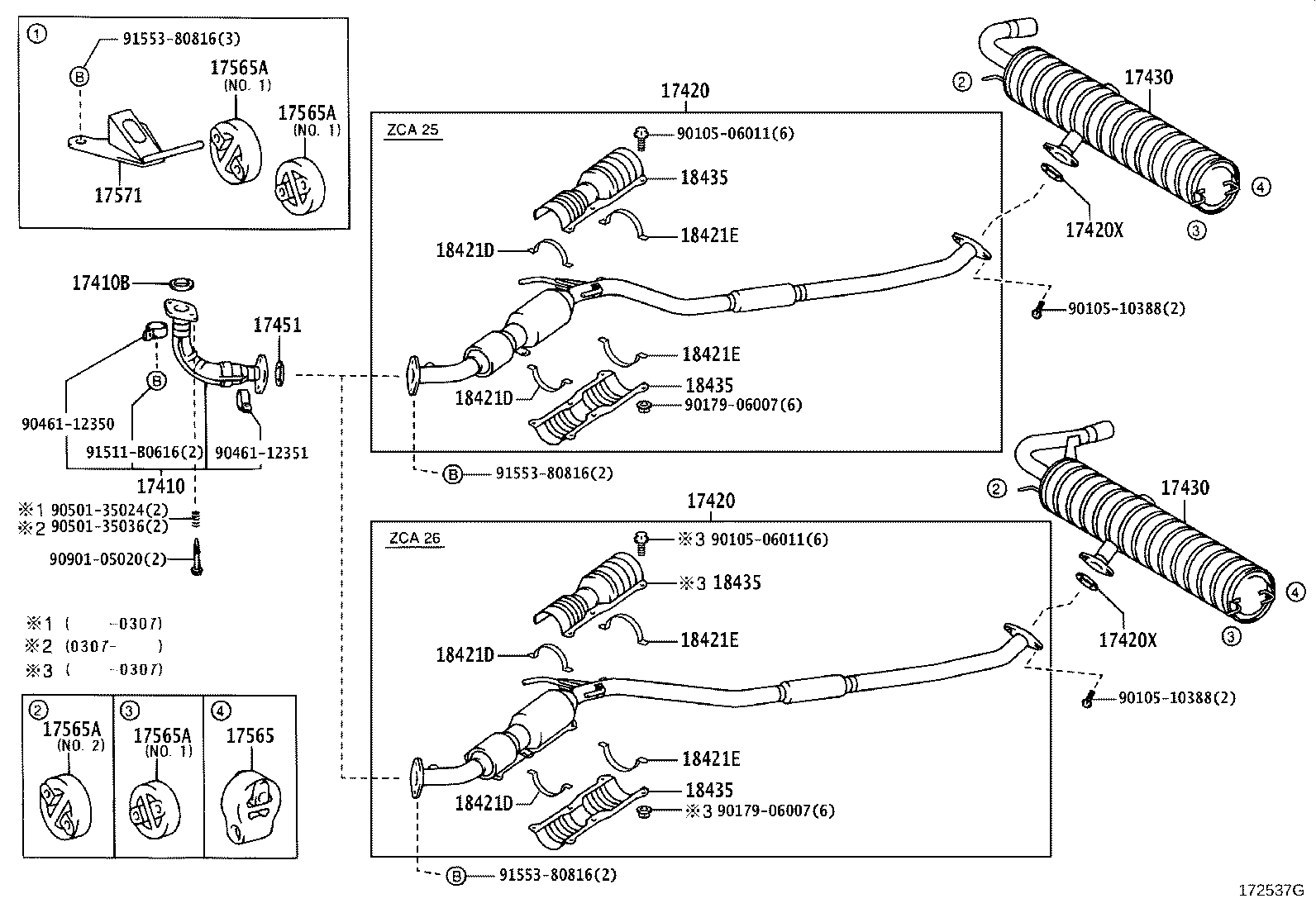

Click highlighted areas on diagram

diagram 17410 17410B 17420 17420 17420X 17420X 17430 17430 17451 17565 17565A 17565A 17565A 17565A 17571 18421D 18421D 18421D 18421D 18421E 18421E 18421E 18421E 18435 18435 18435 18435 9010506011 9010506011 9010510388 9010510388 9017906007 9017906007 9046112350 9046112351 9050135024 9050135036 9090105020 91511B0616 9155380816 9155380816 9155380816
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-22150

1ZZFE..ZCA2#

 1
17410-22150

1ZZFE..ZCA2#

 1
17410B - GASKET, EXHAUST PIPE
17451-16030

1ZZFE..ZCA2#

 1
17451-16030

1ZZFE..ZCA2#

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-22030

1ZZFE..ZCA26

*114=TOYOTA/CD3T85/Y

 1
17420-22030

1ZZFE..ZCA26

*114=TOYOTA/CD3T85/Y

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-22030

1ZZFE..ZCA26

*114=TOYOTA/CD3T85/Y

 1
17420-22030

1ZZFE..ZCA26

*114=TOYOTA/CD3T85/Y

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06062

1AZFE,1CDFTV,1ZZFE..ACA2#,CLA2#,ZCA2#

 1
90917-06062

1AZFE,2AZFE,1CDFTV,1ZZFE..ACA2#,CLA2#,ZCA2#

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06062

1AZFE,1CDFTV,1ZZFE..ACA2#,CLA2#,ZCA2#

 1
90917-06062

1AZFE,2AZFE,1CDFTV,1ZZFE..ACA2#,CLA2#,ZCA2#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-22161

1ZZFE..ZCA26;1AZFE..ACA21..GCC,GEN

 1
17430-22160

1ZZFE..ZCA26;1AZFE..ACA21..GCC,GEN

 1
17430-22161

1ZZFE..ZCA26;1AZFE..ACA21..GEN

 1
17430-22161

1ZZFE..ZCA26;1AZFE..ACA21..GEN

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-22161

1ZZFE..ZCA26;1AZFE..ACA21..GCC,GEN

 1
17430-22160

1ZZFE..ZCA26;1AZFE..ACA21..GCC,GEN

 1
17430-22161

1ZZFE..ZCA26;1AZFE..ACA21..GEN

 1
17430-22161

1ZZFE..ZCA26;1AZFE..ACA21..GEN

 1
17451 - GASKET, EXHAUST PIPE
90917-06074

1ZZFE..ZCA2#

 1
90917-06074

1ZZFE..ZCA2#

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-15070

1AZFE,1CDFTV,1ZZFE..ACA2#,CLA2#,ZCA2#

 1
17565-15070

1AZFE,2AZFE,1CDFTV,1ZZFE..ACA2#,CLA2#,ZCA2#

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-46040

1AZFE,1ZZFE..ACA2#,ZCA2#

 4
17565-64180

1AZFE,1CDFTV,1ZZFE..ACA2#,CLA2#,ZCA2#

NO.2

 1
17565-64180

1AZFE,2AZFE,1CDFTV,1ZZFE..ACA2#,CLA2#,ZCA2#

NO.2

 1
17565-46040

1AZFE,2AZFE,1CDFTV,1ZZFE..ACA2#,CLA2#,ZCA2#

NO.1

 3
17565-46040

1AZFE,1CDFTV,1ZZFE..ACA2#,CLA2#,ZCA2#

NO.1

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-46040

1AZFE,1ZZFE..ACA2#,ZCA2#

 4
17565-64180

1AZFE,1CDFTV,1ZZFE..ACA2#,CLA2#,ZCA2#

NO.2

 1
17565-64180

1AZFE,2AZFE,1CDFTV,1ZZFE..ACA2#,CLA2#,ZCA2#

NO.2

 1
17565-46040

1AZFE,2AZFE,1CDFTV,1ZZFE..ACA2#,CLA2#,ZCA2#

NO.1

 3
17565-46040

1AZFE,1CDFTV,1ZZFE..ACA2#,CLA2#,ZCA2#

NO.1

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-46040

1AZFE,1ZZFE..ACA2#,ZCA2#

 4
17565-64180

1AZFE,1CDFTV,1ZZFE..ACA2#,CLA2#,ZCA2#

NO.2

 1
17565-64180

1AZFE,2AZFE,1CDFTV,1ZZFE..ACA2#,CLA2#,ZCA2#

NO.2

 1
17565-46040

1AZFE,2AZFE,1CDFTV,1ZZFE..ACA2#,CLA2#,ZCA2#

NO.1

 3
17565-46040

1AZFE,1CDFTV,1ZZFE..ACA2#,CLA2#,ZCA2#

NO.1

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-46040

1AZFE,1ZZFE..ACA2#,ZCA2#

 4
17565-64180

1AZFE,1CDFTV,1ZZFE..ACA2#,CLA2#,ZCA2#

NO.2

 1
17565-64180

1AZFE,2AZFE,1CDFTV,1ZZFE..ACA2#,CLA2#,ZCA2#

NO.2

 1
17565-46040

1AZFE,2AZFE,1CDFTV,1ZZFE..ACA2#,CLA2#,ZCA2#

NO.1

 3
17565-46040

1AZFE,1CDFTV,1ZZFE..ACA2#,CLA2#,ZCA2#

NO.1

 3
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-28070

1AZFE,2AZFE,1CDFTV,1ZZFE..ACA2#,CLA2#,ZCA2#

 1
17571-28070

1AZFE,1CDFTV,1ZZFE..ACA2#,CLA2#,ZCA2#

 1
18421D - STAY, CONVERTER PROTECTOR, CENTER, NO.1
18421-22010

1ZZFE..ZCA2#

 2
18421D - STAY, CONVERTER PROTECTOR, CENTER, NO.1
18421-22010

1ZZFE..ZCA2#

 2
18421D - STAY, CONVERTER PROTECTOR, CENTER, NO.1
18421-22010

1ZZFE..ZCA2#

 2
18421D - STAY, CONVERTER PROTECTOR, CENTER, NO.1
18421-22010

1ZZFE..ZCA2#

 2
18421E - STAY, CONVERTER PROTECTOR, CENTER, NO.2
18421-22020

1AZFE,2AZFE,1ZZFE..ACA2#,ZCA2#..ARL,EUR,GCC

 2
18421E - STAY, CONVERTER PROTECTOR, CENTER, NO.2
18421-22020

1AZFE,2AZFE,1ZZFE..ACA2#,ZCA2#..ARL,EUR,GCC

 2
18421E - STAY, CONVERTER PROTECTOR, CENTER, NO.2
18421-22020

1AZFE,2AZFE,1ZZFE..ACA2#,ZCA2#..ARL,EUR,GCC

 2
18421E - STAY, CONVERTER PROTECTOR, CENTER, NO.2
18421-22020

1AZFE,2AZFE,1ZZFE..ACA2#,ZCA2#..ARL,EUR,GCC

 2
18435 - PROTECTOR, CATALYTIC CONVERTER
18435-22010

1ZZFE..ZCA2#

 2
18435-22010

1ZZFE..ZCA2#

 2
18435 - PROTECTOR, CATALYTIC CONVERTER
18435-22010

1ZZFE..ZCA2#

 2
18435-22010

1ZZFE..ZCA2#

 2
18435 - PROTECTOR, CATALYTIC CONVERTER
18435-22010

1ZZFE..ZCA2#

 2
18435-22010

1ZZFE..ZCA2#

 2
18435 - PROTECTOR, CATALYTIC CONVERTER
18435-22010

1ZZFE..ZCA2#

 2
18435-22010

1ZZFE..ZCA2#

 2
Common parts
90105-06011
90105-10388
90179-06007
90461-12350
90461-12351
90501-35024
90501-35036
90901-05020
91511-B0616
91553-80816
