ZCA26L-AWMNKW (2000)

Toyota Rav4

Production May 2000 - Nov 2005
Engine 1ZZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0005- )1ZZFE

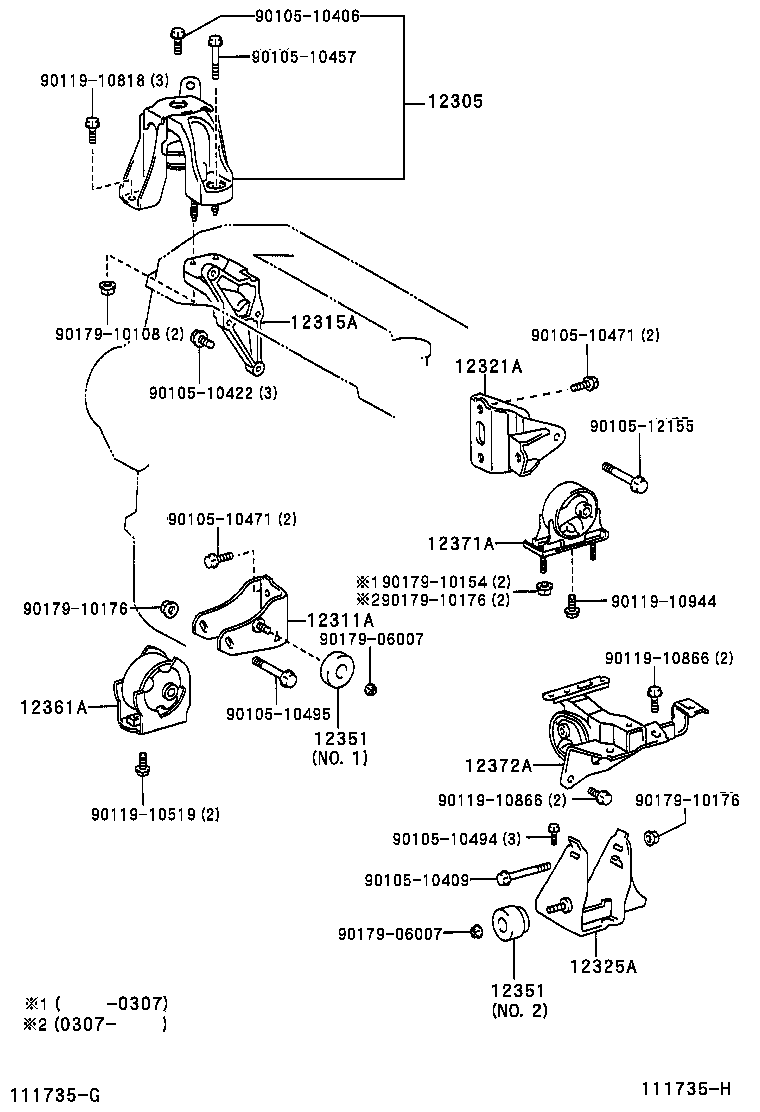

Click highlighted areas on diagram

diagram 12305 12311A 12315A 12321A 12325A 12351 12351 12361A 12371A 12372A 9010510406 9010510409 9010510422 9010510457 9010510471 9010510471 9010510494 9010510495 9010512155 9011910519 9011910818 9011910866 9011910866 9011910944 9017906007 9017906007 9017910108 9017910154 9017910176 9017910176 9017910176
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-22100

1ZZFE..ZCA2#

 1
12305-22100

1ZZFE..ZCA2#

 1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-22060

1ZZFE..ZCA2#

 1
12311-22060

1ZZFE..ZCA2#

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-22020

1ZZFE..ZCA2#

 1
12315-22020

1ZZFE..ZCA2#

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-22081

1ZZFE..ZCA2#

 1
12321-22081

1ZZFE..ZCA2#

 1
12321-22080

1ZZFE..ZCA2#

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-22070

1ZZFE..ZCA2#

 1
12325-22070

1ZZFE..ZCA2#

 1
12351 - DAMPER, ENGINE MOUNTING
12351-64060

1ZZFE..ZCA2#

NO.1

 1
12351-74140

1ZZFE..ZCA2#

NO.2

 1
12351-64060

1ZZFE..ZCA2#

NO.1

 1
12351-74140

1ZZFE..ZCA2#

NO.2

 1
12351 - DAMPER, ENGINE MOUNTING
12351-64060

1ZZFE..ZCA2#

NO.1

 1
12351-74140

1ZZFE..ZCA2#

NO.2

 1
12351-64060

1ZZFE..ZCA2#

NO.1

 1
12351-74140

1ZZFE..ZCA2#

NO.2

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-21010

1ZZFE..ZCA2#

 1
12361-21010

1ZZFE..ZCA2#

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-22121

1ZZFE..ZCA2#

 1
12371-22201

1ZZFE..ZCA2#

 1
12371-22200

1ZZFE..ZCA2#

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-22051

1ZZFE..ZCA2#

 1
12372-22050

1ZZFE..ZCA2#

 1
Common parts
90105-10406
90105-10409
90105-10422
90105-10457
90105-10471
90105-10494
90105-10495
90105-12155
90119-10519
90119-10818
90119-10866
90119-10944
90179-06007
90179-10108
90179-10154
90179-10176
