SXA16L-AWPGKA (1996)

Toyota Rav4

Production Feb 1996 - Aug 2000
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9709- )

Click highlighted areas on diagram

diagram 17111 17118 17126 17141 17152 17159 17159 17167 17168 17173 17177 9010508222 9011610016 9011910725 9011912248 9017908153 9017910088 9017910088 9151160825
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-74350

3SFE..SXA1#

 1
17101-74330

3SFE..SXA1#

 1
17101-74270

3SFE..SXA1#

 1
17118 - STAY, MANIFOLD
17118-74350

3SFE..SXA15,16

 1
17118-74380

3SFE..SXA1#

 1
17118-74420

3SFE..SXA1#

CALIFORNIA SPEC

 1
17141 - MANIFOLD, EXHAUST
17141-74041

3SFE..SXA1#

 1
17141-74210

3SFE..SXA1#

 1
17140-74010

3SFE..SXA1#

CALIFORNIA SPEC

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

3SFE..SXA1#

 3
90116-10058

3SFE..SXA1#

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-60822

3SFE..SXA1#

INTAKE MANIFOLD

 2
90116-10063

3SFE..SXA1#

EXHAUST MANIFOLD

 6
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-60822

3SFE..SXA1#

INTAKE MANIFOLD

 2
90116-10063

3SFE..SXA1#

EXHAUST MANIFOLD

 6
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-74250

3SFE..SXA1#

 1
17167-74141

3SFE..SXA1#

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-74150

3SFE..SXA1#

 1
17168-74020

3SFE..SXA1#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-74040

3SFE..SXA1#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-74070

3SFE..SXA1#

 1
Common parts
90105-08222
90116-10016
90119-10725
90119-12248
90179-08153
90179-10088
91511-60825

(9709- )

Click highlighted areas on diagram

CALIFORNIA SPEC

diagram 17111 17118 17126 17139 17141 17152 17159 17159 17167 17168 17173 17177 25508 25586 25587 9010508183 9010508222 9010508222 9011610016 9011610016 9011910725 9011910725 9011912248 9017908059 9017908153 9017910088 9017910088 9017910088 9151160825
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-74350

3SFE..SXA1#

 1
17101-74330

3SFE..SXA1#

 1
17101-74270

3SFE..SXA1#

 1
17118 - STAY, MANIFOLD
17118-74380

3SFE..SXA1#

 1
17118-74350

3SFE..SXA15,16

 1
17118-74420

3SFE..SXA1#

CALIFORNIA SPEC

 1
17139 - STAY, MANIFOLD, NO.2
17139-74210

3SFE..SXA1#

 1
17141 - MANIFOLD, EXHAUST
17141-74041

3SFE..SXA1#

 1
17141-74210

3SFE..SXA1#

 1
17140-74010

3SFE..SXA1#

CALIFORNIA SPEC

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

3SFE..SXA1#

 3
90116-10058

3SFE..SXA1#

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-60822

3SFE..SXA1#

INTAKE MANIFOLD

 2
90116-10063

3SFE..SXA1#

EXHAUST MANIFOLD

 6
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-60822

3SFE..SXA1#

INTAKE MANIFOLD

 2
90116-10063

3SFE..SXA1#

EXHAUST MANIFOLD

 6
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-74250

3SFE..SXA1#

 1
17167-74141

3SFE..SXA1#

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-74150

3SFE..SXA1#

 1
17168-74020

3SFE..SXA1#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-74040

3SFE..SXA1#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-74070

3SFE..SXA1#

 1
25508 - CONVERTER SUB-ASSY, MANIFOLD
25508-74200

3SFE..SXA1#

 1
25051-74060

3SFE..SXA1#

 1
25586 - INSULATOR, MANIFOLD CONVERTER, NO.1
25586-74011

3SFE..SXA1#

 1
25586-74070

3SFE..SXA1#

 1
25587 - INSULATOR, MANIFOLD CONVERTER, NO.2
25587-74070

3SFE..SXA1#

 1
25587-74011

3SFE..SXA1#

 1
Common parts
90105-08183
90105-08222
90116-10016
90119-10725
90119-12248
90179-08059
90179-08153
90179-10088
91511-60825

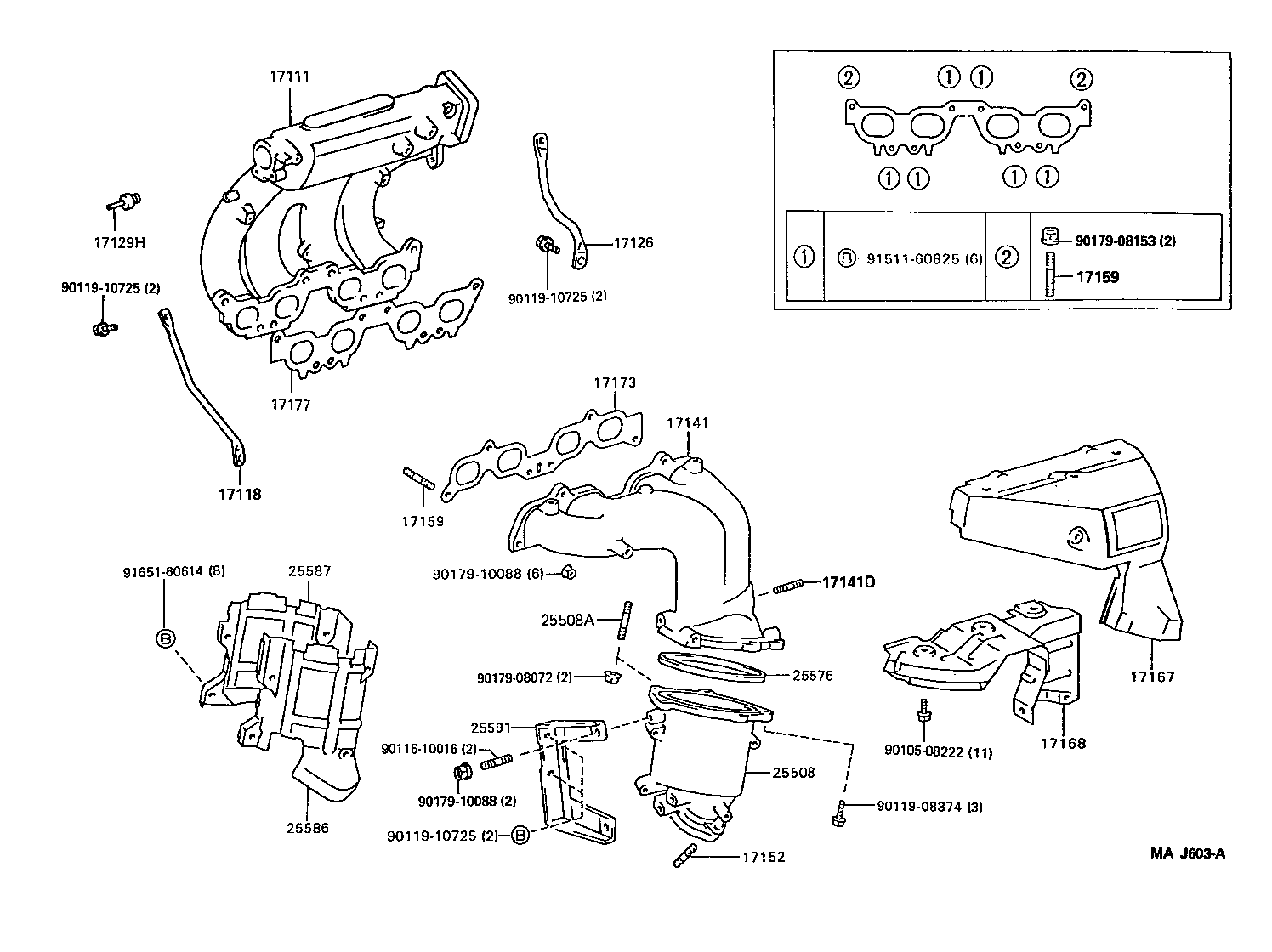

(9511-9709)

Click highlighted areas on diagram

diagram 17111 17118 17126 17129H 17141 17141D 17152 17159 17159 17167 17168 17173 17177 25508 25508A 25576 25586 25587 25591 9010508222 9011610016 9011908374 9011910725 9011910725 9011910725 9017908072 9017908153 9017910088 9017910088 9151160825 9165160614
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-74350

3SFE..SXA1#

 1
17101-74330

3SFE..SXA1#

 1
17101-74270

3SFE..SXA1#

 1
17118 - STAY, MANIFOLD
17118-74350

3SFE..SXA15,16

 1
17118-74380

3SFE..SXA1#

 1
17118-74420

3SFE..SXA1#

CALIFORNIA SPEC

 1
17129H - UNION, NO.4
90404-51026

3SFE..SXA1#

 1
17141 - MANIFOLD, EXHAUST
17141-74041

3SFE..SXA1#

 1
17141-74210

3SFE..SXA1#

 1
17140-74010

3SFE..SXA1#

CALIFORNIA SPEC

 1
17141D - BOLT, STUD(FOR OXYGEN SENSOR)
90116-08253

3SFE..SXA1#

 2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

3SFE..SXA1#

 3
90116-10058

3SFE..SXA1#

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-60822

3SFE..SXA1#

INTAKE MANIFOLD

 2
90116-10063

3SFE..SXA1#

EXHAUST MANIFOLD

 6
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-60822

3SFE..SXA1#

INTAKE MANIFOLD

 2
90116-10063

3SFE..SXA1#

EXHAUST MANIFOLD

 6
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-74250

3SFE..SXA1#

 1
17167-74141

3SFE..SXA1#

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-74150

3SFE..SXA1#

 1
17168-74020

3SFE..SXA1#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-74040

3SFE..SXA1#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-74070

3SFE..SXA1#

 1
25508 - CONVERTER SUB-ASSY, MANIFOLD
25508-74200

3SFE..SXA1#

 1
25051-74060

3SFE..SXA1#

 1
25508A - BOLT, STUD(FOR MANIFOLD CONVERTER)
90116-08171

3SFE..SXA1#

 2
25576 - GASKET, MANIFOLD CONVERTER
25576-74030

3SFE..SXA1#

 1
25586 - INSULATOR, MANIFOLD CONVERTER, NO.1
25586-74011

3SFE..SXA1#

 1
25586-74070

3SFE..SXA1#

 1
25587 - INSULATOR, MANIFOLD CONVERTER, NO.2
25587-74070

3SFE..SXA1#

 1
25587-74011

3SFE..SXA1#

 1
25591 - BRACKET, MANIFOLD SUPPORT
25591-74011

3SFE..SXA1#

 1
Common parts
90105-08222
90116-10016
90119-08374
90119-10725
90179-08072
90179-08153
90179-10088
91511-60825
91651-60614
