SXA16L-AWMGKA (1996)

Toyota Rav4

Production Feb 1996 - Aug 2000
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9709- )

Click highlighted areas on diagram

diagram 88200D 88212A 88240 88280C 9011906256 9017906239
Part # Description Qty Price
88200D - ACTUATOR ASSY, CRUISE CONTROL
88200-42010

SXA1#

 1
88002-42010

SXA1#

 1
88212A - COVER, CRUISE CONTROL ACTUATOR
88212-42010

SXA1#

 1
88240 - COMPUTER ASSY, CRUISE CONTROL
88240-0W020

SXA1#

 1
88240-0W010

SXA1#

 1
88240-42010

SXA1#

 1
88240-0W021

SXA1#

 1
88280C - SWITCH ASSY, CLUTCH
88280-14030

SXA1#..MTM

 1
Common parts
90119-06256
90179-06239

(9511-9709)

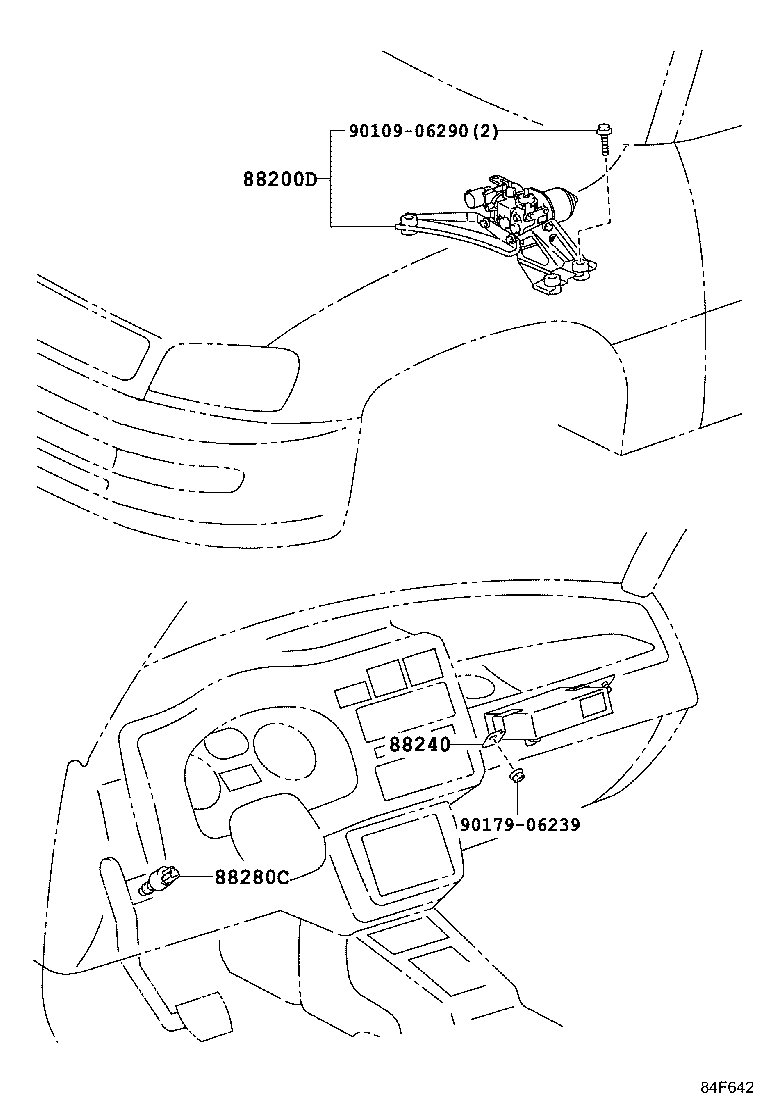

Click highlighted areas on diagram

diagram 88200D 88240 88280C 9010906290 9017906239
Part # Description Qty Price
88200D - ACTUATOR ASSY, CRUISE CONTROL
88200-42010

SXA1#

 1
88002-42010

SXA1#

 1
88240 - COMPUTER ASSY, CRUISE CONTROL
88240-0W020

SXA1#

 1
88240-0W010

SXA1#

 1
88240-42010

SXA1#

 1
88240-0W021

SXA1#

 1
88280C - SWITCH ASSY, CLUTCH
88280-14030

SXA1#..MTM

 1
Common parts
90109-06290
90179-06239
