SXA16L-AWMGKA (1996)

Toyota Rav4

Production Feb 1996 - Aug 2000
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9602- )SXA15,16..MTM

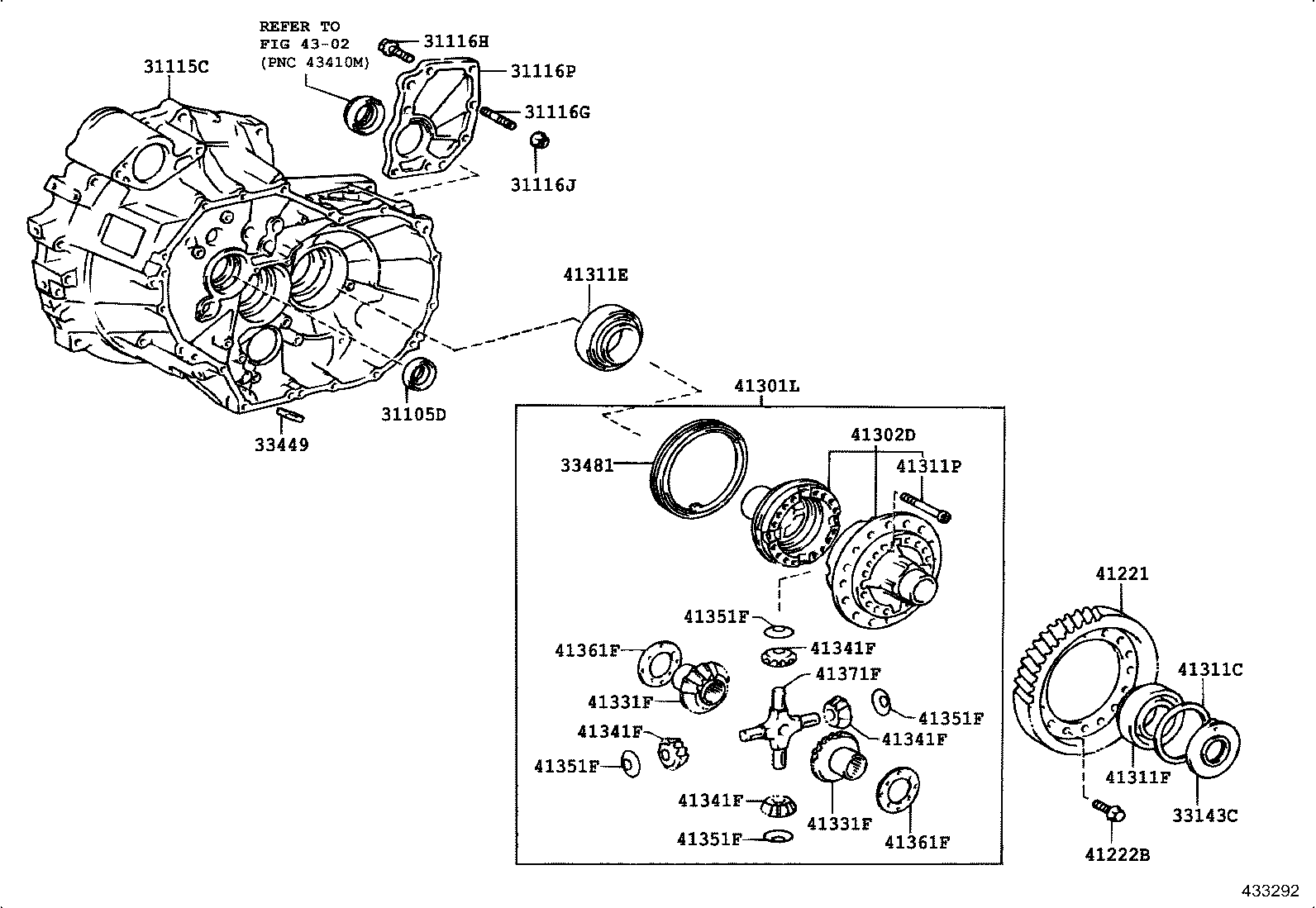

Click highlighted areas on diagram

E250

diagram 31105D 31115C 31116G 31116H 31116J 31116P 33143C 33449 33481 41221 41222B 41301L 41302D 41311C 41311E 41311F 41311P 41331F 41331F 41341F 41341F 41341F 41341F 41351F 41351F 41351F 41351F 41361F 41361F 41371F 4302
Part # Description Qty Price
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-30006

SXA1#..MTM

 1
31115C - CASE, FRONT TRANSAXLE(MTM)
31115-33012

SXA1#..MTM

 1
31115-33013

SXA1#..MTM

 1
31115-33011

SXA1#..MTM

 1
31116G - BOLT, STUD(FOR FRONT TRANSAXLE CASE COVER)
90116-12019

SXA15,16..MTM

 3
31116H - BOLT(FOR FRONT TRANSAXLE CASE COVER)
90105-12135

SXA15,16..MTM

 4
31116J - NUT(FOR TRANSAXLE CASE COVER)
90179-12068

SXA15,16..MTM

 3
31116P - COVER, TRANSAXLE CASE
31116-17010

SXA15,16..MTM

 1
33143C - BAFFLE, FRONT DIFFERENTIAL OIL
33143-20040

SXA15,16..MTM

 1
33449 - MAGNET, TRANSMISSION
33449-20010

SXA1#..MTM

 1
33481 - GEAR, SPEEDOMETER DRIVE (MTM)
33481-33011

SXA15,16..MTM

N=35

 1
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-42040

SXA15,16..MTM

 1
41221-12270

SXA15,16..MTM

 1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90105-12154

SXA15,16..MTM

 16
41301L - CASE SUB-ASSY, FRONT DIFFERENTIAL, NO.1
41301-33010

SXA15,16..MTM

 1
41302D - CASE SUB-ASSY, FRONT DIFFERENTIAL, NO.2
41302-17013

SXA15,16..MTM

 1
41302-20040

SXA15,16..MTM

 1
41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR)
90564-76002

SXA10,11;SXA15,16..MTM

T=2.05,MARK 1

 1
90564-76007

SXA10,11;SXA15,16..MTM

T=2.30,MARK 6

 1
90564-76008

SXA10,11;SXA15,16..MTM

T=2.35,MARK 7

 1
90564-76006

SXA10,11;SXA15,16..MTM

T=2.25,MARK 5

 1
90564-76004

SXA10,11;SXA15,16..MTM

T=2.15,MARK 3

 1
90564-76005

SXA10,11;SXA15,16..MTM

T=2.20,MARK 4

 1
90564-76014

SXA10,11;SXA15,16..MTM

T=2.65,MARK D

 1
90564-76018

SXA10,11;SXA15,16..MTM

T=2.85,MARK H

 1
90564-76010

SXA10,11;SXA15,16..MTM

T=2.45,MARK 9

 1
90564-76012

SXA10,11;SXA15,16..MTM

T=2.55,MARK B

 1
90564-76011

SXA10,11;SXA15,16..MTM

T=2.50,MARK A

 1
90564-76009

SXA10,11;SXA15,16..MTM

T=2.40,MARK 8

 1
90564-76017

SXA10,11;SXA15,16..MTM

T=2.80,MARK G

 1
90564-76015

SXA10,11;SXA15,16..MTM

T=2.70,MARK E

 1
90564-76013

SXA10,11;SXA15,16..MTM

T=2.60,MARK C

 1
90564-76016

SXA10,11;SXA15,16..MTM

T=2.75,MARK F

 1
90564-76003

SXA10,11;SXA15,16..MTM

T=2.10,MARK 2

 1
90564-76001

SXA10,11;SXA15,16..MTM

T=2.00,MARK 0

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-57001

SXA1#..MTM

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90366-50014

SXA1#..MTM

 1
41311P - BOLT (FOR FRONT DIFFERENTIAL CASE)
90149-10003

SXA15,16..MTM

 16
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-17010

SXA15,16..MTM

 2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-17010

SXA15,16..MTM

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-20020

SXA15,16..MTM

 4
41341F - PINION, FRONT DIFFERENTIAL
41341-20020

SXA15,16..MTM

 4
41341F - PINION, FRONT DIFFERENTIAL
41341-20020

SXA15,16..MTM

 4
41341F - PINION, FRONT DIFFERENTIAL
41341-20020

SXA15,16..MTM

 4
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-20010

SXA15,16..MTM

 4
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-20010

SXA15,16..MTM

 4
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-20010

SXA15,16..MTM

 4
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-20010

SXA15,16..MTM

 4
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41362-17020

SXA15,16..MTM

T=0.90,MARK FB

 2
41362-17030

SXA15,16..MTM

T=1.00,MARK FC

 2
41362-17010

SXA15,16..MTM

T=0.80,MARK FA

 2
41362-17060

SXA15,16..MTM

T=1.30,MARK FF

 2
41362-17070

SXA15,16..MTM

T=1.40,MARK FG

 2
41362-17040

SXA15,16..MTM

T=1.10,MARK FD

 2
41362-17050

SXA15,16..MTM

T=1.20,MARK FE

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41362-17020

SXA15,16..MTM

T=0.90,MARK FB

 2
41362-17030

SXA15,16..MTM

T=1.00,MARK FC

 2
41362-17010

SXA15,16..MTM

T=0.80,MARK FA

 2
41362-17060

SXA15,16..MTM

T=1.30,MARK FF

 2
41362-17070

SXA15,16..MTM

T=1.40,MARK FG

 2
41362-17040

SXA15,16..MTM

T=1.10,MARK FD

 2
41362-17050

SXA15,16..MTM

T=1.20,MARK FE

 2
41371F - SPIDER, FRONT DIFFERENTIAL
41371-32010

SXA15,16..MTM

 1
Linked diagrams
4302
