SXA15L-AZPGKA (1996)
Toyota Rav4

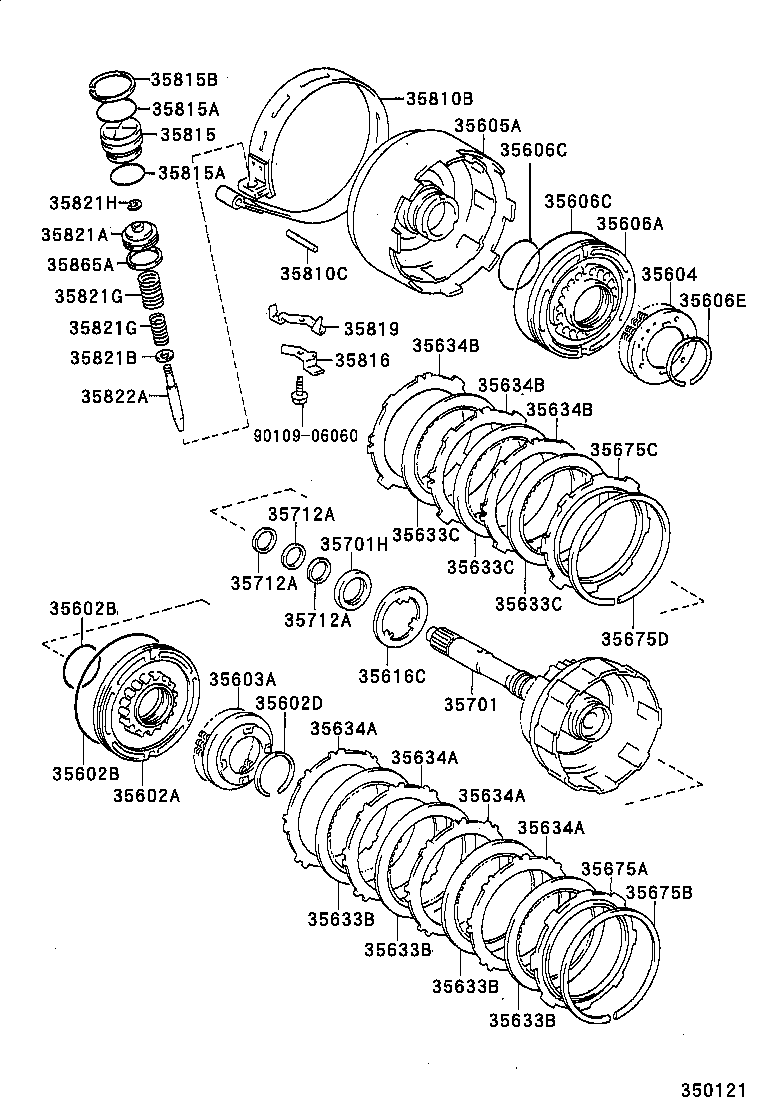

(9709- )SXA15,16..ATM
A247E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35602A - PISTON SUB-ASSY, FORWARD CLUTCH | ||||
| 35602-12070 |
SXA15,16..ATM |
1 | ||
| 35602-12060 |
SXA15,16..ATM |
1 | ||
| 35602B - RING, O (FOR FORWARD CLUTCH PISTON) | ||||
| 90301-49006 |
SXA15,16..ATM INNER |
1 | ||
| 90301-99016 |
SXA1#..ATM OUTER |
1 | ||
| 90301-46002 |
SXA11,15,16..ATM INNER |
1 | ||
| 35602B - RING, O (FOR FORWARD CLUTCH PISTON) | ||||
| 90301-49006 |
SXA15,16..ATM INNER |
1 | ||
| 90301-99016 |
SXA1#..ATM OUTER |
1 | ||
| 90301-46002 |
SXA11,15,16..ATM INNER |
1 | ||
| 35602D - RING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRIN | ||||
| 90520-44001 |
SXA11,15,16..ATM |
1 | ||
| 90520-47009 |
SXA15,16..ATM |
1 | ||
| 35603A - SPRING SUB-ASSY, FORWARD CLUTCH RETURN | ||||
| 35603-12030 |
SXA15,16..ATM |
1 | ||
| 35603-12020 |
SXA15,16..ATM |
1 | ||
| 35604 - SPRING SUB-ASSY, DIRECT CLUTCH RETURN | ||||
| 35604-32010 |
SXA11,15,16..ATM |
1 | ||
| 35604-12010 |
SXA15,16..ATM |
1 | ||
| 35605A - DRUM SUB-ASSY, DIRECT CLUTCH | ||||
| 35605-12040 |
SXA15,16..ATM |
1 | ||
| 35605-17020 |
SXA11,15,16..ATM |
1 | ||
| 35606A - PISTON SUB-ASSY, DIRECT CLUTCH | ||||
| 35606-20010 |
SXA1#..ATM |
1 | ||
| 35606C - RING, O (FOR DIRECT CLUTCH PISTON) | ||||
| 90301-99016 |
SXA1#..ATM OUTER |
1 | ||
| 90301-57188 |
SXA1#..ATM INNER |
1 | ||
| 35606C - RING, O (FOR DIRECT CLUTCH PISTON) | ||||
| 90301-99016 |
SXA1#..ATM OUTER |
1 | ||
| 90301-57188 |
SXA1#..ATM INNER |
1 | ||
| 35606E - RING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRIN | ||||
| 90520-52002 |
SXA1#..ATM |
1 | ||
| 35616C - WASHER, CLUTCH DRUM THRUST (FOR DIRECT CLUTCH DRUM) | ||||
| 35616-32021 |
SXA11,15,16..ATM |
1 | ||
| 35616-12020 |
SXA15,16..ATM |
1 | ||
| 35616-12040 |
SXA15,16..ATM |
1 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-12060 |
SXA15,16..ATM |
4 | ||
| 35633-12040 |
SXA15,16..ATM |
4 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-12060 |
SXA15,16..ATM |
4 | ||
| 35633-12040 |
SXA15,16..ATM |
4 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-12060 |
SXA15,16..ATM |
4 | ||
| 35633-12040 |
SXA15,16..ATM |
4 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-12060 |
SXA15,16..ATM |
4 | ||
| 35633-12040 |
SXA15,16..ATM |
4 | ||
| 35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35633-20020 |
SXA15,16..ATM |
3 | ||
| 35633-21020 |
SXA15,16..ATM |
3 | ||
| 35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35633-20020 |
SXA15,16..ATM |
3 | ||
| 35633-21020 |
SXA15,16..ATM |
3 | ||
| 35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35633-20020 |
SXA15,16..ATM |
3 | ||
| 35633-21020 |
SXA15,16..ATM |
3 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-12030 |
SXA15,16..ATM T=1.8 |
4 | ||
| 35634-12040 |
SXA11,15,16..ATM T=1.8 |
4 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-12030 |
SXA15,16..ATM T=1.8 |
4 | ||
| 35634-12040 |
SXA11,15,16..ATM T=1.8 |
4 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-12030 |
SXA15,16..ATM T=1.8 |
4 | ||
| 35634-12040 |
SXA11,15,16..ATM T=1.8 |
4 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-12030 |
SXA15,16..ATM T=1.8 |
4 | ||
| 35634-12040 |
SXA11,15,16..ATM T=1.8 |
4 | ||
| 35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35634-12040 |
SXA11,15,16..ATM T=1.8 |
3 | ||
| 35634-12030 |
SXA15,16..ATM T=1.8 |
3 | ||
| 35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35634-12040 |
SXA11,15,16..ATM T=1.8 |
3 | ||
| 35634-12030 |
SXA15,16..ATM T=1.8 |
3 | ||
| 35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35634-12040 |
SXA11,15,16..ATM T=1.8 |
3 | ||
| 35634-12030 |
SXA15,16..ATM T=1.8 |
3 | ||
| 35675A - FLANGE, FORWARD CLUTCH | ||||
| 35635-50030 |
SXA1#..ATM T=3.60,MARK 62 |
1 | ||
| 35675-17010 |
SXA1#..ATM T=2.8 |
1 | ||
| 35675-12010 |
SXA1#..ATM T=3.2 |
1 | ||
| 35675-32010 |
SXA1#..ATM T=3.0 |
1 | ||
| 35675B - RING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE) | ||||
| 90521-99001 |
SXA1#..ATM |
1 | ||
| 35675C - FLANGE, DIRECT CLUTCH | ||||
| 35675-32010 |
SXA1#..ATM T=3.0 |
1 | ||
| 35675-32030 |
SXA1#..ATM T=2.6 |
1 | ||
| 35675-17010 |
SXA1#..ATM T=2.8 |
1 | ||
| 35675-12010 |
SXA15,16..ATM T=3.2 |
1 | ||
| 35675D - RING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE) | ||||
| 90521-99001 |
SXA1#..ATM |
1 | ||
| 90521-99001 |
SXA15,16..ATM |
1 | ||
| 90521-99001 |
SXA11,15,16..ATM |
1 | ||
| 35701 - SHAFT SUB-ASSY, INPUT | ||||
| 35701-32031 |
SXA11,15,16..ATM |
1 | ||
| 35701-12030 |
SXA15,16..ATM |
1 | ||
| 35701H - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT) | ||||
| 90374-30012 |
SXA15,16..ATM OD=47.10 |
1 | ||
| 90374-30011 |
SXA15,16..ATM OD=46.02 |
1 | ||
| 90374-30013 |
SXA15,16..ATM OD=46.43 |
1 | ||
| 90374-28005 |
SXA11,15,16..ATM OD=42.0 |
1 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-32010 |
SXA11,15,16..ATM |
2 | ||
| 35712-32010 |
SXA15,16..ATM |
3 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-32010 |
SXA11,15,16..ATM |
2 | ||
| 35712-32010 |
SXA15,16..ATM |
3 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-32010 |
SXA11,15,16..ATM |
2 | ||
| 35712-32010 |
SXA15,16..ATM |
3 | ||
| 35810B - BAND ASSY, 2ND COAST BRAKE | ||||
| 35810-32020 |
SXA15,16..ATM |
1 | ||
| 35810C - PIN (FOR 2ND COAST BRAKE BAND) | ||||
| 90250-07003 |
SXA15,16..ATM |
1 | ||
| 90250-07001 |
SXA11,15,16..ATM |
1 | ||
| 35815 - COVER, 2ND COAST BRAKE | ||||
| 35815-32010 |
SXA15,16..ATM |
1 | ||
| 35815-12020 |
SXA15,16..ATM..HT |
1 | ||
| 35815A - RING, O (FOR 2ND COAST BRAKE COVER) | ||||
| 90301-41002 |
SXA15,16..ATM |
2 | ||
| 35815A - RING, O (FOR 2ND COAST BRAKE COVER) | ||||
| 90301-41002 |
SXA15,16..ATM |
2 | ||
| 35815B - RING, HOLE SNAP (FOR 2ND COAST BRAKE COVER) | ||||
| 90521-48003 |
SXA15,16..ATM |
1 | ||
| 90521-53001 |
SXA15,16..ATM |
1 | ||
| 35816 - RETAINER, BRAKE BAND GUIDE PLATE | ||||
| 35816-12010 |
SXA15,16..ATM |
1 | ||
| 35819 - PLATE, 2ND COAST BRAKE BAND GUIDE | ||||
| 35819-12030 |
SXA15,16..ATM |
1 | ||
| 35819-12020 |
SXA15,16..ATM |
1 | ||
| 35821A - PISTON, 2ND COAST BRAKE | ||||
| 35821-32010 |
SXA15,16..ATM |
1 | ||
| 35821B - WASHER, PLATE (FOR 2ND COAST BRAKE PISTON) | ||||
| 90201-06557 |
SXA15,16..ATM |
1 | ||
| 35821G - SPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON) | ||||
| 90501-26024 |
SXA15,16..ATM OUTER |
1 | ||
| 90501-20051 |
SXA15,16..ATM INNER |
1 | ||
| 35821G - SPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON) | ||||
| 90501-26024 |
SXA15,16..ATM OUTER |
1 | ||
| 90501-20051 |
SXA15,16..ATM INNER |
1 | ||
| 35821H - RING, E (FOR 2ND COAST BRAKE PISTON) | ||||
| 96160-00500 |
SXA1#..ATM |
1 | ||
| 35822A - ROD, 2ND COAST BRAKE PISTON | ||||
| 35822-32010 |
SXA15,16..ATM L=70.9 |
1 | ||
| 35822-32020 |
SXA11,15,16..ATM L=72.4 |
1 | ||
| 35865A - RING, 2ND COAST BRAKE PISTON OIL SEAL | ||||
| 35865-32010 |
SXA15,16..ATM |
1 | ||
| Common parts | ||||
| 90109-06060 | ||||

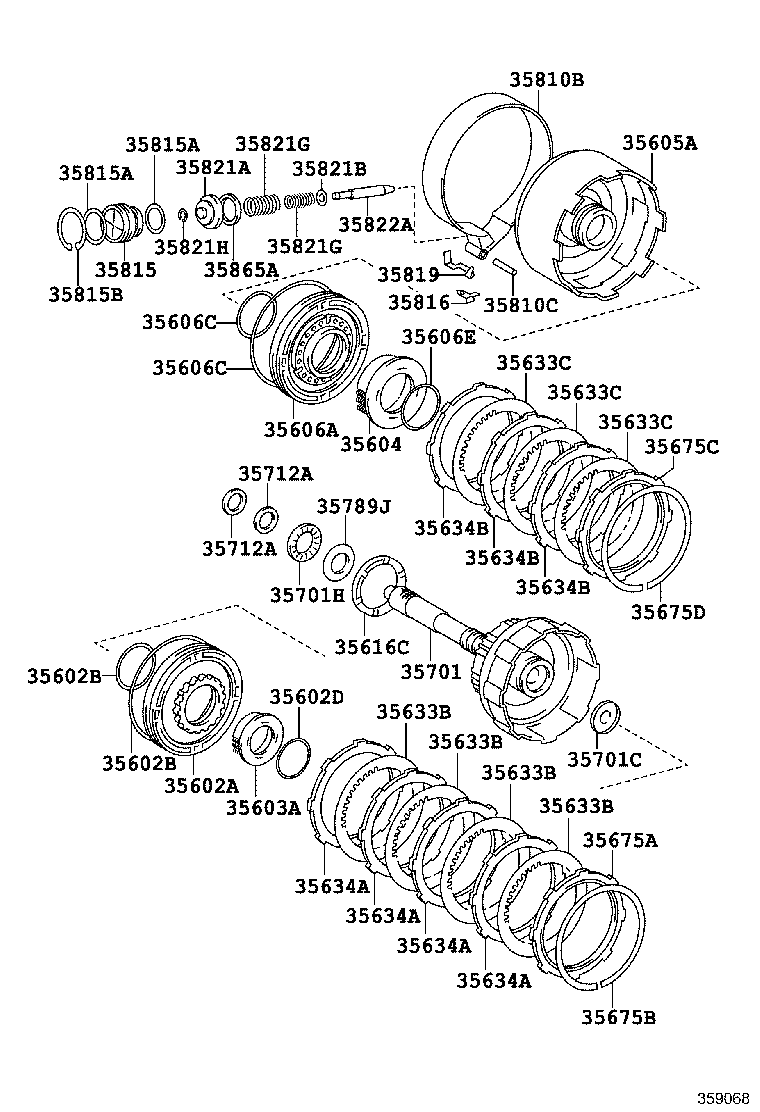

(9602-9709)SXA15,16..ATM
A241E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35602A - PISTON SUB-ASSY, FORWARD CLUTCH | ||||
| 35602-12070 |
SXA15,16..ATM |
1 | ||
| 35602-12060 |
SXA15,16..ATM |
1 | ||
| 35602B - RING, O (FOR FORWARD CLUTCH PISTON) | ||||
| 90301-49006 |
SXA15,16..ATM INNER |
1 | ||
| 90301-99016 |
SXA1#..ATM OUTER |
1 | ||
| 90301-46002 |
SXA11,15,16..ATM INNER |
1 | ||
| 35602B - RING, O (FOR FORWARD CLUTCH PISTON) | ||||
| 90301-49006 |
SXA15,16..ATM INNER |
1 | ||
| 90301-99016 |
SXA1#..ATM OUTER |
1 | ||
| 90301-46002 |
SXA11,15,16..ATM INNER |
1 | ||
| 35602D - RING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRIN | ||||
| 90520-44001 |
SXA11,15,16..ATM |
1 | ||
| 90520-47009 |
SXA15,16..ATM |
1 | ||
| 35603A - SPRING SUB-ASSY, FORWARD CLUTCH RETURN | ||||
| 35603-12030 |
SXA15,16..ATM |
1 | ||
| 35603-12020 |
SXA15,16..ATM |
1 | ||
| 35604 - SPRING SUB-ASSY, DIRECT CLUTCH RETURN | ||||
| 35604-32010 |
SXA11,15,16..ATM |
1 | ||
| 35604-12010 |
SXA15,16..ATM |
1 | ||
| 35605A - DRUM SUB-ASSY, DIRECT CLUTCH | ||||
| 35605-12040 |
SXA15,16..ATM |
1 | ||
| 35605-17020 |
SXA11,15,16..ATM |
1 | ||
| 35606A - PISTON SUB-ASSY, DIRECT CLUTCH | ||||
| 35606-20010 |
SXA1#..ATM |
1 | ||
| 35606C - RING, O (FOR DIRECT CLUTCH PISTON) | ||||
| 90301-99016 |
SXA1#..ATM OUTER |
1 | ||
| 90301-57188 |
SXA1#..ATM INNER |
1 | ||
| 35606C - RING, O (FOR DIRECT CLUTCH PISTON) | ||||
| 90301-99016 |
SXA1#..ATM OUTER |
1 | ||
| 90301-57188 |
SXA1#..ATM INNER |
1 | ||
| 35606E - RING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRIN | ||||
| 90520-52002 |
SXA1#..ATM |
1 | ||
| 35616C - WASHER, CLUTCH DRUM THRUST (FOR DIRECT CLUTCH DRUM) | ||||
| 35616-32021 |
SXA11,15,16..ATM |
1 | ||
| 35616-12020 |
SXA15,16..ATM |
1 | ||
| 35616-12040 |
SXA15,16..ATM |
1 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-12060 |
SXA15,16..ATM |
4 | ||
| 35633-12040 |
SXA15,16..ATM |
4 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-12060 |
SXA15,16..ATM |
4 | ||
| 35633-12040 |
SXA15,16..ATM |
4 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-12060 |
SXA15,16..ATM |
4 | ||
| 35633-12040 |
SXA15,16..ATM |
4 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-12060 |
SXA15,16..ATM |
4 | ||
| 35633-12040 |
SXA15,16..ATM |
4 | ||
| 35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35633-20020 |
SXA15,16..ATM |
3 | ||
| 35633-21020 |
SXA15,16..ATM |
3 | ||
| 35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35633-20020 |
SXA15,16..ATM |
3 | ||
| 35633-21020 |
SXA15,16..ATM |
3 | ||
| 35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35633-20020 |
SXA15,16..ATM |
3 | ||
| 35633-21020 |
SXA15,16..ATM |
3 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-12030 |
SXA15,16..ATM T=1.8 |
4 | ||
| 35634-12040 |
SXA11,15,16..ATM T=1.8 |
4 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-12030 |
SXA15,16..ATM T=1.8 |
4 | ||
| 35634-12040 |
SXA11,15,16..ATM T=1.8 |
4 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-12030 |
SXA15,16..ATM T=1.8 |
4 | ||
| 35634-12040 |
SXA11,15,16..ATM T=1.8 |
4 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-12030 |
SXA15,16..ATM T=1.8 |
4 | ||
| 35634-12040 |
SXA11,15,16..ATM T=1.8 |
4 | ||
| 35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35634-12040 |
SXA11,15,16..ATM T=1.8 |
3 | ||
| 35634-12030 |
SXA15,16..ATM T=1.8 |
3 | ||
| 35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35634-12040 |
SXA11,15,16..ATM T=1.8 |
3 | ||
| 35634-12030 |
SXA15,16..ATM T=1.8 |
3 | ||
| 35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35634-12040 |
SXA11,15,16..ATM T=1.8 |
3 | ||
| 35634-12030 |
SXA15,16..ATM T=1.8 |
3 | ||
| 35675A - FLANGE, FORWARD CLUTCH | ||||
| 35635-50030 |
SXA1#..ATM T=3.60,MARK 62 |
1 | ||
| 35675-17010 |
SXA1#..ATM T=2.8 |
1 | ||
| 35675-12010 |
SXA1#..ATM T=3.2 |
1 | ||
| 35675-32010 |
SXA1#..ATM T=3.0 |
1 | ||
| 35675B - RING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE) | ||||
| 90521-99001 |
SXA1#..ATM |
1 | ||
| 35675C - FLANGE, DIRECT CLUTCH | ||||
| 35675-32010 |
SXA1#..ATM T=3.0 |
1 | ||
| 35675-32030 |
SXA1#..ATM T=2.6 |
1 | ||
| 35675-17010 |
SXA1#..ATM T=2.8 |
1 | ||
| 35675-12010 |
SXA15,16..ATM T=3.2 |
1 | ||
| 35675D - RING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE) | ||||
| 90521-99001 |
SXA1#..ATM |
1 | ||
| 90521-99001 |
SXA15,16..ATM |
1 | ||
| 90521-99001 |
SXA11,15,16..ATM |
1 | ||
| 35701 - SHAFT SUB-ASSY, INPUT | ||||
| 35701-32031 |
SXA11,15,16..ATM |
1 | ||
| 35701-12030 |
SXA15,16..ATM |
1 | ||
| 35701C - RACE, THRUST BEARING (FOR INPUT SHAFT REAR) | ||||
| 35789-32040 |
SXA11,15,16..ATM |
1 | ||
| 35701H - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT) | ||||
| 90374-30012 |
SXA15,16..ATM OD=47.10 |
1 | ||
| 90374-30011 |
SXA15,16..ATM OD=46.02 |
1 | ||
| 90374-30013 |
SXA15,16..ATM OD=46.43 |
1 | ||
| 90374-28005 |
SXA11,15,16..ATM OD=42.0 |
1 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-32010 |
SXA11,15,16..ATM |
2 | ||
| 35712-32010 |
SXA15,16..ATM |
3 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-32010 |
SXA11,15,16..ATM |
2 | ||
| 35712-32010 |
SXA15,16..ATM |
3 | ||
| 35789J - RACE, THRUST BEARING (FOR INPUT SHAFT FRONT) | ||||
| 35789-32010 |
SXA11,15,16..ATM |
1 | ||
| 35810B - BAND ASSY, 2ND COAST BRAKE | ||||
| 35810-32020 |
SXA15,16..ATM |
1 | ||
| 35810C - PIN (FOR 2ND COAST BRAKE BAND) | ||||
| 90250-07003 |
SXA15,16..ATM |
1 | ||
| 90250-07001 |
SXA11,15,16..ATM |
1 | ||
| 35815 - COVER, 2ND COAST BRAKE | ||||
| 35815-32010 |
SXA15,16..ATM |
1 | ||
| 35815-12020 |
SXA15,16..ATM..HT |
1 | ||
| 35815A - RING, O (FOR 2ND COAST BRAKE COVER) | ||||
| 90301-41002 |
SXA15,16..ATM |
2 | ||
| 35815A - RING, O (FOR 2ND COAST BRAKE COVER) | ||||
| 90301-41002 |
SXA15,16..ATM |
2 | ||
| 35815B - RING, HOLE SNAP (FOR 2ND COAST BRAKE COVER) | ||||
| 90521-48003 |
SXA15,16..ATM |
1 | ||
| 90521-53001 |
SXA15,16..ATM |
1 | ||
| 35816 - RETAINER, BRAKE BAND GUIDE PLATE | ||||
| 35816-12010 |
SXA15,16..ATM |
1 | ||
| 35819 - PLATE, 2ND COAST BRAKE BAND GUIDE | ||||
| 35819-12030 |
SXA15,16..ATM |
1 | ||
| 35819-12020 |
SXA15,16..ATM |
1 | ||
| 35821A - PISTON, 2ND COAST BRAKE | ||||
| 35821-32010 |
SXA15,16..ATM |
1 | ||
| 35821B - WASHER, PLATE (FOR 2ND COAST BRAKE PISTON) | ||||
| 90201-06557 |
SXA15,16..ATM |
1 | ||
| 35821G - SPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON) | ||||
| 90501-26024 |
SXA15,16..ATM OUTER |
1 | ||
| 90501-20051 |
SXA15,16..ATM INNER |
1 | ||
| 35821G - SPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON) | ||||
| 90501-26024 |
SXA15,16..ATM OUTER |
1 | ||
| 90501-20051 |
SXA15,16..ATM INNER |
1 | ||
| 35821H - RING, E (FOR 2ND COAST BRAKE PISTON) | ||||
| 96160-00500 |
SXA1#..ATM |
1 | ||
| 35822A - ROD, 2ND COAST BRAKE PISTON | ||||
| 35822-32010 |
SXA15,16..ATM L=70.9 |
1 | ||
| 35822-32020 |
SXA11,15,16..ATM L=72.4 |
1 | ||
| 35865A - RING, 2ND COAST BRAKE PISTON OIL SEAL | ||||
| 35865-32010 |
SXA15,16..ATM |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
