SXA15L-AZPGKA (1996)

Toyota Rav4

Production Feb 1996 - Aug 2000
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9602- )SXA15,16..ATM

Click highlighted areas on diagram

A241E,A247E

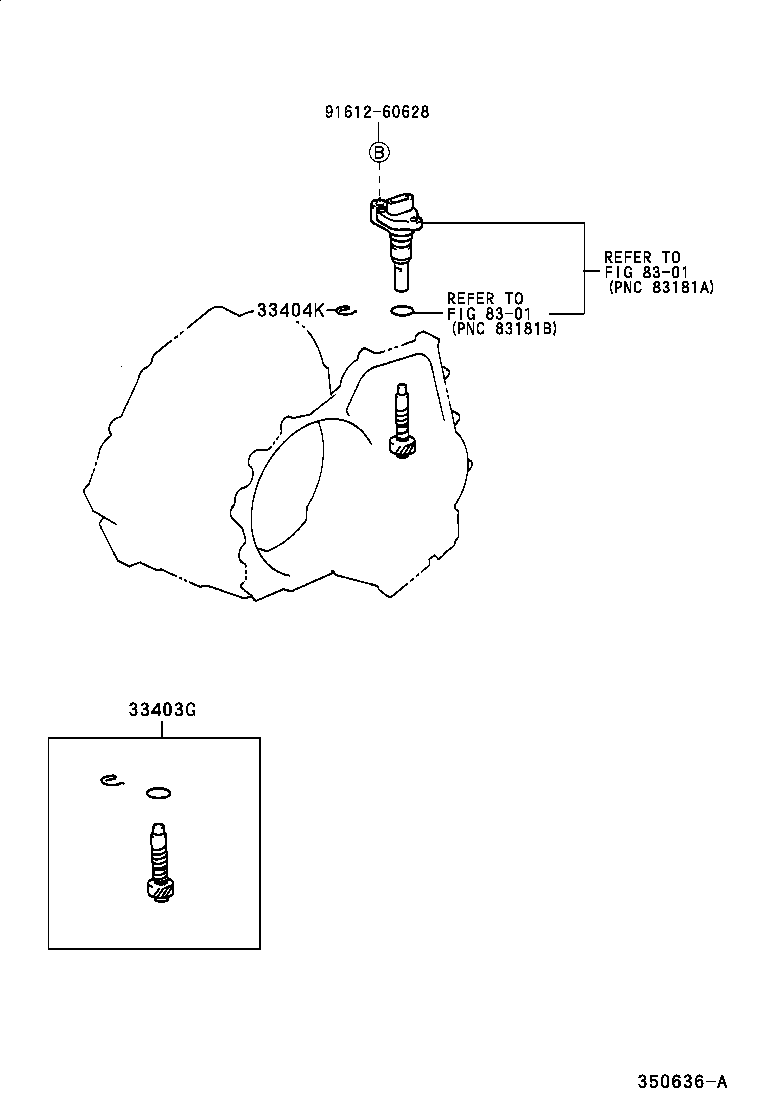

diagram 33403G 33404K 8301 8301 9161260628
Part # Description Qty Price
33403G - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)
33403-49055

SXA15,16..ATM

N=20,MARK 20:27

 1
33404K - CLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90468-12005

SXA1#..ATM

 1
Common parts
91612-60628
Linked diagrams
8301
