SXA15L-AZPGKA (1996)
Toyota Rav4
Production
Feb 1996
-
Aug 2000
Engine
3SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

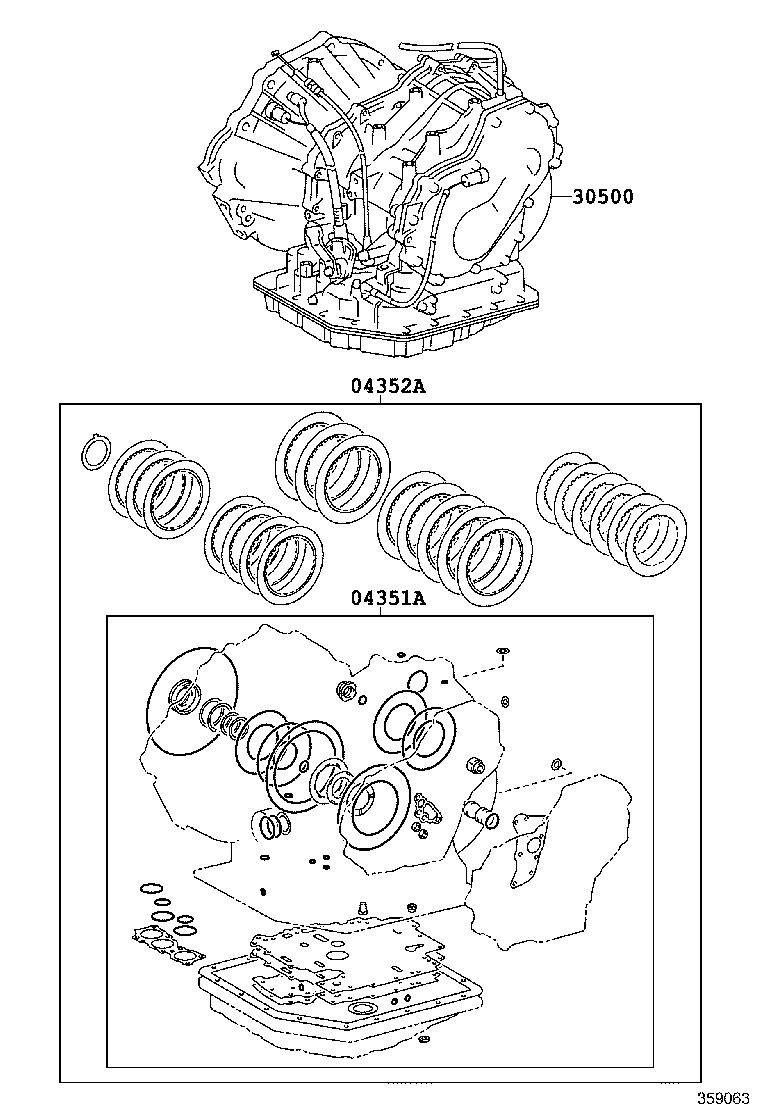

(9602-9709)SXA15,16..ATM
Click highlighted areas on diagram
A241E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04351A - GASKET KIT, TRANSAXLE OVERHAUL(ATM) | ||||
| 04351-16090 |
SXA15,16..ATM |
1 | ||
| 04351-42020 |
SXA15,16..ATM |
1 | ||
| 04352A - KIT, TRANSAXLE OVERHAUL(ATM) | ||||
| 04352-42030 |
SXA15,16..ATM |
1 | ||
| 04352-42010 |
SXA15,16..ATM |
1 | ||
| 30500 - TRANSAXLE ASSY, AUTOMATIC | ||||
| 30500-42070 |
SXA15,16..ATM |
1 | ||
| 30500-42020 |
SXA15,16..ATM |
1 | ||
(9709- )SXA15,16..ATM
Click highlighted areas on diagram
A247E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04351A - GASKET KIT, TRANSAXLE OVERHAUL(ATM) | ||||
| 04351-16090 |
SXA15,16..ATM |
1 | ||
| 04351-42020 |
SXA15,16..ATM |
1 | ||
| 04352A - KIT, TRANSAXLE OVERHAUL(ATM) | ||||
| 04352-42030 |
SXA15,16..ATM |
1 | ||
| 04352-42010 |
SXA15,16..ATM |
1 | ||
| 30500 - TRANSAXLE ASSY, AUTOMATIC | ||||
| 30500-42070 |
SXA15,16..ATM |
1 | ||
| 30500-42020 |
SXA15,16..ATM |
1 | ||
