SXA11R-AWPGKW (1995)

Toyota Rav4

Production Apr 1995 - May 2000
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9511- )SXA10,11..ATM

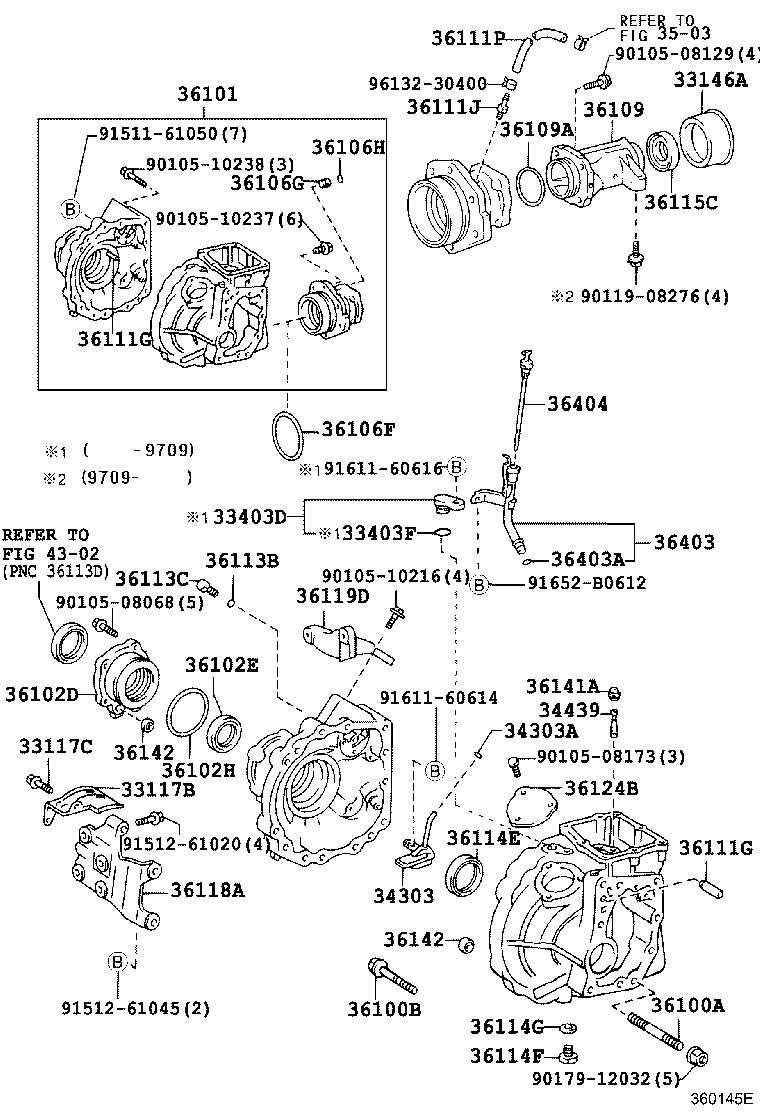

Click highlighted areas on diagram

diagram 33117B 33117C 33146A 33403D 33403F 34303 34303A 34439 3503 36100A 36100B 36101 36102D 36102E 36102H 36106F 36106G 36106H 36109 36109A 36111G 36111G 36111J 36111P 36113B 36113C 36114E 36114F 36114G 36115C 36118A 36119D 36124B 36141A 36142 36142 36403 36403A 36404 4302 9010508068 9010508129 9010508173 9010510216 9010510237 9010510238 9011908276 9017912032 9151161050 9151261020 9151261045 9161160614 9161160616 91652B0612 9613230400
Part # Description Qty Price
33117B - PROTECTOR, TRANSFER CASE
33117-42010

SXA1#

 1
33117C - BOLT(FOR TRANSFER CASE PROTECTOR)
90105-08040

SXA1#

 2
33146A - DEFLECTOR, TRANSFER EXTENSION HOUSING DUST
33146-30020

SXA1#

 1
33403D - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33403-20250

SXA1#..ATM

 1
33403F - RING,O (FOR SPEEDOMETER DRIVEN HOLE COVER)
90301-11008

SXA1#..ATM

 1
34303 - STRAINER SUB-ASSY, TRANSFER OIL
34303-32010

SXA1#..ATM

 1
34303A - RING, O (FOR TRANSFER OIL STRAINER)
90301-06008

SXA1#..ATM

 1
34439 - STRAINER, TRANSFER VALVE BODY
34439-32010

SXA1#..ATM

 1
36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
90116-12027

SXA1#..ATM

S=22 & 22,L=56

 1
90116-12029

SXA1#..ATM

S=22 & 22,L=74

 2
90116-12028

SXA1#

S=22 & 22,L=69

 2
36100B - BOLT (FOR TRANSFER & TRANSAXLE SETTING)
90105-12137

SXA1#..ATM

*12-1.25PX52-30

 1
90105-12162

SXA1#..ATM

*12-1.25PX62-30

 1
90105-12161

SXA1#..ATM

*12-1.25PX204-30

 1
36101 - CASE SUB-ASSY, TRANSFER
36101-20010

SXA1#..ATM

 1
36102D - RETAINER SUB-ASSY, TRANSFER RH BEARING
36102-32010

SXA1#..ATM

 1
36102E - SEAL, OIL, NO.1 (FOR TRANSFER RH BEARING RETAINER)
90316-52001

SXA1#..ATM

 1
36102H - RING, O (FOR TRANSFER RH BEARING RETAINER)
90301-85003

SXA1#..ATM

 1
36106F - RING, O (FOR TRANSFER PINION BEARING CAGE)
90301-94001

SXA1#..ATM

 1
36106G - PLUG, STRAIGHT (FOR TRANSFER PINION BEARING CAGE)
90334-09004

SXA1#..ATM

 1
36106H - PLUG, O (FOR TRANSFER PINION BEARING CAGE PLUG)
90301-05002

SXA1#..ATM

 1
36109 - HOUSING SUB-ASSY, TRANSFER EXTENSION
36109-32010

SXA1#..ATM

 1
36109A - RING, O (FOR TRANSFER EXTENSION HOUSING)
90301-63005

SXA1#

 1
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90254-10003

SXA1#..ATM

L=21.0

 2
90250-12005

SXA1#

L=24,OD=12

 2
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90254-10003

SXA1#..ATM

L=21.0

 2
90250-12005

SXA1#

L=24,OD=12

 2
36111J - UNION, BREATHER, NO.1 (FOR TRANSFER)
90404-51059

SXA1#..ATM

 1
36111P - HOSE, BREATHER (FOR TRANSFER CASE)
90447-11025

SXA1#..ATM

L=395

 1
36113B - RING, O (FOR TRANSFER CASE PLUG)
90301-06196

SXA1#..ATM

OD=9.6

 1
36113C - PLUG (FOR TRANSFER CASE)
90341-08001

SXA1#..ATM

 1
36114E - SEAL, OIL (FOR TRANSFER CASE LH)
90316-61001

SXA1#..ATM

 1
36114F - PLUG (FOR TRANSFER DRAIN)
90341-18021

SXA1#..ATM

 1
36114G - GASKET (FOR TRANSFER DRAIN PLUG)
90430-18008

SXA1#

 1
36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
90311-38032

SXA1#

 1
36118A - PLATE, TRANSFER STIFFENER, RH
36118-32020

SXA1#..ATM

 1
36119D - PLATE, TRANSFER STIFFENER, CENTER
36119-32021

SXA1#..ATM

 1
36124B - COVER, TRANSFER INSPECTION HOLE
36124-32010

SXA1#..ATM

 1
36141A - GASKET, TRANSFER CASE
36141-32010

SXA1#..ATM

 2
36142 - GASKET, TRANSFER COVER
36142-12010

SXA1#..ATM

 2
36142 - GASKET, TRANSFER COVER
36142-12010

SXA1#..ATM

 2
36403 - TUBE SUB-ASSY, TRANSFER OIL FILLER
36403-42010

SXA1#..ATM

 1
36403A - RING, O (FOR TRANSFER OIL FILLER TUBE)
90301-09173

SXA1#..ATM

 1
36404 - GAGE SUB-ASSY, TRANSFER OIL LEVEL
36404-42020

SXA1#..ATM

 1
36404-42010

SXA1#..ATM

 1
Common parts
90105-08068
90105-08129
90105-08173
90105-10216
90105-10237
90105-10238
90119-08276
90179-12032
91511-61050
91512-61020
91512-61045
91611-60614
91611-60616
91652-B0612
96132-30400
