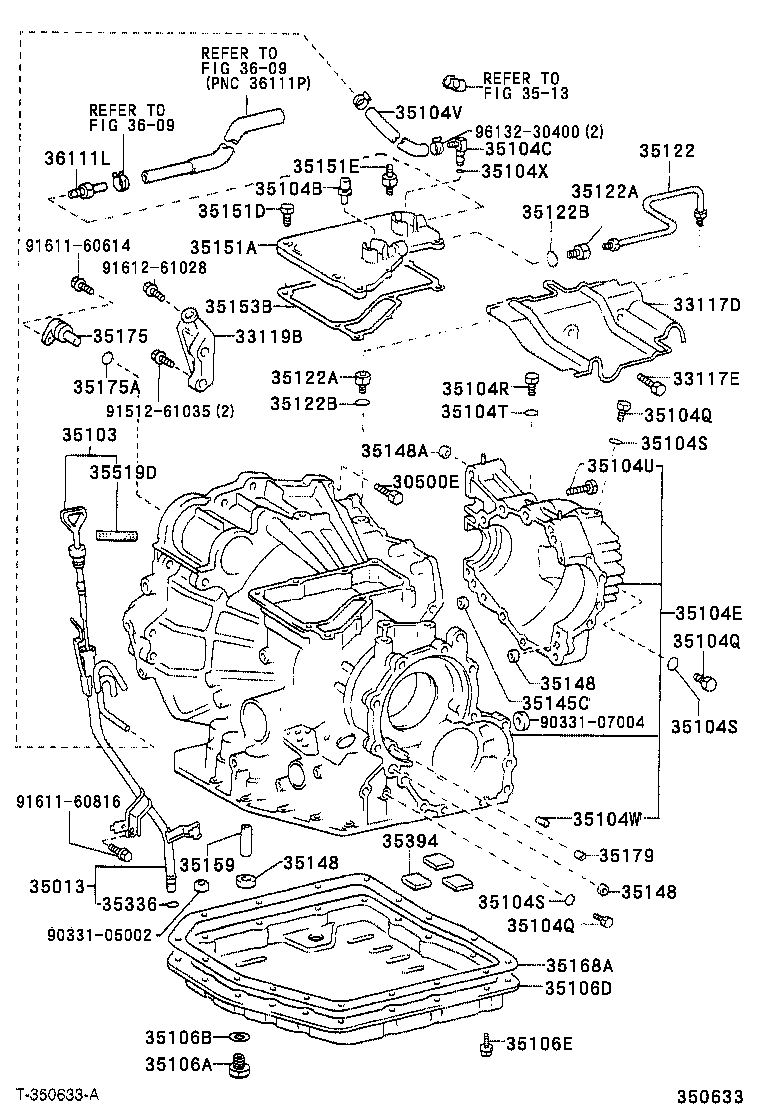

SXA11R-AWPGKQ (1995)
Toyota Rav4
(9511- )SXA10,11..ATM
A540H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 90105-08040 |
SXA1#..ATM *8-1.25PX18-15 |
1 | ||
| 90105-10077 |
SXA1#..ATM *10-1.25PX43-26 |
1 | ||
| 91619-61245 |
SXA1#..ATM *12-1.25PX45-30 |
3 | ||
| 91621-61020 |
SXA1#..ATM *10-1.25PX20-20 |
1 | ||
| 33117D - PROTECTOR, AUTOMATIC TRANSMISSION CASE | ||||
| 33117-32050 |
SXA1#..ATM |
1 | ||
| 33117E - BOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR) | ||||
| 90105-08040 |
SXA1#..ATM |
2 | ||
| 33119B - PLATE, STIFFENER, LH(ATM) | ||||
| 33119-32020 |
SXA1#..ATM |
1 | ||
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-42010 |
SXA1#..ATM |
1 | ||
| 35013-42030 |
SXA1#..ATM |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-42020 |
SXA1#..ATM |
1 | ||
| 35103-42010 |
SXA1#..ATM |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03133 |
SXA1#..ATM |
1 | ||
| 35104C - PLUG, BREATHER, NO.2 (ATM) | ||||
| 90930-03094 |
SXA1#..ATM |
1 | ||
| 35104E - CASE SUB-ASSY, AUTOMATIC TRANSAXLE | ||||
| 35104-32066 |
SXA1#..ATM |
1 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
SXA1#..ATM |
3 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
SXA1#..ATM |
3 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
SXA1#..ATM |
3 | ||
| 35104R - PLUG, NO.2 (FOR TRANSAXLE CASE) | ||||
| 90341-13003 |
SXA1#..ATM |
1 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
SXA1#..ATM |
3 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
SXA1#..ATM |
3 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
SXA1#..ATM |
3 | ||
| 35104T - RING, O (FOR TRANSAXLE CASE PLUG NO.2) | ||||
| 90301-10189 |
SXA1#..ATM |
1 | ||
| 35104U - BOLT (FOR TRANSAXLE CASE) | ||||
| 90105-10223 |
SXA1#..ATM *10-1.25PX75-30 |
2 | ||
| 90105-10222 |
SXA1#..ATM *10-1.25PX65-30 |
7 | ||
| 90105-10224 |
SXA1#..ATM *10-1.25PX100-30 |
2 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90445-11131 |
SXA1#..ATM |
1 | ||
| 35121-20030 |
SXA1#..ATM |
1 | ||
| 35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE) | ||||
| 90250-10232 |
SXA1#..ATM |
2 | ||
| 35104X - RING, O (FOR BREATHER PLUG) | ||||
| 90301-06005 |
SXA1#..ATM |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-18016 |
SXA1#..ATM |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 90430-18008 |
SXA1#..ATM |
1 | ||
| 35106D - PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL | ||||
| 35106-32032 |
SXA1#..ATM |
1 | ||
| 35106E - BOLT (FOR TRANSAXLE OIL PAN) | ||||
| 90119-06173 |
SXA1#..ATM |
17 | ||
| 35122 - TUBE, BREATHER (FOR AUTOMATIC TRANSAXLE) | ||||
| 35122-32010 |
SXA1#..ATM |
1 | ||
| 35122A - UNION (FOR AUTOMATIC TRANSAXLE BREATHER TUBE) | ||||
| 90404-14007 |
SXA1#..ATM |
2 | ||
| 35122A - UNION (FOR AUTOMATIC TRANSAXLE BREATHER TUBE) | ||||
| 90404-14007 |
SXA1#..ATM |
2 | ||
| 35122B - RING, O (FOR AUTOMATIC TRANSAXLE BREATHER TUBE UNION) | ||||
| 90301-10189 |
SXA1#..ATM |
2 | ||
| 35122B - RING, O (FOR AUTOMATIC TRANSAXLE BREATHER TUBE UNION) | ||||
| 90301-10189 |
SXA1#..ATM |
2 | ||
| 35145C - GASKET, TRANSAXLE CASE | ||||
| 35145-32020 |
SXA1#..ATM |
1 | ||
| 35148 - GASKET, GOVERNOR APPLY, NO.1 | ||||
| 35148-16010 |
SXA1#..ATM |
3 | ||
| 35148-16010 |
SXA1#..ATM |
2 | ||
| 35148 - GASKET, GOVERNOR APPLY, NO.1 | ||||
| 35148-16010 |
SXA1#..ATM |
3 | ||
| 35148-16010 |
SXA1#..ATM |
2 | ||
| 35148 - GASKET, GOVERNOR APPLY, NO.1 | ||||
| 35148-16010 |
SXA1#..ATM |
3 | ||
| 35148-16010 |
SXA1#..ATM |
2 | ||
| 35148A - GASKET, GOVERNOR APPLY, NO.2 | ||||
| 35148-12010 |
SXA1#..ATM |
1 | ||
| 35151A - COVER, TRANSAXLE CASE, UPPER | ||||
| 35151-32023 |
SXA1#..ATM |
1 | ||
| 35151D - BOLT (FOR TRANSAXLE CASE UPPER COVER) | ||||
| 90105-06113 |
SXA1#..ATM *6-1.00PX20-18 |
7 | ||
| 90105-08174 |
SXA1#..ATM *8-1.25PX28-18 |
1 | ||
| 35151E - BOLT (FOR TRANSAXLE CASE UPPER COVER) | ||||
| 90109-08179 |
SXA1#..ATM |
1 | ||
| 91512-61030 |
SXA1#..ATM |
1 | ||
| 35153B - GASKET, TRANSAXLE CASE UPPER COVER | ||||
| 35153-32010 |
SXA1#..ATM |
1 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-32011 |
SXA1#..ATM |
1 | ||
| 35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN | ||||
| 35168-32020 |
SXA1#..ATM |
1 | ||
| 35168-33020 |
SXA1#..ATM |
1 | ||
| 35175 - CAP, TRANSAXLE CASE, NO.2 | ||||
| 35175-32010 |
SXA1#..ATM |
1 | ||
| 35175A - RING, O (FOR TRANSAXLE CASE CAP) | ||||
| 90301-21002 |
SXA1#..ATM |
1 | ||
| 35179 - GASKET, OVERDRIVE BRAKE | ||||
| 35179-32010 |
SXA1#..ATM |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
SXA1#..ATM |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
SXA1#..ATM |
3 | ||
| 35519D - LABEL, AUTOMATIC TRANSMISSION INFORMATION | ||||
| 35519-42010 |
SXA1#..ATM |
1 | ||
| 36111L - UNION, BREATHER, N0.2 (FOR TRANSFER) | ||||
| 90404-51059 |
SXA1#..ATM |
1 | ||
| Common parts | ||||
| 90331-05002 | ||||
| 90331-07004 | ||||
| 91512-61035 | ||||
| 91611-60614 | ||||
| 91611-60816 | ||||
| 91612-61028 | ||||
| 96132-30400 | ||||
| Linked diagrams | ||||
| 3513 | ||||
| 3609 | ||||
