SXA11R-AWMGKW (1995)

Toyota Rav4

Production Apr 1995 - May 2000
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

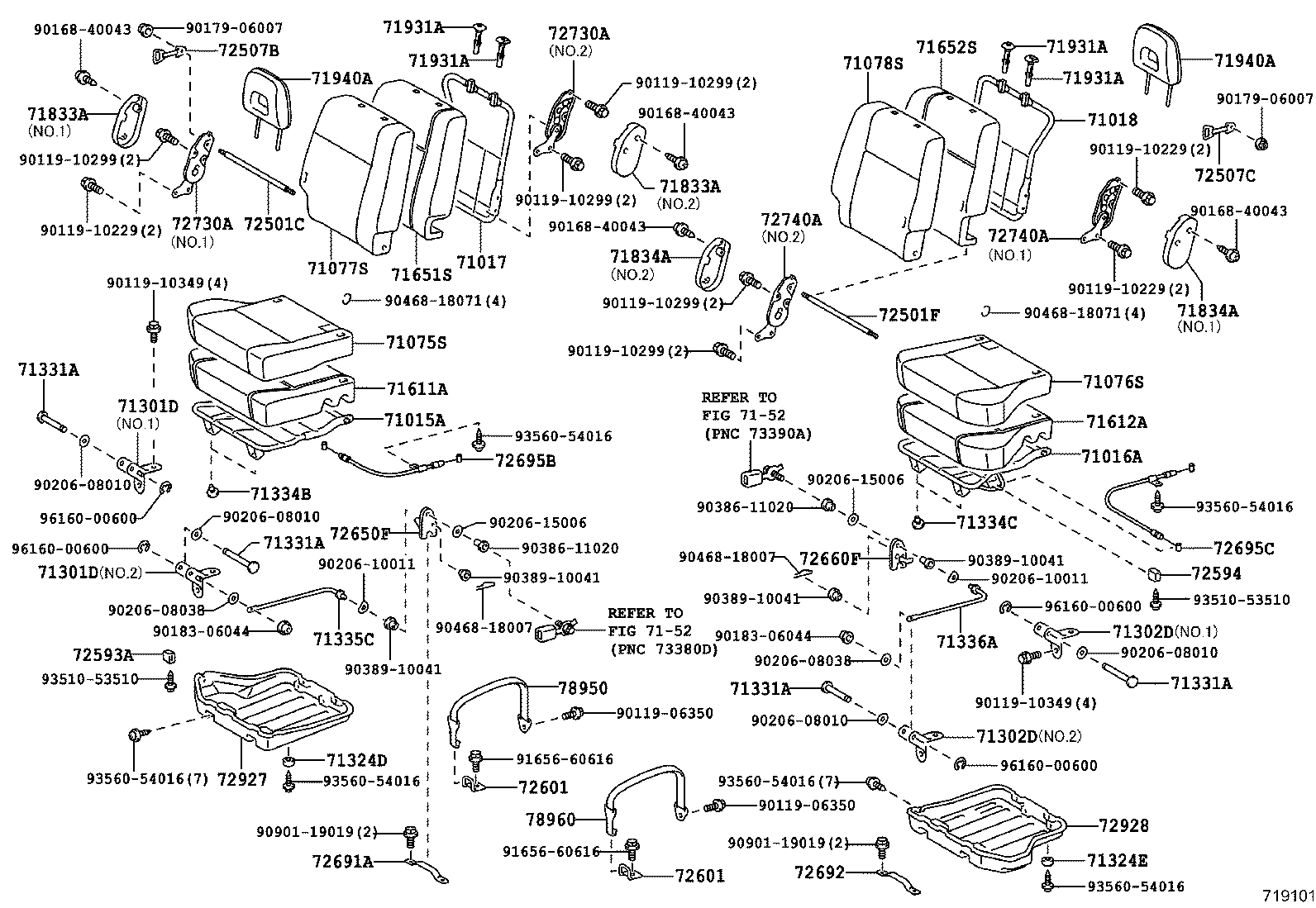

ILLUST NO. 3 OF 3(9608- )

Click highlighted areas on diagram

diagram 71015A 71016A 71017 71018 71038 71039 71075S 71076S 71077S 71078S 71301D 71302D 71321B 71322C 71324D 71324E 71328D 71328E 71331A 71331A 71331A 71331A 71334B 71334B 71334C 71334C 71335C 71336A 71393A 71393B 71460S 71470S 71480S 71485 71485 71490S 7152 7152 71611A 71612A 71629 71639 71651S 71652S 71833A 71833A 71834A 71834A 71931A 71931A 71931A 71931A 71940A 71940A 7195590K0001 7195590K0001 72501C 72501F 72507B 72507C 72601 72601 72650F 72660F 72691A 72692 72730A 72730A 72740A 72740A 72927 72928 9010506156 9010506156 9011906350 9011906350 9011910229 9011910229 9011910229 9011910229 9011910229 9011910229 9011910229 9011910299 9011910349 9011910349 9016740044 9016740044 9016840043 9016840043 9016840043 9016840043 9017906007 9017906007 9018306044 9018306044 9020608010 9020608010 9020608010 9020608010 9020608038 9020608038 9020610011 9020610011 9020615006 9020615006 9038611020 9038611020 9038910041 9038910041 9038910041 9038910041 9046818007 9046818007 9046818071 9046818071 9046818071 9046818071 9090119019 9356054016 9356054016 9356054016 9356054016 9356054016 9356854516 9616000600 9616000600 9616000600 9616000600
Part # Description Qty Price
71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH
71015-42030

SXA11

 1
71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH
71016-42030

SXA11

 1
71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH
71017-42030

SXA11

 1
71017-42010

SXA11

 1
71017-42031

SXA11

 1
71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH
71018-42030

SXA11

 1
71018-42010

SXA11

 1
71018-42031

SXA11

 1
71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)
71075-42020B0

SXA11

BLUISH GRAY,TRIM11

 1
71075-42021B6

SXA11

SHADOW GRAY,TRIM12

 1
71075-42021B4

SXA11

SHADOW GRAY,TRIM10

 1
71075-42020B2

SXA11

BLUISH GRAY,TRIM15

 1
71075-42140B0

SXA11..ARL,EUR,GCC

W(LEATHER SEAT),SHADOW GRAY,TRIM1#

 1
71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)
71076-42080E0

SXA11..EUR

LIMITED EDITION FOR EUROPE,BEIGE,TRIM19

 1
71076-42020B0

SXA11

BLUISH GRAY,TRIM11

 1
71076-42080K7

SXA11..RHD..EUR

LIMITED EDITION FOR EUROPE,PURPLE,TRIM19

 1
71076-42021B4

SXA11

SHADOW GRAY,TRIM10

 1
71076-42021B6

SXA11

SHADOW GRAY,TRIM12

 1
71076-42020B2

SXA11

BLUISH GRAY,TRIM15

 1
71076-42140B0

SXA11..ARL,EUR,GCC

W(LEATHER SEAT),SHADOW GRAY,TRIM1#

 1
71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)
71077-42020B0

SXA11

BLUISH GRAY,TRIM1#

 1
71077-42080E0

SXA11..EUR

LIMITED EDITION FOR EUROPE,BEIGE,TRIM19

 1
71077-42021B0

SXA11

BLUISH GRAY,TRIM11

 1
71077-42022B6

SXA11

SHADOW GRAY,TRIM12

 1
71077-42080K0

SXA11..RHD..EUR

LIMITED EDITION FOR EUROPE,PURPLE,TRIM19

 1
71077-42140B0

SXA11..ARL,EUR,GCC

W(LEATHER SEAT),SHADOW GRAY,TRIM1#

 1
71077-42022B4

SXA11

SHADOW GRAY,TRIM10

 1
71077-42021B2

SXA11

BLUISH GRAY,TRIM15

 1
71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71078-42020B0

SXA11

BLUISH GRAY,TRIM1#

 1
71078-42021B0

SXA11

BLUISH GRAY,TRIM11

 1
71078-42080E0

SXA11..EUR

LIMITED EDITION FOR EUROPE,BEIGE,TRIM19

 1
71078-42021B2

SXA11

BLUISH GRAY,TRIM15

 1
71078-42140B0

SXA11..ARL,EUR,GCC

W(LEATHER SEAT),SHADOW GRAY,TRIM1#

 1
71078-42080K0

SXA11..RHD..EUR

LIMITED EDITION FOR EUROPE,PURPLE,TRIM19

 1
71078-42022B6

SXA11

SHADOW GRAY,TRIM12

 1
71078-42022B4

SXA11

SHADOW GRAY,TRIM10

 1
71301D - HINGE SUB-ASSY, REAR SEAT, RH
71301-42020

SXA11

NO.1

 2
71301-42030

SXA11

NO.2

 1
71301-42020

SXA11

NO.1

 1
71302D - HINGE SUB-ASSY, REAR SEAT, LH
71301-42020

SXA11

NO.1

 1
71302-42020

SXA11

NO.2

 1
71324D - CUSHION, REAR SEAT, RH
71324-42020

SXA11

 1
71324-42020

SXA11

 2
71324E - CUSHION, REAR SEAT, LH
71324-42020

SXA11

 1
71331A - PIN, REAR SEAT HINGE
71331-42010

SXA1#

 4
71331A - PIN, REAR SEAT HINGE
71331-42010

SXA1#

 4
71331A - PIN, REAR SEAT HINGE
71331-42010

SXA1#

 4
71331A - PIN, REAR SEAT HINGE
71331-42010

SXA1#

 4
71334B - STOPPER, REAR SEAT LEG, RH
71334-42010

SXA11

 4
71334B - STOPPER, REAR SEAT LEG, RH
71334-42010

SXA11

 4
71334C - STOPPER, REAR SEAT LEG, LH
71334-42010

SXA11

 2
71334C - STOPPER, REAR SEAT LEG, LH
71334-42010

SXA11

 2
71335C - STAY, REAR SEAT CUSHION LINK, RH
71335-42020

SXA11

 1
71335-42021

SXA11

 1
71336A - STAY, REAR SEAT CUSHION LINK, LH
71336-42021

SXA11

 1
71336-42020

SXA11

 1
71460S - CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE)
71460-42050B0

SXA11

BLUISH GRAY,TRIM1#

 1
71460-42170B1

SXA11

BLUISH GRAY,TRIM1#

 1
71460-42230K0

SXA11..RHD..EUR

LIMITED EDITION FOR EUROPE,PURPLE,TRIM19

 1
71460-42230C0

SXA11..EUR

LIMITED EDITION FOR EUROPE,BLACK,TRIM19

 1
71460-42170B0

SXA11

BLUISH GRAY,TRIM1#

 1
71460-42171B5

SXA11

SHADOW GRAY,TRIM12

 1
71460-42270B0

SXA11..ARL,EUR,GCC

W(LEATHER SEAT),SHADOW GRAY,TRIM1#

 1
71460-42171B2

SXA11

SHADOW GRAY,TRIM10

 1
71470S - CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)
71470-42030B0

SXA11

BLUISH GRAY,TRIM1#

 1
71470-42120K0

SXA11..RHD..EUR

LIMITED EDITION FOR EUROPE,PURPLE,TRIM19

 1
71470-42032B4

SXA11

SHADOW GRAY,TRIM12

 1
71470-42220B0

SXA11..ARL,EUR,GCC

W(LEATHER SEAT),SHADOW GRAY,TRIM1#

 1
71470-42120C0

SXA11..EUR

LIMITED EDITION FOR EUROPE,BEIGE,TRIM19

 1
71470-42032B2

SXA11

SHADOW GRAY,TRIM10

 1
71470-42030B1

SXA11

BLUISH GRAY,TRIM1#

 1
71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)
71480-42101E0

SXA11..EUR

LIMITED EDITION FOR EUROPE,BEIGE,TRIM19

 1
71480-42060B0

SXA11

BLUISH GRAY,TRIM1#

 1
71480-42030B0

SXA11

BLUISH GRAY,TRIM1#

 1
71480-42061B1

SXA11

BLUISH GRAY,TRIM1#

 1
71480-42101K0

SXA11..RHD..EUR

LIMITED EDITION FOR EUROPE,PURPLE,TRIM19

 1
71480-42180B0

SXA11..ARL,EUR,GCC

W(LEATHER SEAT),SHADOW GRAY,TRIM1#

 1
71480-42062B3

SXA11

SHADOW GRAY,TRIM10

 1
71480-42062B5

SXA11

SHADOW GRAY,TRIM12

 1
71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)
71490-42060B0

SXA11

BLUISH GRAY,TRIM1#

 1
71490-42101K0

SXA11..RHD..EUR

LIMITED EDITION FOR EUROPE,PURPLE,TRIM19

 1
71490-42061B1

SXA11

BLUISH GRAY,TRIM1#

 1
71490-42030B0

SXA11

BLUISH GRAY,TRIM1#

 1
71490-42101E0

SXA11..EUR

LIMITED EDITION FOR EUROPE,BEIGE,TRIM19

 1
71490-42062B5

SXA11

SHADOW GRAY,TRIM12

 1
71490-42180B0

SXA11..ARL,EUR,GCC

W(LEATHER SEAT),SHADOW GRAY,TRIM1#

 1
71490-42062B3

SXA11

SHADOW GRAY,TRIM10

 1
71611A - PAD, REAR SEAT CUSHION, RH
71611-42020

SXA11

 1
71612A - PAD, REAR SEAT CUSHION, LH
71612-42020

SXA11

 1
71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)
71651-42020

SXA11

 1
71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71652-42020

SXA11

 1
71833A - COVER, REAR SEAT RECLINING, NO.1 RH
71834-42010B0

SXA11

BLUISH GRAY,TRIM1#,NO.2

 1
71833-42020B0

SXA11

BLUISH GRAY,TRIM1#,NO.1

 1
71833-42020B0

SXA1#

BLUISH GRAY,TRIM1#,NO.1

 1
71833-42010B0

SXA11

BLUISH GRAY,TRIM1#,NO.1

 1
71834-42020B0

SXA11

BLUISH GRAY,TRIM1#,NO.2

 1
71833-42020B1

SXA11

SHADOW GRAY,TRIM10,12,NO.1

 1
71834-42020B1

SXA11

SHADOW GRAY,TRIM10,12,NO.2

 1
71833A - COVER, REAR SEAT RECLINING, NO.1 RH
71834-42010B0

SXA11

BLUISH GRAY,TRIM1#,NO.2

 1
71833-42020B0

SXA11

BLUISH GRAY,TRIM1#,NO.1

 1
71833-42020B0

SXA1#

BLUISH GRAY,TRIM1#,NO.1

 1
71833-42010B0

SXA11

BLUISH GRAY,TRIM1#,NO.1

 1
71834-42020B0

SXA11

BLUISH GRAY,TRIM1#,NO.2

 1
71833-42020B1

SXA11

SHADOW GRAY,TRIM10,12,NO.1

 1
71834-42020B1

SXA11

SHADOW GRAY,TRIM10,12,NO.2

 1
71834A - COVER, REAR SEAT RECLINING, NO.1 LH
71834-42010B0

SXA11

BLUISH GRAY,TRIM1#,NO.2

 1
71833-42010B0

SXA11

BLUISH GRAY,TRIM1#,NO.1

 1
71833-42020B0

SXA11

BLUISH GRAY,TRIM1#,NO.1

 1
71834-42020B0

SXA11

BLUISH GRAY,TRIM1#,NO.2

 1
71834-42020B0

SXA1#

BLUISH GRAY,TRIM1#,NO.2

 1
71834-42020B1

SXA11

SHADOW GRAY,TRIM10,12,NO.2

 1
71833-42020B1

SXA11

SHADOW GRAY,TRIM10,12,NO.1

 1
71834A - COVER, REAR SEAT RECLINING, NO.1 LH
71834-42010B0

SXA11

BLUISH GRAY,TRIM1#,NO.2

 1
71833-42010B0

SXA11

BLUISH GRAY,TRIM1#,NO.1

 1
71833-42020B0

SXA11

BLUISH GRAY,TRIM1#,NO.1

 1
71834-42020B0

SXA11

BLUISH GRAY,TRIM1#,NO.2

 1
71834-42020B0

SXA1#

BLUISH GRAY,TRIM1#,NO.2

 1
71834-42020B1

SXA11

SHADOW GRAY,TRIM10,12,NO.2

 1
71833-42020B1

SXA11

SHADOW GRAY,TRIM10,12,NO.1

 1
71931A - SUPPORT, REAR SEAT HEADREST
71931-12040B0

SXA1#

W/O(LOCK),SHADOW GRAY,TRIM1#

 2
71931-12040B0

SXA11

W/O(LOCK),SHADOW GRAY,TRIM10,12

 2
71930-44010B1

SXA11

W(LOCK),SHADOW GRAY,TRIM10,12

 2
71930-44010B1

SXA1#

W(LOCK),SHADOW GRAY,TRIM1#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71931-12040B0

SXA1#

W/O(LOCK),SHADOW GRAY,TRIM1#

 2
71931-12040B0

SXA11

W/O(LOCK),SHADOW GRAY,TRIM10,12

 2
71930-44010B1

SXA11

W(LOCK),SHADOW GRAY,TRIM10,12

 2
71930-44010B1

SXA1#

W(LOCK),SHADOW GRAY,TRIM1#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71931-12040B0

SXA1#

W/O(LOCK),SHADOW GRAY,TRIM1#

 2
71931-12040B0

SXA11

W/O(LOCK),SHADOW GRAY,TRIM10,12

 2
71930-44010B1

SXA11

W(LOCK),SHADOW GRAY,TRIM10,12

 2
71930-44010B1

SXA1#

W(LOCK),SHADOW GRAY,TRIM1#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71931-12040B0

SXA1#

W/O(LOCK),SHADOW GRAY,TRIM1#

 2
71931-12040B0

SXA11

W/O(LOCK),SHADOW GRAY,TRIM10,12

 2
71930-44010B1

SXA11

W(LOCK),SHADOW GRAY,TRIM10,12

 2
71930-44010B1

SXA1#

W(LOCK),SHADOW GRAY,TRIM1#

 2
71940A - HEADREST ASSY, REAR SEAT
71910-42010B0

SXA1#

BLUISH GRAY,TRIM1#

 2
71910-42031C0

SXA11..EUR

LIMITED EDITION FOR EUROPE,BLACK,TRIM19

 2
71910-42040B1

SXA11

BLUISH GRAY,TRIM10

 2
71910-42040B0

SXA11

DARK CHARCOAL,TRIM12

 2
71910-42011B5

SXA11..ARL,EUR,GCC

W(LEATHER SEAT),SHADOW GRAY,TRIM1#

 2
71910-42011B5

SXA1#

SHADOW GRAY,TRIM1#

 2
71940A - HEADREST ASSY, REAR SEAT
71910-42010B0

SXA1#

BLUISH GRAY,TRIM1#

 2
71910-42031C0

SXA11..EUR

LIMITED EDITION FOR EUROPE,BLACK,TRIM19

 2
71910-42040B1

SXA11

BLUISH GRAY,TRIM10

 2
71910-42040B0

SXA11

DARK CHARCOAL,TRIM12

 2
71910-42011B5

SXA11..ARL,EUR,GCC

W(LEATHER SEAT),SHADOW GRAY,TRIM1#

 2
71910-42011B5

SXA1#

SHADOW GRAY,TRIM1#

 2
72501C - PIPE SUB-ASSY, RECLINING CONNECTING
72345-42010

SXA1#

 1
72501-42020

SXA11

 1
72345-42010

SXA1#

 2
72345-42010

SXA11

 1
72501F - PIPE SUB-ASSY, RECLINING CONNECTING
72501-42020

SXA11

 1
72345-42010

SXA1#

 1
72345-42010

SXA11

 1
72507B - HANDLE SUB-ASSY, RECLINING RELEASE, RH
72507-42030B0

SXA11

BLUISH GRAY,TRIM1#

 1
72507-42011B1

SXA1#

BLUISH GRAY,TRIM1#

 1
72507-42030B0

SXA1#

BLUISH GRAY,TRIM1#

 1
72507-42030B1

SXA11

SHADOW GRAY,TRIM10,12

 2
72507C - HANDLE SUB-ASSY, RECLINING RELEASE, LH
72507-42030B0

SXA11

BLUISH GRAY,TRIM1#

 1
72507-42011B1

SXA1#

BLUISH GRAY,TRIM1#

 1
72507-42030B0

SXA1#

BLUISH GRAY,TRIM1#

 1
72601 - STRIKER SUB-ASSY, REAR SEAT LOCK
72601-42020

SXA11

 2
72601 - STRIKER SUB-ASSY, REAR SEAT LOCK
72601-42020

SXA11

 2
72650F - LOCK ASSY, REAR SEAT, RH
72650-42020

SXA11

 1
72650-42021

SXA11

 1
72660F - LOCK ASSY, REAR SEAT, LH
72660-42020

SXA11

 1
72660-42021

SXA11

 1
72691A - STRIKER, REAR SEAT CUSHION LOCK, NO.1
72691-42020

SXA11

 1
72692 - STRIKER, REAR SEAT CUSHION LOCK, NO.2
72691-42020

SXA11

 1
72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH
72730-42040

SXA1#

NO.1

 1
72730-42020

SXA11

NO.1

 1
72730-42050

SXA1#

NO.2

 1
72730-42050

SXA11

NO.2

 1
72730-42030

SXA11

NO.2

 1
72730-42040

SXA11

NO.1

 1
72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH
72730-42040

SXA11

NO.1

 1
72730-42040

SXA1#

NO.1

 1
72730-42020

SXA11

NO.1

 1
72730-42050

SXA1#

NO.2

 1
72730-42050

SXA11

NO.2

 1
72730-42030

SXA11

NO.2

 1
72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH
72740-42020

SXA11

NO.1

 1
72740-42050

SXA1#

NO.2

 1
72740-42040

SXA1#

NO.1

 1
72740-42050

SXA11

NO.2

 1
72740-42030

SXA11

NO.2

 1
72740-42040

SXA11

NO.1

 1
72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH
72740-42020

SXA11

NO.1

 1
72740-42050

SXA1#

NO.2

 1
72740-42040

SXA1#

NO.1

 1
72740-42050

SXA11

NO.2

 1
72740-42030

SXA11

NO.2

 1
72740-42040

SXA11

NO.1

 1
72927 - COVER, REAR SEAT CUSHION UNDER, RH
72927-42020B1

SXA11

SHADOW GRAY,TRIM10,12

 1
72927-42020B0

SXA11

BLUISH GRAY,TRIM1#

 1
72928 - COVER, REAR SEAT CUSHION UNDER, LH
72928-42020B0

SXA11

BLUISH GRAY,TRIM1#

 1
72928-42020B1

SXA11

SHADOW GRAY,TRIM10,12

 1
Common parts
71955-90K0001
90105-06156
90119-06350
90119-10229
90119-10299
90119-10349
90167-40044
90168-40043
90179-06007
90183-06044
90206-08010
90206-08038
90206-10011
90206-15006
90386-11020
90389-10041
90468-18007
90468-18071
90901-19019
93560-54016
93568-54516
96160-00600
Linked diagrams
7152

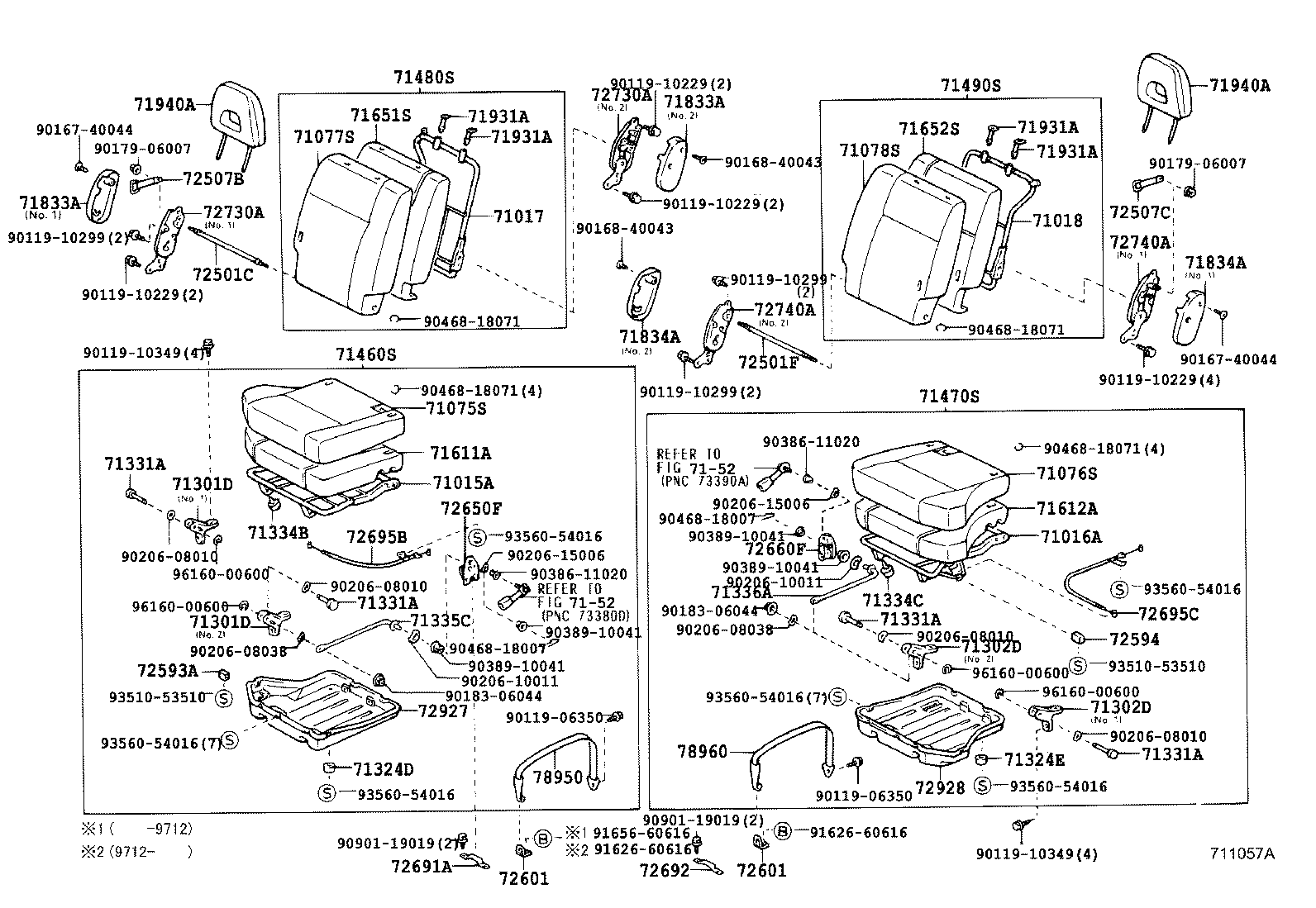

ILLUST NO. 3 OF 3(9608- )SXA11,16

Click highlighted areas on diagram

diagram 71015A 71016A 71017 71018 71075S 71076S 71077S 71078S 71301D 71301D 71302D 71302D 71324D 71324E 71331A 71331A 71331A 71331A 71334B 71334C 71335C 71336A 71460S 71470S 71480S 71490S 7152 7152 71611A 71612A 71651S 71652S 71833A 71833A 71834A 71834A 71931A 71931A 71931A 71931A 71940A 71940A 72501C 72501F 72507B 72507C 72593A 72594 72601 72601 72650F 72660F 72691A 72692 72695B 72695C 72730A 72730A 72740A 72740A 72927 72928 78950 78960 9011906350 9011906350 9011910229 9011910229 9011910229 9011910229 9011910299 9011910299 9011910299 9011910349 9011910349 9016740044 9016740044 9016840043 9016840043 9017906007 9017906007 9018306044 9018306044 9020608010 9020608010 9020608010 9020608010 9020608038 9020608038 9020610011 9020610011 9020615006 9020615006 9038611020 9038611020 9038910041 9038910041 9038910041 9038910041 9046818007 9046818007 9046818071 9046818071 9046818071 9046818071 9090119019 9090119019 9162660616 9162660616 9165660616 9351053510 9351053510 9356054016 9356054016 9356054016 9356054016 9356054016 9356054016 9616000600 9616000600 9616000600 9616000600
Part # Description Qty Price
Common parts
90119-06350
90119-10229
90119-10299
90119-10349
90167-40044
90168-40043
90179-06007
90183-06044
90206-08010
90206-08038
90206-10011
90206-15006
90386-11020
90389-10041
90468-18007
90468-18071
90901-19019
91626-60616
91656-60616
93510-53510
93560-54016
96160-00600
Linked diagrams
7152

ILLUST NO. 2 OF 3(9511- )

Click highlighted areas on diagram

diagram 71147 71147 71147 71147 71811D 71812D 71861 71862 71867A 71868A 71875A 71876 72011 72012 72021 72022 72123B 72123B 72125A 72125A 72125A 72125A 72127E 72127E 72129 72129 72129 72129 72137B 72138B 72157A 72158 72201A 72201B 72301A 72301D 72501D 72501E 72525A 72526 8271112120 8271142050 9011908080 9011908080 9011908080 9011908080 9011908080 9011908080 9011908080 9011908080 9011908700 9011908700 9011908700 9011908700 9011910349 9011910349 9011910349 9011910349 9011910349 9011910349 9011910349 9011910349 9014940015 9014940015 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9151160816 9151160816 9151160816 9151160816 9151160816 9151160816 9151160816 9151160816 9151561025 9151561025 9151561025 9151561025 9326954006 9326954006 9356854516 9356854516 9356854516 9356854516
Part # Description Qty Price
Common parts
82711-12120
82711-42050
90119-08080
90119-08700
90119-10349
90149-40015
90167-40044
91511-60816
91515-61025
93269-54006
93568-54516

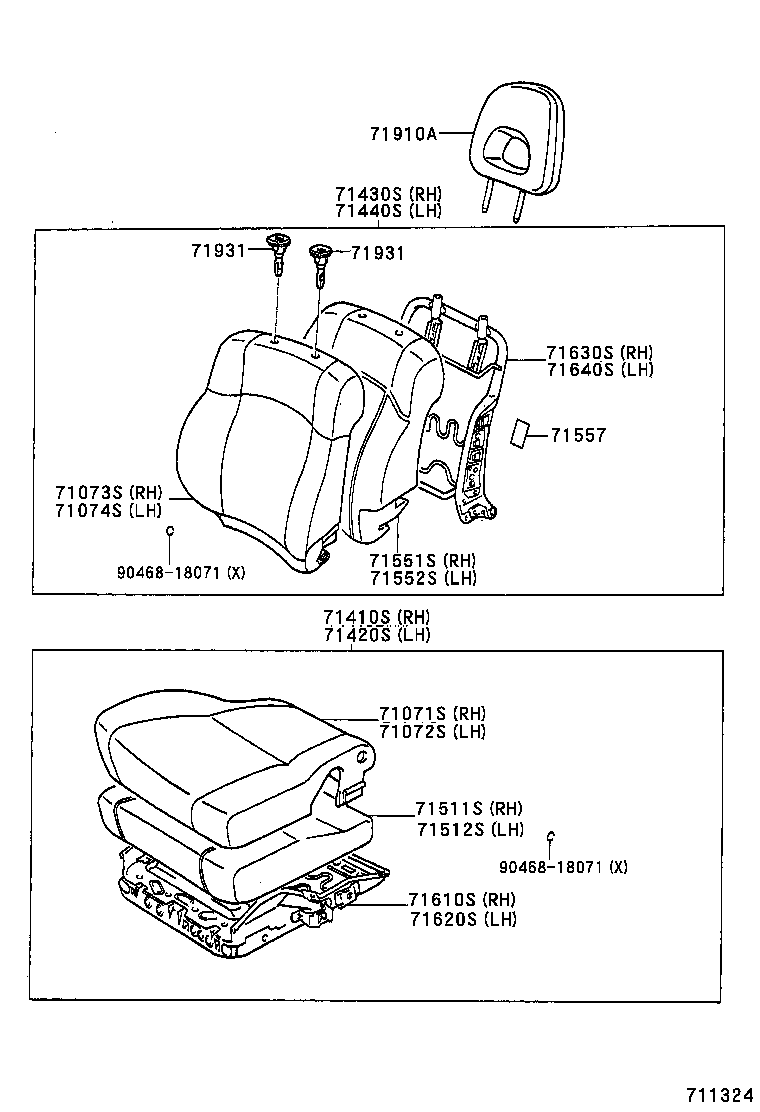

ILLUST NO. 1 OF 3(9608- )

Click highlighted areas on diagram

diagram 71071S 71072S 71073S 71074S 71410S 71420S 71430S 71440S 71511S 71512S 71551S 71552S 71557 71610S 71620S 71630S 71640S 71910A 71931 71931 9046818071 9046818071
Part # Description Qty Price
Common parts
90468-18071

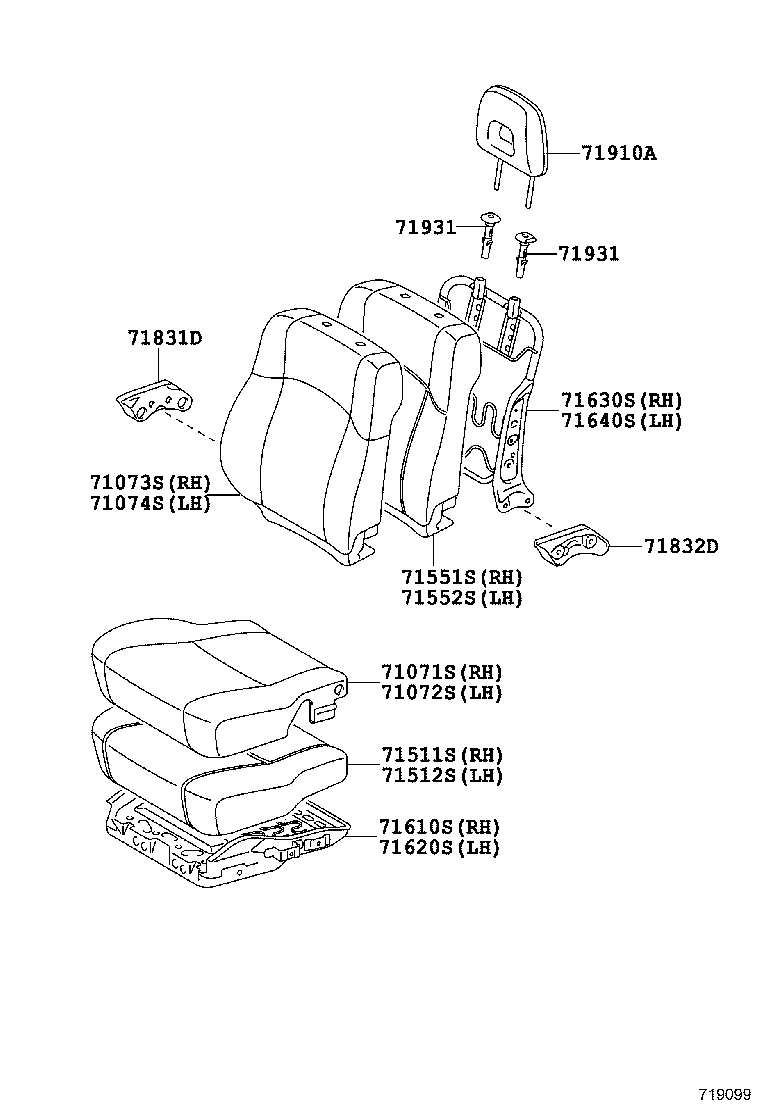

ILLUST NO. 1 OF 3(9511-9608)

Click highlighted areas on diagram

diagram 71071S 71072S 71073S 71074S 71511S 71512S 71551S 71552S 71610S 71620S 71630S 71640S 71831D 71832D 71910A 71931 71931
Part # Description Qty Price

ILLUST NO. 3 OF 3(9511-9608)SXA11,16

Click highlighted areas on diagram

diagram 71015A 71016A 71017 71018 71075S 71076S 71077S 71078S 71301D 71301D 71302D 71302D 71324D 71324E 71331A 71331A 71331A 71331A 71334B 71334C 71335C 71336A 7152 7152 71611A 71612A 71651S 71652S 71833A 71833A 71834A 71834A 71931A 71931A 71931A 71931A 71940A 71940A 72501C 72501F 72507B 72507C 72593A 72594 72601 72601 72650F 72660F 72691A 72692 72695B 72695C 72730A 72730A 72740A 72740A 72927 72928 78950 78960 9011906350 9011906350 9011910229 9011910229 9011910229 9011910299 9011910299 9011910299 9011910299 9011910299 9011910349 9011910349 9016840043 9016840043 9016840043 9016840043 9017906007 9017906007 9018306044 9018306044 9020608010 9020608010 9020608010 9020608010 9020608038 9020608038 9020610011 9020610011 9020615006 9020615006 9038611020 9038611020 9038910041 9038910041 9038910041 9038910041 9046818007 9046818007 9046818071 9046818071 9090119019 9090119019 9165660616 9165660616 9351053510 9351053510 9356054016 9356054016 9356054016 9356054016 9356054016 9356054016 9616000600 9616000600 9616000600 9616000600
Part # Description Qty Price
Common parts
90119-06350
90119-10229
90119-10299
90119-10349
90168-40043
90179-06007
90183-06044
90206-08010
90206-08038
90206-10011
90206-15006
90386-11020
90389-10041
90468-18007
90468-18071
90901-19019
91656-60616
93510-53510
93560-54016
96160-00600
Linked diagrams
7152
