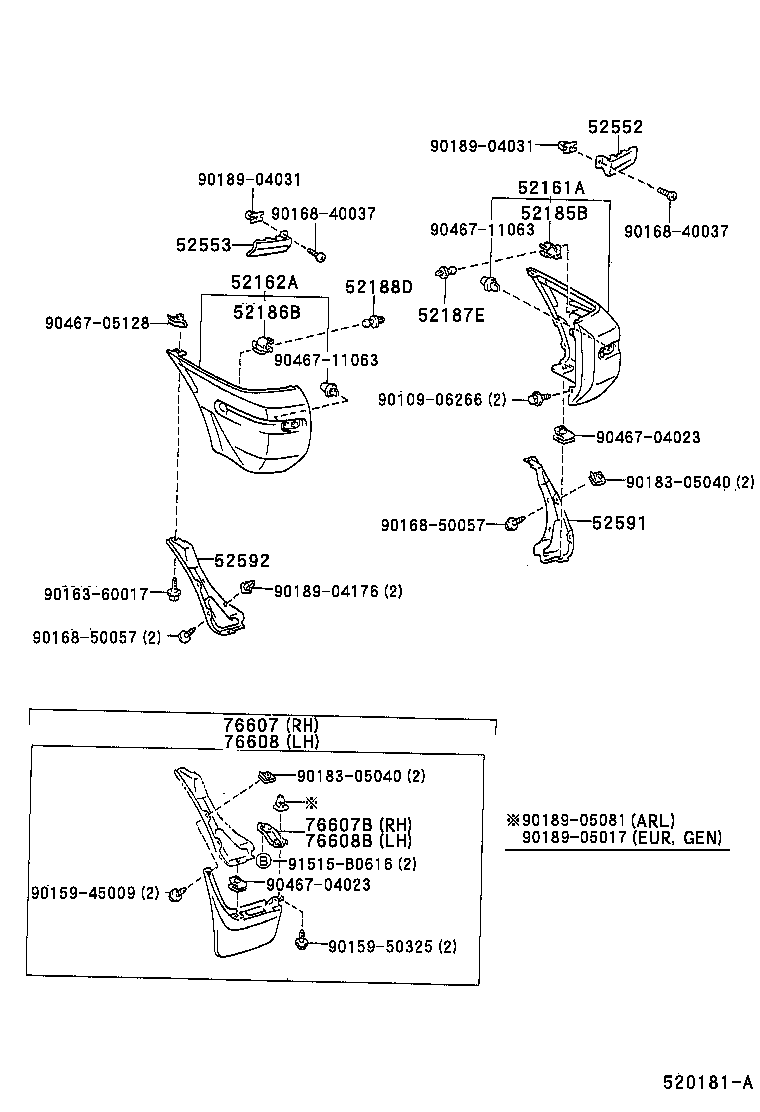

SXA11R-AWMGKW (1995)
Toyota Rav4
(9504- )SXA11
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161A - PIECE, REAR BUMPER, RH | ||||
| 52161-42020 |
SXA11 UNPAINTED |
1 | ||
| 52161-42090 |
SXA11..EUR UNPAINTED & W(OVER FENDER) |
1 | ||
| 52161-42090 |
SXA11..LHD..EUR;SXA11..RHD..(EUR,GEN) UNPAINTED & W(OVER FENDER) |
1 | ||
| 52162A - PIECE, REAR BUMPER, LH | ||||
| 52162-42090 |
SXA11..EUR UNPAINTED & W(OVER FENDER) |
1 | ||
| 52162-42090 |
SXA11..LHD..EUR;SXA11..RHD..(EUR,GEN) UNPAINTED & W(OVER FENDER) |
1 | ||
| 52162-42020 |
SXA11 UNPAINTED |
1 | ||
| 52185B - BRACKET, REAR BUMPER SIDE MOUNTING, RH | ||||
| 52185-42010 |
SXA11 |
4 | ||
| 52185-42010 |
SXA11 |
2 | ||
| 52186B - BRACKET, REAR BUMPER SIDE MOUNTING, LH | ||||
| 52185-42010 |
SXA11 |
2 | ||
| 52187E - GUIDE, REAR BUMPER LOCATION, RH | ||||
| 52187-12160 |
SXA11 |
4 | ||
| 52187-12160 |
SXA11 |
2 | ||
| 52188D - GUIDE, REAR BUMPER LOCATION, LH | ||||
| 52187-12160 |
SXA11 |
2 | ||
| 52552 - FILLER, REAR BUMPER, RH | ||||
| 52506-42010 |
SXA1# |
1 | ||
| 52553 - FILLER, REAR BUMPER, LH | ||||
| 52507-42010 |
SXA1# |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-42010 |
SXA1# |
1 | ||
| 52591-42011 |
SXA1# |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-42010 |
SXA1# |
1 | ||
| 52592-42011 |
SXA1# |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76625-49045 |
SXA11..RHD..EUR SINGAPORE SPEC |
1 | ||
| 76625-49045 |
SXA11..RHD..EUR HONG KONG OR SINGAPORE SPEC |
1 | ||
| 76625-49045 |
SXA11..RHD..EUR W(HOOD SWITCH) |
1 | ||
| 76625-49075 |
SXA11..RHD..EUR W(235/60R16 TIRE) |
1 | ||
| 76607B - BRACKET, QUARTER PANEL REAR MUDGUARD, RH | ||||
| 76645-42010 |
SXA11..RHD..EUR SINGAPORE SPEC |
1 | ||
| 76645-42010 |
SXA11..RHD..EUR W(HOOD SWITCH) |
1 | ||
| 76645-42010 |
SXA11..ATM..GEN;SXA11..LHD..GEN;SXA11..ARL,EUR,GCC |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76626-49045 |
SXA11..RHD..EUR SINGAPORE SPEC |
1 | ||
| 76626-49045 |
SXA11..RHD..EUR W(HOOD SWITCH) |
1 | ||
| 76626-49045 |
SXA11..RHD..EUR HONG KONG OR SINGAPORE SPEC |
1 | ||
| 76626-49075 |
SXA11..RHD..EUR |
1 | ||
| 76608B - BRACKET, QUARTER PANEL REAR MUDGUARD, LH | ||||
| 76646-42010 |
SXA11..ATM..GEN;SXA11..LHD..GEN;SXA11..ARL,EUR,GCC |
1 | ||
| 76646-42010 |
SXA11..RHD..EUR SINGAPORE SPEC |
1 | ||
| 76646-42010 |
SXA11..RHD..EUR W(HOOD SWITCH) |
1 | ||
| Common parts | ||||
| 90109-06266 | ||||
| 90159-45009 | ||||
| 90159-50325 | ||||
| 90163-60017 | ||||
| 90168-40037 | ||||
| 90168-50057 | ||||
| 90183-05040 | ||||
| 90189-04031 | ||||
| 90189-04176 | ||||
| 90189-05017 | ||||
| 90189-05081 | ||||
| 90467-04023 | ||||
| 90467-05128 | ||||
| 90467-11063 | ||||
| 91515-B0616 | ||||
(9511- )SXA11,16
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-06266 | ||||
| 90159-45009 | ||||
| 90163-60017 | ||||
| 90168-40037 | ||||
| 90168-50057 | ||||
| 90183-05040 | ||||
| 90189-04031 | ||||
| 90189-04176 | ||||
| 90467-04023 | ||||
| 90467-05128 | ||||
| 90467-11063 | ||||
