Toyota Rav4 SXA11 FUEL INJECTION SYSTEM

Manufacturers Home
Toyota
EU
RAV4
SXA11R-AWMGKQ (1995)
2211 - FUEL INJECTION SYSTEM

SXA11R-AWMGKQ (1995)

Toyota Rav4

Production Apr 1995 - May 2000

Engine 3SFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

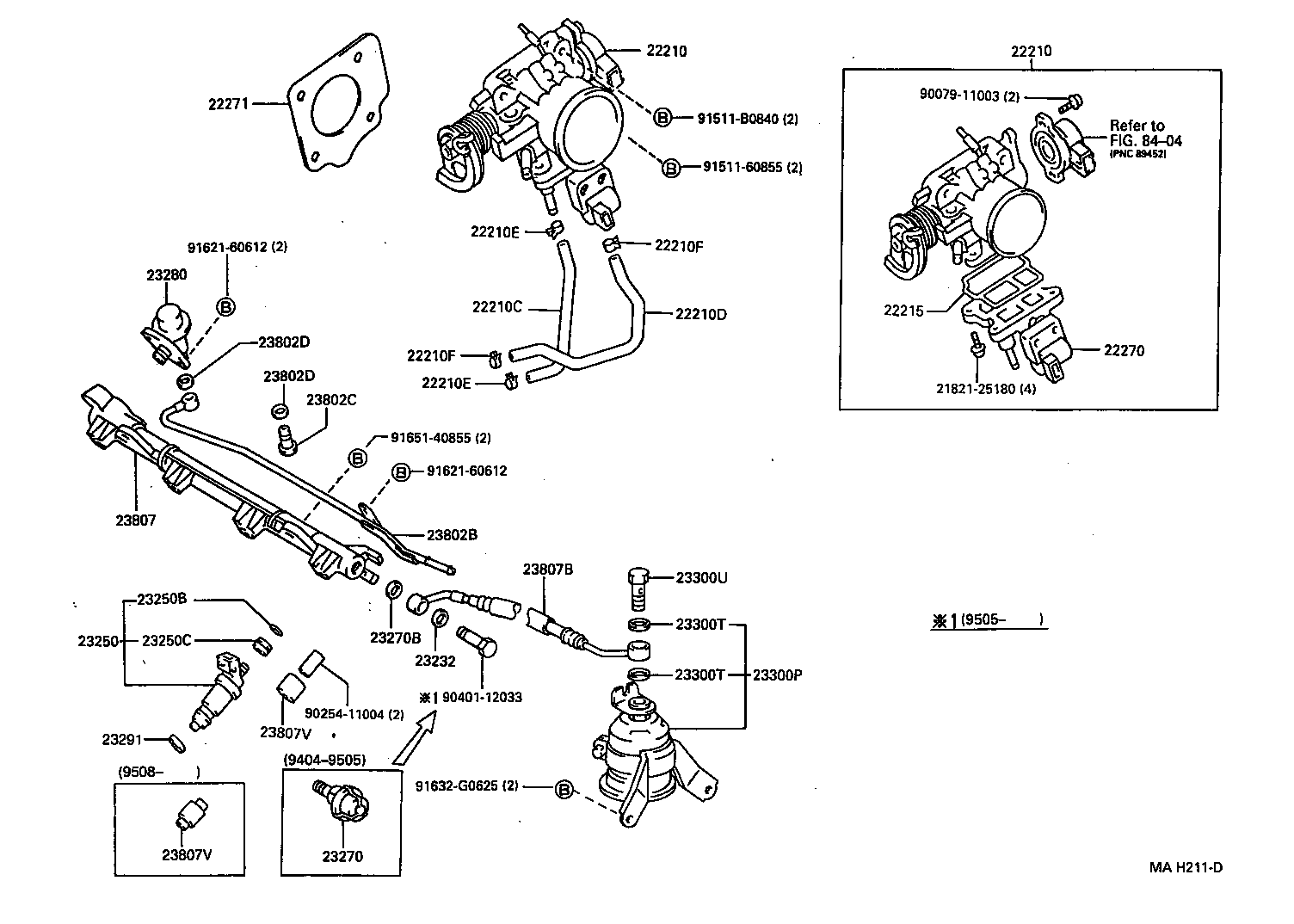

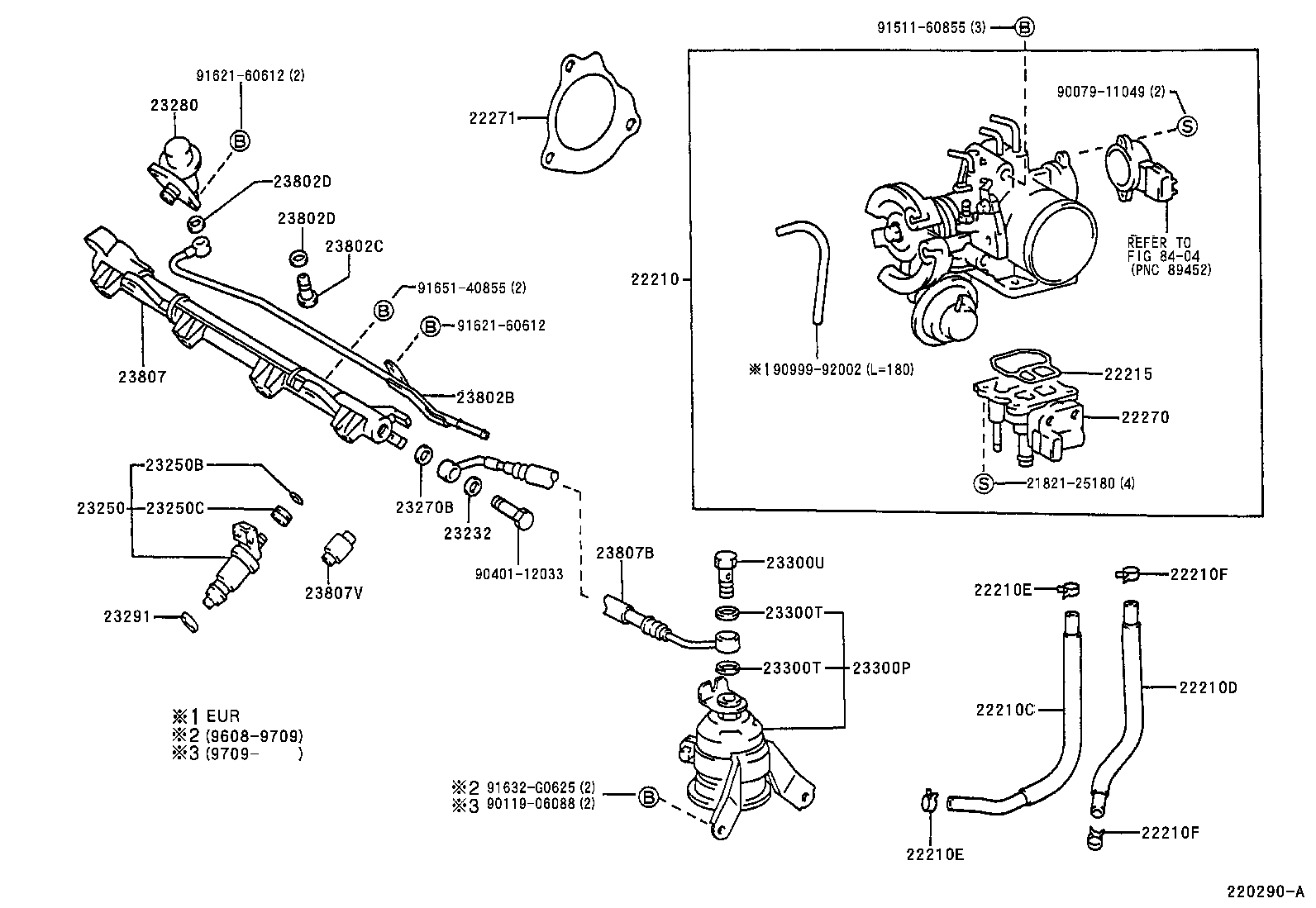

ILLUST NO. 1 OF 2(9608-9709)3SFE..EUR,GCC,GEN ; (9709- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
22210 - BODY ASSY, THROTTLE
22210-7A121	3SFE..SXA1#..MTM..(ARL,GCC,GEN)	04/1994 - 08/1996	1
22210-7A121	3SFE..SXA1#..MTM..ARL	08/1996 - 09/1997	1
22210-7A630	3SFE..SXA1#..ARL,GCC,GEN	09/1997 - 12/2999	1
22210C - HOSE, WATER BY-PASS, NO.1
16282-74080	3SFE..SXA1#	04/1994 - 08/1996	1
16282-74080	3SFE..SXA1#..ARL	08/1996 - 09/1997	1
16283-74050	3SFE..SXA1#	09/1997 - 12/2999	1
22210D - HOSE, WATER BY-PASS, NO.2
16283-74010	3SFE..SXA1#	04/1994 - 08/1996	1
16282-74100	3SFE..SXA1#	09/1997 - 12/2999	1
16283-74010	3SFE..SXA1#..ARL	08/1996 - 09/1997	1
22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
90467-13050	3SFE..SXA1#	04/1994 - 12/2999	2
22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
90467-13050	3SFE..SXA1#	04/1994 - 12/2999	2
22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
90467-13050	3SFE..SXA1#	04/1994 - 12/2999	2
22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
90467-13050	3SFE..SXA1#	04/1994 - 12/2999	2
22215 - GASKET, THROTTLE BODY COVER
22215-74400	3SFE..SXA1#	04/1994 - 12/2999	1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-74240	3SFE..SXA1#..MTM..ARL	08/1996 - 09/1997	1
22270-74240	3SFE..SXA1#..MTM	04/1994 - 08/1996	1
22270-74270	3SFE..SXA1#	09/1997 - 12/2999	1
22271 - GASKET, THROTTLE BODY
22271-74022	3SFE..SXA1#..ARL	08/1996 - 09/1997	1
22271-74070	3SFE..SXA1#	09/1997 - 12/2999	1
22271-74022	3SFE..SXA1#	04/1994 - 08/1996	1
23232 - GASKET(FOR FUEL PUMP HOSE)
23232-41081	3SFE..SXA1#	04/1994 - 05/1995	1
23279-74010	3SFE..SXA1#	05/1995 - 12/2999	1
23250 - INJECTOR ASSY, FUEL
23209-74040	3SFE..SXA1#..ARL	04/1994 - 09/1997	4
23209-74170	3SFE..SXA1#..ARL	09/1997 - 12/2999	4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001	3SFE..SXA1#	04/1994 - 12/1998	4
90301-07024	3SFE..SXA1#	12/1998 - 12/2999	4
23250C - GROMMET(FOR FUEL INJECTOR)
90480-13005	3SFE..SXA1#	04/1994 - 12/2999	4
23270B - GASKET(FOR PULSATION DAMPER HOSE)
23232-41081	3SFE..SXA1#	04/1994 - 05/1995	1
23279-74010	3SFE..SXA1#	05/1995 - 12/2999	1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-74100	3SFE..SXA1#	04/1994 - 12/2999	1
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010	3SFE..SXA1#	04/1994 - 12/2999	4
23300P - FILTER, FUEL(FOR EFI)
23300-79455	3SFE..SXA1#..ARL,EUR	04/1994 - 09/1997	1
23300-79555	3SFE..SXA1#..RHD..(ARL,EUR)	09/1997 - 12/2999	1
23300T - GASKET(FOR FUEL FILTER)
90430-12026	3SFE..SXA1#	04/1994 - 12/2999	2
23300T - GASKET(FOR FUEL FILTER)
90430-12026	3SFE..SXA1#	04/1994 - 12/2999	2
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12097	3SFE..SXA1#	04/1994 - 02/1996	1
96341-11200	3SFE..SXA1#	02/1996 - 12/2999	1
23802B - PIPE SUB-ASSY, FUEL, NO.2
23802-74070	3SFE..SXA1#	04/1994 - 12/2999	1
23802C - BOLT, UNION(FOR FUEL PIPE NO.2)
90401-08004	3SFE..SXA1#	04/1994 - 12/2999	1
23802D - GASKET(FOR FUEL PIPE NO.2)
90430-08014	3SFE..SXA1#	04/1994 - 12/2999	2
23802D - GASKET(FOR FUEL PIPE NO.2)
90430-08014	3SFE..SXA1#	04/1994 - 12/2999	2
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23814-74110	3SFE..SXA1#..LHD..GEN;3SFE..SXA1#..ARL,EUR,GCC	04/1995 - 12/2999	1
23807B - HOSE, FUEL DELIVERY PIPE
23271-74470	3SFE..SXA1#	04/1994 - 09/1997	1
23271-74670	3SFE..SXA1#..RHD	09/1997 - 12/2999	1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
90560-11020	3SFE..SXA1#	04/1994 - 08/1995	2
90561-08053	3SFE..SXA1#	08/1995 - 12/2999	2
Common parts
21821-25180
90079-11049
90119-06088
90401-12033
90999-92002
91511-60855
91621-60612
91632-G0625
91651-40855
Linked diagrams
8404

ILLUST NO. 2 OF 2(9404-9808)

Click highlighted areas on diagram

Part #	Description	Period	Qty
23091 - TUBE SUB-ASSY, FUEL PUMP
23091-74251	3SFE..SXA1#..ARL	09/1997 - 12/2999	1
23091-74250	3SFE..SXA1#..ARL	04/1994 - 09/1997	1
23204 - TUBE SUB-ASSY, FUEL PUMP RETURN
23204-74791	3SFE..SXA1#..ARL,GCC,GEN	09/1997 - 12/2999	1
23204-74800	3SFE..SXA1#	04/1994 - 09/1997	1
23206A - BRACKET, FUEL PUMP
23206-74800	3SFE..SXA1#	04/1994 - 12/2999	1
23206B - GASKET, FUEL PUMP BRACKET
77169-60010	3SFE..SXA1#	04/1994 - 12/2999	1
23217A - FILTER, FUEL PUMP
23217-74021	3SFE..SXA1#	04/1994 - 12/2999	1
23217A - FILTER, FUEL PUMP
23217-74021	3SFE..SXA1#	04/1994 - 12/2999	1
23220P - PUMP ASSY, FUEL
23220-74020	3SFE..SXA1#..ARL,EUR	04/1994 - 09/1997	1
23221-15030	3SFE..SXA1#..ARL,EUR TYPE A:REFER TO ILLUSTRATION	08/1998 - 12/2999	1
23220-74021	3SFE..SXA1#..ARL,EUR TYPE A:REFER TO ILLUSTRATION	09/1997 - 08/1998	1
23220P - PUMP ASSY, FUEL
23220-74020	3SFE..SXA1#..ARL,EUR	04/1994 - 09/1997	1
23221-15030	3SFE..SXA1#..ARL,EUR TYPE A:REFER TO ILLUSTRATION	08/1998 - 12/2999	1
23220-74021	3SFE..SXA1#..ARL,EUR TYPE A:REFER TO ILLUSTRATION	09/1997 - 08/1998	1
23222 - TUBE, FUEL RETURN JET
23222-74020	3SFE..SXA1#	04/1994 - 12/2999	1
23229 - CLIP(FOR FUEL PUMP FILTER)
23229-16020	3SFE..SXA1#	08/1998 - 12/2999	1
23229-16010	3SFE..SXA1#	04/1994 - 08/1998	1
23229 - CLIP(FOR FUEL PUMP FILTER)
23229-16020	3SFE..SXA1#	08/1998 - 12/2999	1
23229-16010	3SFE..SXA1#	04/1994 - 08/1998	1
23233 - HOSE, FUEL PUMP
23239-11010	3SFE..SXA1# NO.1	04/1994 - 12/2999	1
23239-74640	3SFE..SXA1# NO.3	04/1994 - 12/2999	1
23239-74630	3SFE..SXA1# NO.2	04/1994 - 12/2999	1
23233 - HOSE, FUEL PUMP
23239-11010	3SFE..SXA1# NO.1	04/1994 - 12/2999	1
23239-74640	3SFE..SXA1# NO.3	04/1994 - 12/2999	1
23239-74630	3SFE..SXA1# NO.2	04/1994 - 12/2999	1
23233 - HOSE, FUEL PUMP
23239-11010	3SFE..SXA1# NO.1	04/1994 - 12/2999	1
23239-74640	3SFE..SXA1# NO.3	04/1994 - 12/2999	1
23239-74630	3SFE..SXA1# NO.2	04/1994 - 12/2999	1
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-12067	3SFE..SXA1#	04/1994 - 12/2999	2
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-12067	3SFE..SXA1#	04/1994 - 12/2999	2
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23249-74610	3SFE..SXA1#	04/1994 - 12/2999	1
Common parts
90119-06351
90159-50219
90401-12097
90430-12026
90467-11056
93319-14008
95333-06020
Linked diagrams
8401

ILLUST NO. 2 OF 2(9808- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
23091 - TUBE SUB-ASSY, FUEL PUMP
23091-74251	3SFE..SXA1#..ARL	09/1997 - 12/2999	1
23091-74250	3SFE..SXA1#..ARL	04/1994 - 09/1997	1
23204 - TUBE SUB-ASSY, FUEL PUMP RETURN
23204-74791	3SFE..SXA1#..ARL,GCC,GEN	09/1997 - 12/2999	1
23204-74800	3SFE..SXA1#	04/1994 - 09/1997	1
23206A - BRACKET, FUEL PUMP
23206-74800	3SFE..SXA1#	04/1994 - 12/2999	1
23206B - GASKET, FUEL PUMP BRACKET
77169-60010	3SFE..SXA1#	04/1994 - 12/2999	1
23217A - FILTER, FUEL PUMP
23217-74021	3SFE..SXA1#	04/1994 - 12/2999	1
23220P - PUMP ASSY, FUEL
23220-74020	3SFE..SXA1#..ARL,EUR	04/1994 - 09/1997	1
23221-15030	3SFE..SXA1#..ARL,EUR TYPE A:REFER TO ILLUSTRATION	08/1998 - 12/2999	1
23220-74021	3SFE..SXA1#..ARL,EUR TYPE A:REFER TO ILLUSTRATION	09/1997 - 08/1998	1
23220P - PUMP ASSY, FUEL
23220-74020	3SFE..SXA1#..ARL,EUR	04/1994 - 09/1997	1
23221-15030	3SFE..SXA1#..ARL,EUR TYPE A:REFER TO ILLUSTRATION	08/1998 - 12/2999	1
23220-74021	3SFE..SXA1#..ARL,EUR TYPE A:REFER TO ILLUSTRATION	09/1997 - 08/1998	1
23222 - TUBE, FUEL RETURN JET
23222-74020	3SFE..SXA1#	04/1994 - 12/2999	1
23229 - CLIP(FOR FUEL PUMP FILTER)
23229-16020	3SFE..SXA1#	08/1998 - 12/2999	1
23229-16010	3SFE..SXA1#	04/1994 - 08/1998	1
23233 - HOSE, FUEL PUMP
23239-11010	3SFE..SXA1# NO.1	04/1994 - 12/2999	1
23239-74640	3SFE..SXA1# NO.3	04/1994 - 12/2999	1
23239-74630	3SFE..SXA1# NO.2	04/1994 - 12/2999	1
23233 - HOSE, FUEL PUMP
23239-11010	3SFE..SXA1# NO.1	04/1994 - 12/2999	1
23239-74640	3SFE..SXA1# NO.3	04/1994 - 12/2999	1
23239-74630	3SFE..SXA1# NO.2	04/1994 - 12/2999	1
23233 - HOSE, FUEL PUMP
23239-11010	3SFE..SXA1# NO.1	04/1994 - 12/2999	1
23239-74640	3SFE..SXA1# NO.3	04/1994 - 12/2999	1
23239-74630	3SFE..SXA1# NO.2	04/1994 - 12/2999	1
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-12067	3SFE..SXA1#	04/1994 - 12/2999	2
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-12067	3SFE..SXA1#	04/1994 - 12/2999	2
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23249-74610	3SFE..SXA1#	04/1994 - 12/2999	1
Common parts
90119-06351
90159-50219
90401-12097
90430-12026
90467-11056
93319-14008
95333-06020
Linked diagrams
8401

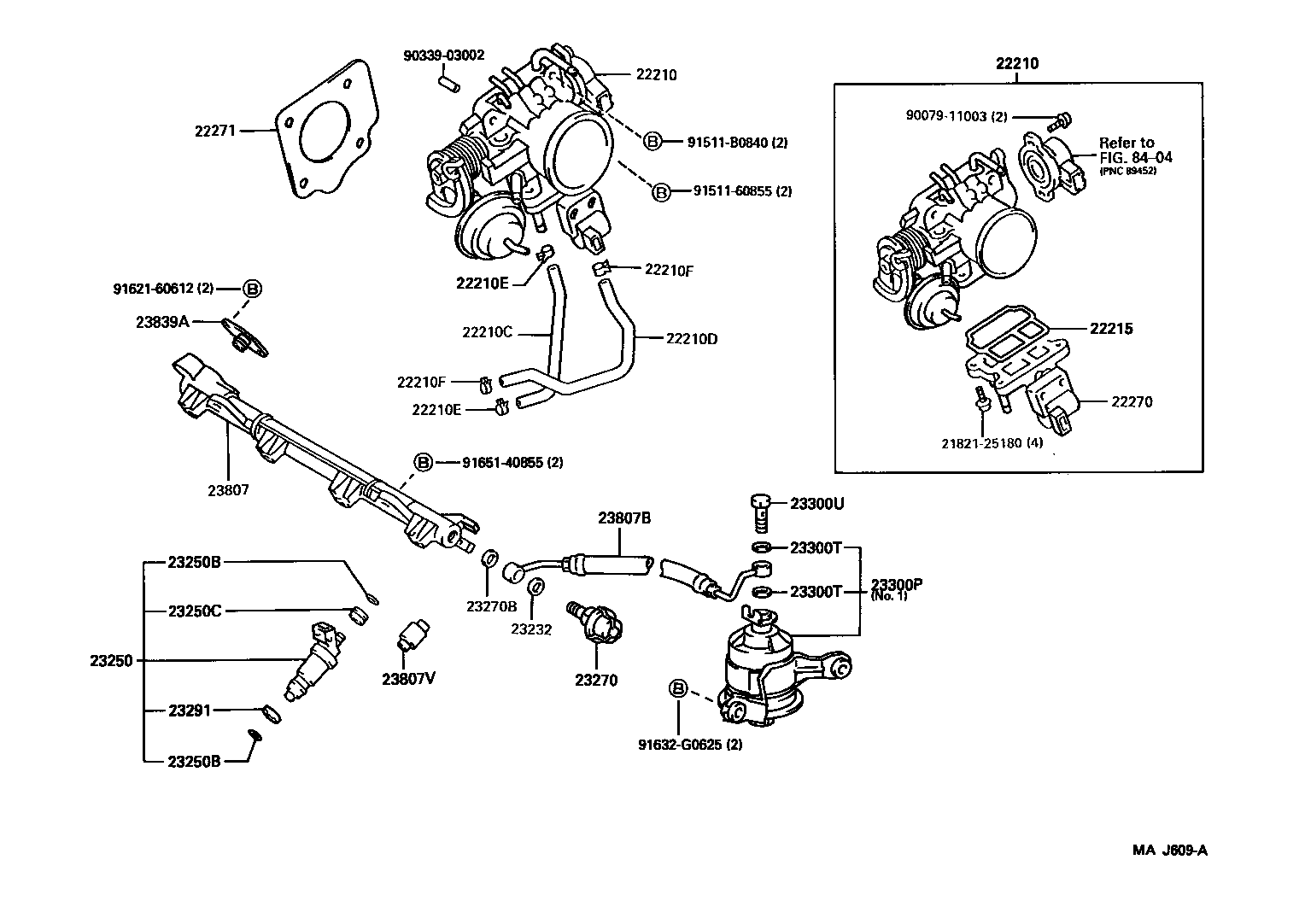

ILLUST NO. 1 OF 2(9404-9608) ; (9608-9709)3SFE..ARL

Click highlighted areas on diagram

Part #	Description	Period	Qty
22210 - BODY ASSY, THROTTLE
22210-7A121	3SFE..SXA1#..MTM..(ARL,GCC,GEN)	04/1994 - 08/1996	1
22210-7A121	3SFE..SXA1#..MTM..ARL	08/1996 - 09/1997	1
22210-7A630	3SFE..SXA1#..ARL,GCC,GEN	09/1997 - 12/2999	1
22210 - BODY ASSY, THROTTLE
22210-7A121	3SFE..SXA1#..MTM..(ARL,GCC,GEN)	04/1994 - 08/1996	1
22210-7A121	3SFE..SXA1#..MTM..ARL	08/1996 - 09/1997	1
22210-7A630	3SFE..SXA1#..ARL,GCC,GEN	09/1997 - 12/2999	1
22210C - HOSE, WATER BY-PASS, NO.1
16282-74080	3SFE..SXA1#	04/1994 - 08/1996	1
16282-74080	3SFE..SXA1#..ARL	08/1996 - 09/1997	1
16283-74050	3SFE..SXA1#	09/1997 - 12/2999	1
22210D - HOSE, WATER BY-PASS, NO.2
16283-74010	3SFE..SXA1#	04/1994 - 08/1996	1
16282-74100	3SFE..SXA1#	09/1997 - 12/2999	1
16283-74010	3SFE..SXA1#..ARL	08/1996 - 09/1997	1
22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
90467-13050	3SFE..SXA1#	04/1994 - 12/2999	2
22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
90467-13050	3SFE..SXA1#	04/1994 - 12/2999	2
22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
90467-13050	3SFE..SXA1#	04/1994 - 12/2999	2
22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
90467-13050	3SFE..SXA1#	04/1994 - 12/2999	2
22215 - GASKET, THROTTLE BODY COVER
22215-74400	3SFE..SXA1#	04/1994 - 12/2999	1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-74240	3SFE..SXA1#..MTM..ARL	08/1996 - 09/1997	1
22270-74240	3SFE..SXA1#..MTM	04/1994 - 08/1996	1
22270-74270	3SFE..SXA1#	09/1997 - 12/2999	1
22271 - GASKET, THROTTLE BODY
22271-74022	3SFE..SXA1#..ARL	08/1996 - 09/1997	1
22271-74070	3SFE..SXA1#	09/1997 - 12/2999	1
22271-74022	3SFE..SXA1#	04/1994 - 08/1996	1
23232 - GASKET(FOR FUEL PUMP HOSE)
23232-41081	3SFE..SXA1#	04/1994 - 05/1995	1
23279-74010	3SFE..SXA1#	05/1995 - 12/2999	1
23250 - INJECTOR ASSY, FUEL
23209-74040	3SFE..SXA1#..ARL	04/1994 - 09/1997	4
23209-74170	3SFE..SXA1#..ARL	09/1997 - 12/2999	4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001	3SFE..SXA1#	04/1994 - 12/1998	4
90301-07024	3SFE..SXA1#	12/1998 - 12/2999	4
23250C - GROMMET(FOR FUEL INJECTOR)
90480-13005	3SFE..SXA1#	04/1994 - 12/2999	4
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23207-46010	3SFE..SXA1#	04/1994 - 05/1995	1
23270B - GASKET(FOR PULSATION DAMPER HOSE)
23232-41081	3SFE..SXA1#	04/1994 - 05/1995	1
23279-74010	3SFE..SXA1#	05/1995 - 12/2999	1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-74100	3SFE..SXA1#	04/1994 - 12/2999	1
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010	3SFE..SXA1#	04/1994 - 12/2999	4
23300P - FILTER, FUEL(FOR EFI)
23300-79455	3SFE..SXA1#..ARL,EUR	04/1994 - 09/1997	1
23300-79555	3SFE..SXA1#..RHD..(ARL,EUR)	09/1997 - 12/2999	1
23300T - GASKET(FOR FUEL FILTER)
90430-12026	3SFE..SXA1#	04/1994 - 12/2999	2
23300T - GASKET(FOR FUEL FILTER)
90430-12026	3SFE..SXA1#	04/1994 - 12/2999	2
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12097	3SFE..SXA1#	04/1994 - 02/1996	1
96341-11200	3SFE..SXA1#	02/1996 - 12/2999	1
23802B - PIPE SUB-ASSY, FUEL, NO.2
23802-74070	3SFE..SXA1#	04/1994 - 12/2999	1
23802C - BOLT, UNION(FOR FUEL PIPE NO.2)
90401-08004	3SFE..SXA1#	04/1994 - 12/2999	1
23802D - GASKET(FOR FUEL PIPE NO.2)
90430-08014	3SFE..SXA1#	04/1994 - 12/2999	2
23802D - GASKET(FOR FUEL PIPE NO.2)
90430-08014	3SFE..SXA1#	04/1994 - 12/2999	2
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23814-74110	3SFE..SXA1#..LHD..GEN;3SFE..SXA1#..ARL,EUR,GCC	04/1995 - 12/2999	1
23807B - HOSE, FUEL DELIVERY PIPE
23271-74470	3SFE..SXA1#	04/1994 - 09/1997	1
23271-74670	3SFE..SXA1#..RHD	09/1997 - 12/2999	1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
90560-11020	3SFE..SXA1#	04/1994 - 08/1995	2
90561-08053	3SFE..SXA1#	08/1995 - 12/2999	2
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
90560-11020	3SFE..SXA1#	04/1994 - 08/1995	2
90561-08053	3SFE..SXA1#	08/1995 - 12/2999	2
Common parts
21821-25180
90079-11003
90254-11004
90401-12033
91511-60855
91511-B0840
91621-60612
91632-G0625
91651-40855
Linked diagrams
8404

ILLUST NO. 1 OF 2(9709- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
21821-25180
90079-11049
90119-06088
90999-92002
91511-60855
91621-60612
91651-40855
Linked diagrams
8404

ILLUST NO. 2 OF 2(9511- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90119-06351
90159-50219
90301-06011
90401-12097
90430-12026
90468-14038
93319-14008
Linked diagrams
8401

ILLUST NO. 1 OF 2(9511-9709)

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
21821-25180
90079-11003
90339-03002
91511-60855
91511-B0840
91621-60612
91632-G0625
91651-40855
Linked diagrams
8404

SXA11R-AWMGKQ (1995)

ILLUST NO. 1 OF 2(9608-9709)3SFE..EUR,GCC,GEN ; (9709- )

ILLUST NO. 2 OF 2(9404-9808)

ILLUST NO. 2 OF 2(9808- )

ILLUST NO. 1 OF 2(9404-9608) ; (9608-9709)3SFE..ARL

ILLUST NO. 1 OF 2(9709- )

ILLUST NO. 2 OF 2(9511- )

ILLUST NO. 1 OF 2(9511-9709)

Part Price Details
