SXA11R-AWMGK (1995)

Toyota Rav4

Production Apr 1995 - Aug 2000
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

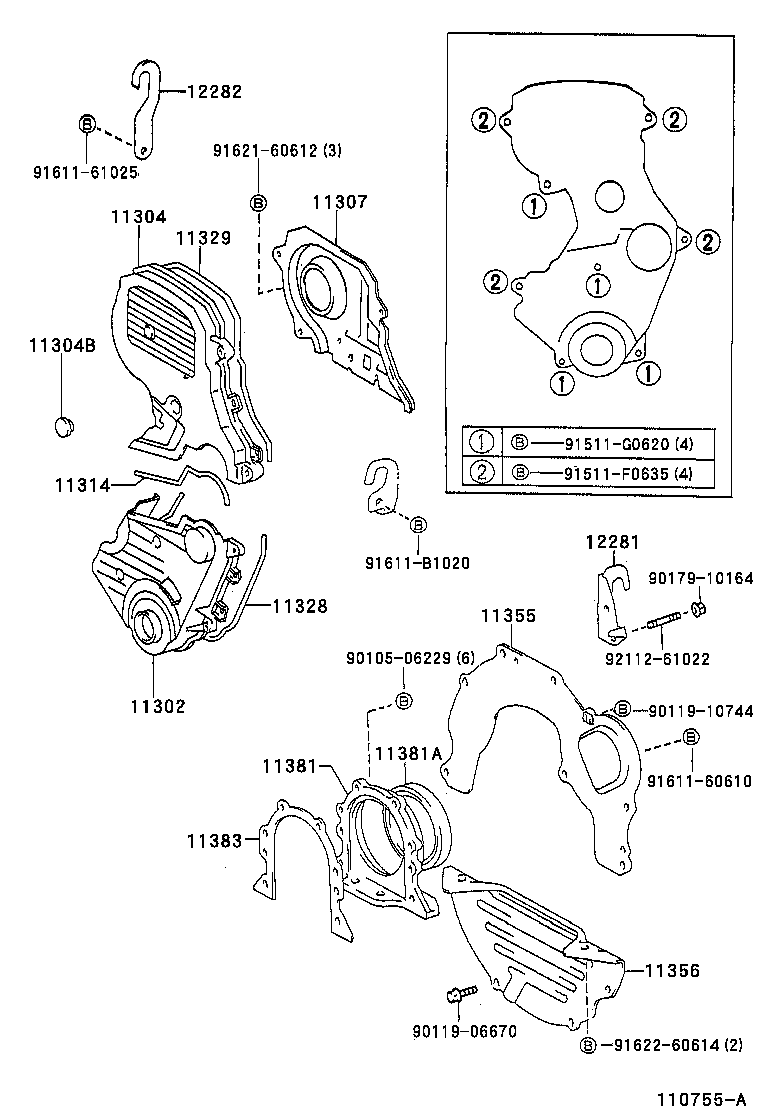

(9608- )

Click highlighted areas on diagram

diagram 11302 11304 11304B 11307 11314 11328 11329 11355 11356 11381 11381A 11383 12281 12282 9010506229 9011906670 9011910744 9017910164 91511F0635 91511G0620 9161160610 9161161025 91611B1020 9162160612 9162260614 9211261022
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-74030

3SFE..SXA1#

 1
11302-74040

3SFE..SXA1#

 1
11304 - COVER, TIMING CHAIN OR BELT, NO.2
11303-74040

3SFE..SXA1#

 1
11303-74050

3SFE..SXA1#

 1
11304B - PLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)
90950-01489

3SFE..SXA1#

OD=33

 1
11307 - COVER, SUB-ASSY, TIMING BELT, NO.3
11304-74060

3SFE..SXA1#..EUR,GCC,GEN

 1
11304-74030

3SFE..SXA1#

 1
11314 - GASKET, TIMING CHAIN NO.2 COVER
11319-74020

3SFE..SXA1#

 1
11319-74030

3SFE..SXA1#

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-74060

3SFE..SXA1#

 1
11328-74040

3SFE..SXA1#

 1
11329 - GASKET, TIMING GEAR REAR COVER
11329-74070

3SFE..SXA1#

 1
11329-74080

3SFE..SXA1#

 1
11355 - PLATE, REAR END
11355-74040

3SFE..SXA1#

 1
11356 - PLATE, REAR END, NO.2
11356-74030

3SFE..SXA1#

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-63012

3SFE..SXA1#

 1
11381A - SEAL, ENGINE REAR OIL
90311-85006

3SFE..SXA1#

 1
90311-85009

3SFE..SXA1#

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-74021

3SFE..SXA1#

 1
12282 - HANGER, ENGINE, NO.2
12282-74030

3SFE..SXA1#

 1
Common parts
90105-06229
90119-06670
90119-10744
90179-10164
91511-F0635
91511-G0620
91611-60610
91611-61025
91611-B1020
91621-60612
91622-60614
92112-61022

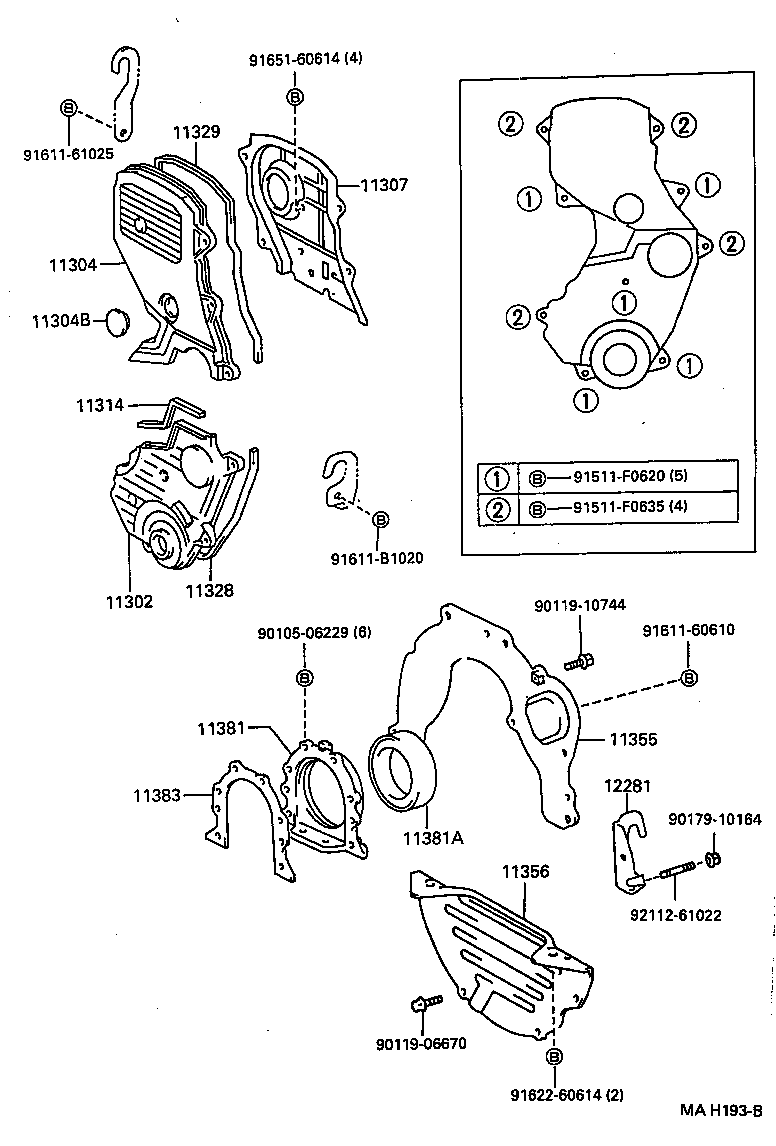

(9404-9608)

Click highlighted areas on diagram

diagram 11302 11304 11304B 11307 11314 11328 11329 11355 11356 11381 11381A 11383 12281 9010506229 9011906670 9011910744 9017910164 91511F0620 91511F0635 9161160610 9161161025 91611B1020 9162260614 9165160614 9211261022
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-74030

3SFE..SXA1#

 1
11302-74040

3SFE..SXA1#

 1
11304 - COVER, TIMING CHAIN OR BELT, NO.2
11303-74040

3SFE..SXA1#

 1
11303-74050

3SFE..SXA1#

 1
11304B - PLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)
90950-01489

3SFE..SXA1#

OD=33

 1
11307 - COVER, SUB-ASSY, TIMING BELT, NO.3
11304-74060

3SFE..SXA1#..EUR,GCC,GEN

 1
11304-74030

3SFE..SXA1#

 1
11314 - GASKET, TIMING CHAIN NO.2 COVER
11319-74020

3SFE..SXA1#

 1
11319-74030

3SFE..SXA1#

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-74060

3SFE..SXA1#

 1
11328-74040

3SFE..SXA1#

 1
11329 - GASKET, TIMING GEAR REAR COVER
11329-74070

3SFE..SXA1#

 1
11329-74080

3SFE..SXA1#

 1
11355 - PLATE, REAR END
11355-74040

3SFE..SXA1#

 1
11356 - PLATE, REAR END, NO.2
11356-74030

3SFE..SXA1#

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-63012

3SFE..SXA1#

 1
11381A - SEAL, ENGINE REAR OIL
90311-85006

3SFE..SXA1#

 1
90311-85009

3SFE..SXA1#

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-74021

3SFE..SXA1#

 1
Common parts
90105-06229
90119-06670
90119-10744
90179-10164
91511-F0620
91511-F0635
91611-60610
91611-61025
91611-B1020
91622-60614
91651-60614
92112-61022

(9511- )

Click highlighted areas on diagram

diagram 11302 11304 11304B 11307 11314 11328 11329 11355 11356 11381 11381A 11383 12281 12282 9010506229 9010510188 9011906670 9011910744 9017910164 91511F0635 91511G0620 9161160610 9161161025 91611B1020 9162160612 9162260614 9211261022
Part # Description Qty Price
Common parts
90105-06229
90105-10188
90119-06670
90119-10744
90179-10164
91511-F0635
91511-G0620
91611-60610
91611-61025
91611-B1020
91621-60612
91622-60614
92112-61022
