SXA11L-AWPGKA (1995)

Toyota Rav4

Production Nov 1995 - Aug 2000
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

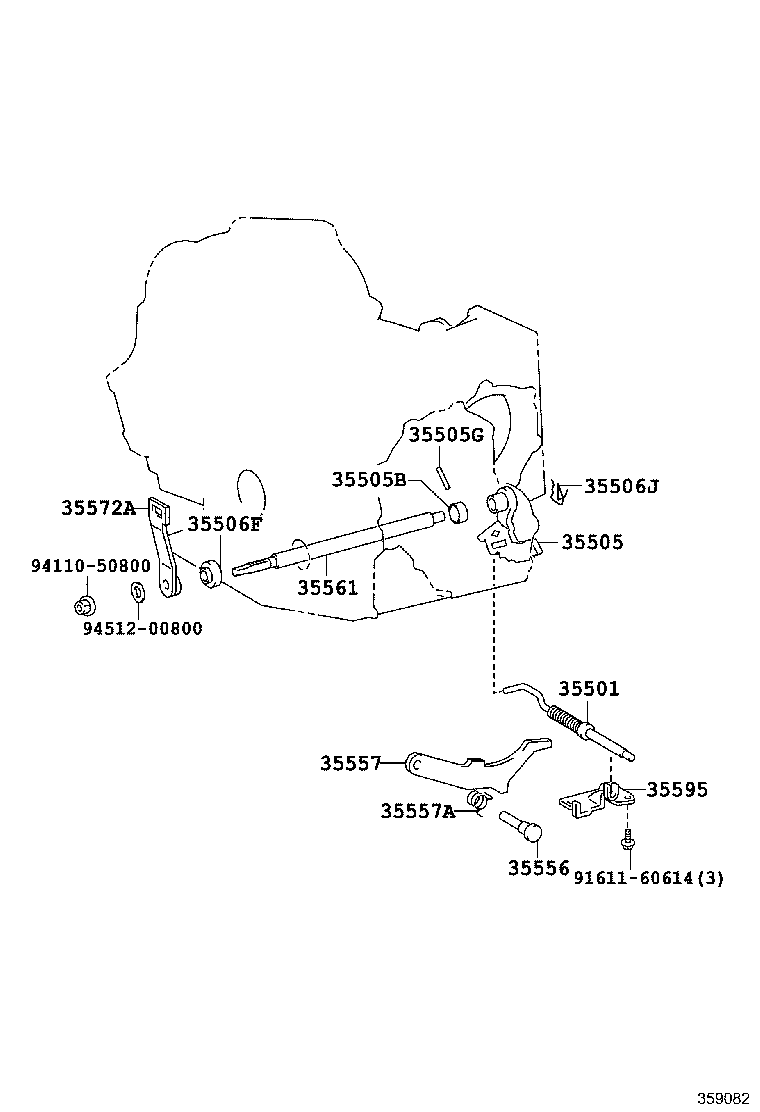

ILLUST NO. 2 OF 2(9511- )SXA10,11..ATM

Click highlighted areas on diagram

A540H

diagram 35520 35523 35523A 35523B 35524A 9046400535 9161160614 9161161020 91652B0612 91652B0612
Part # Description Qty Price
35520 - CABLE ASSY, THROTTLE
35520-44020

SXA10,11..ATM

 1
35520-42010

SXA11..ATM

 1
35523 - CLAMP, THROTTLE CABLE
35523-20370

SXA11..ATM

 1
35523-44020

SXA10,11..ATM

 1
35523A - CLAMP, THROTTLE CABLE, NO.1
35523-42010

SXA11..ATM

 1
35523B - CLAMP, THROTTLE CABLE, NO.3
35523-20380

SXA10,11..ATM

 1
35524A - CLAMP, THROTTLE CABLE, NO.6
35523-32010

SXA10,11..ATM

 1
Common parts
90464-00535
91611-60614
91611-61020
91652-B0612

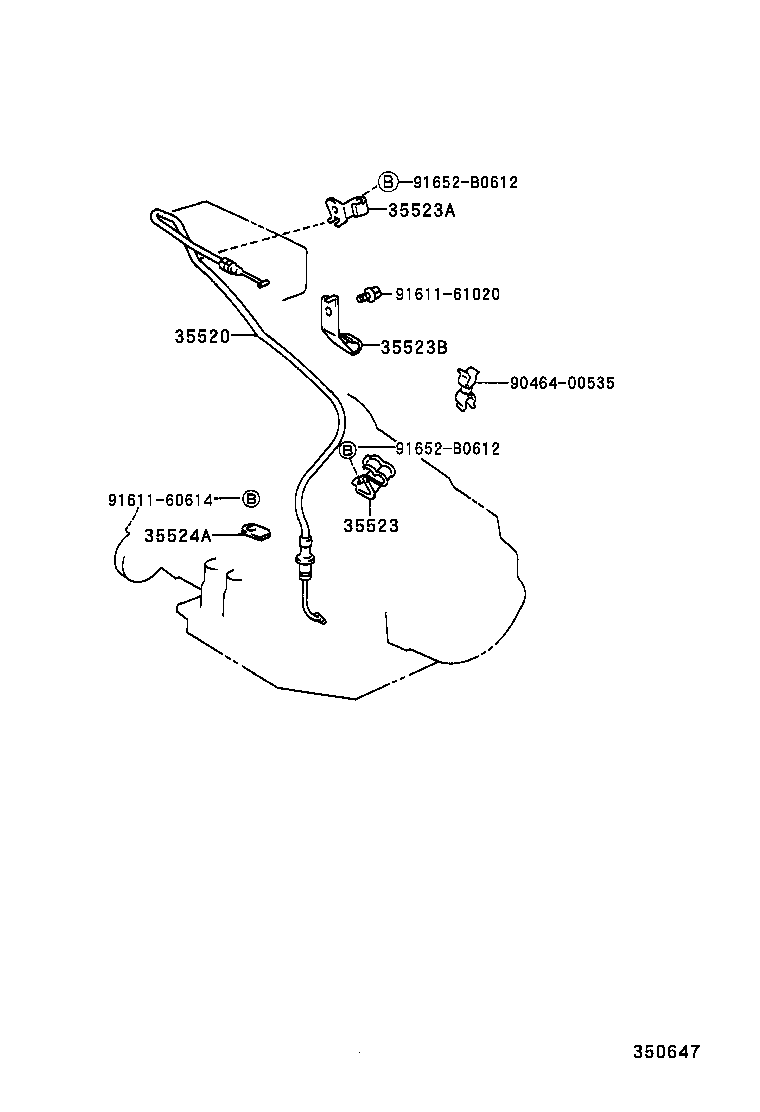

ILLUST NO. 1 OF 2(9511- )SXA10,11..ATM

Click highlighted areas on diagram

A540H

diagram 35501 35505 35505B 35505G 35506F 35506J 35556 35557 35557A 35561 35572A 35595 9161160614 9411050800 9451200800
Part # Description Qty Price
35501 - ROD SUB-ASSY, PARKING LOCK
35501-32040

SXA10,11..ATM

 1
35505 - LEVER SUB-ASSY, MANUAL VALVE
35505-32040

SXA10,11..ATM

 1
35505B - SPACER (FOR MANUAL VALVE LEVER)
90560-20006

SXA1#..ATM

 1
35505G - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)
90254-04011

SXA1#..ATM

 1
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-12002

SXA1#..ATM

 1
35506J - SPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)
90524-09001

SXA10,11..ATM

 1
35556 - SHAFT, PARKING LOCK PAWL
35556-32020

SXA10,11..ATM

 1
35557 - PAWL, PARKING LOCK
35557-32031

SXA10,11..ATM

 1
35557A - SPRING, TORSION (FOR PARKING LOCK PAWL)
90949-03043

SXA10,11..ATM

 1
35561 - SHAFT, MANUAL VALVE LEVER
35561-32010

SXA10,11..ATM

 1
35572A - LEVER, TRANSMISSION CONTROL SHAFT
35572-32030

SXA10,11..ATM

 1
35595 - BRACKET, PARKING LOCK PAWL
35595-32020

SXA10,11..ATM

 1
Common parts
91611-60614
94110-50800
94512-00800
