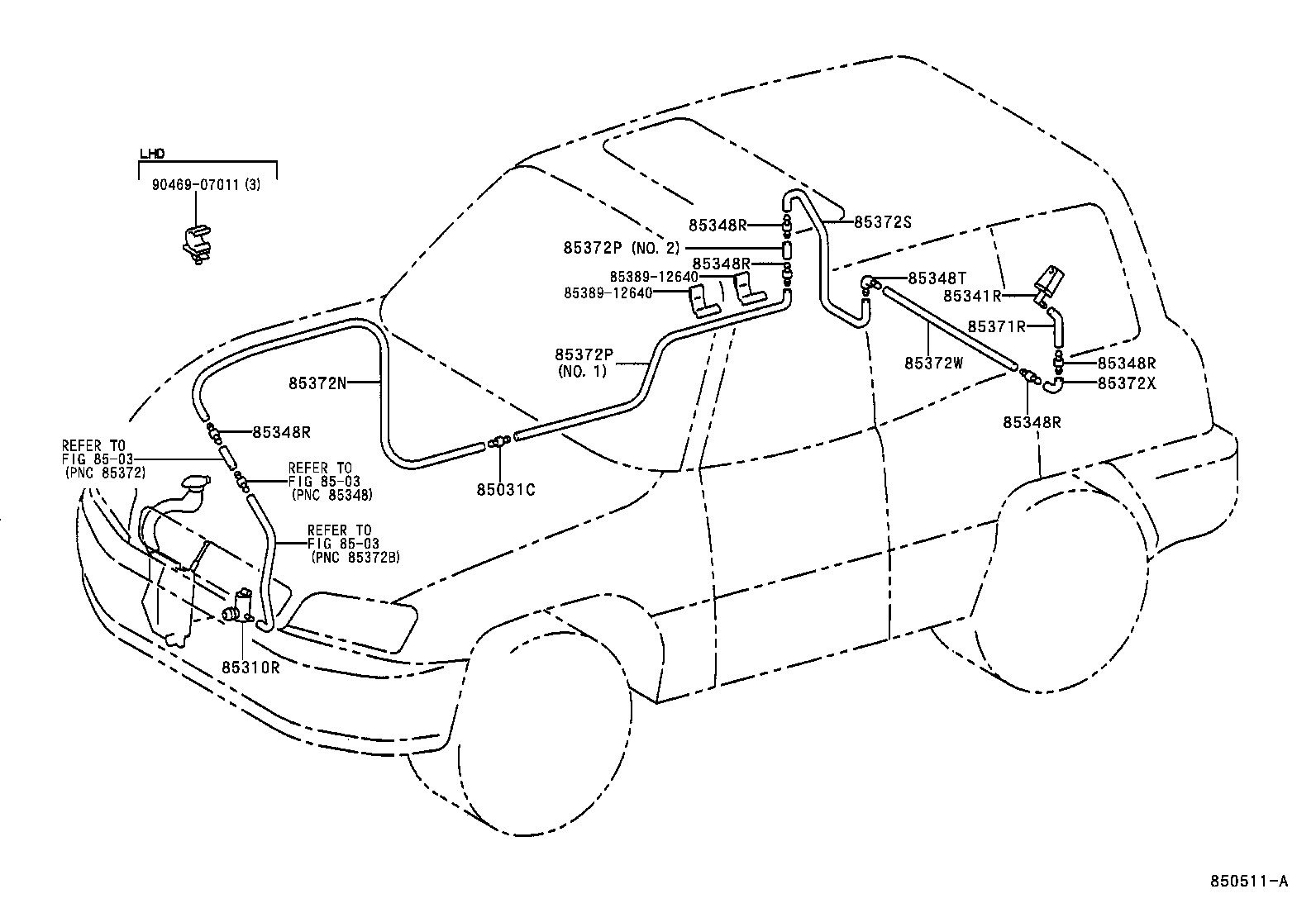

Toyota Rav4 SXA11 REAR WASHER - JDM Part Detective

Part #	Description	Period	Qty
85031C - VALVE SUB-ASSY, WASHER
85031-90A00	SXA1#..HT	04/1994 - 12/2999	1
85310R - MOTOR ASSY, REAR WASHER
85330-33020	SXA1#..EUR..HT	08/1996 - 05/2000	1
85310-20190	SXA1#..EUR	04/1994 - 08/1996	1
85341R - NOZZLE ASSY, WASHER
85395-42010	SXA1#..HT	04/1994 - 12/2999	1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122	SXA11	04/1995 - 12/2999	5
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122	SXA11	04/1995 - 12/2999	5
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122	SXA11	04/1995 - 12/2999	5
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122	SXA11	04/1995 - 12/2999	5
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122	SXA11	04/1995 - 12/2999	5
85348T - JOINT, REAR WASHER HOSE, NO.2
85355-20200	SXA1#..HT	09/1997 - 12/2999	2
85355-20200	SXA11	04/1995 - 09/1997	1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90446-07001	SXA1#..HT *H,L=1770	04/1994 - 12/2999	1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90446-07001	SXA11 *H,L=1640,NO.1	04/1995 - 08/1996	1
90446-07001	SXA11..ARL,EUR;SXA11..MTM..GEN *H,L=1730,NO.1	08/1996 - 12/2999	1
90099-33299	SXA11..ARL,EUR;SXA11..MTM..GEN *H,L=40,NO.2	04/1995 - 12/2999	1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90446-07001	SXA11 *H,L=1640,NO.1	04/1995 - 08/1996	1
90446-07001	SXA11..ARL,EUR;SXA11..MTM..GEN *H,L=1730,NO.1	08/1996 - 12/2999	1
90099-33299	SXA11..ARL,EUR;SXA11..MTM..GEN *H,L=40,NO.2	04/1995 - 12/2999	1
85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
90446-07001	SXA1#..HT *H,L=790	04/1994 - 12/2999	1
85372W - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
90446-07001	SXA1#..HT *H,L=630	04/1994 - 12/2999	1
85372X - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
90099-33080	SXA1#..HT	04/1994 - 12/2999	1
Common parts
85389-12640
90469-07011
Linked diagrams
8503

SXA11L-AWMGKW (1995)

(9504- )SXA11

(9511- )SXA11,16
