SXA11L-AWMGKV (1997)
Toyota Rav4
Production
Sep 1997
-
Aug 2000
Engine
3SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

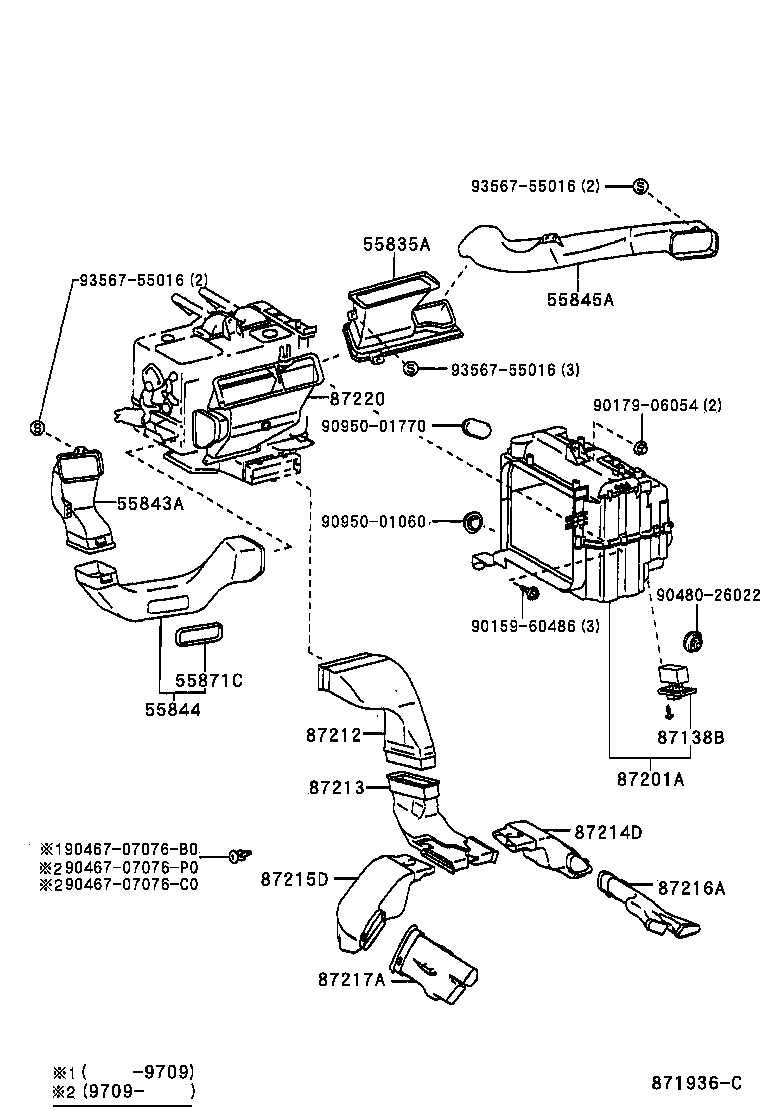

ILLUST NO. 2 OF 2(9404- )LHD
Click highlighted areas on diagram
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55835A - DUCT, HEATER TO REGISTER, CENTER | ||||
| 55835-42020 |
SXA1#..LHD |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-42020 |
SXA1#..LHD |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-42030 |
SXA1#..LHD W/O(AIR CONDITIONER) |
1 | ||
| 55844-42040 |
SXA11..GCC;SXA10..LHD..CVT |
1 | ||
| 55844-42040 |
SXA1#..LHD..HT W(MANUAL AIR CONDITIONER) |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-42020 |
SXA1#..LHD..HT W/O(*80) |
1 | ||
| 87138B - RESISTOR, HEATER BLOWER | ||||
| 87138-42010 |
SXA1# |
1 | ||
| 87201A - DUCT SUB-ASSY, AIR | ||||
| 87201-42020 |
SXA1#..LHD |
1 | ||
| 87220 - DUCT ASSY, AIR | ||||
| 87220-42020 |
SXA1#..LHD |
1 | ||
| Common parts | ||||
| 90159-60486 | ||||
| 90179-06054 | ||||
| 90480-26022 | ||||
| 90950-01060 | ||||
| 90950-01770 | ||||
| 93567-55016 | ||||

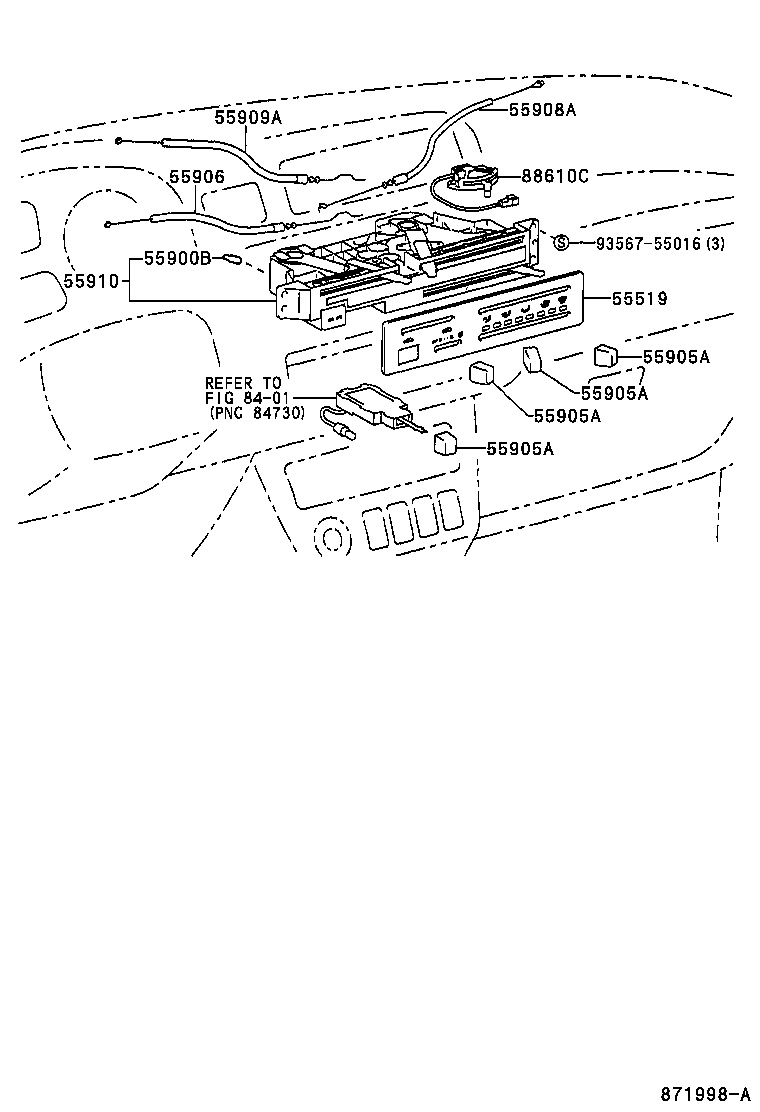

ILLUST NO. 1 OF 2(9404- )
Click highlighted areas on diagram
CONTROL ASSY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-42020 |
SXA1#..LHD |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 84999-70014 |
SXA1# 14V 1.4W,W(BLUE CAP) |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
SXA1# |
4 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
SXA1# |
4 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
SXA1# |
4 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
SXA1# |
4 | ||
| 55906 - CABLE SUB-ASSY, HEATER CONTROL | ||||
| 55906-42010 |
SXA1# |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-42010 |
SXA1# |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-42010 |
SXA1# |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-42020 |
SXA1#..LHD |
1 | ||
| Common parts | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||

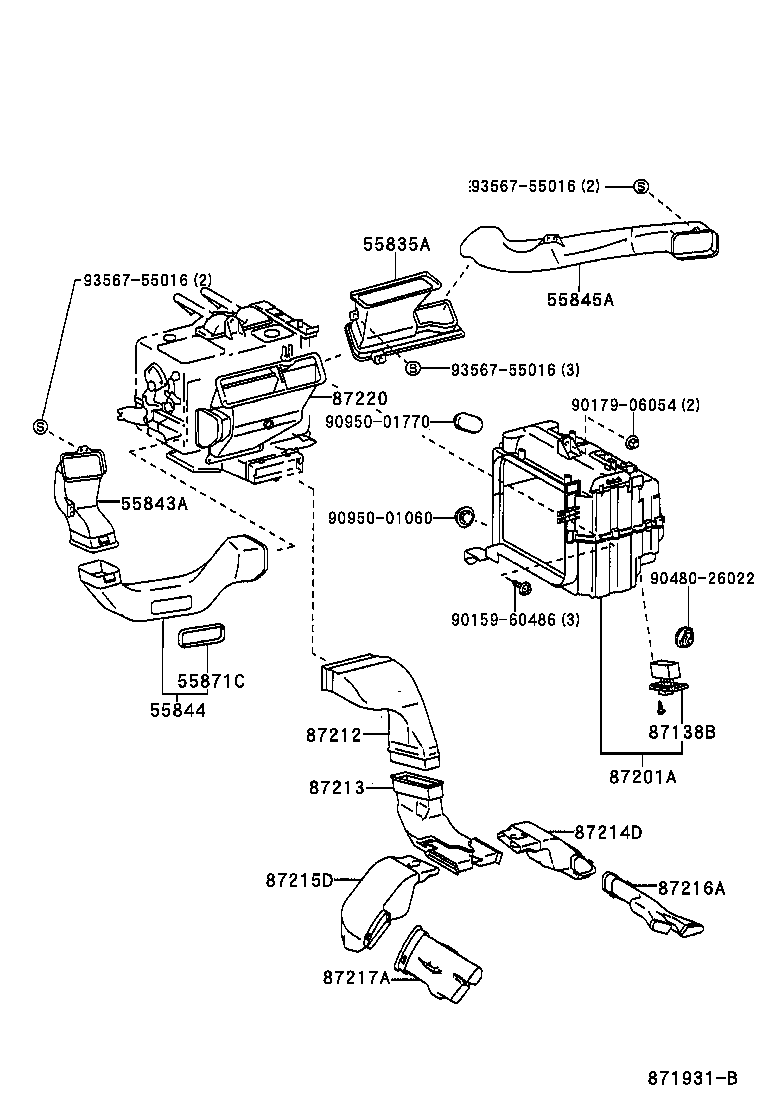

ILLUST NO. 2 OF 2(9511- )
Click highlighted areas on diagram
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60486 | ||||
| 90179-06054 | ||||
| 90467-07076B0 | ||||
| 90467-07076C0 | ||||
| 90467-07076P0 | ||||
| 90480-26022 | ||||
| 90950-01060 | ||||
| 90950-01770 | ||||
| 93567-55016 | ||||

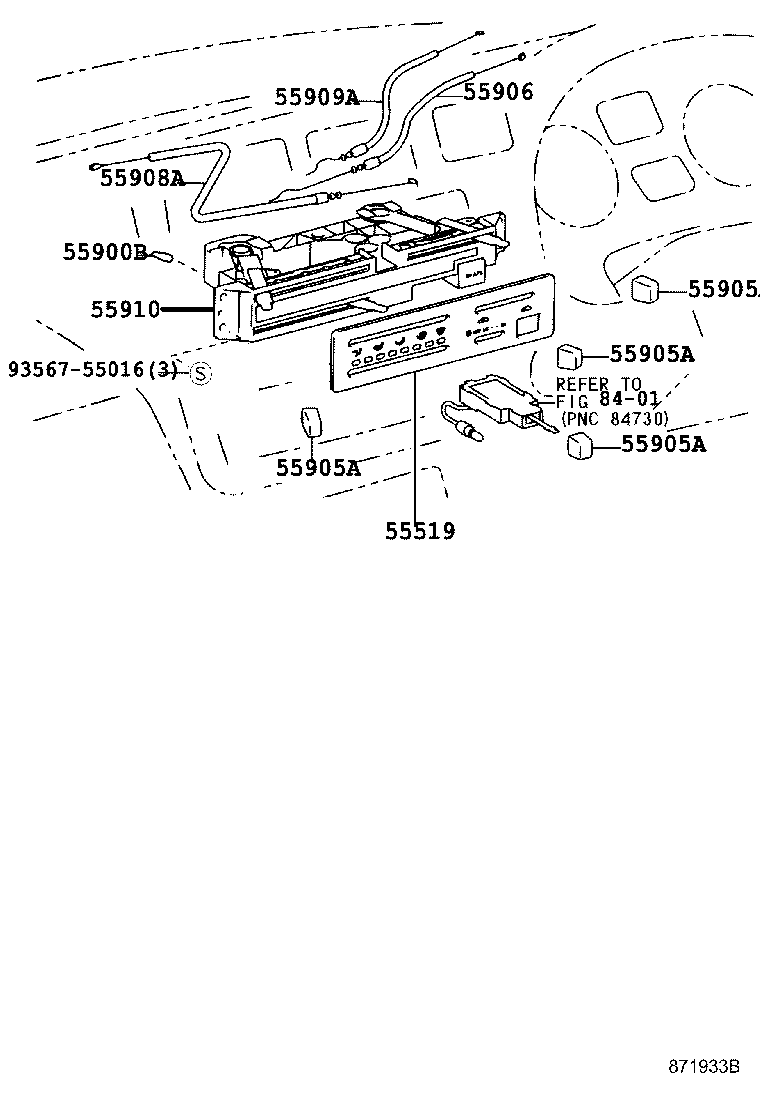

ILLUST NO. 1 OF 2(9511- )
Click highlighted areas on diagram
PANEL CONTROL & CABLE CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
