SXA11L-AWMGKV (1997)
Toyota Rav4
Production
Sep 1997
-
Aug 2000
Engine
3SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

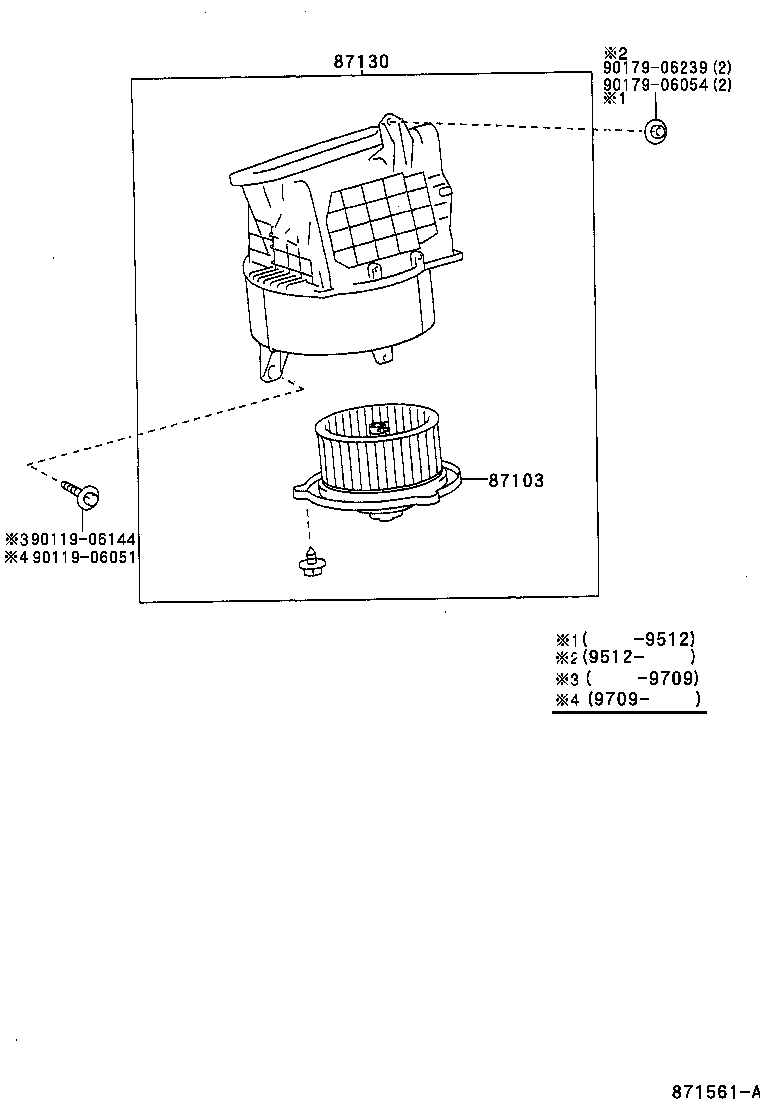

ILLUST NO. 2 OF 2(9404- )
Click highlighted areas on diagram
BLOWER HEATER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN | ||||
| 87103-17020 |
SXA1#..LHD |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-16160 |
SXA1#..LHD |
1 | ||
| Common parts | ||||
| 90119-06042 | ||||
| 90119-06051 | ||||
| 90119-06144 | ||||
| 90179-06054 | ||||
| 90179-06239 | ||||
ILLUST NO. 2 OF 2(9511- )
Click highlighted areas on diagram
BLOWER HEATER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06051 | ||||
| 90119-06144 | ||||
| 90179-06054 | ||||
| 90179-06239 | ||||
