SXA11L-AWMGKV (1997)

Toyota Rav4

Production Sep 1997 - Aug 2000
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9404- )

Click highlighted areas on diagram

W/0(HEADLAMP CLEANER)

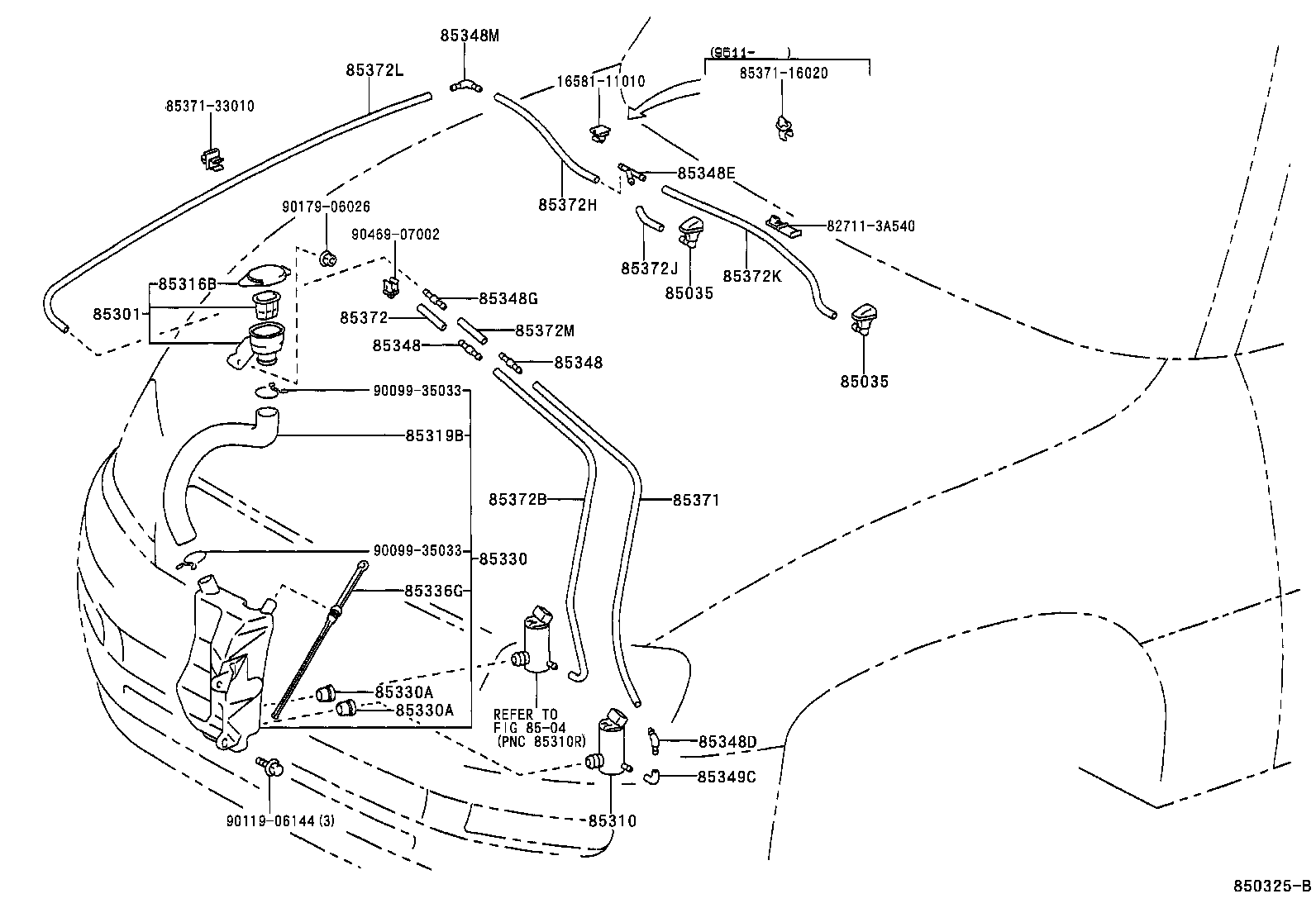

diagram 1658111010 827113A540 85035 85035 8504 85301 85310 85316B 85319B 85330 85330A 85330A 85336G 85348 85348 85348D 85348E 85348G 85348M 85349C 85371 8537116020 8537133010 85372 85372B 85372H 85372J 85372K 85372L 85372M 9009935033 9009935033 9011906144 9017906026 9046907002
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-12050

SXA1#

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-12050

SXA1#

 2
85301 - INLET SUB-ASSY, WASHER
85301-42010

SXA1#

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-20210

SXA1#

 1
85316B - CAP, WASHER, INLET
85316-26030

SXA1#

 1
85319B - HOSE, WINDOW WASHER
85319-42010

SXA1#

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

SXA1#..HT

 2
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

SXA1#..HT

 2
85336G - GAGE, WATER LEVEL
85336-42010

SXA1#

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

SXA1#

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

SXA1#

 2
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-20200

SXA1#

 2
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
85348-14390

SXA1#

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85349-89122

SXA1#..ARL,GCC,GEN

 1
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85376-10250

SXA1#

 1
85349C - JOINT, WINDSHIELD WASHER ELBOW, NO.4
85355-14481

SXA1#..ARL,GCC,GEN

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-07001

SXA1#..ARL,GCC,GEN

*H,L=700

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

SXA1#..HT

*H,L=40

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90446-07001

SXA1#..HT

*H,L=650

 1
85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
90099-33080

SXA1#..ARL,GCC,GEN

*H,L=40

 1
90099-33382

SXA1#..ARL,GCC,GEN

*H,L=1200

 1
85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
90099-33299

SXA1#..ARL,GCC,GEN

*H,L=540

 1
85372L - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6
90446-07013

SXA1#..ARL,GCC,GEN

L=750

 1
85372M - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7
90099-33080

SXA1#..ARL,GCC,GEN

*H,L=40

 1
Common parts
16581-11010
82711-3A540
85371-16020
85371-33010
90099-35033
90119-06144
90179-06026
90469-07002
Linked diagrams
8504

(9511- )

Click highlighted areas on diagram

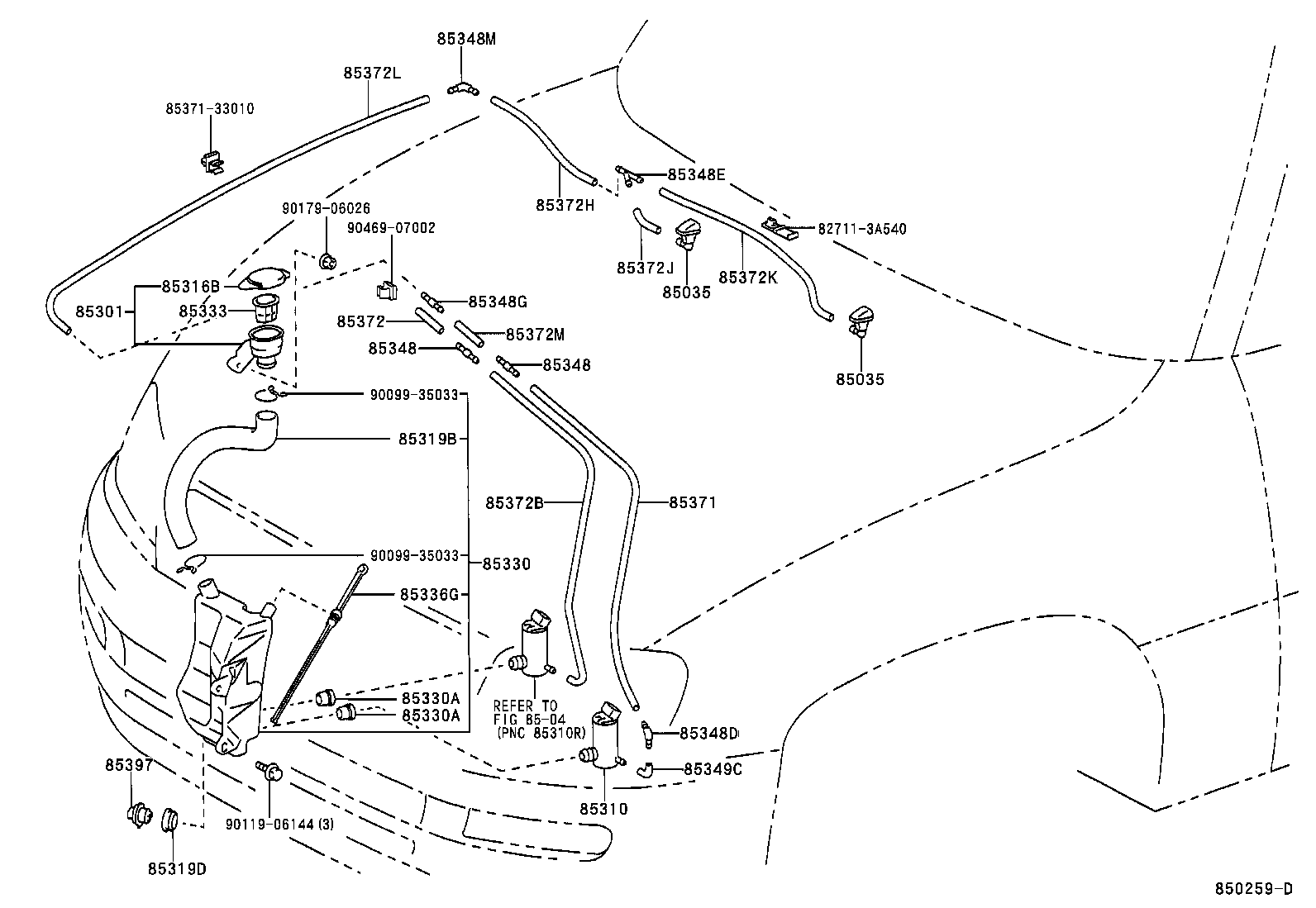

diagram 827113A540 85035 85035 8504 85301 85310 85316B 85319B 85319D 85330 85330A 85330A 85333 85336G 85348 85348 85348D 85348E 85348G 85348M 85349C 85371 8537133010 85372 85372B 85372H 85372J 85372K 85372L 85372M 85397 9009935033 9009935033 9011906144 9017906026 9046907002
Part # Description Qty Price
Common parts
82711-3A540
85371-33010
90099-35033
90119-06144
90179-06026
90469-07002
Linked diagrams
8504
