SXA11L-AWMGKV (1997)

Toyota Rav4

Production Sep 1997 - Aug 2000
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9709- )

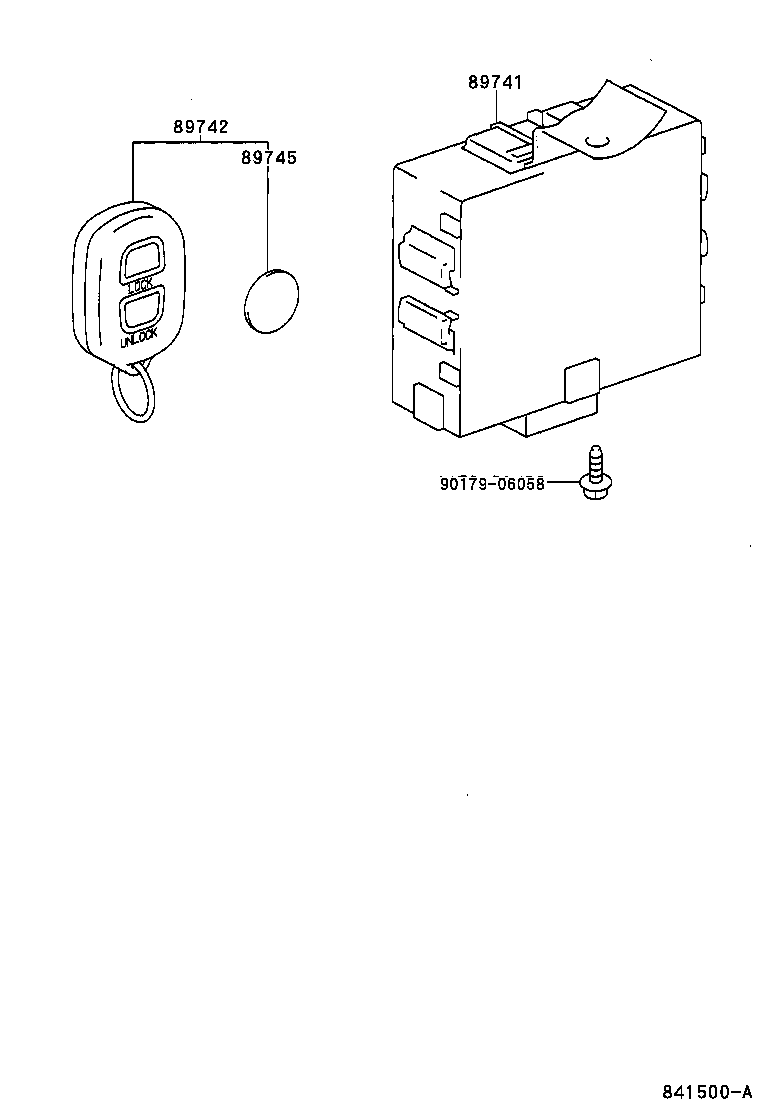

Click highlighted areas on diagram

diagram 89741 89742 89745 9017906058
Part # Description Qty Price
89741 - RECEIVER, DOOR CONTROL
89741-42050

SXA1#..GCC

 1
89742 - TRANSMITTER, DOOR CONTROL
89742-12180

SXA1#..ARL,GCC

 2
89745 - BATTERY, TRANSMITTER
89745-50010

SXA1#..ARL,EUR,GCC

 2
Common parts
90179-06058
