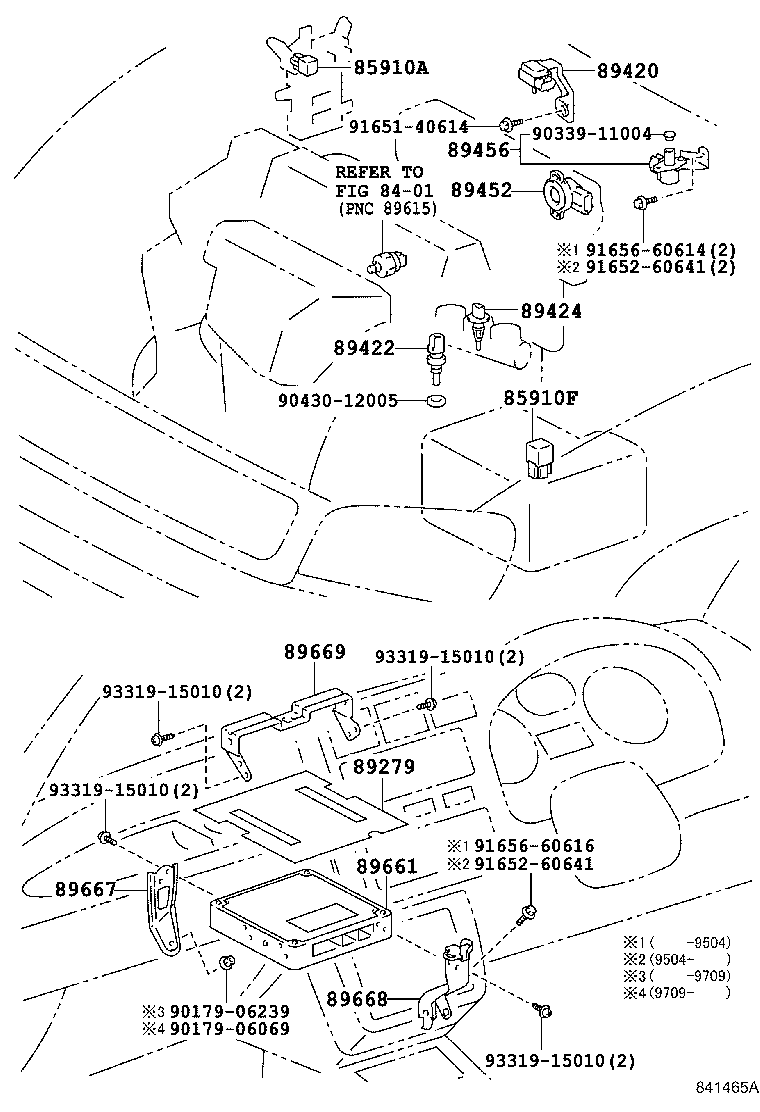

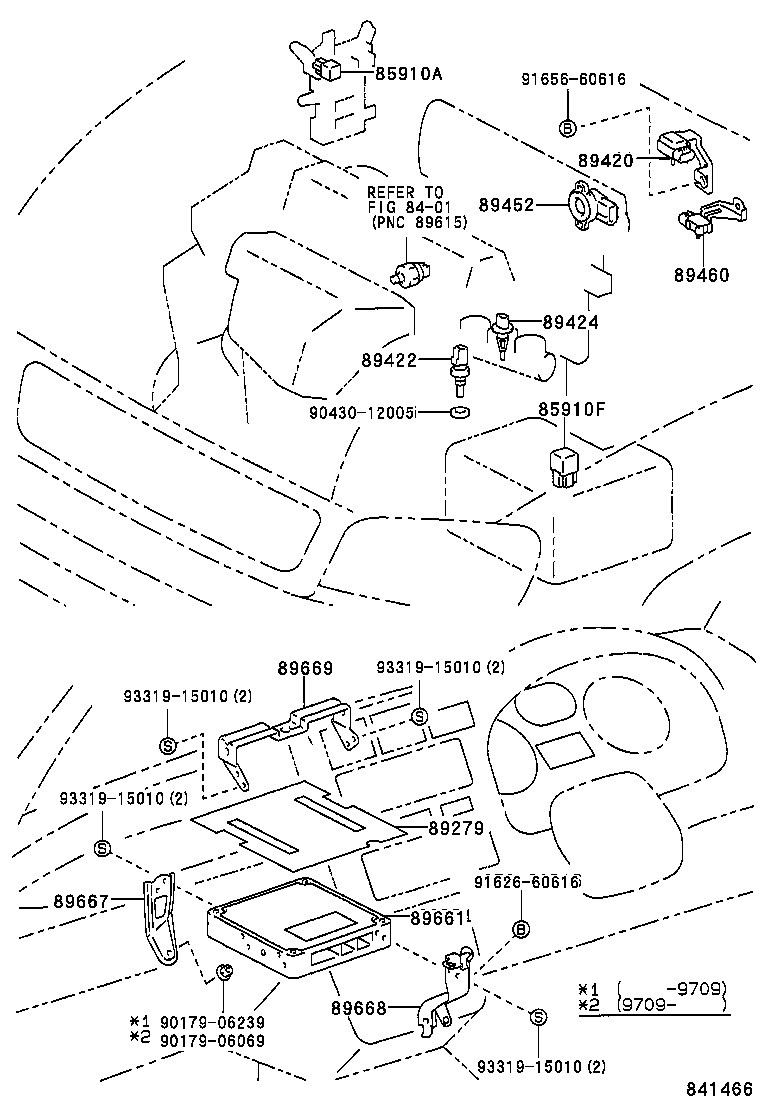

Toyota Rav4 SXA11 ELECTRONIC FUEL INJECTION SYSTEM

Part #	Description	Period	Qty
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02009	SXA1#	04/1994 - 09/1997	1
90987-02012	SXA1#	09/1997 - 12/2999	1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02009	SXA1#	04/1994 - 12/2999	1
89279 - COVER, ENGINE CONTROL COMPUTER
89279-42010	SXA1#	04/1994 - 12/2999	1
89420 - SENSOR ASSY, VACUUM
89420-0W050	SXA1#	09/1997 - 12/2999	1
89420-42010	SXA1#	04/1994 - 06/1996	1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-20010	SXA1#..EUR,GCC,GEN	09/1997 - 12/2999	1
89422-20010	SXA1#	04/1994 - 09/1997	1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-12010	SXA1#	04/1994 - 12/2999	1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-22090	SXA1#	04/1994 - 08/1996	1
89452-20130	SXA1#	09/1997 - 12/2999	1
89456 - RESISTOR, VARIABLE
89450-42010	SXA1#..GCC,GEN	04/1994 - 08/1996	1
89661 - COMPUTER, ENGINE CONTROL
89661-42070	SXA1#..MTM..(GCC,GEN)	04/1994 - 08/1996	1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-42010	SXA1#	04/1994 - 12/2999	1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-42010	SXA1#	04/1994 - 12/2999	1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-42020	SXA1#	09/1997 - 12/2999	1
89669-42010	SXA1#	04/1994 - 09/1997	1
Common parts
90179-06069
90179-06239
90339-11004
90430-12005
91651-40614
91652-60641
91656-60614
91656-60616
93319-15010
Linked diagrams
8401

SXA11L-AWMGKV (1997)
