SXA11L-AWMGKV (1997)
Toyota Rav4

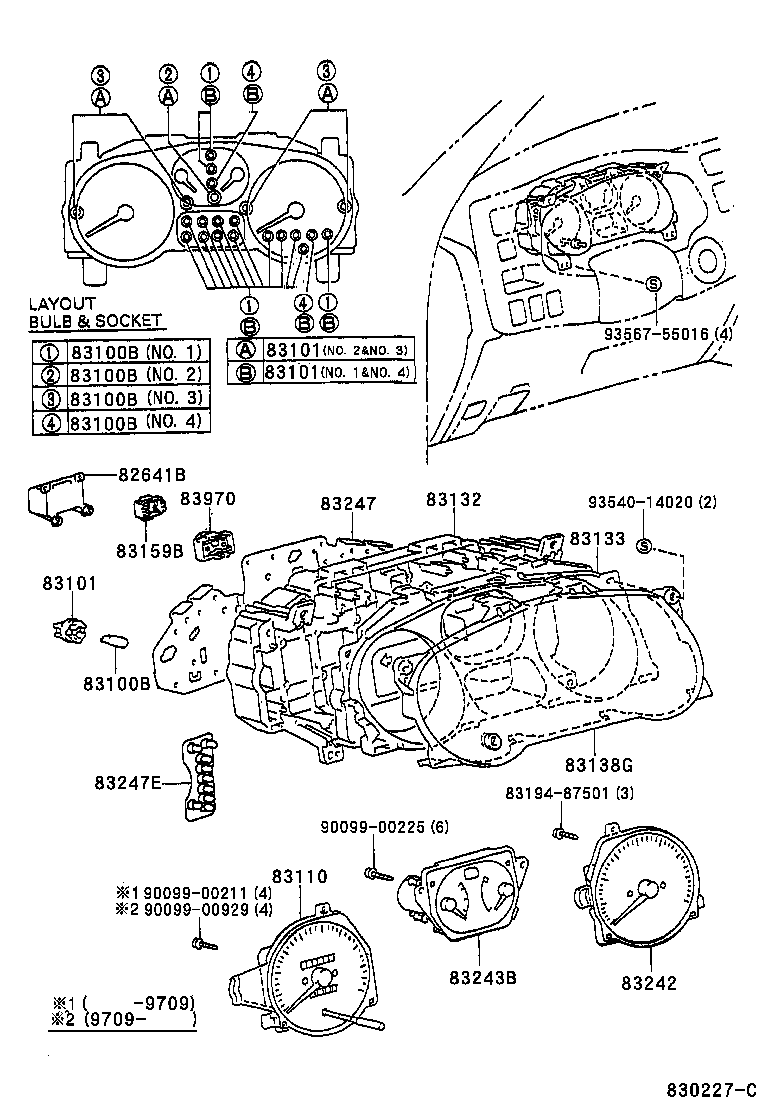

ILLUST NO. 1 OF 2(9404- )
COMBINATION METER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82641B - RELAY, INTEGRATION (FOR METER) | ||||
| 83888-42360 |
SXA11;SXA10..ARL,EUR,GEN W(ILLUMINATED ENTRY SYSTEM) |
1 | ||
| 83888-42510 |
SXA1#..GCC |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-42010 |
SXA1# 14V 3.0W,W(CAP),NO.3 |
4 | ||
| 83101-20080 |
SXA1# 12V 1.4W,W(SOCKET) |
1 | ||
| 83119-32010 |
SXA1# 14V 3.0W,NO.2 |
1 | ||
| 90981-11018 |
SXA11;SXA10..ARL..HT;SXA10..EUR,GCC,GEN 12V 1.2W W/O SOCKET,NO.1 |
10 | ||
| 90099-53009 |
SXA1# 14V0.84W W/O(SOCKET) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-42010 |
SXA1# 14V 3.0W,W(CAP),NO.3 |
4 | ||
| 83101-20080 |
SXA1# 12V 1.4W,W(SOCKET) |
1 | ||
| 83119-32010 |
SXA1# 14V 3.0W,NO.2 |
1 | ||
| 90981-11018 |
SXA11;SXA10..ARL..HT;SXA10..EUR,GCC,GEN 12V 1.2W W/O SOCKET,NO.1 |
10 | ||
| 90099-53009 |
SXA1# 14V0.84W W/O(SOCKET) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-42010 |
SXA1# 14V 3.0W,W(CAP),NO.3 |
4 | ||
| 83101-20080 |
SXA1# 12V 1.4W,W(SOCKET) |
1 | ||
| 83119-32010 |
SXA1# 14V 3.0W,NO.2 |
1 | ||
| 90981-11018 |
SXA11;SXA10..ARL..HT;SXA10..EUR,GCC,GEN 12V 1.2W W/O SOCKET,NO.1 |
10 | ||
| 90099-53009 |
SXA1# 14V0.84W W/O(SOCKET) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-42010 |
SXA1# 14V 3.0W,W(CAP),NO.3 |
4 | ||
| 83101-20080 |
SXA1# 12V 1.4W,W(SOCKET) |
1 | ||
| 83119-32010 |
SXA1# 14V 3.0W,NO.2 |
1 | ||
| 90981-11018 |
SXA11;SXA10..ARL..HT;SXA10..EUR,GCC,GEN 12V 1.2W W/O SOCKET,NO.1 |
10 | ||
| 90099-53009 |
SXA1# 14V0.84W W/O(SOCKET) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-42010 |
SXA1# 14V 3.0W,W(CAP),NO.3 |
4 | ||
| 83101-20080 |
SXA1# 12V 1.4W,W(SOCKET) |
1 | ||
| 83119-32010 |
SXA1# 14V 3.0W,NO.2 |
1 | ||
| 90981-11018 |
SXA11;SXA10..ARL..HT;SXA10..EUR,GCC,GEN 12V 1.2W W/O SOCKET,NO.1 |
10 | ||
| 90099-53009 |
SXA1# 14V0.84W W/O(SOCKET) |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-32020 |
SXA1# NO.2 & NO.3 |
5 | ||
| 83101-14040 |
SXA1#..MTM..(ARL,GCC) NO.1 & NO.4 |
12 | ||
| 83101-14040 |
SXA1#..ARL,GEN;SXA1#..MTM..GCC NO.1 & NO.4 |
12 | ||
| 83101-14040 |
SXA10..CVT;SXA1#..MTM..(EUR,GCC,GEN)..HT;SXA1#..ATM..(ARL,GCC,GEN)..HT NO.1 & NO.4 |
12 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-32020 |
SXA1# NO.2 & NO.3 |
5 | ||
| 83101-14040 |
SXA1#..MTM..(ARL,GCC) NO.1 & NO.4 |
12 | ||
| 83101-14040 |
SXA1#..ARL,GEN;SXA1#..MTM..GCC NO.1 & NO.4 |
12 | ||
| 83101-14040 |
SXA10..CVT;SXA1#..MTM..(EUR,GCC,GEN)..HT;SXA1#..ATM..(ARL,GCC,GEN)..HT NO.1 & NO.4 |
12 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-32020 |
SXA1# NO.2 & NO.3 |
5 | ||
| 83101-14040 |
SXA1#..MTM..(ARL,GCC) NO.1 & NO.4 |
12 | ||
| 83101-14040 |
SXA1#..ARL,GEN;SXA1#..MTM..GCC NO.1 & NO.4 |
12 | ||
| 83101-14040 |
SXA10..CVT;SXA1#..MTM..(EUR,GCC,GEN)..HT;SXA1#..ATM..(ARL,GCC,GEN)..HT NO.1 & NO.4 |
12 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-42040 |
SXA1#..LHD..(EUR,GCC) |
1 | ||
| 83220-42060 |
SXA1#..LHD..(EUR,GCC) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-42390 |
SXA11..MTM..GCC W(WATER TEMPERATURE GAUGE) |
1 | ||
| 83841-42360 |
SXA10..GCC;SXA11..MTM..GCC;SXA11..ATM..(GCC,GEN) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-42010 |
SXA1# |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-42360 |
SXA1# |
1 | ||
| 83138-42010 |
SXA1# |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83881-42390 |
SXA11..GCC W(WATER TEMPERATURE GAUGE) |
1 | ||
| 83881-42550 |
SXA1#..GCC |
1 | ||
| 83243B - GAUGE ASSY, COMBINATION | ||||
| 83243-42050 |
SXA10..ATM..GCC;SXA1#..LHD..MTM..(GCC,GEN) |
1 | ||
| 83882-42360 |
SXA11..MTM..GCC W(WATER TEMPERATURE GAUGE) |
1 | ||
| 83882-42430 |
SXA1#..MTM..GCC |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-42550 |
SXA1#..MTM..GCC |
1 | ||
| 83861-42480 |
SXA11..MTM..GCC W(WATER TEMPERATURE GAUGE) |
1 | ||
| 83970 - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-20010 |
SXA1#..MTM |
1 | ||
| 86650G - BUZZER ASSY | ||||
| 86650-42010 |
SXA1#..GCC |
1 | ||
| Common parts | ||||
| 83194-87501 | ||||
| 90099-00211 | ||||
| 90099-00225 | ||||
| 90099-00910 | ||||
| 90099-00929 | ||||
| 93540-14020 | ||||
| 93567-55016 | ||||

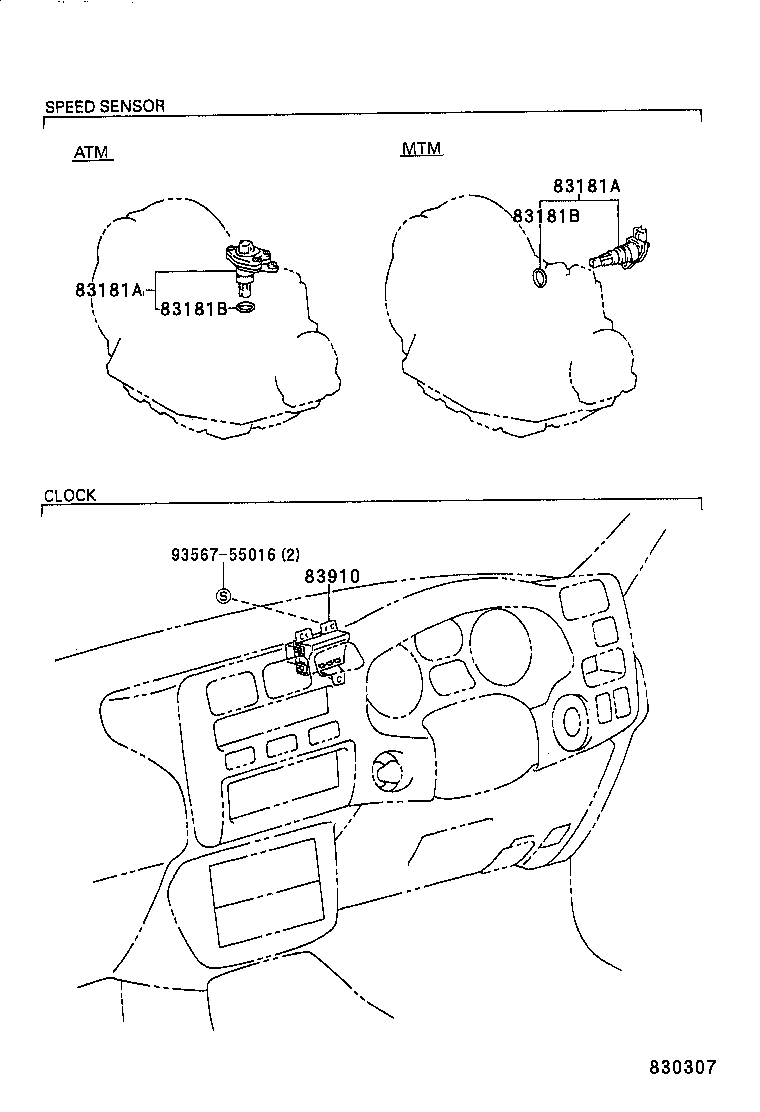

ILLUST NO. 2 OF 2(9404- )
SPEED SENSOR & CLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12050 |
SXA1#..MTM |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12050 |
SXA1#..MTM |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24030 |
SXA1# |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24030 |
SXA1# |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-42010 |
SXA1# |
1 | ||
| Common parts | ||||
| 93567-55016 | ||||

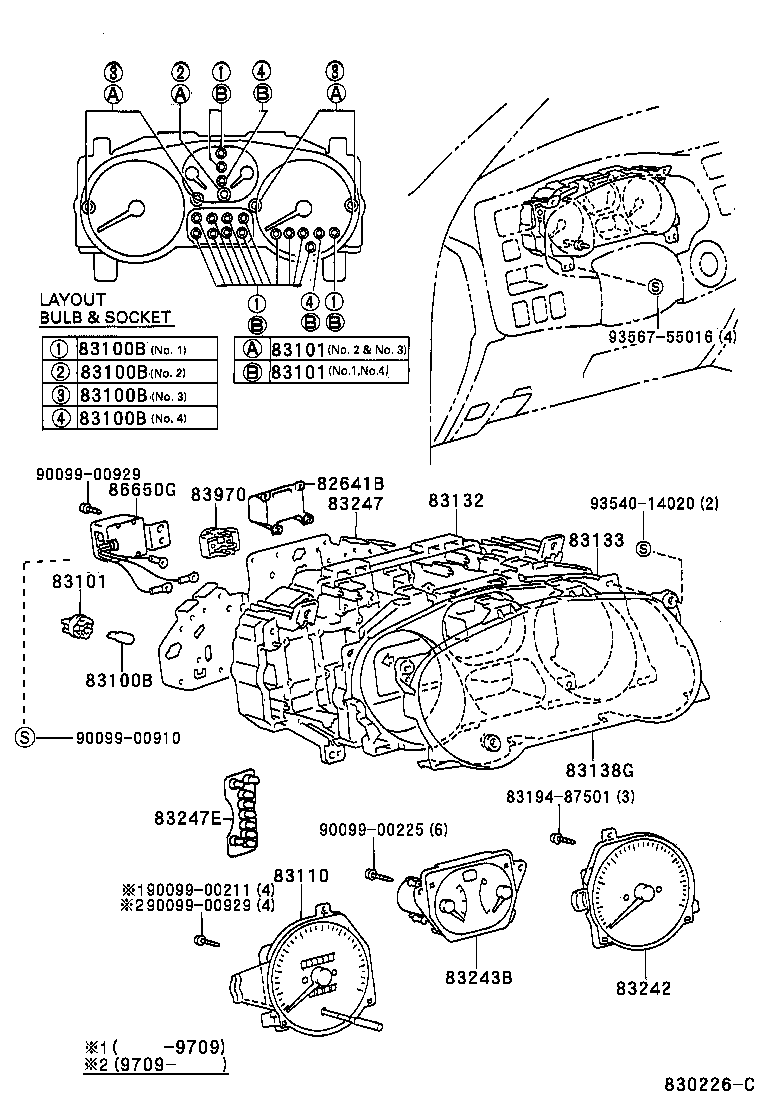

ILLUST NO. 1 OF 2(9511- )
COMBINATION METER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 83194-87501 | ||||
| 90099-00211 | ||||
| 90099-00225 | ||||
| 90099-00929 | ||||
| 93540-14020 | ||||
| 93567-55016 | ||||

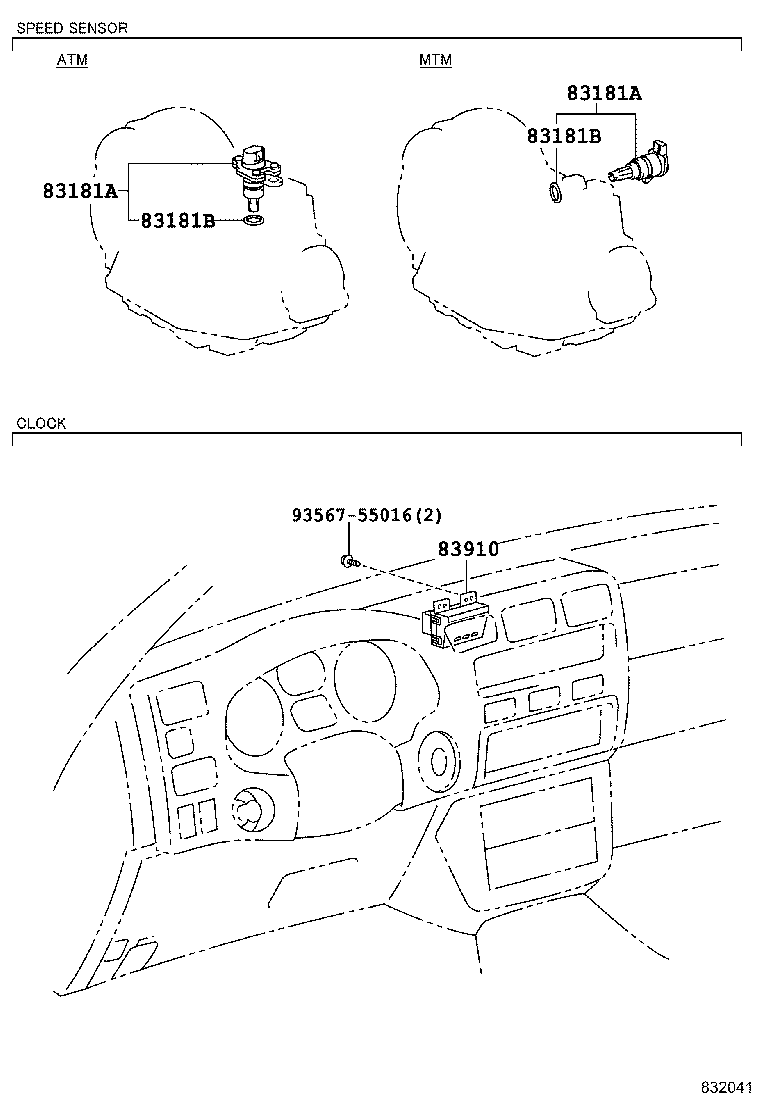

ILLUST NO. 2 OF 2(9511- )
SPEED SENSOR & CLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 93567-55016 | ||||
