Toyota Rav4 SXA11 WIRING & CLAMP

SXA11L-AWMGKV (1997)

Toyota Rav4

Production Sep 1997 - Aug 2000

Engine 3SFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 7(9404- )

Click highlighted areas on diagram

ENGINE WIRE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-42450	SXA1#..LHD..MTM..(GCC,GEN)	09/1997 - 12/2999	1
82123 - WIRE, ENGINE, NO.3
82123-42030	SXA1#..LHD	04/1994 - 11/1995	1
82124 - WIRE, ENGINE, NO.4
82124-42010	SXA1#..MTM	04/1994 - 12/2999	1
82210C - FUSIBLE LINK
90982-08257	SXA1#..LHD 40A,TERM.:MALE,GRN	04/1994 - 08/1996	1
90982-08203	SXA1#..LHD 80A,TERM.:MALE,BLK	04/1994 - 12/2999	1
Common parts
90105-08096
90119-08196
90119-10725
90179-06158
90179-06236
91621-60612
91656-60616
Linked diagrams
8401

ILLUST NO. 7 OF 7(9404- )

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82711-26070
82711-2C040
82711-3A740
82711-3F230
82715-20300
82715-20390
82715-20400
82715-33140
82715-42010
82715-42020
82715-42041
82715-42080
82715-42140
82715-42180
82715-42190
82715-42330
82715-42470
87616-35010
91511-40616
91621-60612
91651-61016
91652-61016
91656-60616

ILLUST NO. 6 OF 7(9404- )

Click highlighted areas on diagram

FLOOR,BACK DOOR WIRE

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-42510	SXA11..LHD	09/1997 - 12/2999	1
82161-42520	SXA11..GCC GENERAL UP GRADE PACKAGE	09/1997 - 12/2999	1
82184 - WIRE, BACK DOOR, NO.1
82184-42040	SXA1#..GCC,GEN W(HIGH MOUNT STOP LAMP---BULB TYPE)	04/1994 - 08/1996	1
82184-42120	SXA1#..GCC,GEN W(HIGH MOUNT STOP LAMP---BULB TYPE)	09/1997 - 12/2999	1
82184-42030	SXA1#..EUR,GCC,GEN	04/1994 - 08/1996	1
82184-42130	SXA1#..GCC,GEN	09/1997 - 12/2999	1
82186 - WIRE, REAR WINDOW, NO.1
82186-42010	SXA1#..HT	04/1994 - 12/2999	2
82186 - WIRE, REAR WINDOW, NO.1
82186-42010	SXA1#..HT	04/1994 - 12/2999	2
82412 - WIRE, FUEL GAGE
82412-42010	SXA1#	04/1994 - 12/2999	1
Common parts
82817-42140
82817-42150
90119-06390

ILLUST NO. 1 OF 7(9404- )

Click highlighted areas on diagram

CABLE BOND

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07280	SXA1#	04/1994 - 12/2999	1
82001C - CABLE, BOND, NO.2
90980-07342	SXA1#	04/1994 - 08/1996	1
90980-07406	SXA1#	08/1998 - 12/2999	1
82001D - CABLE, BOND, NO.3
90980-07381	SXA1#	08/1998 - 12/2999	1
90980-07318	SXA1#	04/1994 - 08/1996	1
Common parts
90119-06067
90119-06390
90179-06133
91652-B0612
92122-60610

ILLUST NO. 3 OF 7(9404- )

Click highlighted areas on diagram

ENGINE ROOM WIRE

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-42760	SXA11..LHD W(*66)	09/1997 - 12/2999	1
82111-42740	SXA1#..LHD	09/1997 - 12/2999	1
82111 - WIRE, ENGINE ROOM MAIN
82111-42760	SXA11..LHD W(*66)	09/1997 - 12/2999	1
82111-42740	SXA1#..LHD	09/1997 - 12/2999	1
82210B - FUSIBLE LINK
90982-08202	SXA10..CVT;SXA1#..GCC,GEN 60A,TERM.:MALE,YEL	09/1997 - 12/2999	1
90982-08246	SXA1# 100A,TERM.:MALE,BLUE	09/1997 - 12/2999	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-32010	SXA1#	04/1994 - 12/2999	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-42100	SXA1#	04/1994 - 12/2999	1
Common parts
82817-42280
90119-06390
91626-60616
91656-60616
Linked diagrams
8401

ILLUST NO. 5 OF 7(9404- )

Click highlighted areas on diagram

DOOR,ROOF WIRE

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-42010	SXA1#..EUR,GCC,GEN W(RADIO)	04/1994 - 12/2999	1
82151-42350	SXA11..GCC GENERAL UP GRADE PACKAGE	09/1997 - 12/2999	1
82152 - WIRE, FRONT DOOR, LH
82151-42010	SXA1#..(EUR,GCC,GEN)..HT W(RADIO)	09/1997 - 12/2999	1
82152-42270	SXA11..GCC GENERAL UP GRADE PACKAGE	09/1997 - 12/2999	1
82153 - WIRE, REAR DOOR, NO.1
82153-42010	SXA11..GCC GENERAL UP GRADE PACKAGE	09/1997 - 12/2999	1
82154 - WIRE, REAR DOOR, NO.2
82154-42010	SXA11..GCC GENERAL UP GRADE PACKAGE	09/1997 - 12/2999	1
82171 - WIRE, ROOF, NO.1
82171-42150	SXA11..LHD W(ELECTRIC MOON ROOF)	09/1997 - 12/2999	1
82171-42140	SXA11..LHD	09/1997 - 12/2999	1
Common parts
82711-2C040
90119-06390
90333-20001
90333-35004
90950-01061
90950-01066
90950-01184
90950-01870

ILLUST NO. 4 OF 7(9404- )

Click highlighted areas on diagram

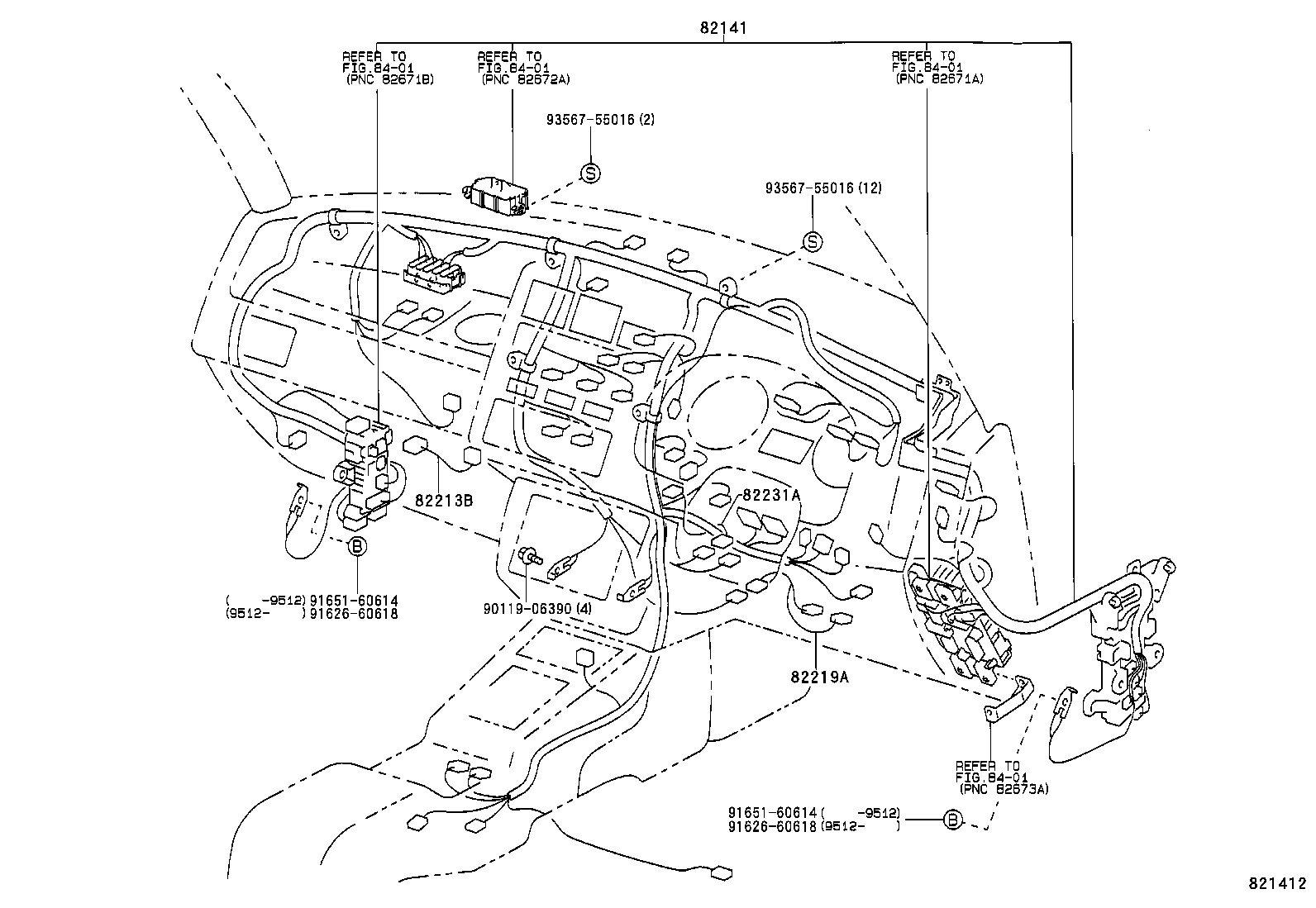

INSTRUMENT PANEL WIRE

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82141-4A470	SXA1#..LHD..MTM..(EUR,GCC)	09/1997 - 08/2000	1
82213B - WIRE, HEATER
82213-42030	SXA1#	09/1997 - 12/2999	1
82213-42010	SXA1#	04/1994 - 09/1997	1
82219A - WIRE, SENSOR
82219-42020	SXA11	09/1997 - 12/2999	1
Common parts
90119-06390
91626-60618
91651-60614
93567-55016

ILLUST NO. 7 OF 7(9805- )

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82715-42060

ILLUST NO. 2 OF 7(9511- )

Click highlighted areas on diagram

ENGINE WIRE

Part #	Description	Period	Qty	Price
Common parts
90105-08096
90119-08196
90119-10725
90179-06158
90179-06236
91621-60612
91656-60616
Linked diagrams
8401

ILLUST NO. 6 OF 7(9511- )

Click highlighted areas on diagram

FLOOR,BACK DOOR WIRE

Part #	Description	Period	Qty	Price
Common parts
82817-42140
82817-42150
90119-06390

ILLUST NO. 7 OF 7(9511- )

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82711-2C040
82711-3A740
82711-3F230
82715-20300
82715-20390
82715-20400
82715-33140
82715-42010
82715-42020
82715-42041
82715-42070
82715-42140
82715-42180
82715-42190
87616-35010
91621-60612
91651-61016
91652-61016
91656-60616

ILLUST NO. 1 OF 7(9511- )

Click highlighted areas on diagram

CABLE BOND

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07280	SXA1#	04/1994 - 12/2999	1
82001C - CABLE, BOND, NO.2
90980-07342	SXA1#	04/1994 - 08/1996	1
90980-07406	SXA1#	08/1998 - 12/2999	1
82001D - CABLE, BOND, NO.3
90980-07381	SXA1#	08/1998 - 12/2999	1
90980-07318	SXA1#	04/1994 - 08/1996	1
Common parts
90119-06067
90119-06390
90179-06133
91652-B0612
92122-60610

ILLUST NO. 3 OF 7(9511- )

Click highlighted areas on diagram

ENGINE ROOM WIRE

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-42760	SXA11..LHD W(*66)	09/1997 - 12/2999	1
82111-42740	SXA1#..LHD	09/1997 - 12/2999	1
82111 - WIRE, ENGINE ROOM MAIN
82111-42760	SXA11..LHD W(*66)	09/1997 - 12/2999	1
82111-42740	SXA1#..LHD	09/1997 - 12/2999	1
82210B - FUSIBLE LINK
90982-08202	SXA10..CVT;SXA1#..GCC,GEN 60A,TERM.:MALE,YEL	09/1997 - 12/2999	1
90982-08246	SXA1# 100A,TERM.:MALE,BLUE	09/1997 - 12/2999	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-32010	SXA1#	04/1994 - 12/2999	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-42100	SXA1#	04/1994 - 12/2999	1
Common parts
82817-42280
90119-06390
91626-60616
91656-60616
Linked diagrams
8401

ILLUST NO. 5 OF 7(9511- )

Click highlighted areas on diagram

DOOR,ROOF WIRE

Part #	Description	Period	Qty	Price
Common parts
82711-2C040
90119-06390
90333-20001
90333-35004
90950-01061
90950-01066
90950-01184
90950-01870

ILLUST NO. 7 OF 7(9805- )

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82715-42060

ILLUST NO. 4 OF 7(9511- )

Click highlighted areas on diagram

INSTRUMENT PANEL WIRE

Part #	Description	Period	Qty	Price
Common parts
90119-06390
91626-60618
91651-60614
93567-55016
Linked diagrams
8401
