SXA11L-AWMGKV (1997)

Toyota Rav4

Production Sep 1997 - Aug 2000
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9404- )

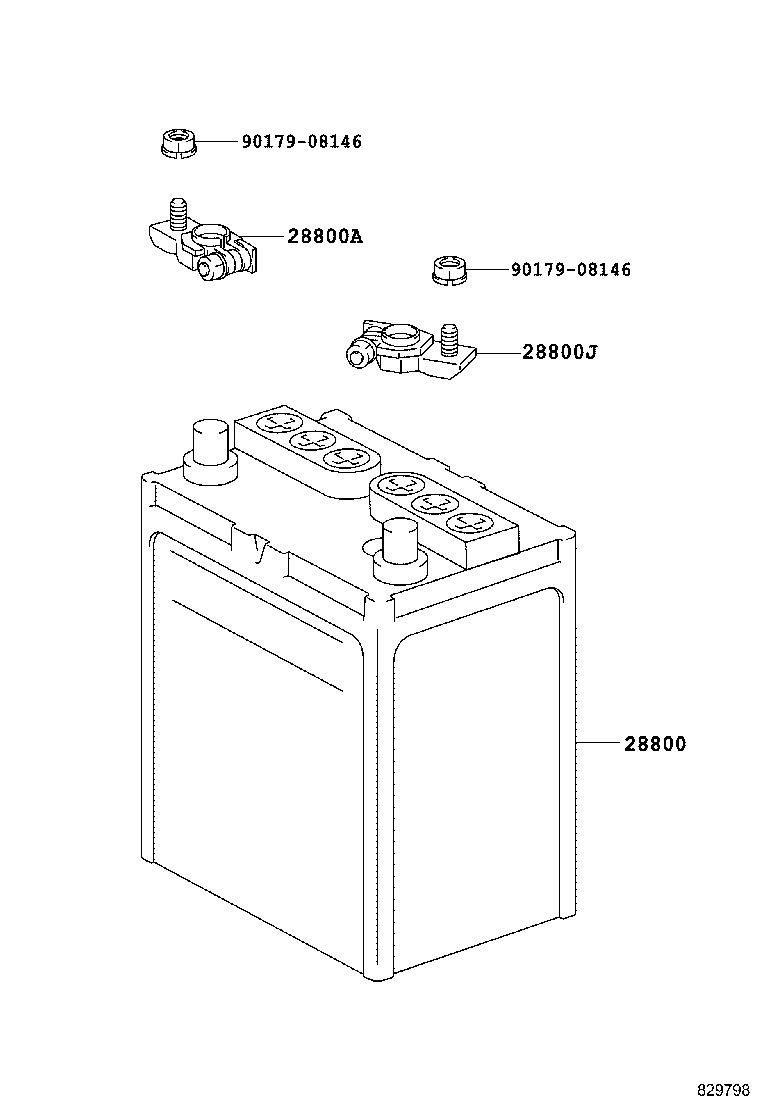

Click highlighted areas on diagram

diagram 28800 28800A 28800J 9017908146 9017908146
Part # Description Qty Price
28800 - BATTERY
28800-31101

3SFE..SXA1#..LHD..MTM

34B19L(S),KOBE

 1
28800-31121

3SFE..SXA1#..LHD..MTM

34B19L(S),FURUKAWA

 1
28800-31111

3SFE..SXA1#..LHD..MTM

34B19L(S),MATSUSHITA

 1
28800-74260

3SFE..SXA11..GCC;3SFE..SXA10..LHD..CVT;3SFE..SXA10..LHD..ATM..HT;3SFE..SXA11..LHD..ATM..EUR

46B24L(S)

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05037

3SFE..SXA1#..LHD

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06022

3SFE..SXA1#..LHD

 1
Common parts
90179-08146

(9511- )

Click highlighted areas on diagram

diagram 28800 28800A 28800J 28897 28898 28898B 28898B 9017908146 9017908146
Part # Description Qty Price
Common parts
90179-08146
